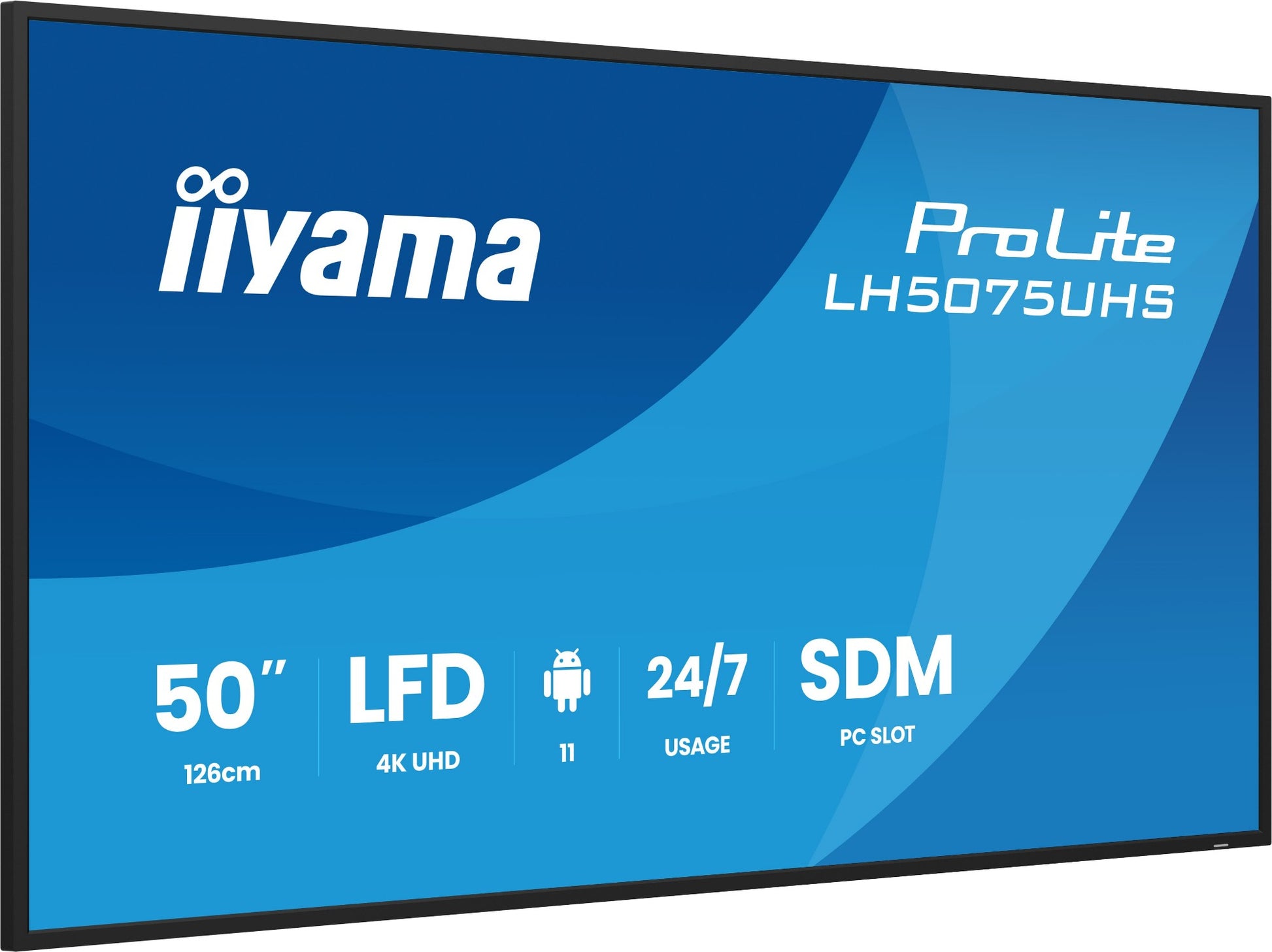

iiyama LH5075UHS-B2AG Signage Display Digital signage flat panel 49.5" 4K UHD VA Monitor
iiyama LH5075UHS-B2AG Signage Display Digital signage flat panel 49.5" 4K UHD VA Monitor
Couldn't load pickup availability
The iiyama LH5075UHS-B2AG Signage Display Digital signage flat panel delivers a crisp 49.5" 4K UHD 3840x2160 VA monitor that handles everyday work and entertainment with ease.
Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5075UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. Now the display is also offering DP-Out from any input. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
Specifications
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Active display area (W x H) | 1095.8 x 616.4 mm |
| Display technology | LCD |
| Display diagonal | 125.7 cm (49.5") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 9.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.285 x 0.285 mm |
| Display diagonal (metric) | 125.7 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 28 - 160 kHz |
| Anti-glare screen | Yes |
| Maximum frame rate | 60 fps |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| RGB colour space | sRGB |

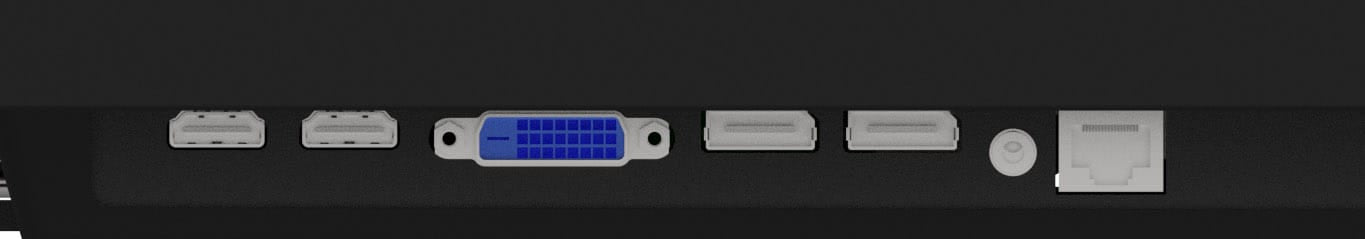

| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| DisplayPorts out | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| DisplayPorts in | 1 |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| VGA (D-Sub) input ports | 0 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| HDMI input ports quantity | 3 |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

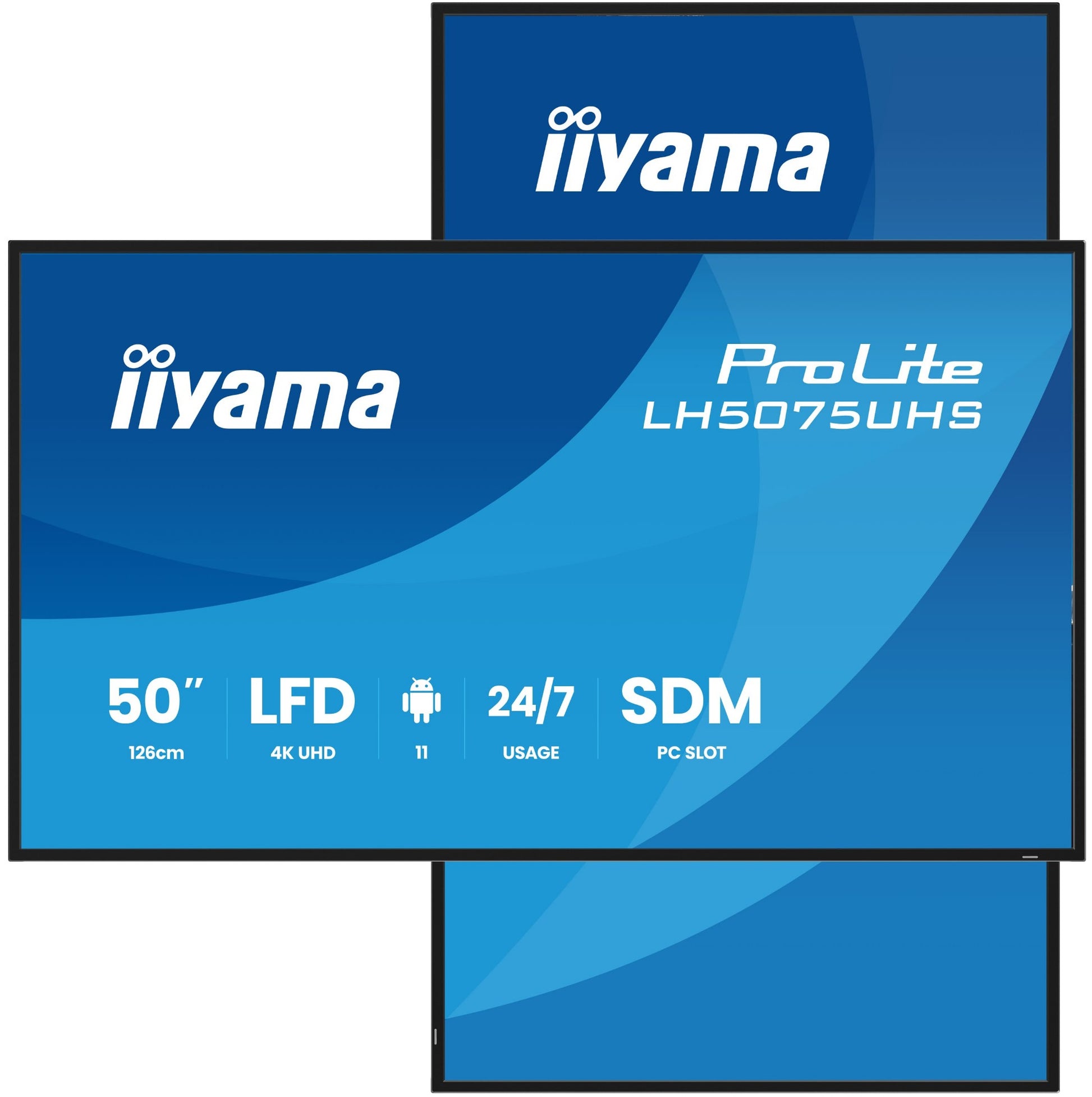

| Orientation | Horizontal/Vertical |
| Housing material | Metal |
| Bezel width (top) | 1.35 cm |
| Bezel width (side) | 1.32 cm |
| Bezel width (bottom) | 1.35 cm |
| Product colour | Black |

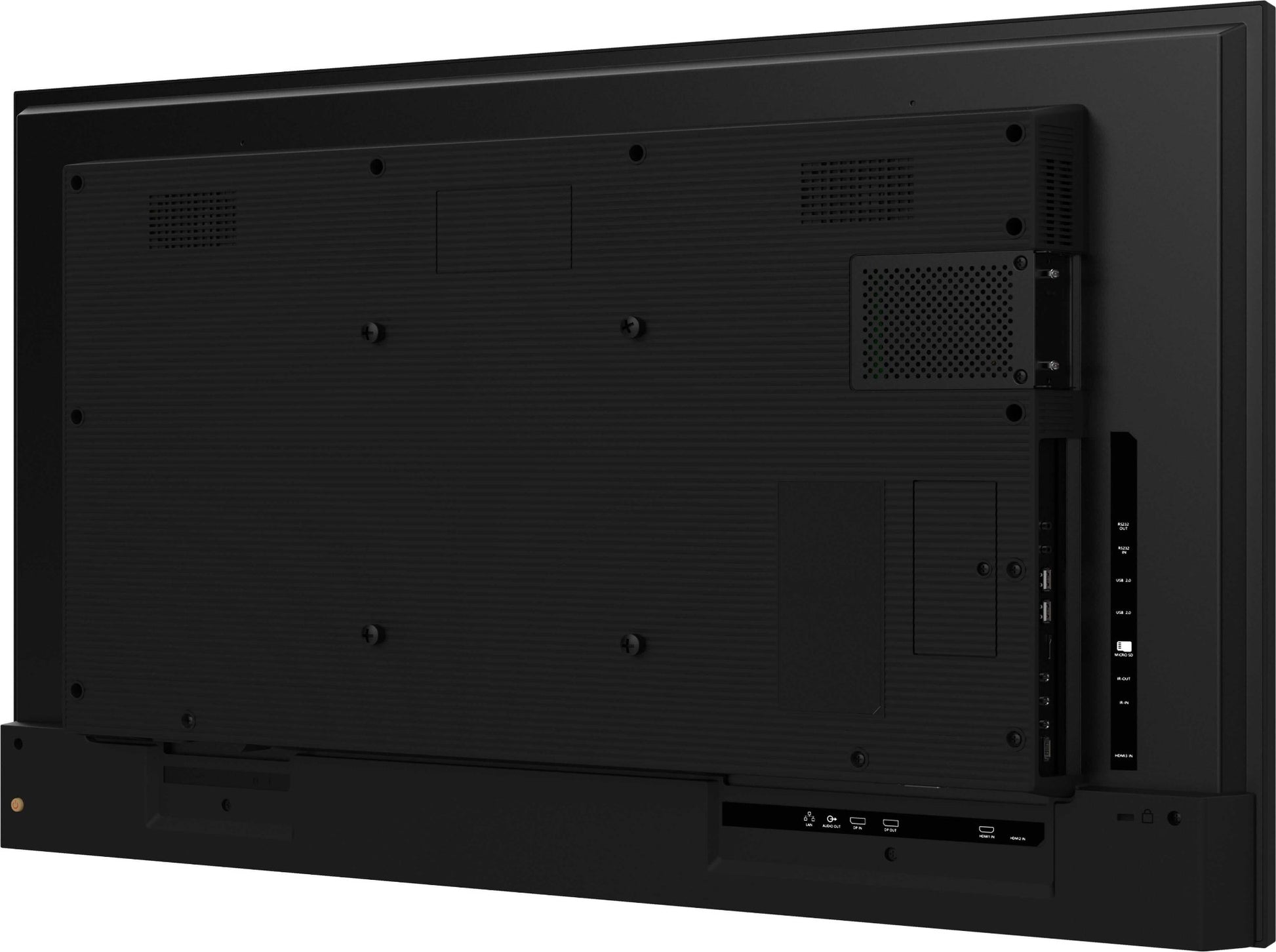

| Panel mounting interface | 400 x 400 mm |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| VESA mounting | Yes |
| Bezel colour | Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 112 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 110 kWh |
| Computer system | |
| Processor cores | 4 |
| Processor family | ARM Cortex |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A73 |
| Operating system version | 11 |
| Weight & dimensions | |
| Width | 1122.7 mm |
| Depth | 55 mm |
| Height | 643.6 mm |
| Weight | 11.8 kg |
| Display width | 1122.7 mm |
| Display depth | 55 mm |
| Display height | 643.6 mm |
| Display weight | 11.8 kg |
| Packaging data | |
| Package width | 1261 mm |
| Package depth | 132 mm |
| Package height | 761 mm |
| Package weight | 16.2 kg |
| Quick start guide | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Power supply type | Internal |
| Playback media | Yes |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, Group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced option reset) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
