i-tec Universal 6x 4K/60Hz USB-C Docking Station 140W

One cable, full desk: the i-tec Universal 6x 4K/60Hz turns your laptop into a workstation with 140W charging over a single USB-C connection.

The ultimate performance docking station. Supports up to six external monitors* at 4K/60Hz. Or, two can run simultaneously even at 8K! The perfect product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features a USB-C fast charging port (with up to 30W charging power), especially for charging smartphones and tablets, fast USB ports, a 2.5 Gbps LAN port, as well as other peripherals.
The dock can be connected to virtually any laptop, regardless of make, model or operating system type. Any USB port is sufficient*.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

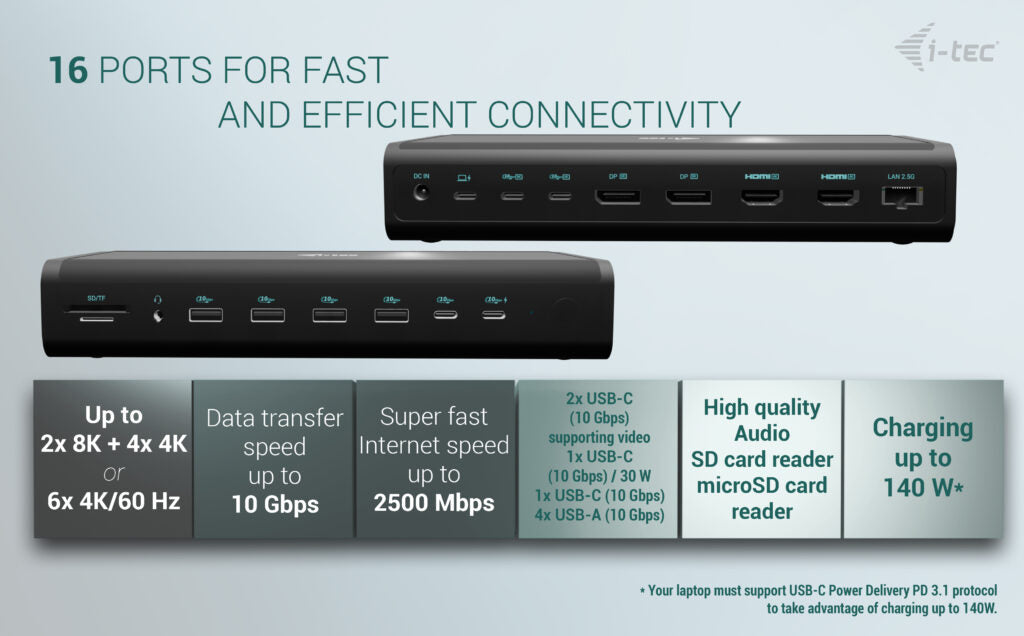

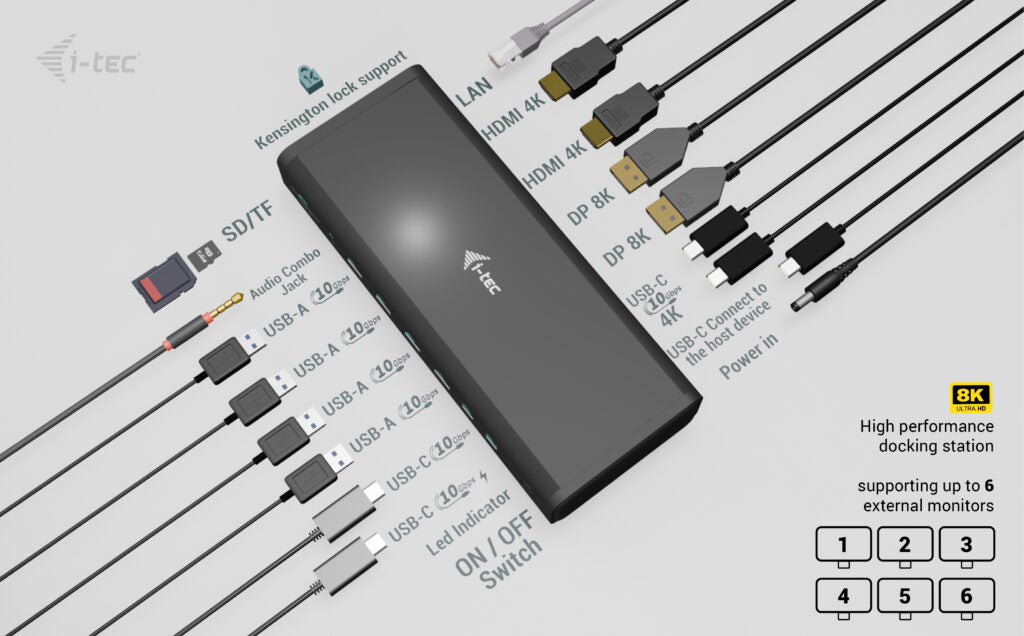

- Support for up to 6 external monitors* with resolutions up to 2x 8k, or 6x 4K/60Hz

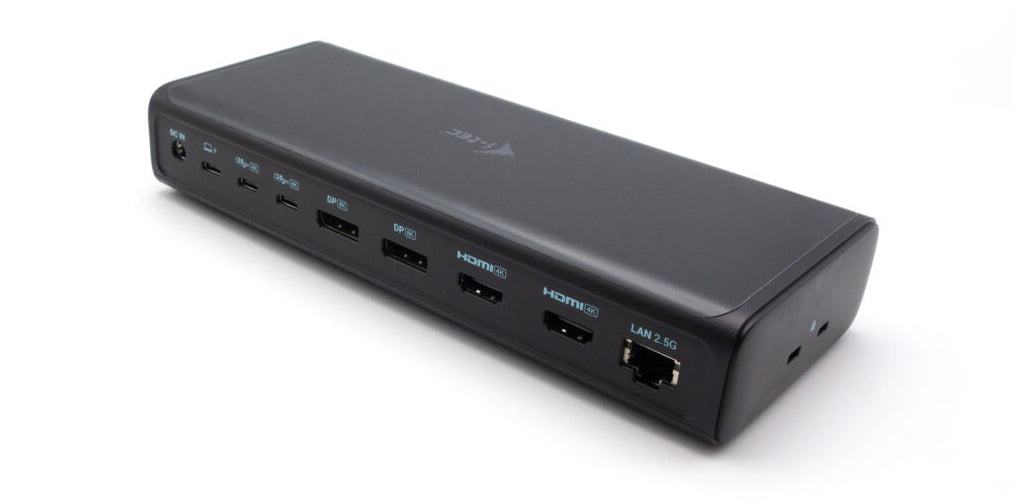

- Video ports: 2x HDMI, 2x DP, 2x USB-C MFDP (supporting video* or 10 Gbps data)

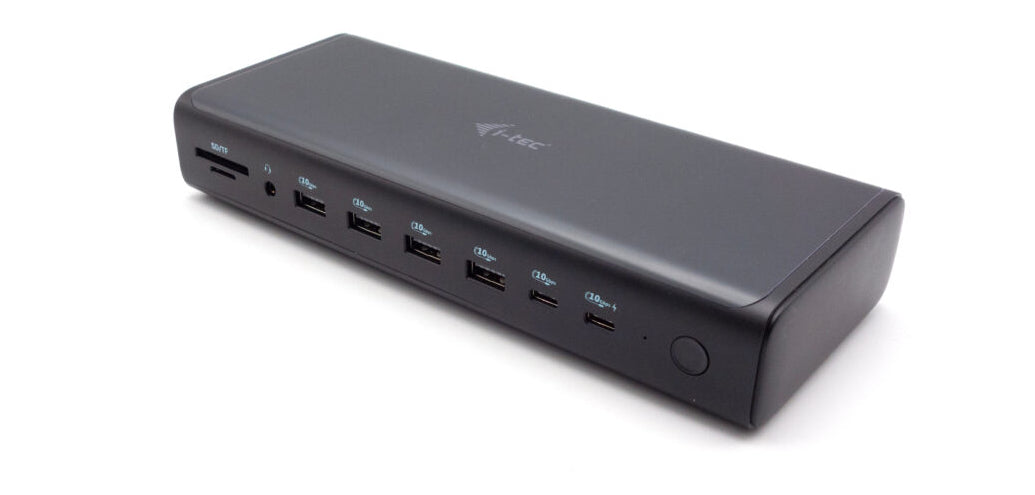

- 2x USB-C (10 Gbps), one supporting up to 30 W charging
- 4x USB-A 3.1 Gen. 1
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/mic port
- 1x SD/microSD slot
- Laptop power supply up to 140 W **
- Docking station on/off button
- Support for installation behind a monitor

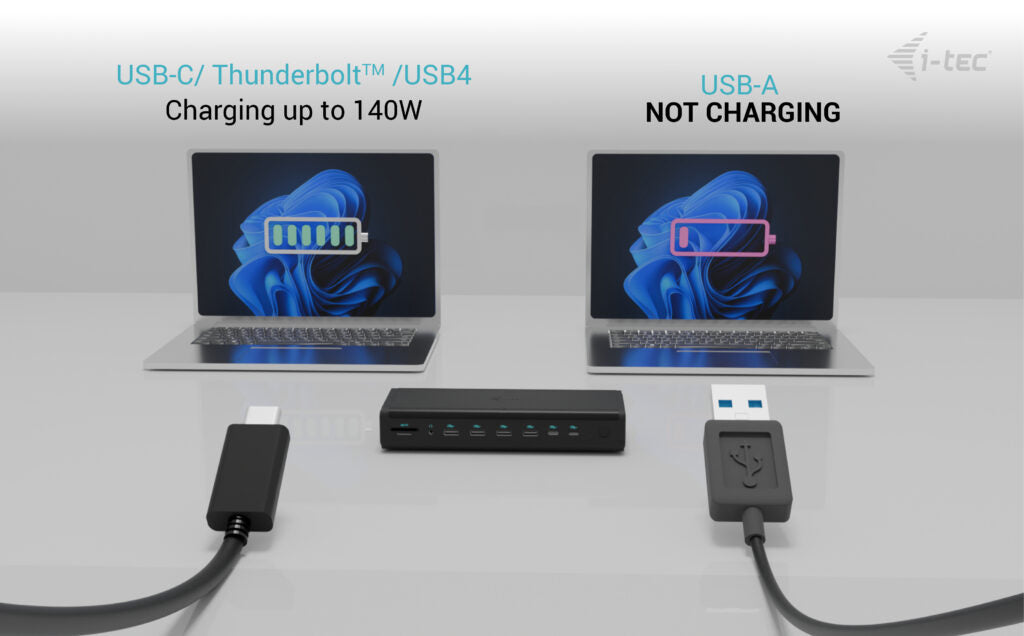

* If connected via USB-A, only four monitors will be supported via DP and HDMI ports, and laptop/tablet charging will not be possible.
** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0, the charging power will be 100W)

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	140 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Performance
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	6
On/off switch	Yes
Product colour	Black
Card reader integrated	Yes
Cable lock slot	Yes
LED indicators	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
Cable lock slot type	Kensington
VESA mounting	Yes
Maximum refresh rate	144 Hz
Power
Power consumption (max)	240 W
Compatible power plug types	UK
Output voltage	24 V
Output current	10 A
USB cable length	1 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android, ChromeOS
Weight & dimensions
Weight	546 g
Width	218 mm
Depth	88 mm
Height	37 mm
Package width	270 mm
Package depth	181 mm
Package height	90 mm

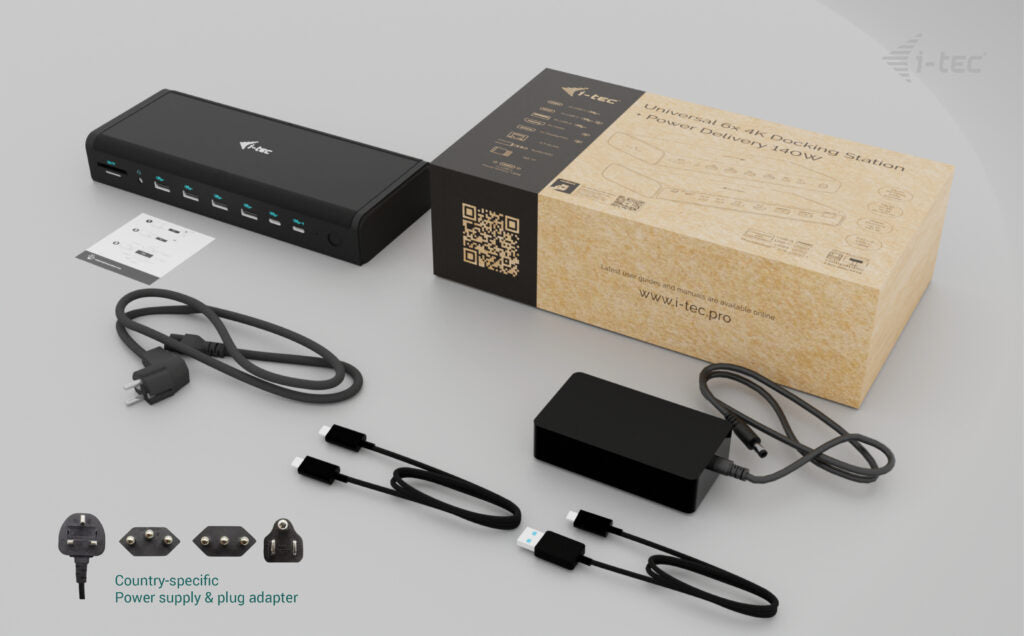

Packaging content
Quick start guide	Yes
Cables included	AC, USB Type-A to USB Type-C, USB Type-C
AC adapter included	Yes

Downloads

• Datasheet (PDF)
