i-tec Power Delivery W USB-C Docking Station 100W (O100WUK)

One cable, full desk: the i-tec Power Delivery W turns your laptop into a workstation with external displays, 100W charging over a single USB-C connection.

A high-performance USB-C office dock that supports up to 3x external 4K monitors. The dock is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4/5 port. Of course, it supports charging of your laptop or tablet, up to 100 W.

The integrated latest DP 1.4 DSC protocol also supports 5K/60 Hz resolution, which can be appreciated by professional graphic designers, data analysts, film editors or high-definition video lovers.

Note: macOS operating system does not support Multi Stream Transport (MST) video transmission technology, which means that if connected to macOS, the same image will be projected on all connected monitors.

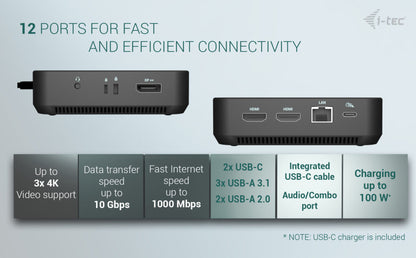

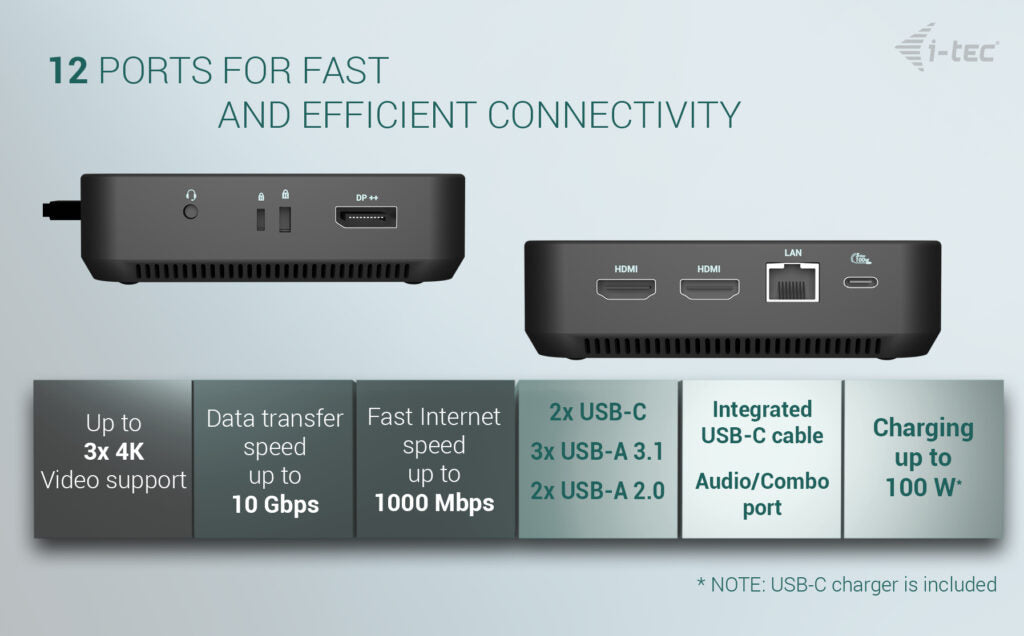

- Connect up to three external 4K monitors
- Refresh rate up to 240Hz (when connected to a single 1440p monitor)
- Power delivery: up to 100W

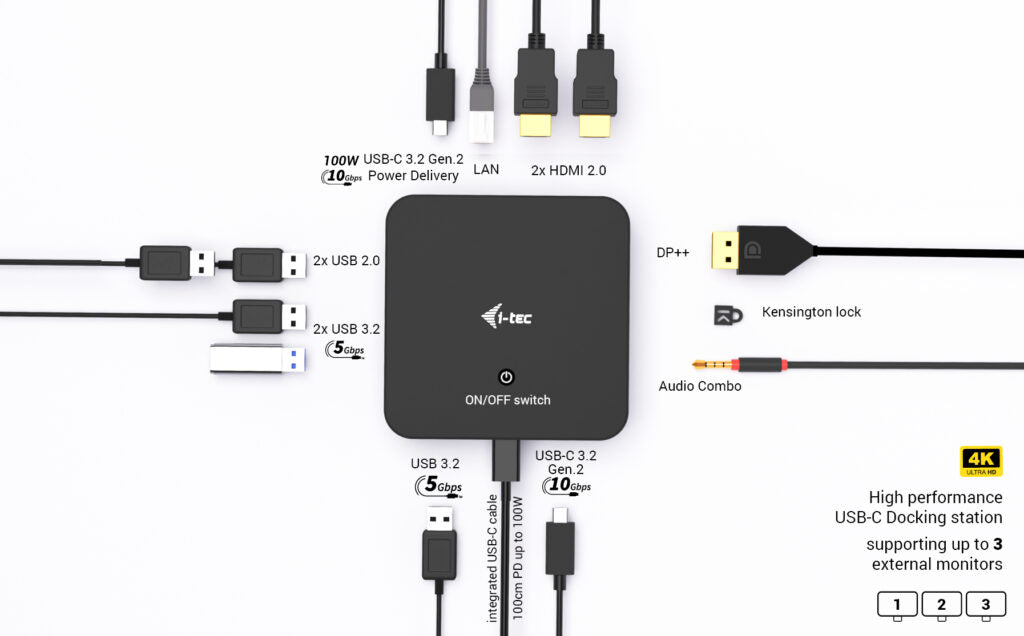

- 2x HDMI, 1x DisplayPort++
- 3x USB 3.2 (5 Gbps), 1x USB-C 3.2 Gen2 (10 Gbps) and 2x USB 2.0 allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed
- Audio and microphone combo jack on the front panel
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, Android, iPadOS, ChromeOS and Linux

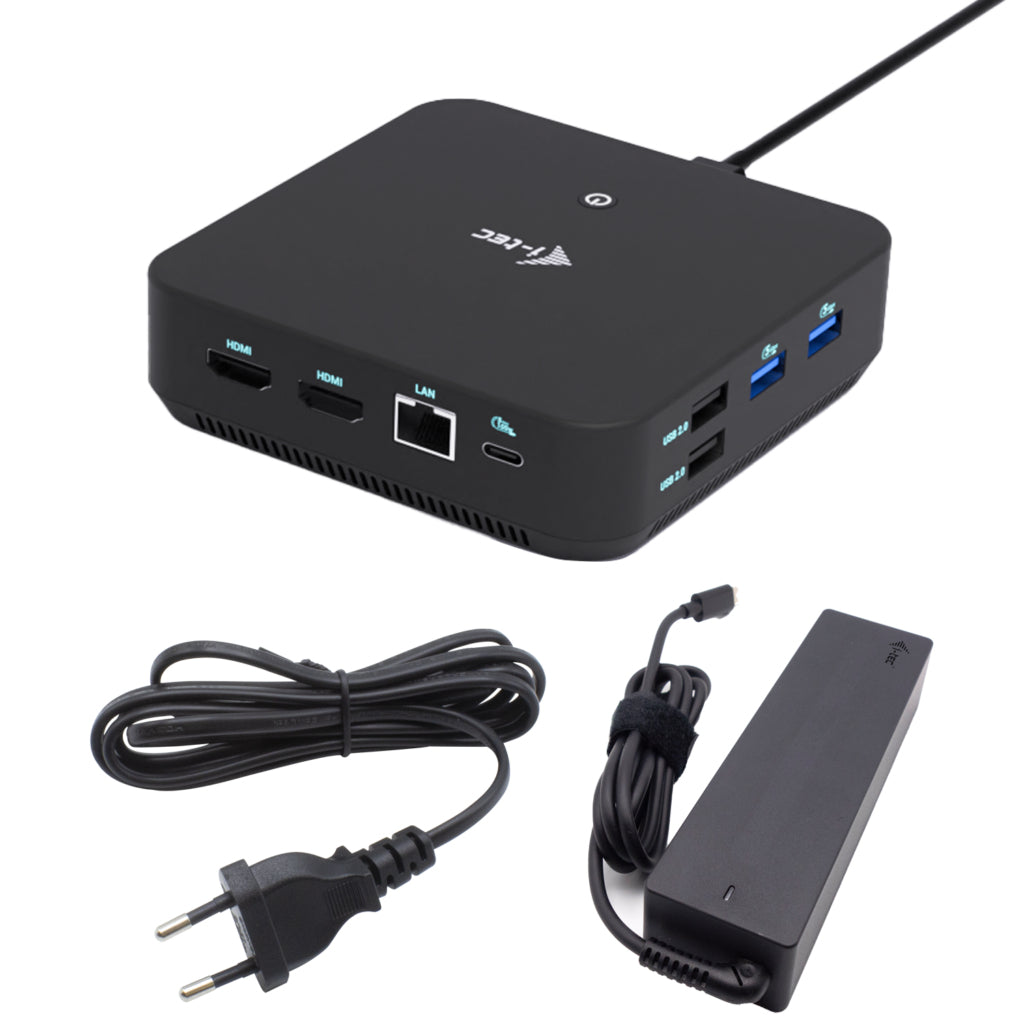

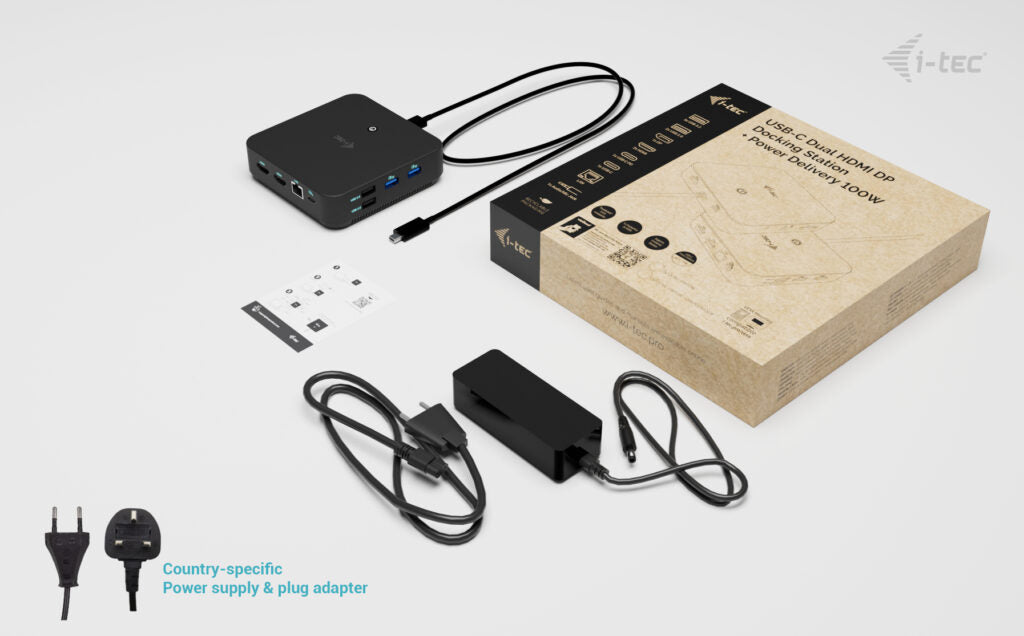

NOTE: USB-C 100W charger included.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Brand compatibility	Universal
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Yes
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
VESA mounting	Yes
Maximum refresh rate	240 Hz
Technical details
Short circuit protection	Yes
Overload protection	Yes
Power
Power source type	USB
Input current	2.3 A
Power consumption (max)	100 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	10 W
Output voltage	5 - 20 V
Output current	5 A
Power connector	USB Type-C
USB cable length	1 m
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android, ChromeOS, iPadOS
Weight & dimensions
Weight	340 g
Width	113 mm
Depth	113 mm
Height	31.2 mm
Packaging data
Quantity per pack	1 pc(s)

Downloads

• Datasheet (PDF)
