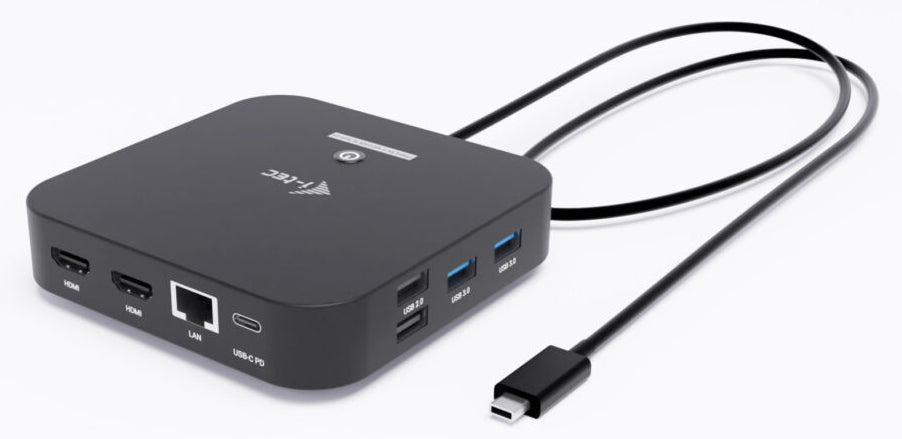

i-tec Power Delivery W USB-C Docking Station 100W (C31DUALHDMIDPD100UK)

One cable, full desk: the i-tec Power Delivery W turns your laptop into a workstation with external displays, 100W charging over a single USB-C connection.

Modern USB-C office docking station with support for up to 2 external monitors with 4K resolution. The station is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4/5 port. 6x USB ports, reliable and quick connection to your business network thanks to an integrated LAN port and support for installation behind a monitor make the docking station an ideal partner for professionals. And of course, the station is capable of charging your laptop or tablet with up to 100W.

Note: macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image.

- Connect up to two 4K/60 Hz external monitors
- Power delivery: up to 100 W
- Two available HDMI ports

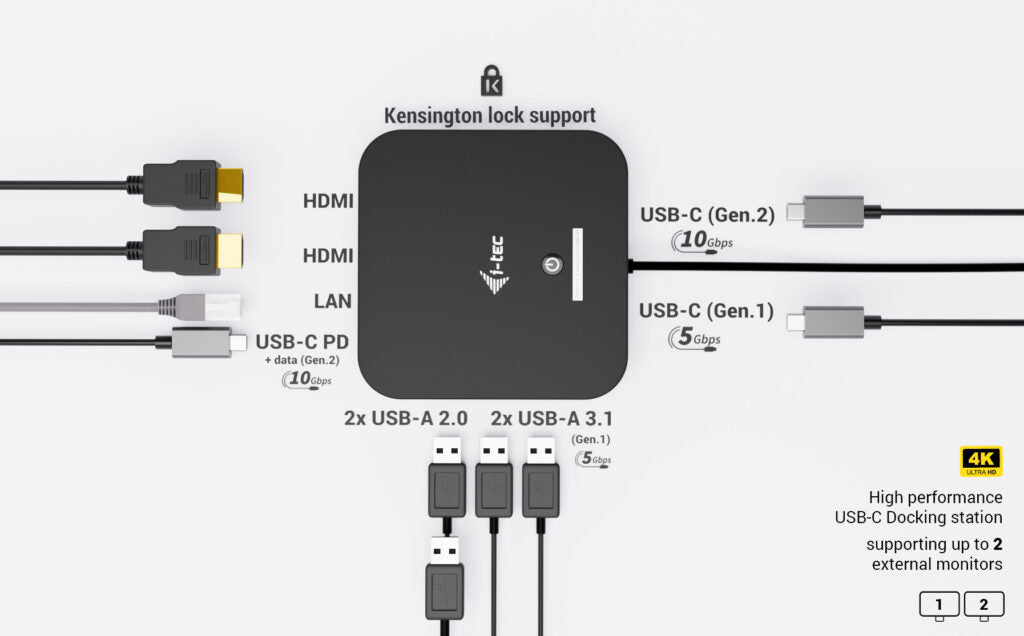

- 6x USB ports (1x USB-C 10Gbps, 1x USB-C 5Gbps, 2x USB-A 5Gbps and 2x USB-A 2.0 for easy connection of your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
- Combined jack for audio and microphone on the front panel

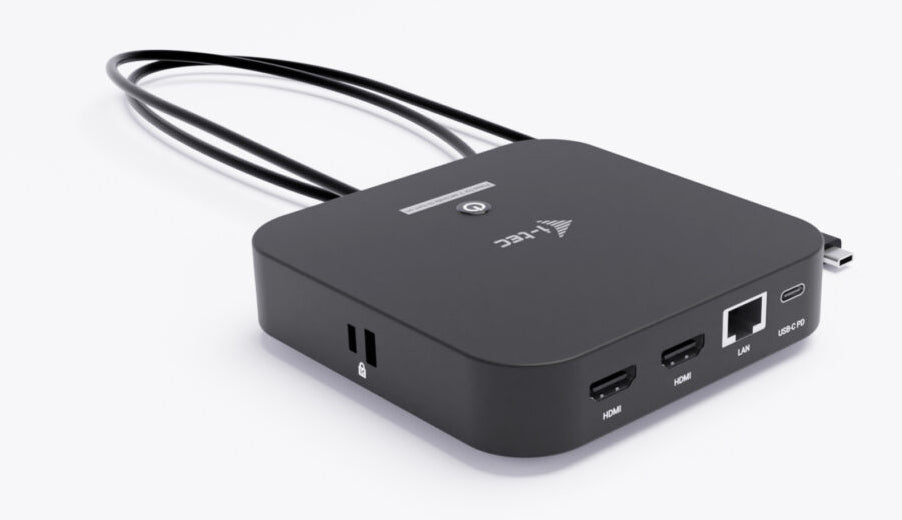

- Kensington lock protects against theft, particularly in shared offices or public spaces
- On/off switch for maximum energy savings
- The station features VESA support, allowing smart vertical installation behind a VESA compatible monitor
- Supports Windows 10/11, macOS, Android, iPadOS, ChromeOS and Linux

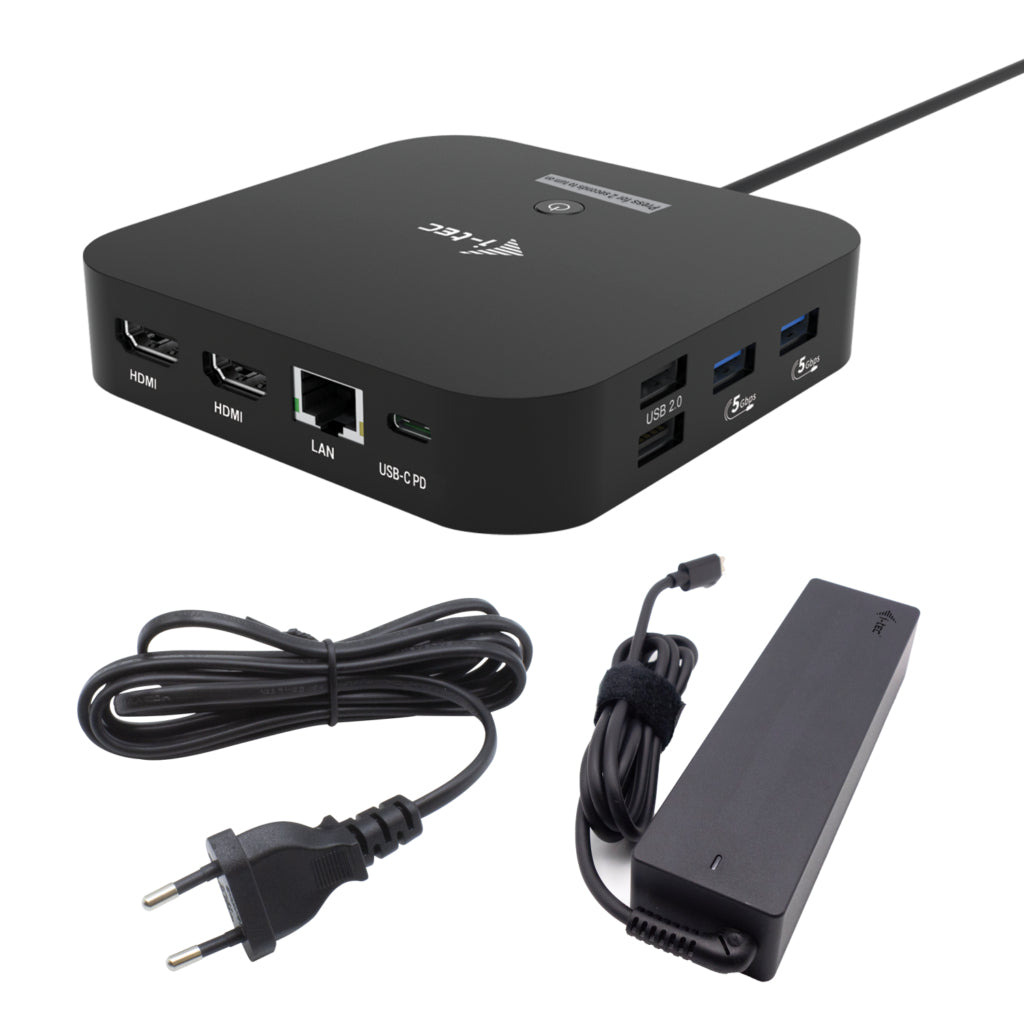

NOTE: USB-C 100W charger included.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Brand compatibility	Universal
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Yes
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
VESA mounting	Yes
Maximum refresh rate	240 Hz
Technical details
Short circuit protection	Yes
Overload protection	Yes
Power
Power source type	USB
Input current	2.3 A
Power consumption (max)	100 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	5 - 20 V
Output current	5 A
Power connector	USB Type-C
USB cable length	1 m
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android, ChromeOS, iPadOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 100%
Weight & dimensions
Weight	242 g
Width	113 mm
Depth	113 mm
Height	40 mm
Packaging data
Quantity per pack	1 pc(s)

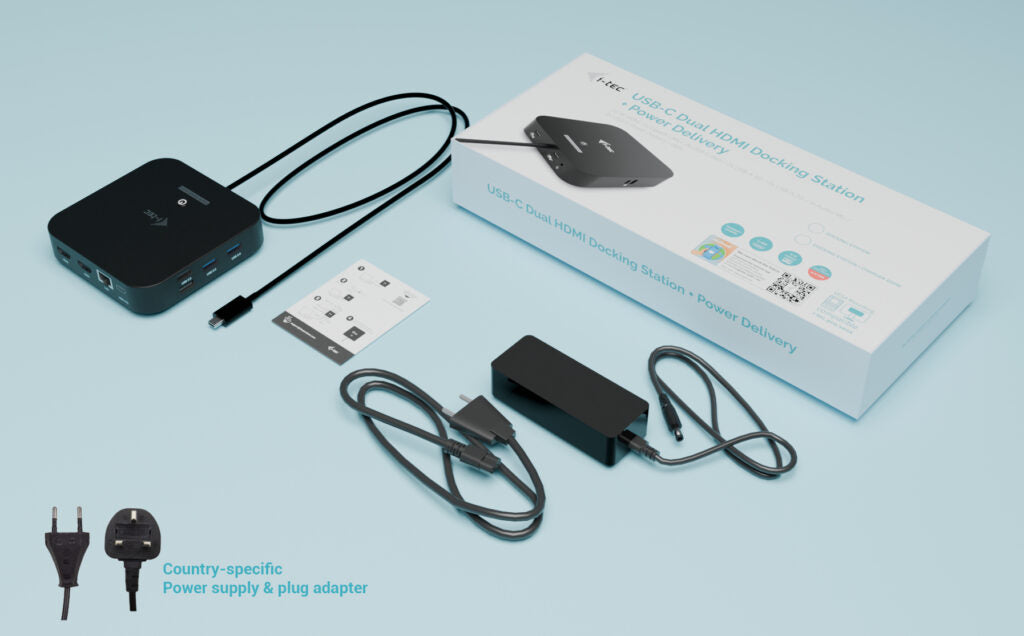

Packaging content
Manual	Yes
Cables included	AC, USB
AC adapter included	Yes
