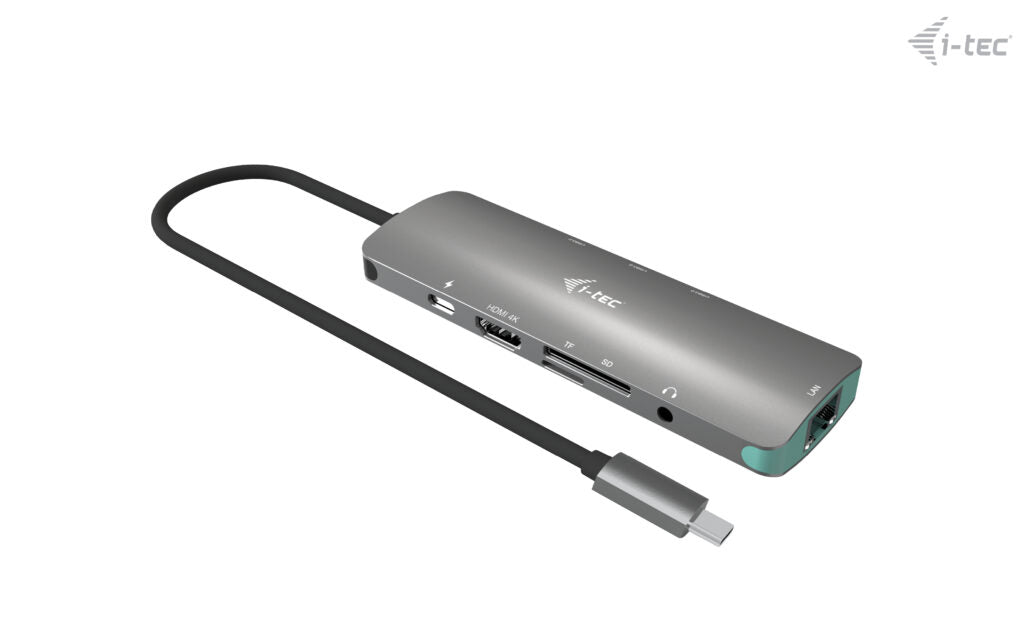

i-tec Metal Nano LAN USB-C Docking Station 100W

One cable, full desk: the i-tec Metal Nano LAN turns your laptop into a workstation with external displays, wired networking, 100W charging over a single USB-C connection.

Expand your desktop with an external HDMI monitor or connect a projector or TV with HDMI. The docking station supports Ultra HD 4K video up to 3840×2160@60Hz including audio.
The station also offers USB-C Power Delivery up to 100W, which is designed to power a connected laptop or tablet using your original AC adapter. The docking station also supports charging connected USB mobile devices such as smartphones, e-book readers, media players, navigation devices and tablets.

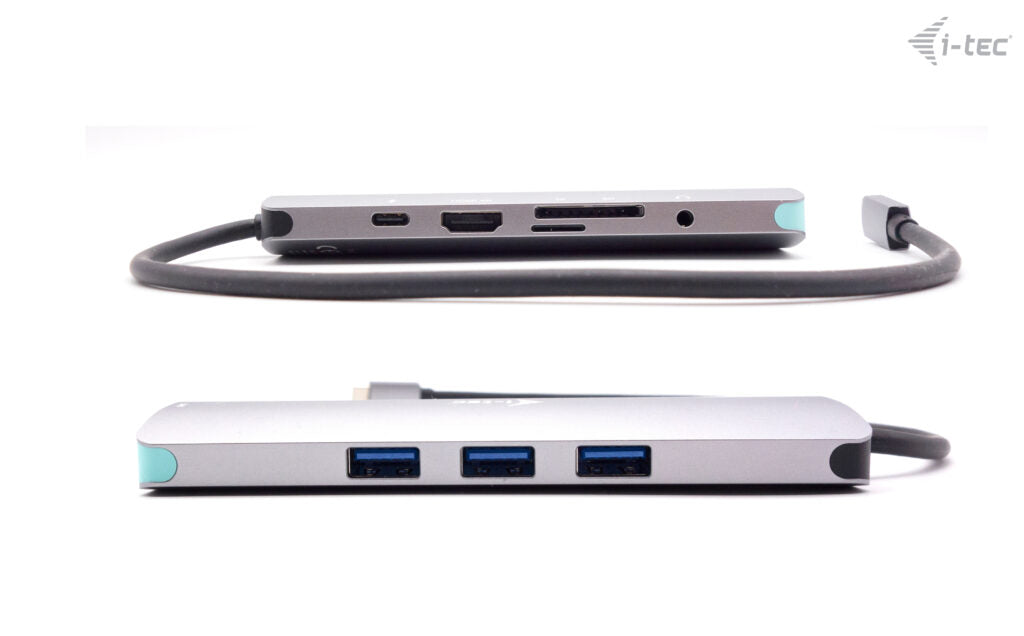

You will also have 3x USB 3.2 Gen1 (5 Gbps) port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery port, 1x Combo audio jack (headphone and microphone), 1x SD card reader and 1x microSD card reader.
Connect the dock with a single cable (30cm) to your computer’s USB-C, USB4 or Thunderbolt 3/4 port and you’re ready to use it immediately. Driver installation is automatic from the system.
This docking station is suitable for use with all laptops and other devices that are equipped with a USB-C connector with video transfer support (USB-C DisplayPort Alt mode). In case of incompatibility, your new i-tec product may not work properly.

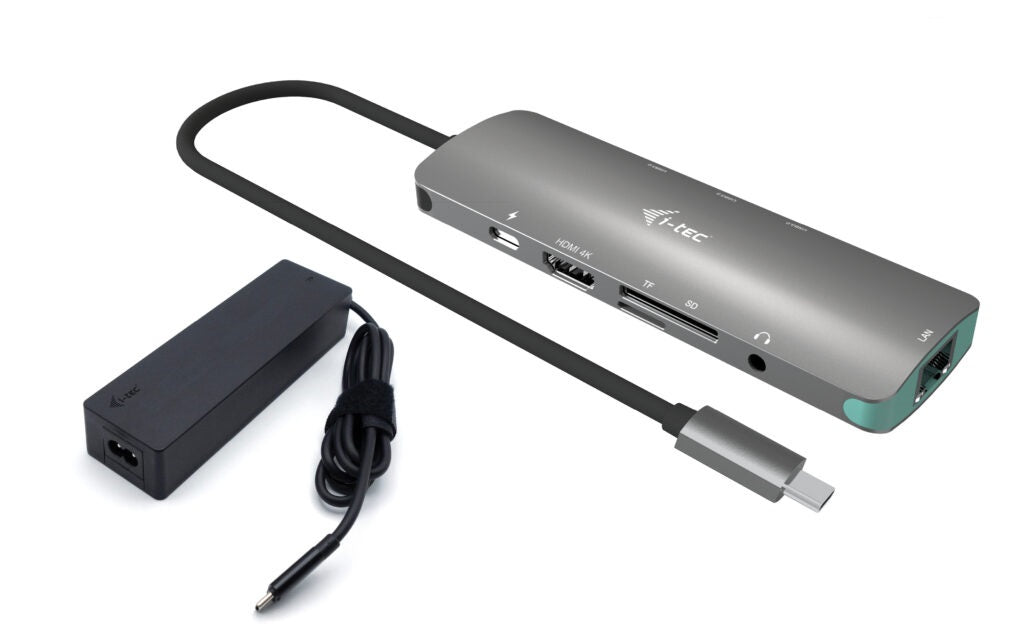

The dock also comes with a USB-C power adapter with a total of 100W (USB-C port: 100W)

- Connect external monitor up to 4K/60Hz
- Power delivery: up to 100 W (100 W power adapter included)
- 3x USB 3.2 Gen1 (5 Gbps), 1x SD and 1x microSD allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust, high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination jack for audio and microphone
- Universal USB-C charger 100W
- Supports Windows 10/11, macOS, Android, ChromeOS, iPad OS and Linux

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Performance
Number of displays supported	1
Product colour	Grey
Card reader integrated	Yes
Data transfer rate	5 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium
Maximum refresh rate	120 Hz
Power
Power source type	AC
Compatible power plug types	UK
Output voltage	5 / 9 / 12 / 15 / 20 V
Output current	5 A
Power supply	100 W
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android, ChromeOS
Weight & dimensions
Weight	85 g
Width	130 mm
Depth	43 mm
Height	15 mm

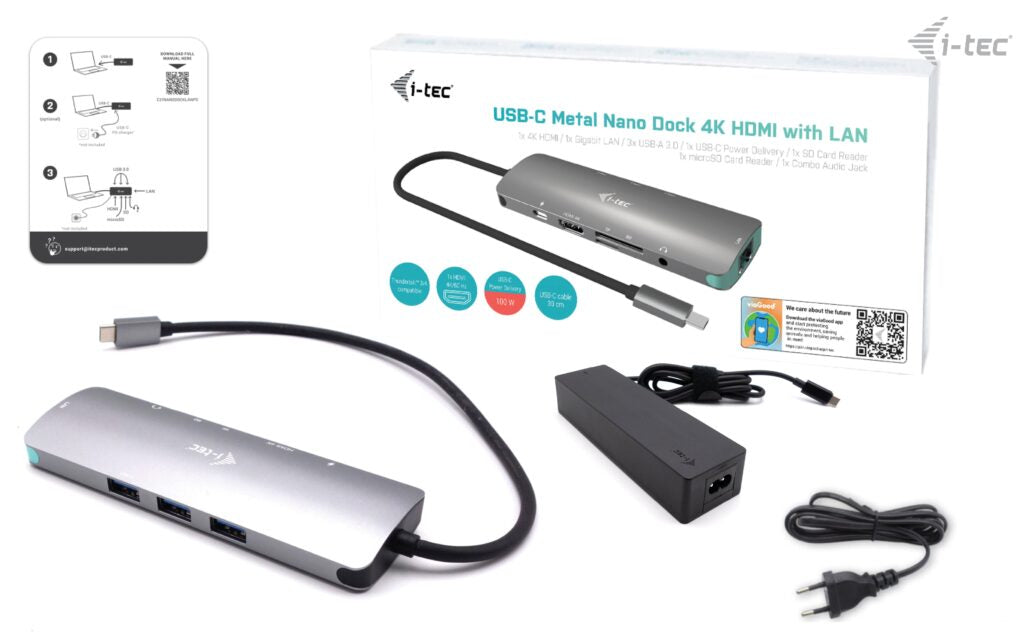

Packaging content
Manual	Yes
AC adapter included	Yes

Downloads

• Datasheet (PDF)
