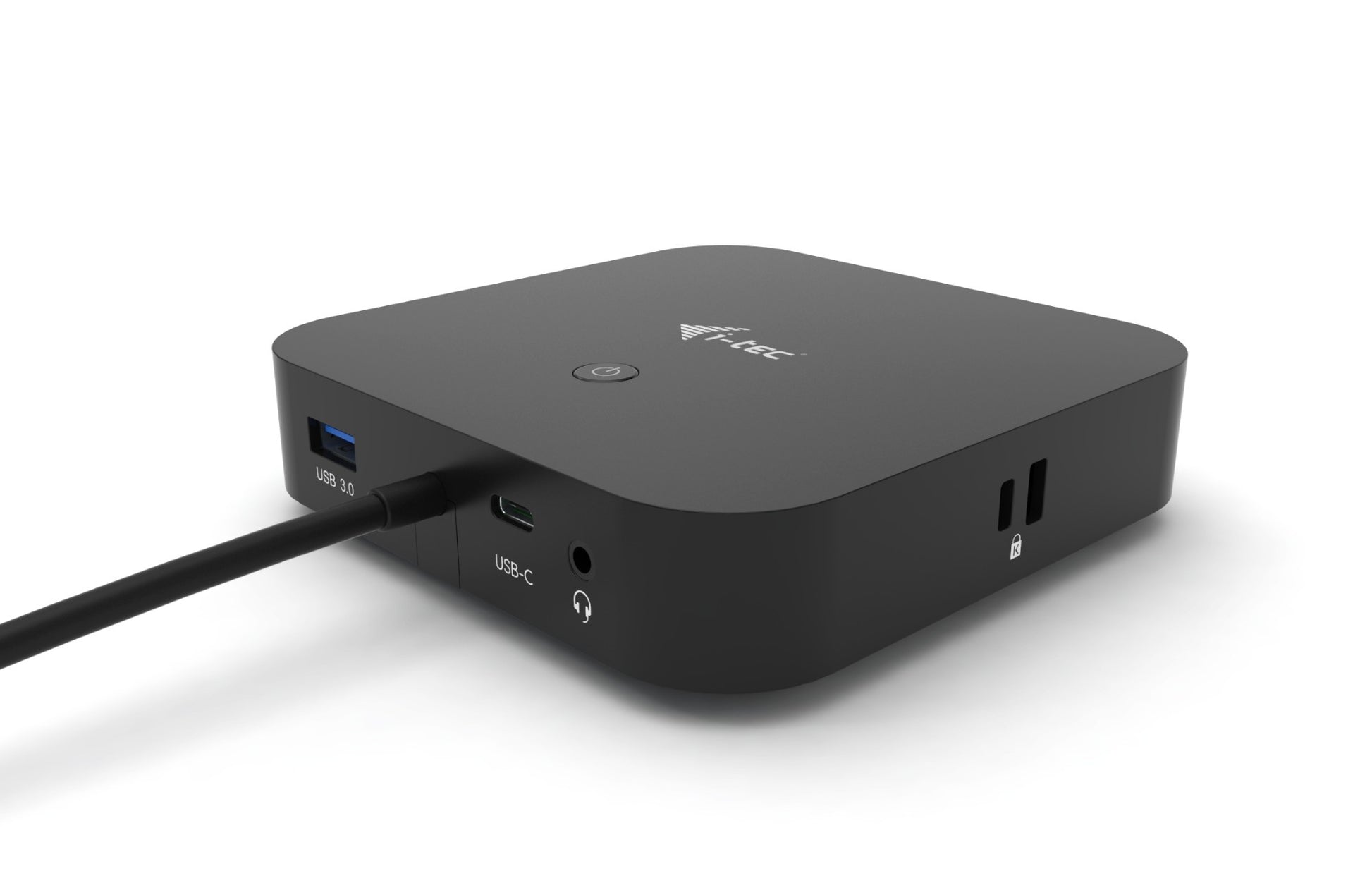

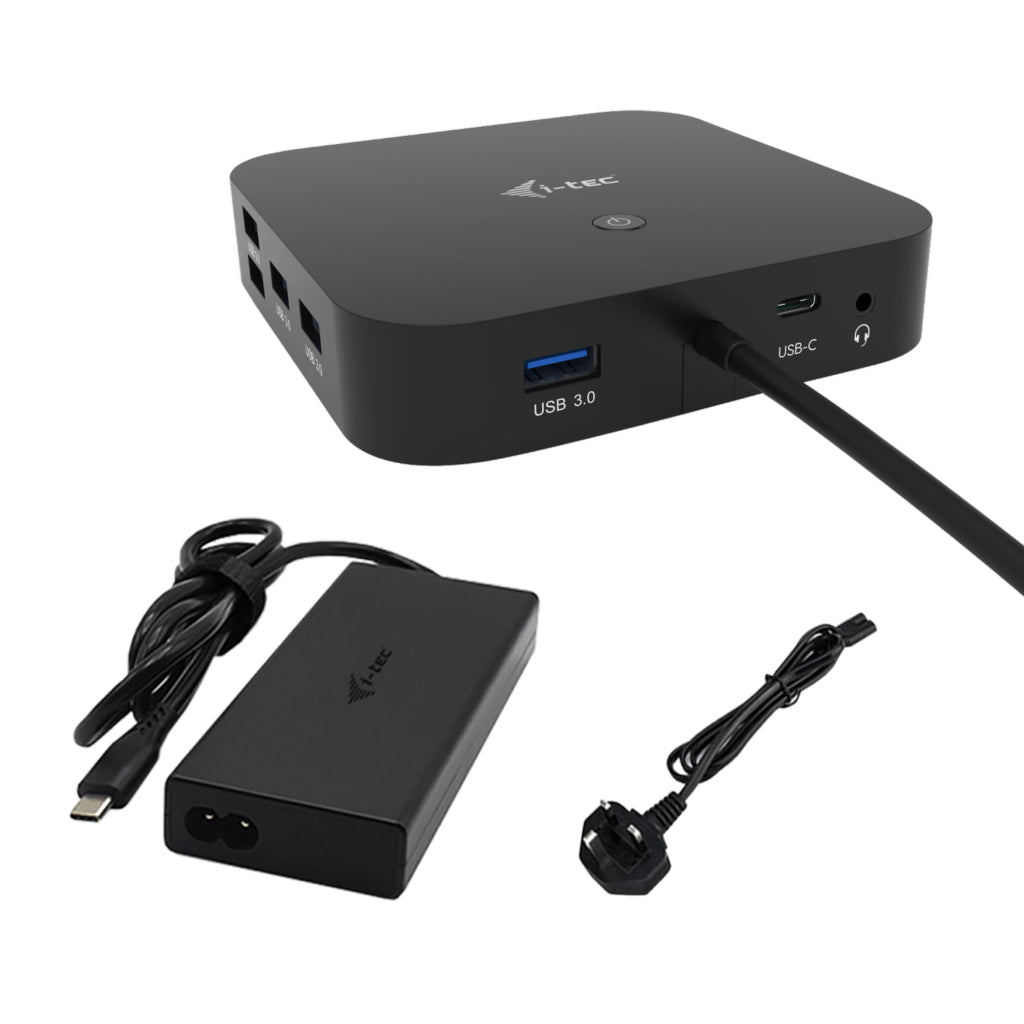

i-tec Display Power Delivery USB-C Docking Station 100W

One cable, full desk: the i-tec Display Power Delivery turns your laptop into a workstation with dual displays, 100W charging over a single USB-C connection.

USB-C office docking station with support for up to 2 external monitors with 4K resolution. The station is compatible with any laptop equipped with a USB-C or Thunderbolt 3 port. 6x USB ports, reliable and quick connection to your business network thanks to an integrated LAN port and support for installation behind a monitor make the docking station an ideal partner for professionals. And of course, the station is capable of charging your laptop or tablet with up to 100 W.

Integrated latest DP 1.4 protocol supports 5K/60 Hz resolution, making the device suitable for even professional graphics designers, data analysts, film editors and, of course, fans of HD video.

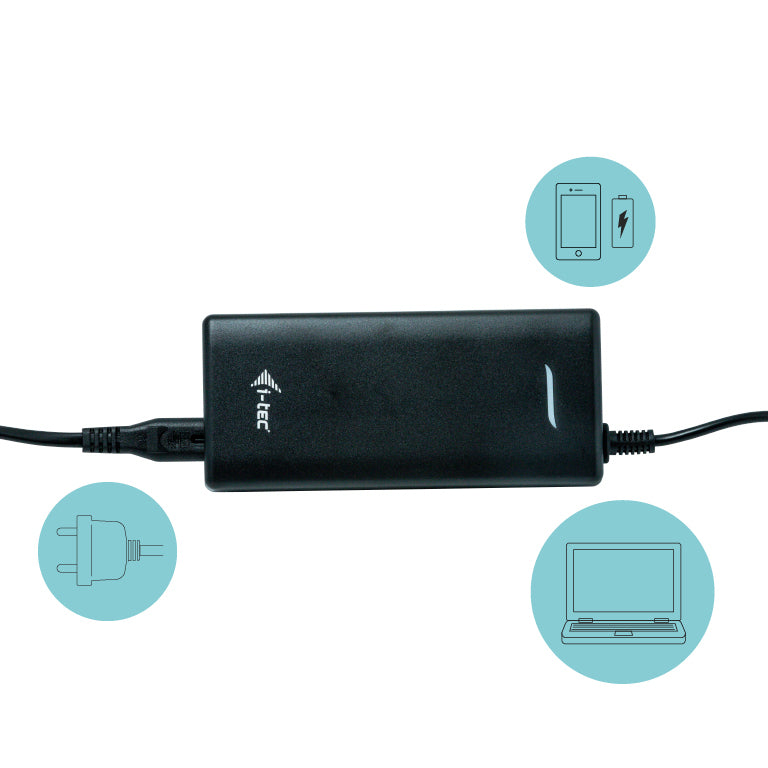

The docking station also comes with a USB-C power adapter with a total power of 100 W (USB-C port: 100 W)

Should you need to connect your monitor via an HDMI port, you can purchase DP2HDMI4K60HZ (i-tec DisplayPort to HDMI Adapter), to allow HDMI connection with resolution of up to 4K and refresh rate of up to 60 Hz.

Note: macOS does not support Multi Stream Transport (MST) technology. Connecting two monitors to the station on macOS will result in both monitors showing the same image.

- Connect up to two 4K/30 Hz external monitors
- Power delivery: up to 100 W (USB-C power adapter with a total power of 100 W is included)
- Two available DisplayPorts
- 3x USB 3.1, 1x USB-C 3.1 and 2x USB 2.0 for easy connection of your USB devices and peripherals. Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
- Combined jack for audio and microphone on the front panel
- Kensington lock protects against theft, particularly in shared offices or public spaces
- On/off switch for maximum energy savings
- The station features VESA support, allowing smart vertical installation behind a VESA compatible monitor
- Supports Windows 10, macOS X, Android, ChromeOS and Linux

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	2
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Power
Power source type	AC
Input current	2.3 A
Compatible power plug types	UK
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	5 / 9 / 12 / 15 / 19 / 20 V
Output current	5 A
Power supply	100 W
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 100%
Weight & dimensions
Width	113 mm
Depth	113 mm
Height	40 mm
Package weight	998 g
Package width	338 mm
Package depth	150 mm
Package height	55 mm
Packaging content
Manual	Yes
Cables included	AC
AC adapter included	Yes

Downloads

• Datasheet (PDF)
