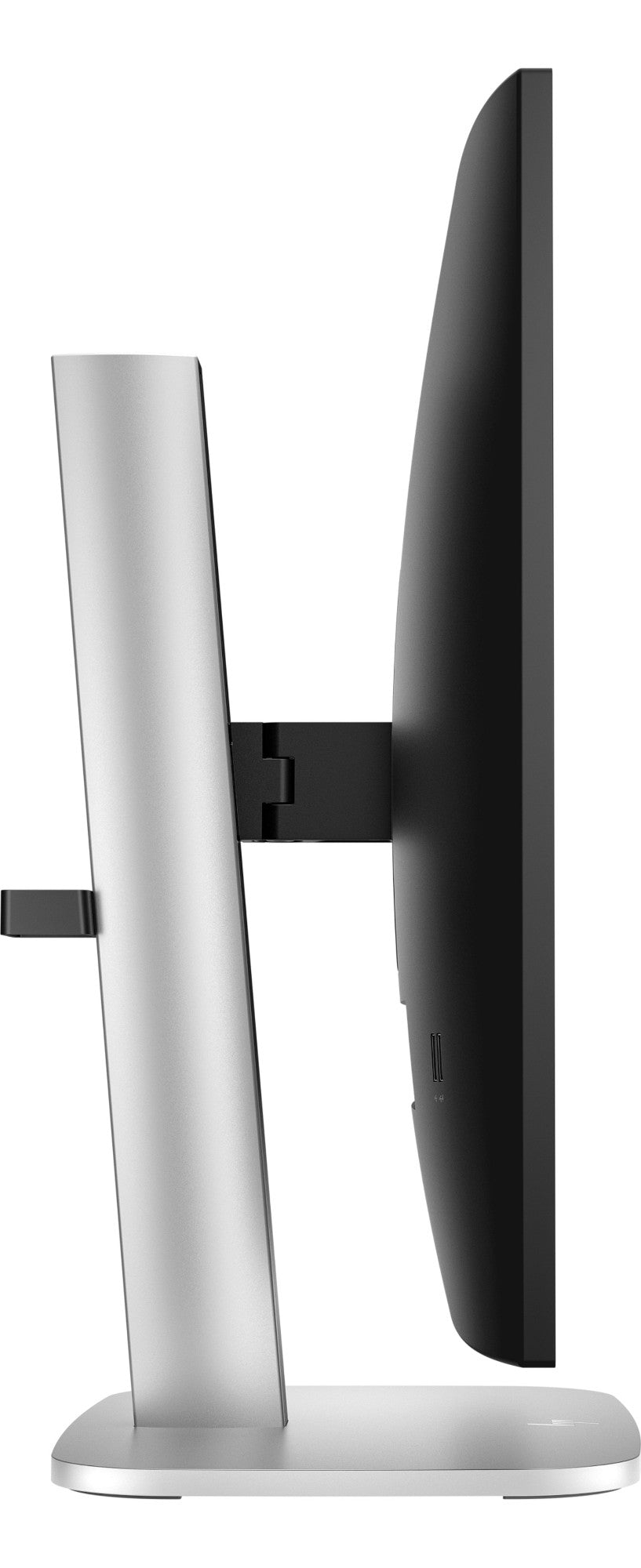

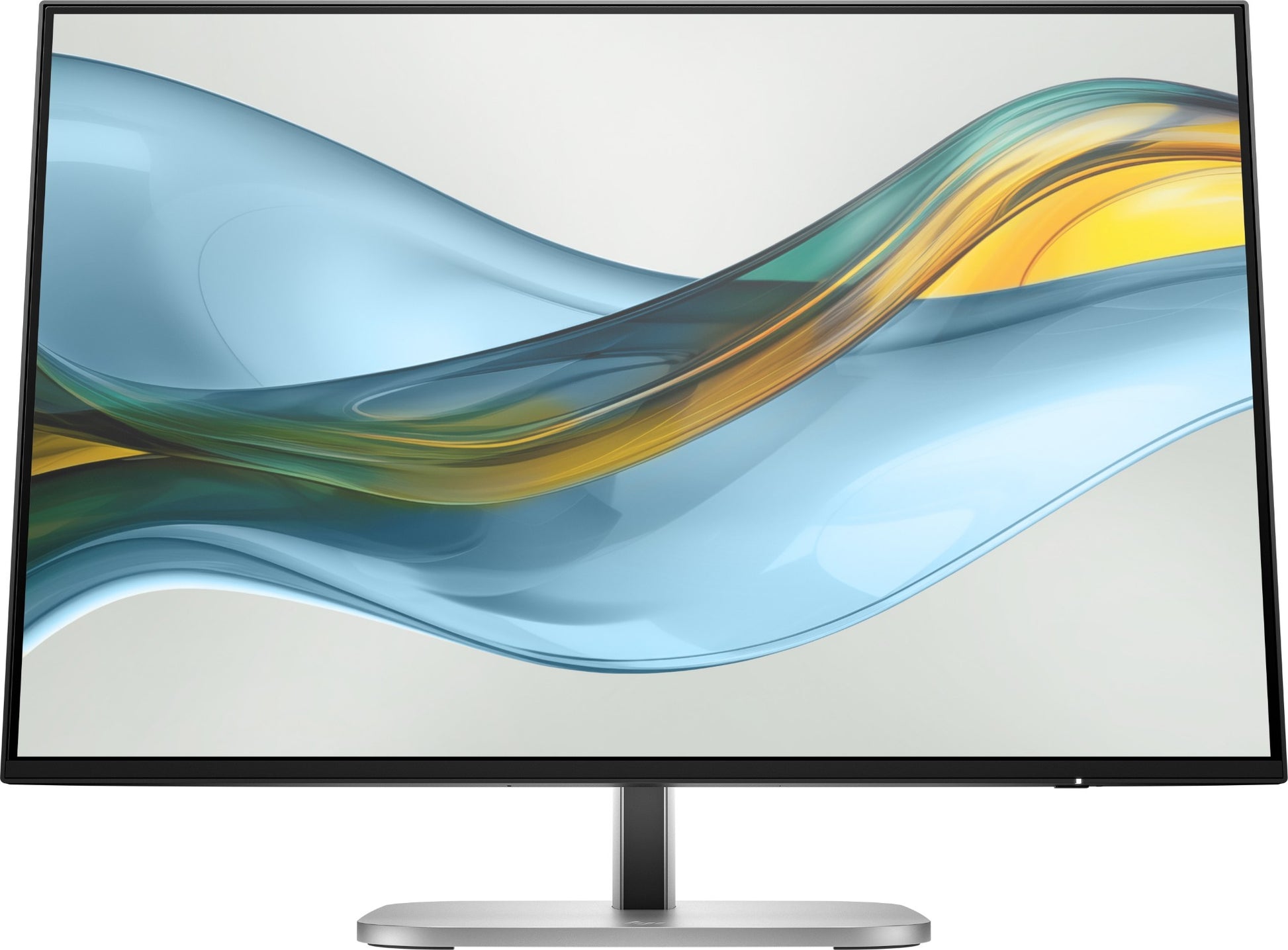

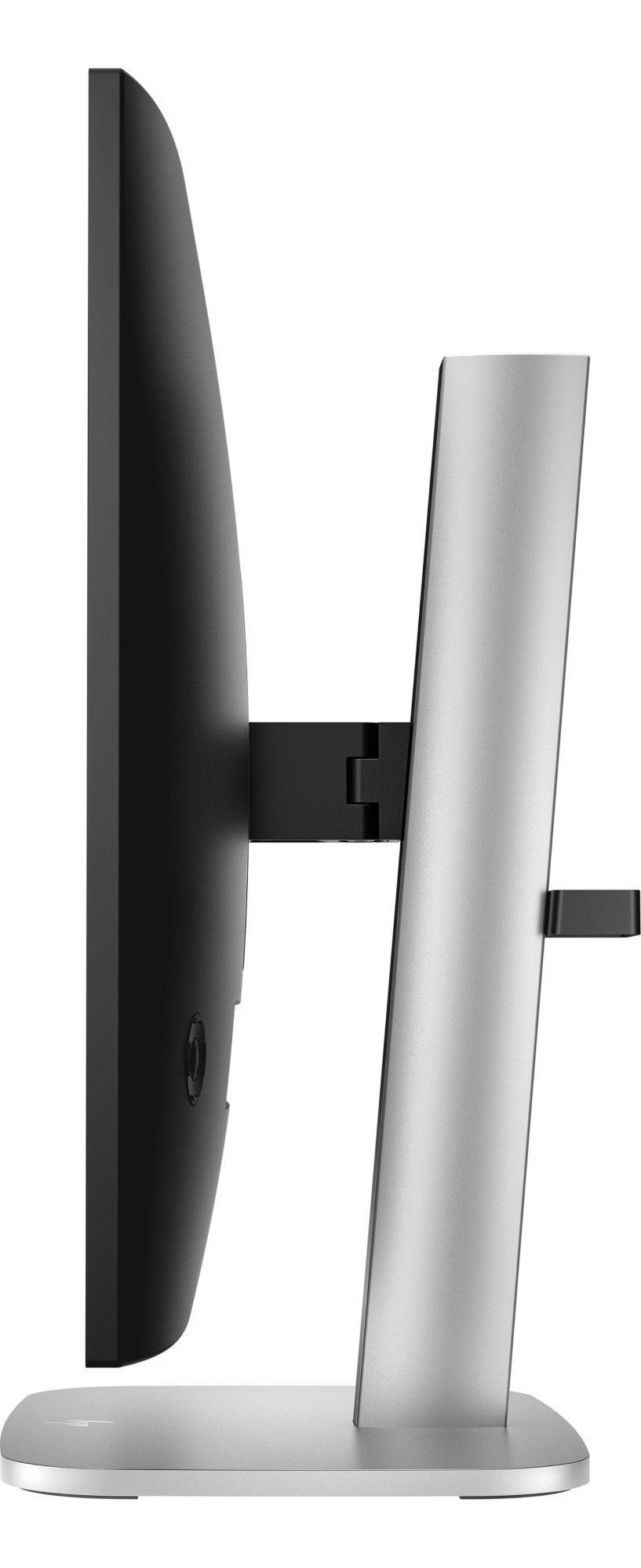

HP Series 5 Pro 524pn 24" WUXGA 100Hz Monitor

A dependable choice for the office, the HP Series 5 Pro 524pn offers a 24" WUXGA 1920x1200 monitor on a height-adjustable stand for comfortable all-day productivity.

Reimagine what work looks like
Get more out of your workday with the HP Series 5 Pro 24” WUXGA Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.

Specifications

Display
HDCP	Yes
Display brightness (typical)	350 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:10
Pixel density	94 ppi
Colour gamut	100%
Maximum refresh rate	100 Hz
sRGB coverage (typical)	100%
Display surface	Matt
HD type	WUXGA
Display technology	LCD
Contrast ratio (dynamic)	10000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.27 x 0.27 mm
Horizontal scan range	30 - 130 kHz
Vertical scan range	50 - 100 Hz
Aspect ratio	16:10
Viewable size, horizontal	51.8 cm
Viewable size, vertical	32.4 cm
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA)
Display resolution	1920 x 1200 pixels
Response time	5 ms
Display diagonal	61 cm (24")
Contrast ratio (typical)	1500:1
Surface hardness	3H
Colour depth	8 bit
Display diagonal (metric)	61 cm
Haze rate	25%
Colour gamut standard	sRGB
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Management features
On Screen Display (OSD)	Yes
Performance
AMD FreeSync	No
NVIDIA G-SYNC	No
HP segment	Business
Low Blue Light technology	Yes
Flicker-free technology	Yes
Design
Country of origin	China, Vietnam
Feet colour	Silver, Black
Certification	BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	4
HDMI ports quantity	1
DisplayPorts quantity	1
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Technical details
Cable lock slot	Yes
UNSPSC-code	43211902
Sustainability certificates	ENERGY STAR
Compliance certificates	BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), GS mark, ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
HP GTIN (EAN/UPC)	197961405255
Power supply type	Internal
Weight (with stand)	5.1 kg
Software
Bundled software	HP Display Center; HP Client Management Script Library
Ergonomics
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Tilt angle range	-5 - 23°
Pivot	Yes
Height adjustment	Yes
Tilt adjustment	Yes
Adjustable height (max)	15 cm
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	C
Energy efficiency class (HDR)	C
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	20 - 80%
Weight & dimensions
Width (with stand)	532.8 mm
Depth (with stand)	189.5 mm
Height (with stand)	517.5 mm
Package width	621 mm
Package depth	140 mm
Package height	411 mm
Package weight	7.4 kg
Weight	5.1 kg
Packaging data
Package type	Box
Quick start guide	Yes
Cables included	AC, DisplayPort, HDMI, USB Type-A to USB Type-B

Downloads

• Datasheet (PDF)
