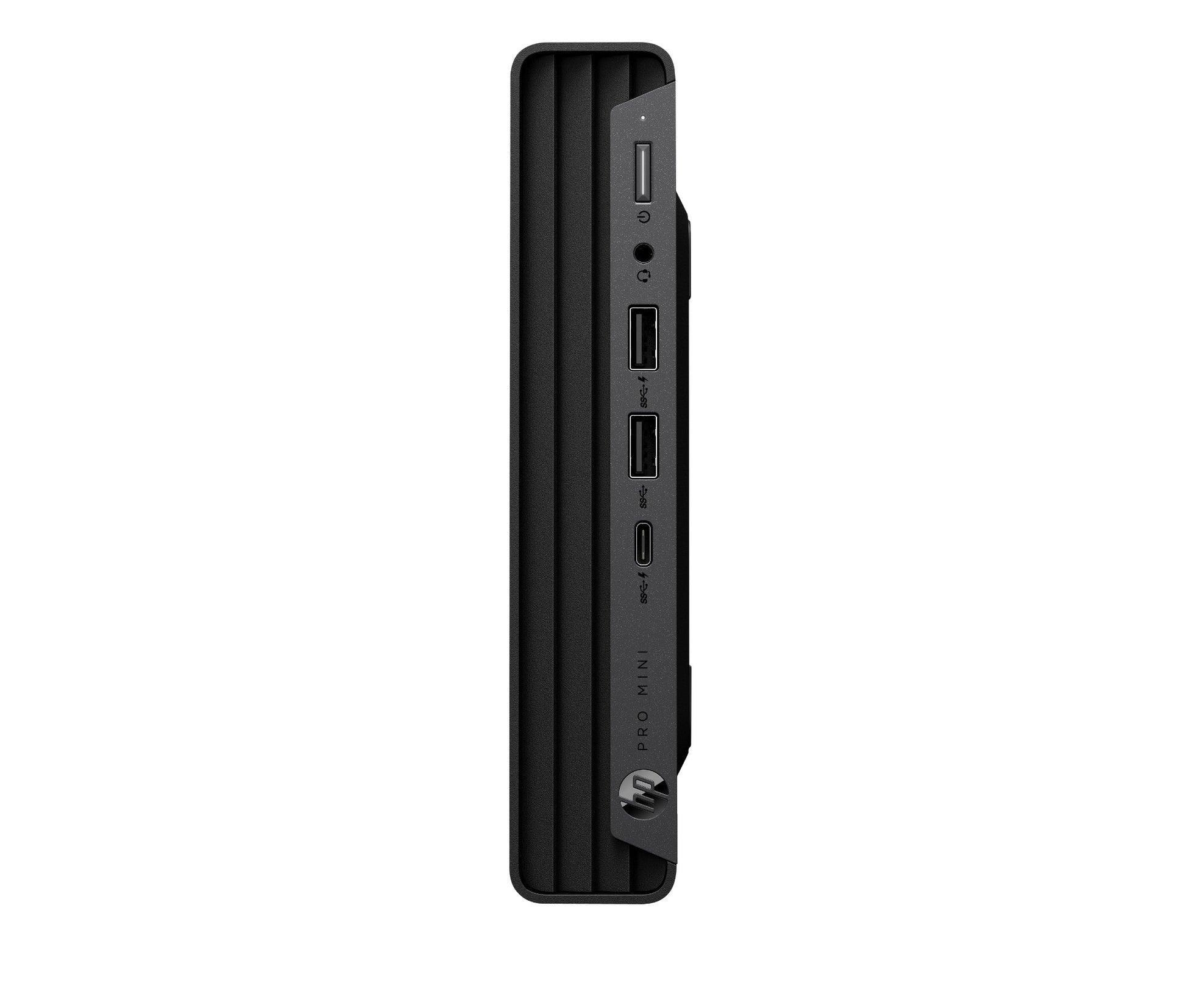

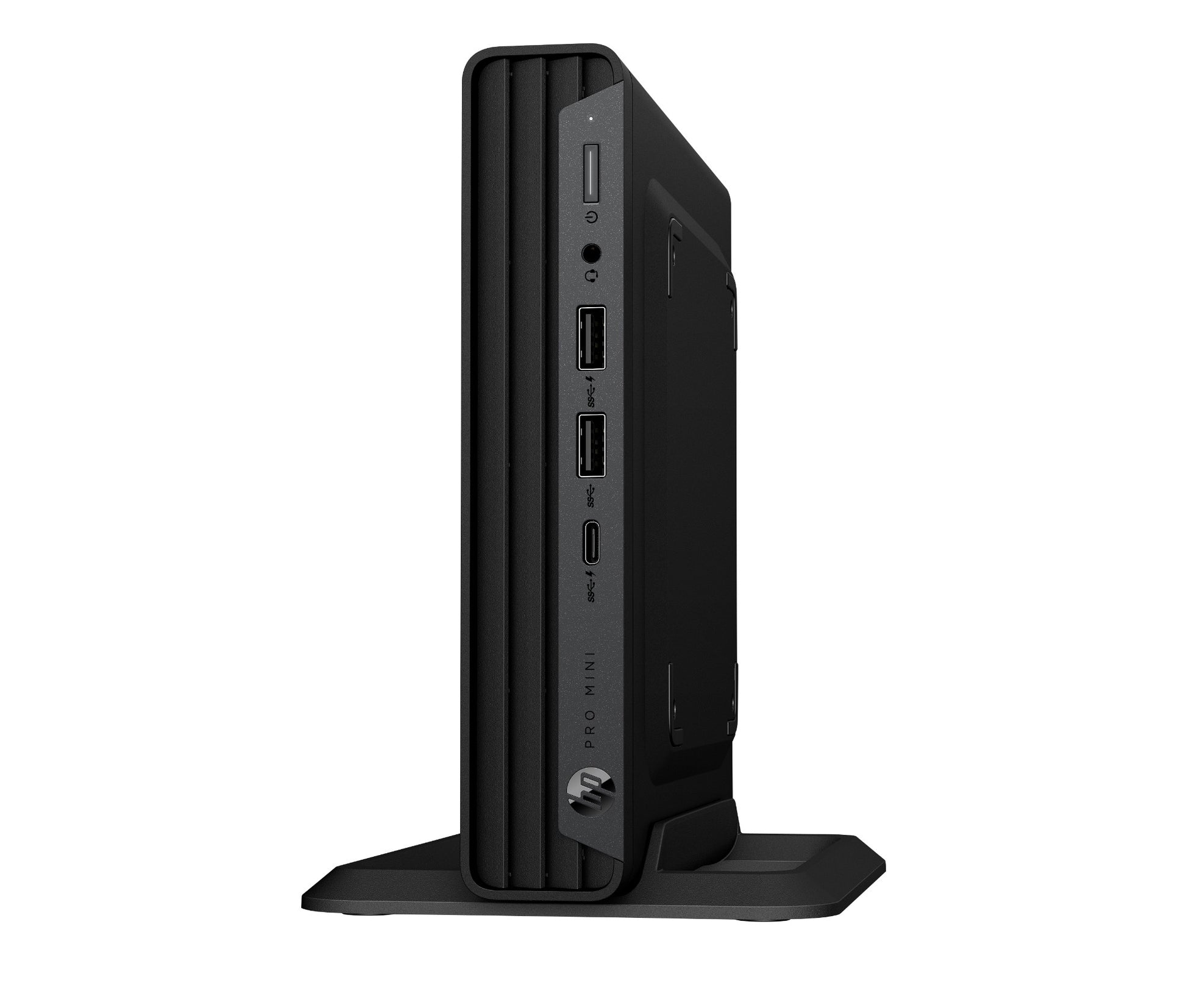

HP Pro Core i5-14500T 16GB 512GB SSD Mini PC

Small enough to hide behind a monitor, the HP Pro still packs Core i5-14500T with 16GB RAM for full desktop duty.

Commercial-grade Mini PC that fits anywhere you work
The HP Pro Mini 400 provides users with the commercial-grade performance, security, and the flexible deployment capabilities needed for small, varied workspaces. This reliable, ultra-small PC is powered to handle mainstream enterprise and SMBs with an Intel processor^[2] and protected with always-on security you can trust.

Specifications

Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor cache type	L3
Processor cache	24 MB
Processor model	i5-14500T
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
Processor threads	20
Processor cores	14
Processor family	Intel® Core™ i5
Performance cores	6
Efficient cores	8
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Processor base power	35 W
Maximum turbo power	92 W
Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	16 GB
Memory slots	2x DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory module type	SODIMM
Memory data transfer rate	4800 MT/s
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
Performance
Market positioning	Proven productivity
Password protection	Yes
Password protection type	BIOS, Power on
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC3252
Harmonized System (HS) code	8471500000
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DisplayPort version	1.4
USB 3.2 Gen 2x2 Type-C ports quantity	1
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	90 W
Technical details
Number of 2.5" bays	1
Intel® Turbo Boost Technology	Yes
Product colour	Black
Chassis type	Mini PC
UNSPSC-code	43211507
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO10
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
HP GTIN (EAN/UPC)	198415815880
Design
Colour name	Jack black
Country of origin	China, Thailand
Introduction year	2024
Software
Bundled software	HP Wolf Pro Security Edition (1 year)
Pre-installed software	HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial; HPX for CMIT
Operating system installed	Windows 11 Pro
Display
Display included	No
Brand-specific features
HP Support Assistant	Yes
HP Security tools	Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Admin; HP BIOSphere Gen6; HP Tamper Lock; HP Sure Start Gen7; HP Platform Certificate On Device Installation
HP Management tools	HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download)
HP segment	Business
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Sustainability
Total carbon footprint (kg of CO2e)	110
Weight & dimensions
Package width	498 mm
Package depth	235 mm
Package height	132 mm
Width	177 mm
Depth	175 mm
Height	177 mm
Package weight	3.4 kg
Weight	1.42 kg
Packaging content
Numeric keypad	No
Mouse included	Yes
Keyboard included	Yes
Input device model	HP 125 Wired Mouse
Mouse connectivity	Wired
Keyboard connectivity	Wired
Keyboard
Keyboard type	USB
Supplier features
Support service included	HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Carbon footprint
Total carbon emissions, w/o use phase (kg of CO2e)	14
Carbon emissions, manufacturing (kg of CO2e)	93
Carbon emissions, logistics (kg of CO2e)	1
Carbon emissions, end-of-life (kg of CO2e)	1
