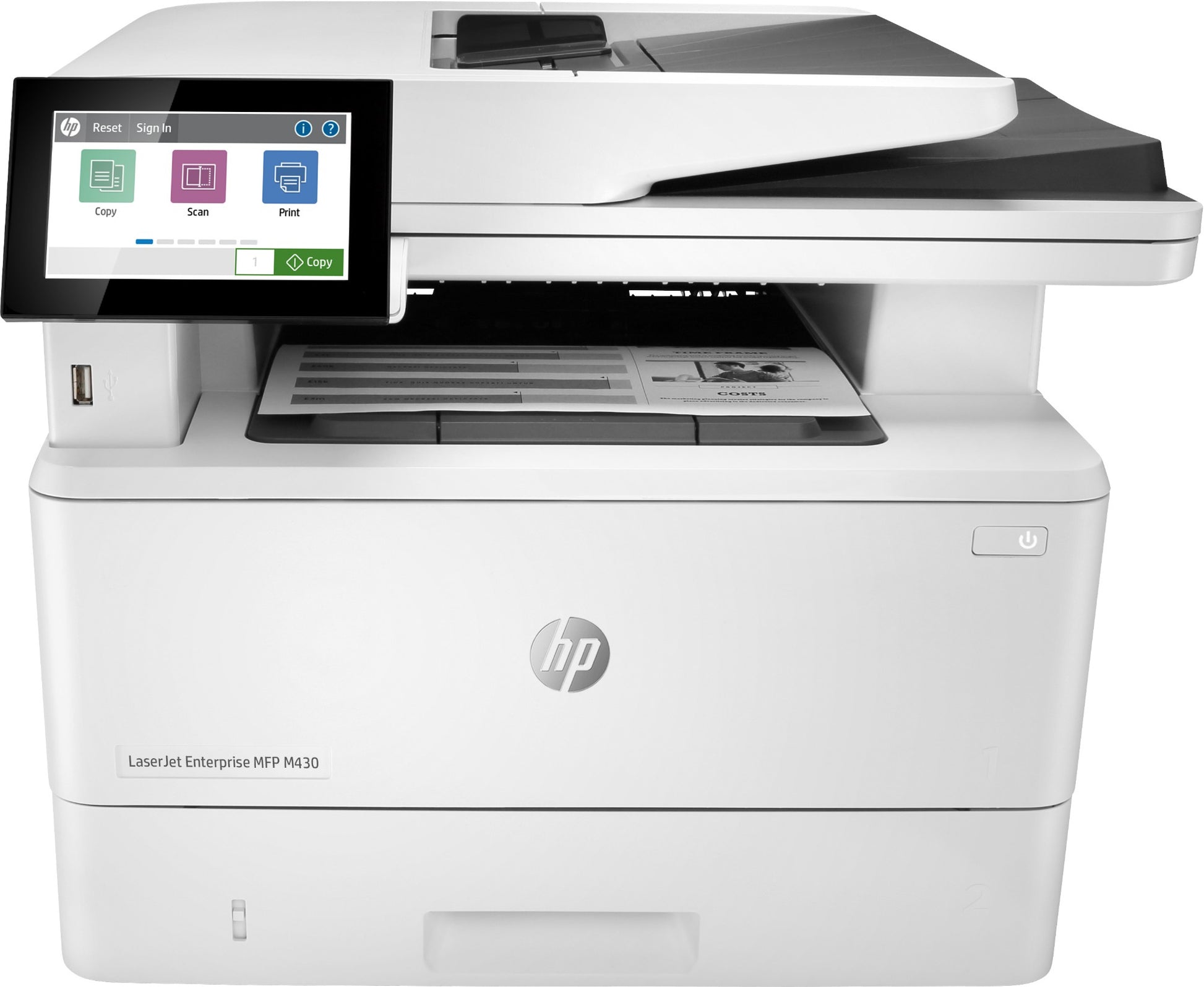

HP LaserJet Enterprise MFP M430f Printer

Get the office moving with the HP LaserJet Enterprise MFP M430f — print speed, duplex and connectivity details are in the spec table.

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Specifications

Features
Electromagnetic compatibility	CISPR 22:2008 (International) Class A, CISPR 32:2012 (International)/ EN 55032:2012, CISPR 35:2016 (International)/ EN 55035:2017, EN 55024:2010 +A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013. Other EMC approvals as required by individual countries.
Product colour	White
Certification	CISPR 22:2008 (International) Class A, CISPR 32:2012 (International)/ EN 55032:2012, CISPR 35:2016 (International)/ EN 55035:2017, EN 55024:2010 +A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013. Other EMC approvals as required by individual countries.
Scanning	Colour scanning
Faxing	Mono faxing
Duplex printing mode	Auto
Copying	Mono copying
Print technology	Laser
Printing	Mono printing
Control type	Touch
Market positioning	Business
Duplex printing	Yes
Duplex scanning	Yes
Duplex copying	Yes
Digital sender	Yes
Number of print cartridges	1
Maximum duty cycle	100000 pages per month
Duplex functions	Print, Copy
Recommended duty cycle	900 - 4800 pages per month
Printing colours	Black
Country of origin	China
All-In-One-multitasking	Yes
Replacement cartridges	HP 59A Black Original LaserJet Toner Cartridge (3,000 pages) CF259A, HP 59X High Yield Black Original LaserJet Toner Cartridge (10,000 pages) CF259X
HP segment	Business
Printer fonts	Scalable, TrueType, Windows, PCL, PostScript
Page description languages	PDF 1.7, PCL 5, PCL 6
Performance
HP Dynamic security	Yes
Internal storage capacity	16 GB
Internal memory	2048 MB
Processor frequency	800 MHz
Maximum internal memory	2048 MB
Card reader integrated	No
Built-in processor	Yes
Sound pressure level (printing)	54 dB
Sound pressure level (scanning)	48 dB
Sound power level (printing)	6.4 dB
Print quality
Maximum resolution	1200 x 1200 DPI
Input capacity
Maximum input capacity	10 sheets
Auto document feeder (ADF) input capacity	50 sheets
Output capacity
Maximum output capacity	150 sheets
Display
Colour display	Yes
Display diagonal	10.9 cm (4.3")
Display	LCD
Built-in display	Yes
Printing
Watermark printing	Yes
N-in-1 print function	Yes
Secure printing	Yes
Time to first page (black, normal)	6.5 s
Warm-up time	180 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Print resolution black	1200 x 1200 DPI
Copying
Auto fit function	Yes
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	38 cpm
Time to first copy (black, normal)	7.2 s
Scanning
Optical scanning resolution	600 x 600 DPI
Maximum scan area	216 x 297 mm
Maximum scan resolution	600 x 600 DPI
Scanner type	Flatbed scanner
Scan speed (colour)	20 ppm
Scan speed (black)	29 ppm
Duplex scan speed (colour)	37 ppm
Input colour depth	24 bit
Scan technology	CIS
Scan drivers	TWAIN
Greyscale levels	256
Fax
Fax resolution (black)	300 x 300 DPI
Fax transmission speed	3 sec/page
Modem speed	33.6 Kbit/s
Speed dialling	Yes
Fax forwarding	Yes
Fax delayed sending	No
Auto-redialing	Yes
Auto reduction	Yes
Input & output capacity
Total number of input trays	2
Total input capacity	350 sheets
Total output capacity	150 sheets
Paper tray 1 input capacity	100 sheets
Paper tray 2 input capacity	250 sheets
Auto document feeder (ADF)	Yes
Maximum number of input trays	3
Paper handling
Maximum ISO A-series paper size	A4
Maximum print size	212 x 352 mm
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C5, C6
Non-ISO print media sizes	16K
JIS B-series sizes (B0...B9)	B5, B6
Envelopes sizes	B5, C5, C6, DL
Photo paper sizes	10x15 cm
Multi-Purpose Tray media weight	60 - 120 g/m²
Custom media width	76 - 216 mm
Custom media length	127 - 356 mm
Envelope feeder	No
Paper tray media types	Plain paper, Bond paper, Recycled paper, Envelopes, Labels, Pre-printed, Heavy paper, Lightweight paper, Rough paper
Paper tray media weight	60 - 175 g/m²
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	3
Direct printing	No
Bluetooth	Yes
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Mobile printing technologies	Mopria Print Service, HP ePrint, Apple AirPrint
Cabling technology	10/100/1000Base-T(X)
Security algorithms	SNMPv3, SSL/TLS, EAP-PEAP, EAP-TLS, FIPS 140, HTTPS
Wi-Fi	Yes
Ethernet LAN	Yes
Wi-Fi Direct	Yes
Packaging data
Products per pallet	24 pc(s)
Pallet dimensions (W x D x H)	1200 x 1000 x 2451 mm
Included cartridge capacity (black)	3000 pages
Package width	497 mm
Package depth	398 mm
Package height	490 mm
Package weight	14.7 kg
Cartridge(s) included	Yes
Cables included	AC
Technical details
Sustainable technologies and materials	Mercury-free
Sustainability compliance	Yes
Sustainability certificates	Blue Angel, ENERGY STAR, EPEAT Silver
Doesn't contain	Mercury
Power supply type	Internal (Built-in) power supply
Compatible operating systems	Windows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; Windows Client OS; Android; iOS; Mobile OS; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina
UNSPSC-code	43212110
Typical electricity consumption (TEC) number	Blue Angel: 1.222 kWh/week; Energy Star 3.0: 0.463 kWh/week
Pallet weight (imperial)	441.9 kg (974.3 lbs)
Pallet dimensions (W x D x H) (imperial)	1199.9 x 1000 x 2450.8 mm (47.2 x 39.4 x 96.5")
Layers per pallet	4 pc(s)
Energy Star Typical Electricity Consumption (TEC)	1.222 kWh/week
Power consumption (printing)	525 W
Acoustic power emissions (ready)	Inaudible
Box contents	HP LaserJet Enterprise MFP M430f printer; HP Black Original LaserJet Toner Cartridge (~3,000 pages); Getting started Guide; 1 Power cord
Master (outer) cases per pallet layer	6 pc(s)
Total carbon footprint (kg of CO2e)	180
Compliance certificates	CECP, GS mark, cUL, UL, CE, BSMI
General Product Safety Regulation (GPSR) URL	https://support.hp.com/gb-en/product/setup-user-guides/hp-laserjet-enterprise-mfp-m430-series/model/29252394?sku=3PZ55A&serialnumber=3PZ55A ; https://kaas.hpcloud.hp.com/pdf-public/pdf_2950398_en-US-1.pdf
HP GTIN (EAN/UPC)	193905205448, 193905205455, 193905205462, 193905418831, 193905205479, 193905205486
HP GTIN (EAN/UPC) with options	(ABT) 193905205448; (ABY) 193905205455; (ACQ) 193905205462; (B13) 193905418831; (B19) 193905205479; (BAZ) 193905205486
System requirements
Recommended system requirements	2 GB available hard disk space Internet connection or USB port Internet browser. 2 GB available hard disk space Internet connection or USB port Internet browser.
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, MacOS
Other operating systems supported	Android, iOS
Media formats
Custom media sizes	Tray 1: 76 x 127 to 216 x 356 mm; Tray 2: 105 x 148 to 216 x 356 mm; Optional Tray: 105 x 148 to 216 x 356 mm
Power
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Power consumption (average operating)	525 W
Power consumption (ready)	10.1 W
Power consumption (sleep)	1.2 W
Power consumption (PowerSave)	0.08 W
Power consumption (off)	0.08 W
Brand-specific features
HP Auto-On/Auto-Off	Yes
HP Security tools	Identity management: Kerberos authentication, LDAP authentication, 1000 user PIN codes, Optional HP and 3rd party advanced authentication solutions (e.g., badge readers); Network: IPsec/firewall with Certificate, Pre-shared Key, Kerberos authentication, Supports WJA-10 IPsec configuration Plug-in, 802.1X authentication (EAP-PEAP; EAP-TLS), SNMPv3, HTTPS, Certificates, Access Control List; Data: Storage Encryption, Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft), SSL/TLS (HTTPS), Encrypted Credentials; Device: HP Sure Start Secure Boot (BIOS Integrity Checking with self-healing capability), Intrusion Detection (Constant in-device monitoring for attacks), Whitelisting (loads only known good code), Embedded Trusted Platform Module, HP Connection Inspector, Security lock slot, USB port disablement; Security management: Compatible with HP JetAdvantage Security Manager, Device Security Syslog Messages processed and accessible in Arcsight and Splunk SIEMs
Operational conditions
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	15 - 32.5 °C
Operating relative humidity (H-H)	30 - 70%
Recommended operating temperature range (T-T)	15 - 27 °C
Recommended humidity operating range	10 - 90%
Carbon footprint
Carbon emissions, manufacturing (kg of CO2e)	91
Carbon emissions, logistics (kg of CO2e)	5
Carbon emissions, end-of-life (kg of CO2e)	16
Total carbon emissions, w/o use phase (kg of CO2e)	73
Other features
Pallet gross weight	441.9 kg
Number of users	10 user(s)

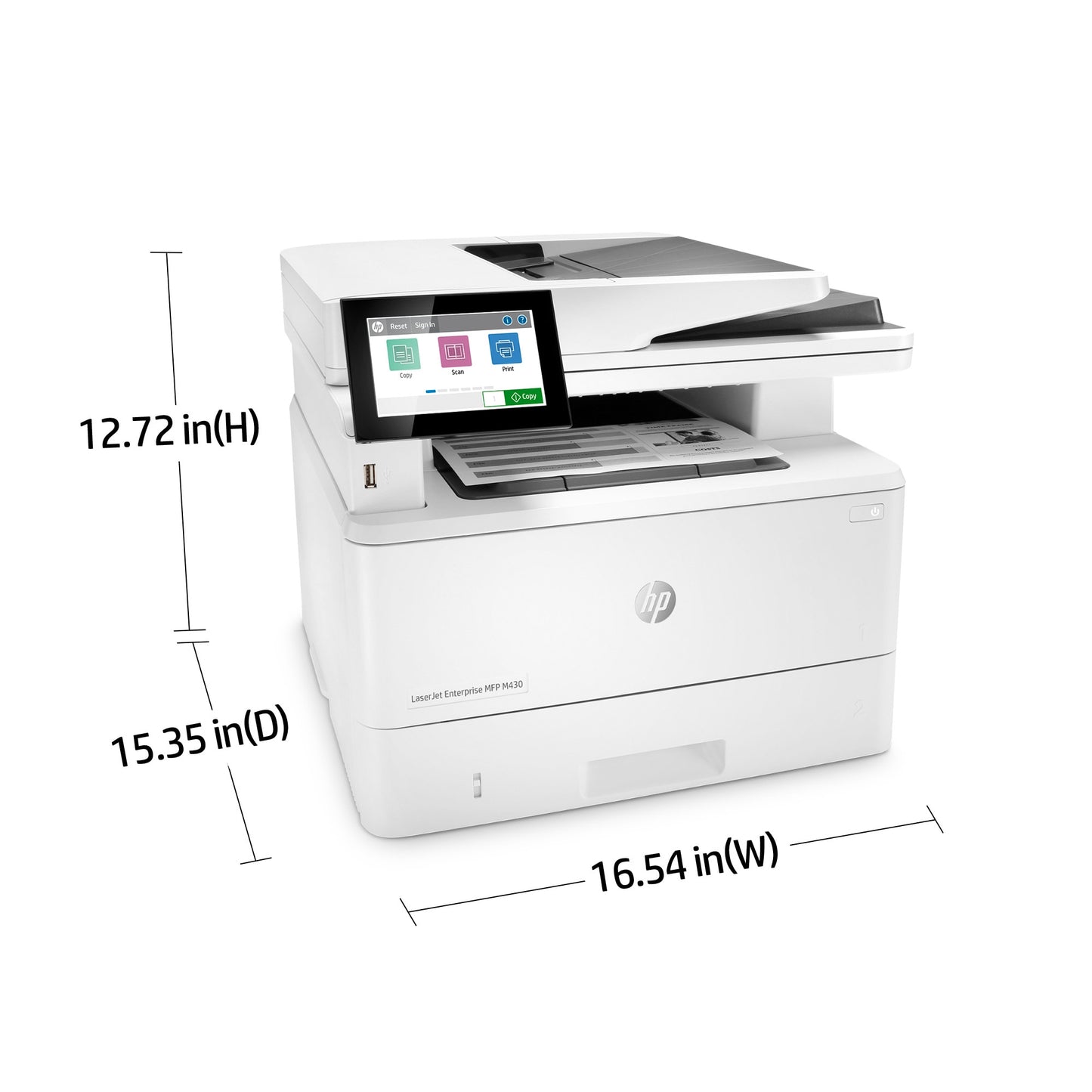

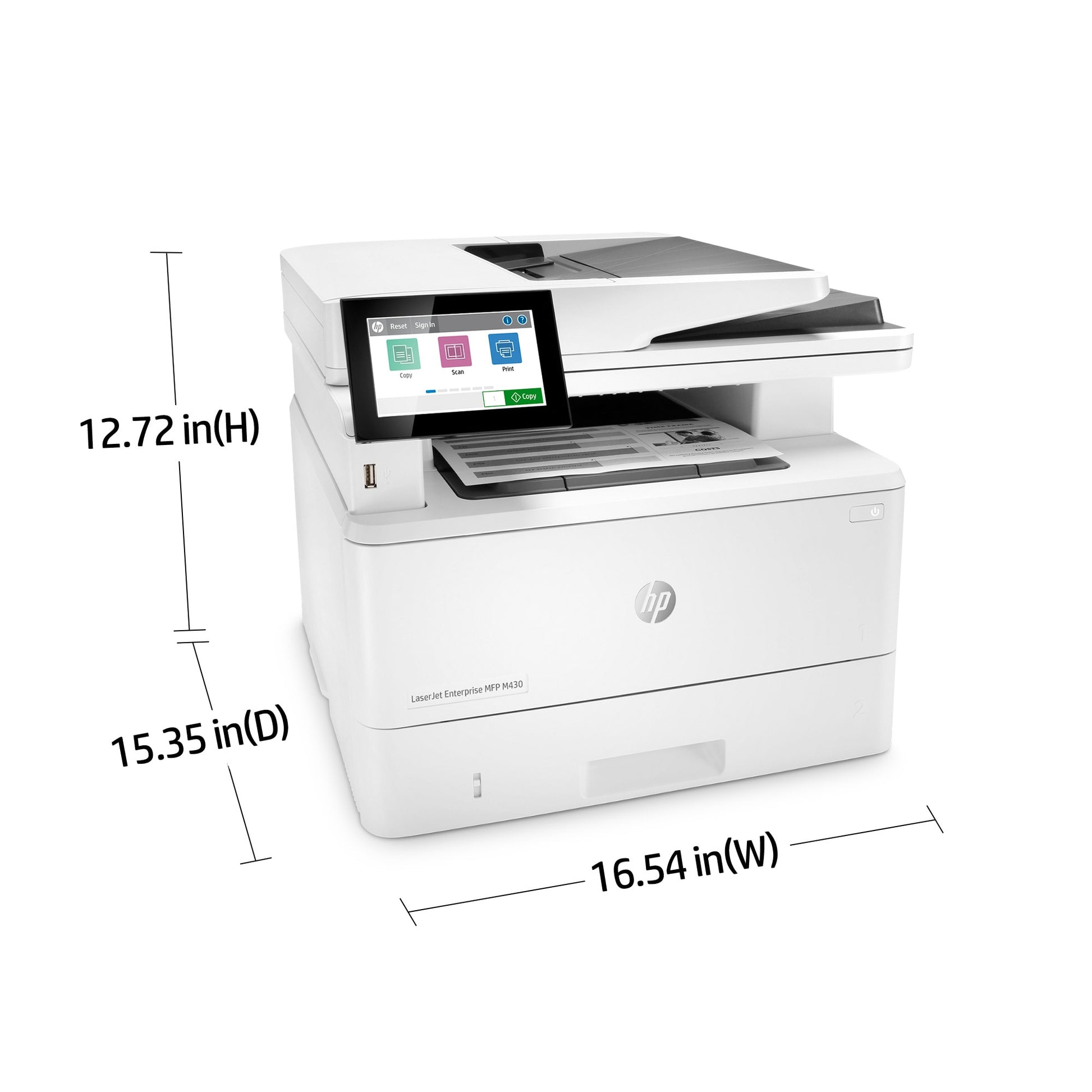

Weight & dimensions
Width	420 mm
Depth	390 mm
Height	323 mm
Weight	13 kg
Logistics data
Harmonized System (HS) code	84433100

Downloads

• Datasheet (PDF)
