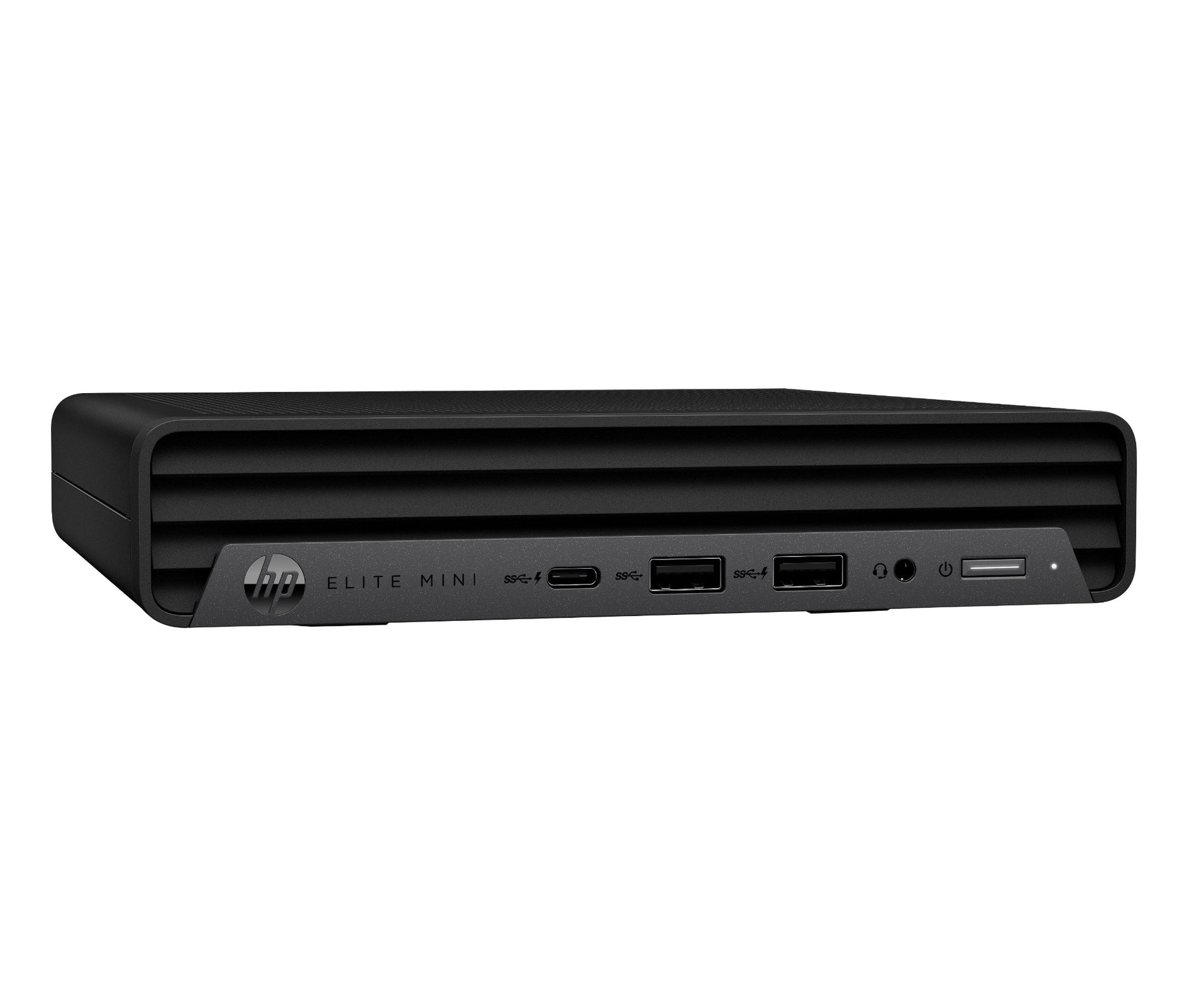

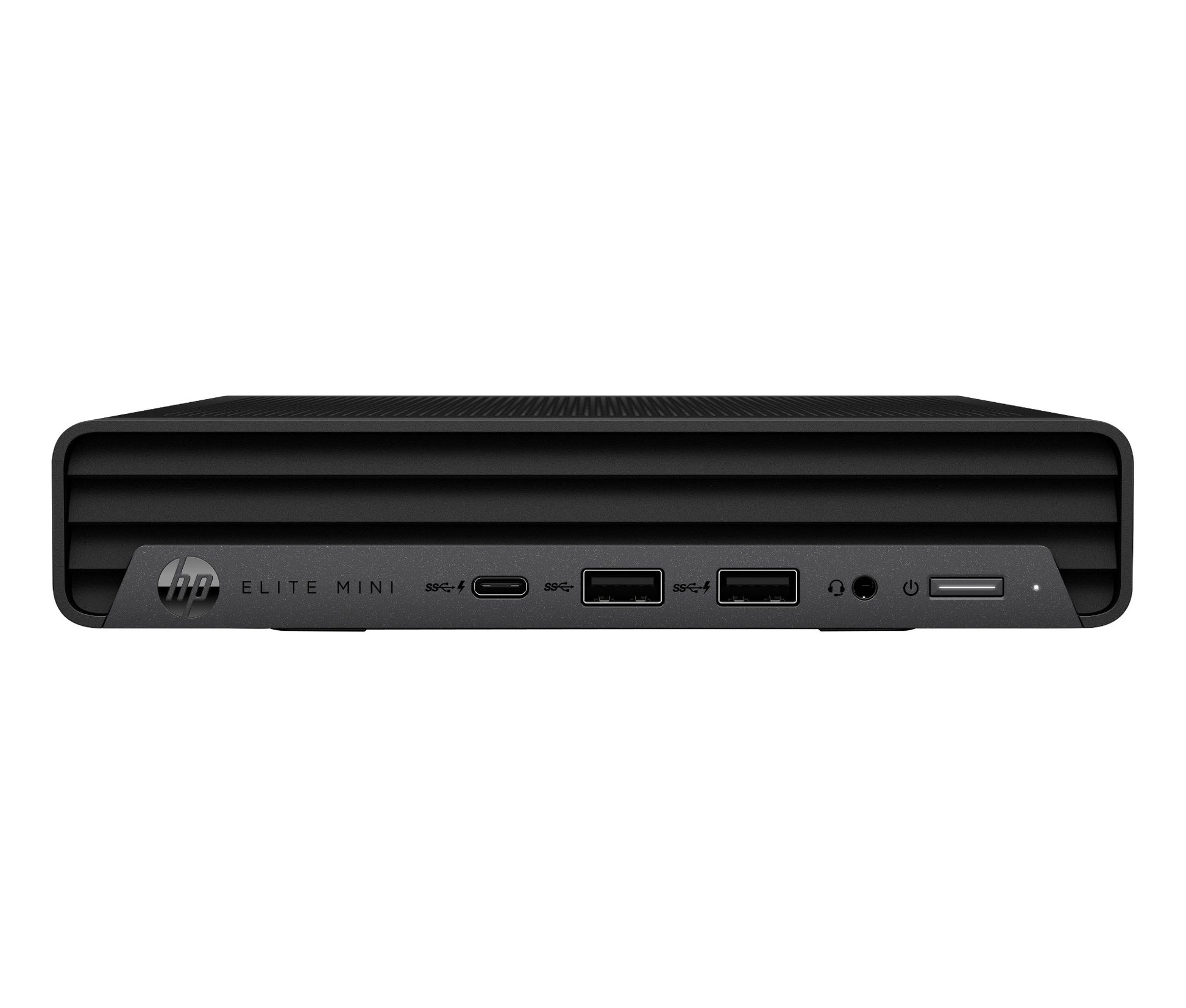

HP Elite Core i5-14500T 16GB 512GB SSD Mini PC

Small enough to hide behind a monitor, the HP Elite still packs Core i5-14500T with 16GB RAM for full desktop duty.

A desktop that can travel
The HP Elite Mini 800 Desktop PC delivers the high-performance needed to develop complex presentations, crunch big numbers, and quickly create compelling content. Equipped with a powerful Intel processor^[2], responsive graphics, and smart deployment options, this is the right PC for big jobs done in small spaces.

Specifications

Processor
Processor generation	Intel® Core™ i5 (14th gen)
Processor cache type	L3
Processor cache	24 MB
Processor model	i5-14500T
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
Processor threads	20
Processor cores	14
Processor family	Intel® Core™ i5
Performance cores	6
Efficient cores	8
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Processor base power	35 W
Maximum turbo power	92 W
Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Memory
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	16 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory module type	SODIMM
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 5.0
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
SSD memory type	TLC
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
Performance
Password protection	Yes
Password protection type	BIOS, Power on
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel Q670
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC3252
Harmonized System (HS) code	8471500000
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel

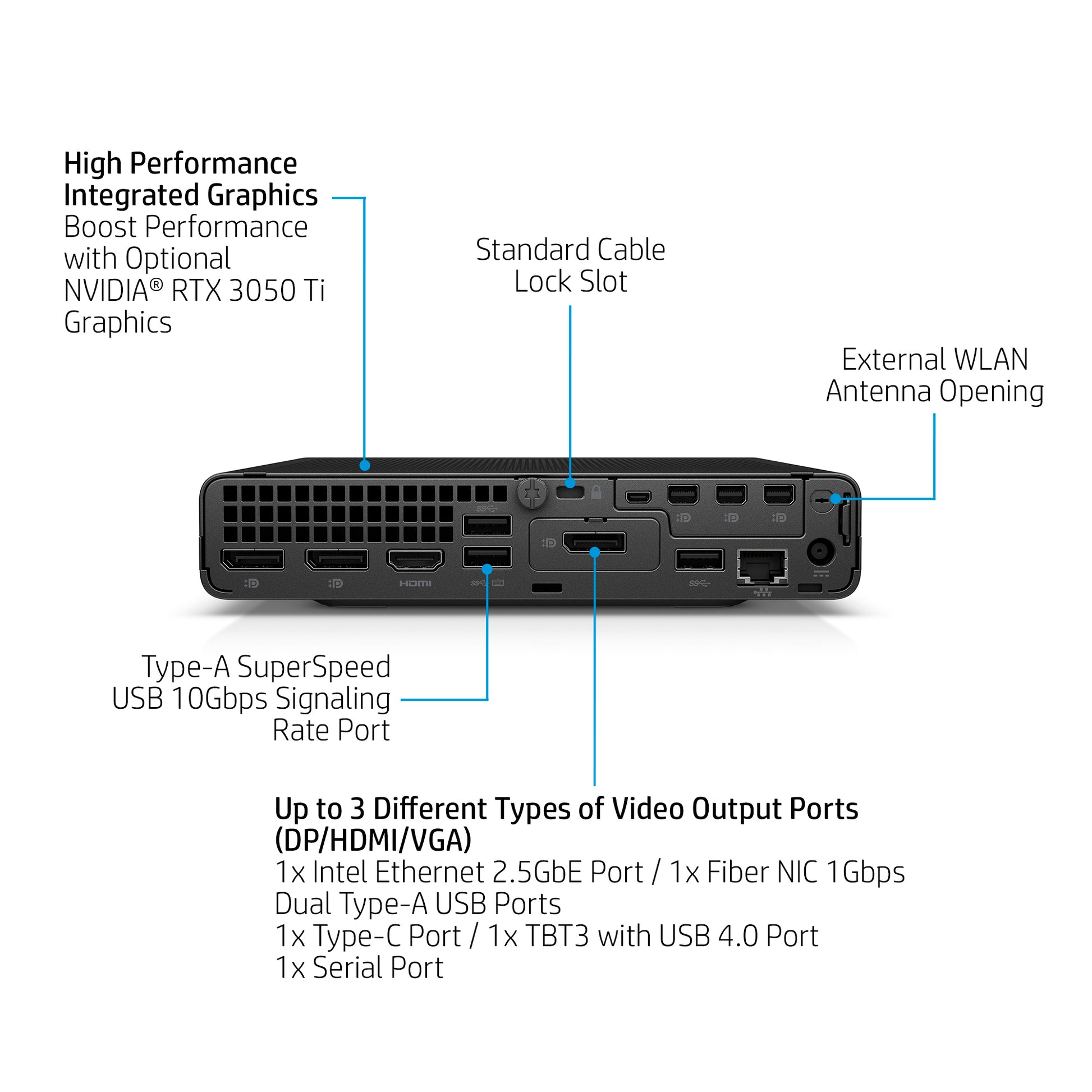

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Power
Power supply	90 W
Technical details
Number of 2.5" bays	1
Intel® Turbo Boost Technology	Yes
Product colour	Black
Chassis type	Mini PC
UNSPSC-code	43211507
Sustainable technologies and materials	45% post-consumer recycled plastic
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT, TCO10
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
HP GTIN (EAN/UPC)	198415163479
Design
Colour name	Jack black
Country of origin	China, Thailand
Intel® vPro™ Platform Eligibility	Yes
Introduction year	2024
Software
Pre-installed software	HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial
Operating system installed	Windows 11 Pro
Display
Display included	No
Brand-specific features
HP Support Assistant	Yes
HP Security tools	HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Admin; HP BIOSphere Gen6; HP Client Security Manager Gen7; HP Tamper Lock; HP Sure Start Gen7; HP Sure Run Gen5; HP Sure Recover Gen5; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 11 (Common Criteria EAL4+ certified)(FIPS 140-2 Level 2 certified)
HP Management tools	HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download)
HP Software provided	HP Notifications; HP PC Hardware Diagnostics UEFI; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; HP Easy Clean Keyboard Driver
HP segment	Business
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Sustainability
Total carbon footprint (kg of CO2e)	140
Weight & dimensions
Package width	498 mm
Package depth	132 mm
Package height	235 mm
Width	177 mm
Depth	175 mm
Height	177 mm
Package weight	2.95 kg
Weight	1.42 kg
Packaging content
Numeric keypad	No
Mouse included	Yes
Keyboard included	Yes
Input device model	HP 125 Wired Mouse
Keyboard connectivity	Wired
Keyboard
Keyboard type	USB
Carbon footprint
Total carbon emissions, w/o use phase (kg of CO2e)	26
Carbon emissions, manufacturing (kg of CO2e)	107
Carbon emissions, logistics (kg of CO2e)	1
Carbon emissions, end-of-life (kg of CO2e)	2

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
