HP Color Laser MFP 178nw Printer

Get the office moving with the HP Color Laser MFP 178nw — print speed, duplex and connectivity details are in the spec table.

Get productive MFP performance – world's smallest colour laser in it's class.^[1] Print, scan, and copy, produce high-quality colour results, and print and scan from your phone.^[2]

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Specifications

Features
Electromagnetic compatibility	EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010, EN 55032:2012/AC:2013, 47 CFR Part 15, Subpart B I ANSI C63.4-2009, ICES-003 Issue 5, KN32, KN35, CISPR22:2008, CISPR32:2012, CNS 13438 (Other EMC approvals as required by individual countries.)
Product colour	Grey, White
Certification	EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010, EN 55032:2012/AC:2013, 47 CFR Part 15, Subpart B I ANSI C63.4-2009, ICES-003 Issue 5, KN32, KN35, CISPR22:2008, CISPR32:2012, CNS 13438 (Other EMC approvals as required by individual countries.)
Scanning	Colour scanning
Faxing	No
Duplex printing mode	Manual
Copying	Colour copying
Print technology	Laser
Printing	Colour printing
Control type	Buttons
Market positioning	Home & office
Duplex printing	Yes
Duplex copying	Yes
Digital sender	Yes
Number of print cartridges	4
Maximum duty cycle	20000 pages per month
Duplex functions	Scan
Recommended duty cycle	100 - 500 pages per month
Printing colours	Black, Cyan, Magenta, Yellow
Country of origin	China
All-In-One-multitasking	Yes
Replacement cartridges	HP 117A Black Original Laser Toner Cartridge (1,000 pages) W2070A; HP 117A Cyan Original Laser Toner Cartridge (700 pages) W2071A; HP 117A Yellow Original Laser Toner Cartridge (700 pages) W2072A; HP 117A Magenta Original Laser Toner Cartridge (700 pages) W2073A
HP segment	Home office
Page description languages	SPL
Performance
HP Dynamic security	Yes
Internal memory	128 MB
Processor frequency	800 MHz
Maximum internal memory	128 MB
Built-in processor	Yes
Sound power level (printing)	6.5 dB
Print quality
Maximum resolution	600 x 600 DPI
Input capacity
Paper input type	Paper tray
Maximum input capacity	150 sheets
Output capacity
Maximum output capacity	50 sheets
Display
Display number of lines	2 lines
Display	LCD
Built-in display	Yes
Printing
Watermark printing	Yes
Poster printing function	Yes
N-in-1 print function	Yes
Booklet printing function	Yes
Print speed (colour, normal quality, A4/US Letter)	4 ppm
Secure printing	Yes
Time to first page (colour, normal)	25.3 s
Time to first page (black, normal)	12.4 s
Warm-up time	38 s
Print margins (top, bottom, right, left)	5 mm
Print speed (black, normal quality, A4/US Letter)	18 ppm
Print resolution colour	600 x 600 DPI
Print resolution black	600 x 600 DPI
Copying
N-in-1 copy function	Yes
ID-card copy function	Yes
Background adjustment function	Yes
Auto fit function	Yes
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	14 cpm
Copy speed (colour, normal quality, A4)	4 cpm
Time to first copy (colour, normal)	32.1 s
Time to first copy (black, normal)	12.6 s
N-in-1 copy function (N=)	4, 2
Maximum number of copies	999 copies
Copier resize	25 - 400%
Scanning
Optical scanning resolution	600 x 600 DPI
Maximum scan area	216 x 297 mm
Maximum scan resolution	19200 x 19200 DPI
Scanner type	Flatbed scanner
Scan to	Software, TWAIN, WIA
Image formats supported	JPG, TIFF
Document formats supported	PDF
Input colour depth	24 bit
TWAIN version	1.9
Scan technology	CIS
Scan drivers	TWAIN, WIA
Greyscale levels	256
Input & output capacity
Total number of input trays	1
Total input capacity	150 sheets
Total output capacity	50 sheets
Paper tray 1 input capacity	150 sheets
Maximum number of input trays	1
Paper handling
Maximum ISO A-series paper size	A4
Maximum print size	216 x 356 mm
ISO A-series sizes (A0...A9)	A4, A5, A6
Non-ISO print media sizes	Oficio
JIS B-series sizes (B0...B9)	B5
Custom media width	76 - 216 mm
Custom media length	148.5 - 356 mm
Envelope feeder	No
Paper tray media types	Plain paper, Glossy paper, Bond paper, Recycled paper, Labels, Heavy paper, Lightweight paper
Paper tray media weight	60 - 220 g/m²
Ports & interfaces
USB port	Yes
Standard interfaces	USB 2.0
Direct printing	Yes
Network
Ethernet LAN data rates	10,100 Mbit/s
Mobile printing technologies	Mopria Print Service, Apple AirPrint, Google Cloud Print
Cabling technology	10/100Base-T(X)
Wi-Fi standards	Wi-Fi 4 (802.11n), 802.11g, 802.11b
Security algorithms	SNMPv2, SNMP, IPSec
Wi-Fi	Yes
Ethernet LAN	Yes
Wi-Fi Direct	Yes
Packaging data
Products per pallet	24 pc(s)
Pallet dimensions (W x D x H)	1014 x 944 x 2390 mm
Included cartridge capacity (black)	700 pages
Included cartridge capacity (CMY)	500 pages
Power cord included	Yes
Manual	Yes
Quick installation guide	Yes
Bundled software	Common Installer, V3 Print Driver with Lite SM, TWAIN/WIA Driver, HP MFP Scan, OCR program
Package width	501 mm
Package depth	466 mm
Package height	398 mm
Package weight	16.1 kg
Cartridge(s) included	Yes
Cables included	AC
Technical details
Sustainable technologies and materials	Mercury free
Doesn't contain	Mercury
Power supply type	Internal (Built-in) power supply
Compatible operating systems	Windows 11; Windows 8; macOS 10.11 El Capitan; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave
UNSPSC-code	43212110
Typical electricity consumption (TEC) number	0.876 kWh/Week (Blue Angel); 1.093 kWh/Week (Energy Star)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	24 pc(s)
Energy Star Typical Electricity Consumption (TEC)	0.876 kWh/week
Power consumption (printing)	300 W

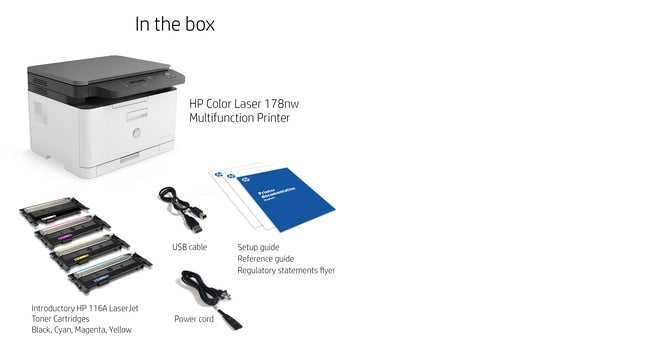

Box contents	HP Color Laser MFP 178nw; Preinstalled introductory HP Laser Printer Black print cartridge (700 pages); HP Laser Printer Cyan print cartridge (500 pages); HP Laser Printer Yellow print cartridge (500 pages); HP Laser Printer Magenta print cartridge (500 pages); Imaging drum; Toner collection unit; Setup poster; Reference guide; Support flyer; Warranty guide; No CD-ROM; Power cord; USB cable
Master (outer) cases per pallet layer	4 pc(s)
Total carbon footprint (kg of CO2e)	180
Compliance certificates	CECP, CE
General Product Safety Regulation (GPSR) URL	https://support.hp.com/gb-en/product/setup-user-guides/hp-color-laser-mfp-170-printer-series/model/24494366?sku=4ZB96A ; http://h10032.www1.hp.com/ctg/Manual/c06266695.pdf ; http://h10032.www1.hp.com/ctg/Manual/c06270941.pdf
HP GTIN (EAN/UPC)	193015507203, 193015507210, 193015507241, 193905621613, 193015507258, 193015507265
HP GTIN (EAN/UPC) with options	(ABT) 193015507203; (ABY) 193015507210; (ACQ) 193015507241; (B13) 193905621613; (B19) 193015507258; (BAZ) 193015507265
System requirements
Recommended system requirements	Windows 10 or newer; Intel Pentium IV 1 GHz 32-bit or 64-bit processor or higher; 1 GB RAM; 16 GB HDD. OS X v10.11 or newer; 1.5 GB available hard disk space; Internet; USB.
Windows operating systems supported	Windows 8, Windows 11
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, MacOS
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2016
Media formats
Custom media sizes	76 x 148.5 to 216 x 356 mm
Power
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Power consumption (ready)	38 W
Power consumption (sleep)	1.9 W
Power consumption (PowerSave)	0.2 W
Power consumption (off)	0.2 W
Brand-specific features
HP Auto-On/Auto-Off	Yes
HP Security tools	Password-protected network embedded Web server; Enable/disable Network ports; SNMPv1 community password change; SNMPV2&V3; IPSec; Filtering : MAC, IPv4, IPv6
Operational conditions
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 30 °C
Operating relative humidity (H-H)	10 - 80%
Recommended operating temperature range (T-T)	15 - 27 °C
Carbon footprint
Carbon emissions, manufacturing (kg of CO2e)	108
Carbon emissions, logistics (kg of CO2e)	5
Carbon emissions, end-of-life (kg of CO2e)	19
Total carbon emissions, w/o use phase (kg of CO2e)	44
Other features
Pallet gross weight	395 kg
Number of users	5 user(s)
Weight & dimensions
Width	406 mm
Depth	363 mm
Height	288.7 mm
Weight	12.9 kg
Packaging content
User guide	Yes
Logistics data
Harmonized System (HS) code	84433100
