Gigabyte

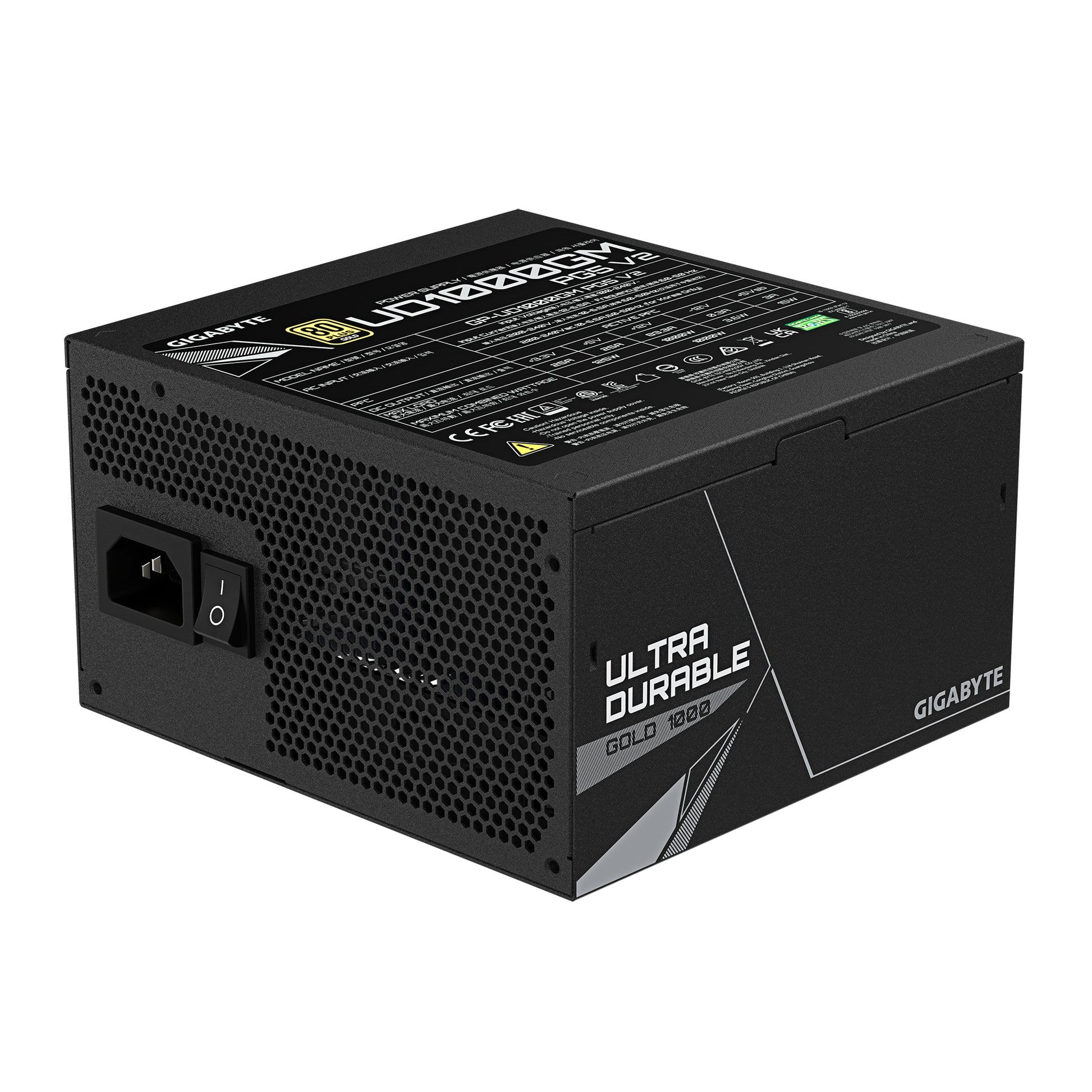

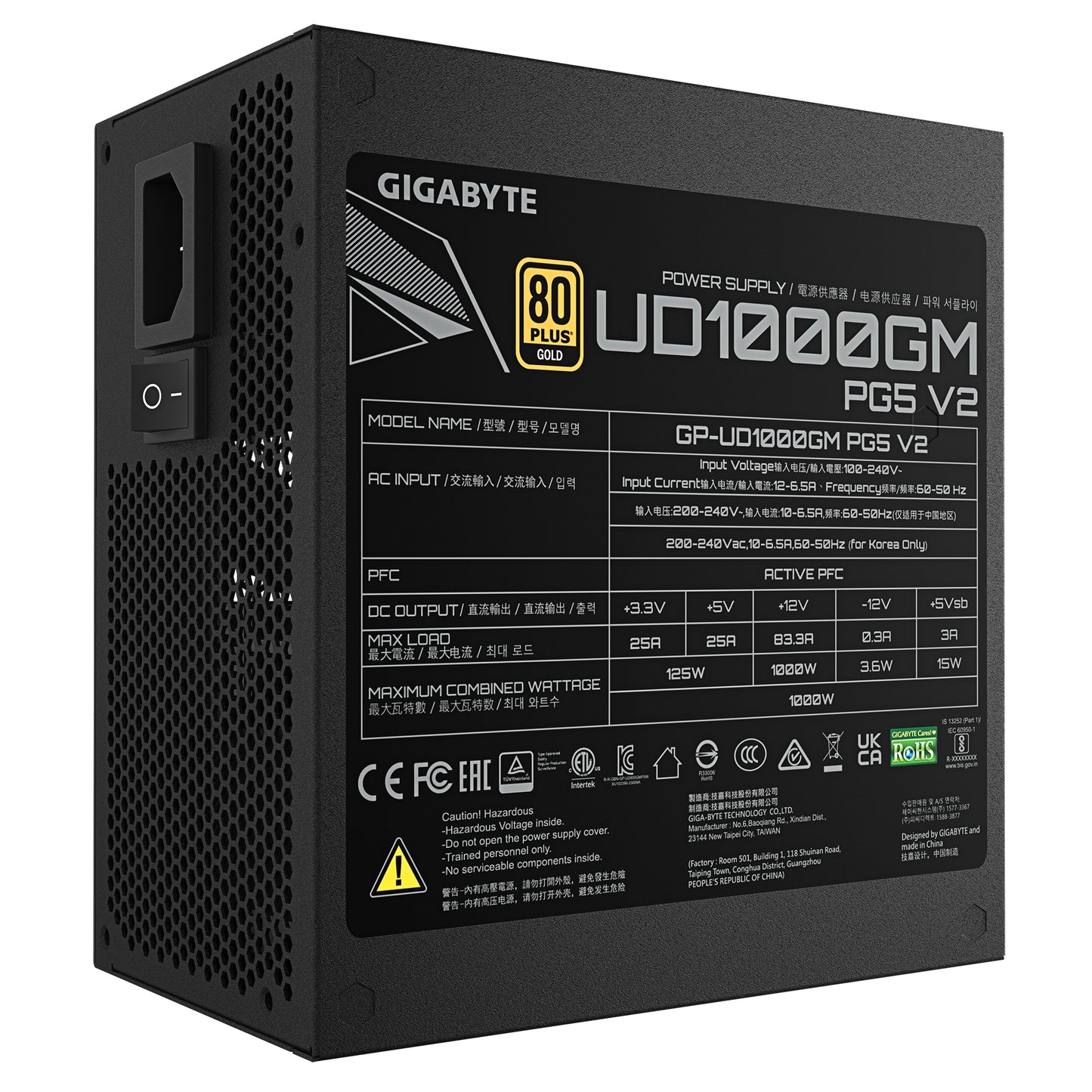

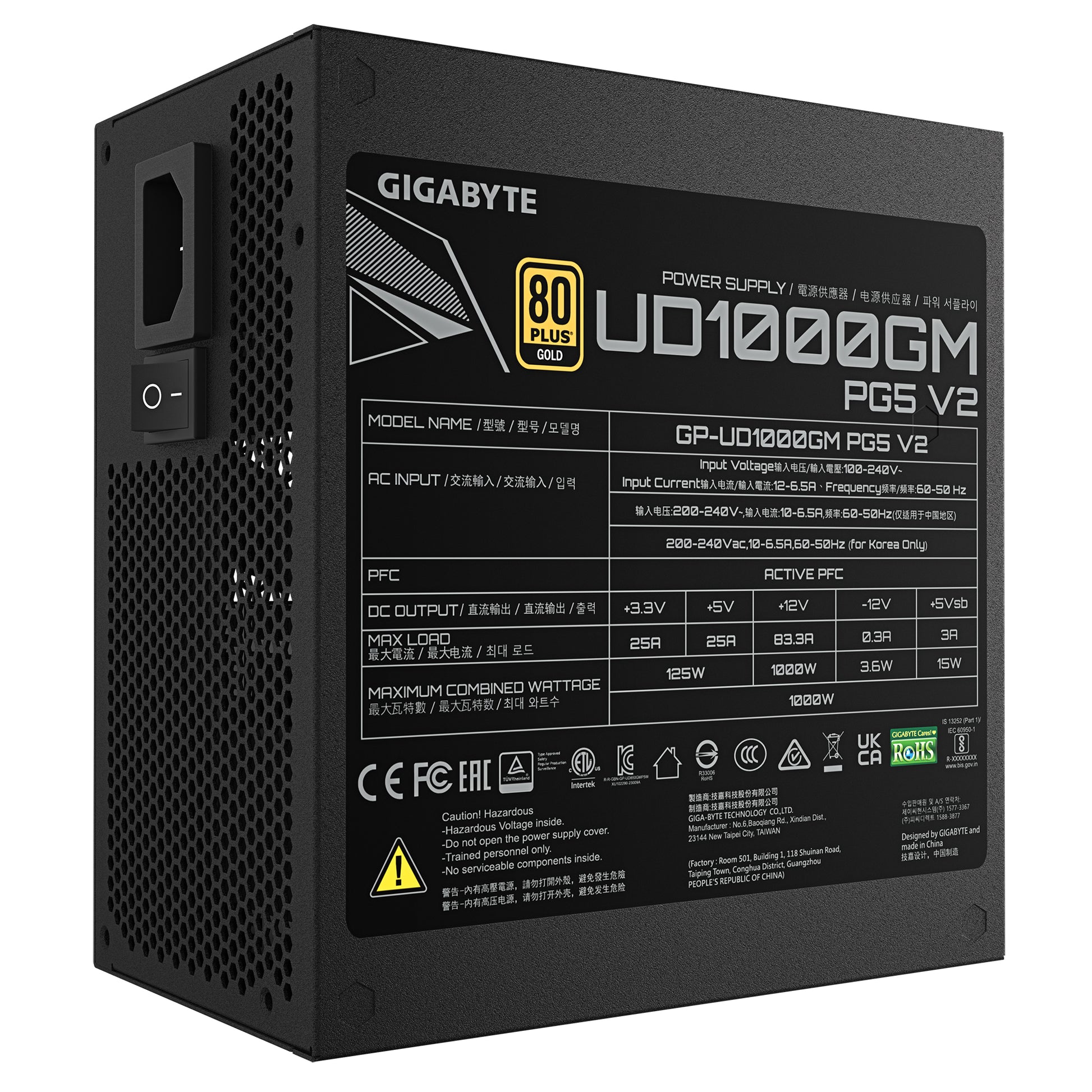

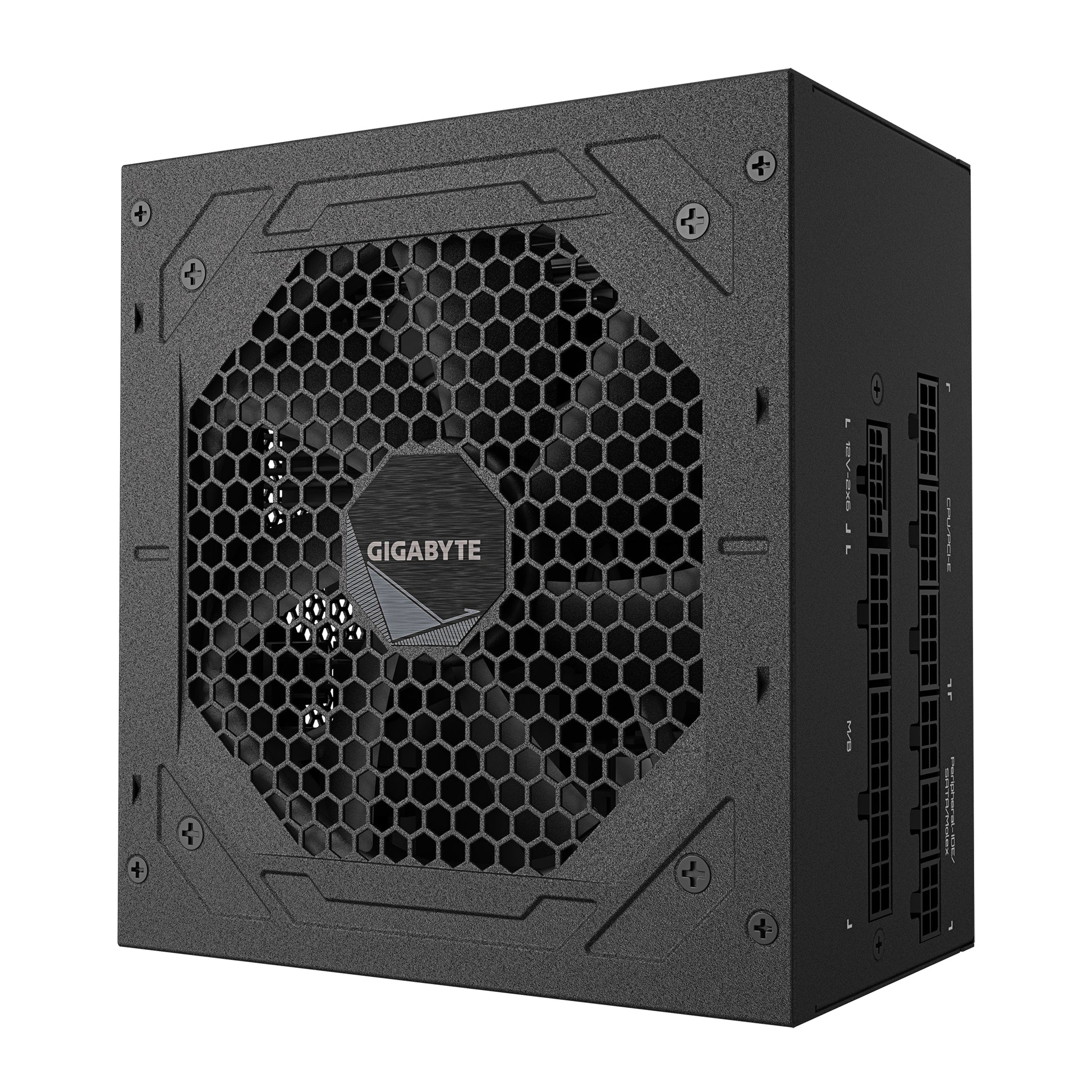

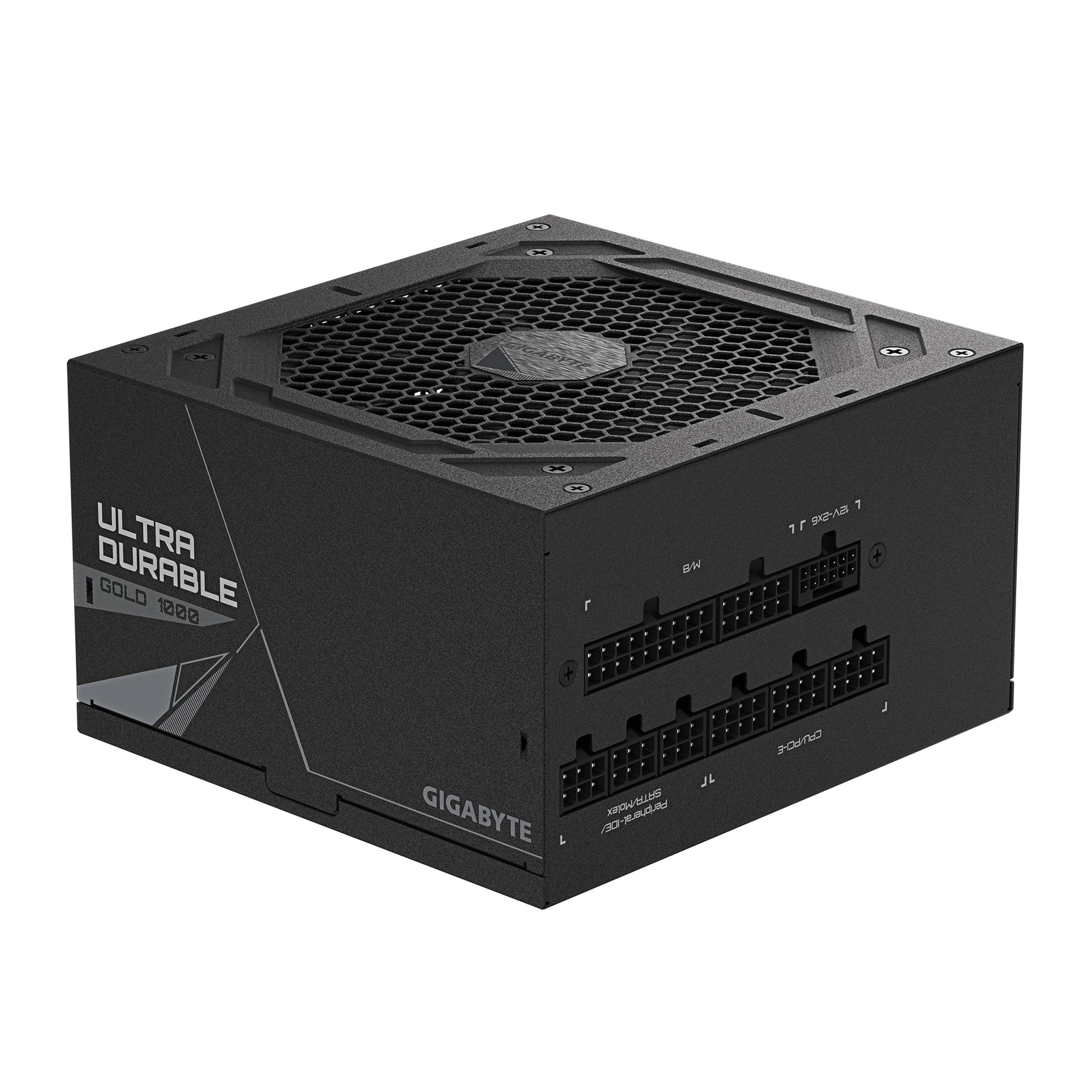

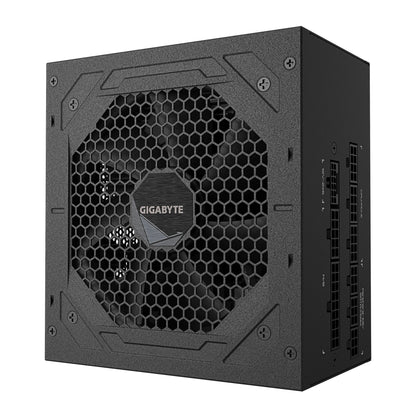

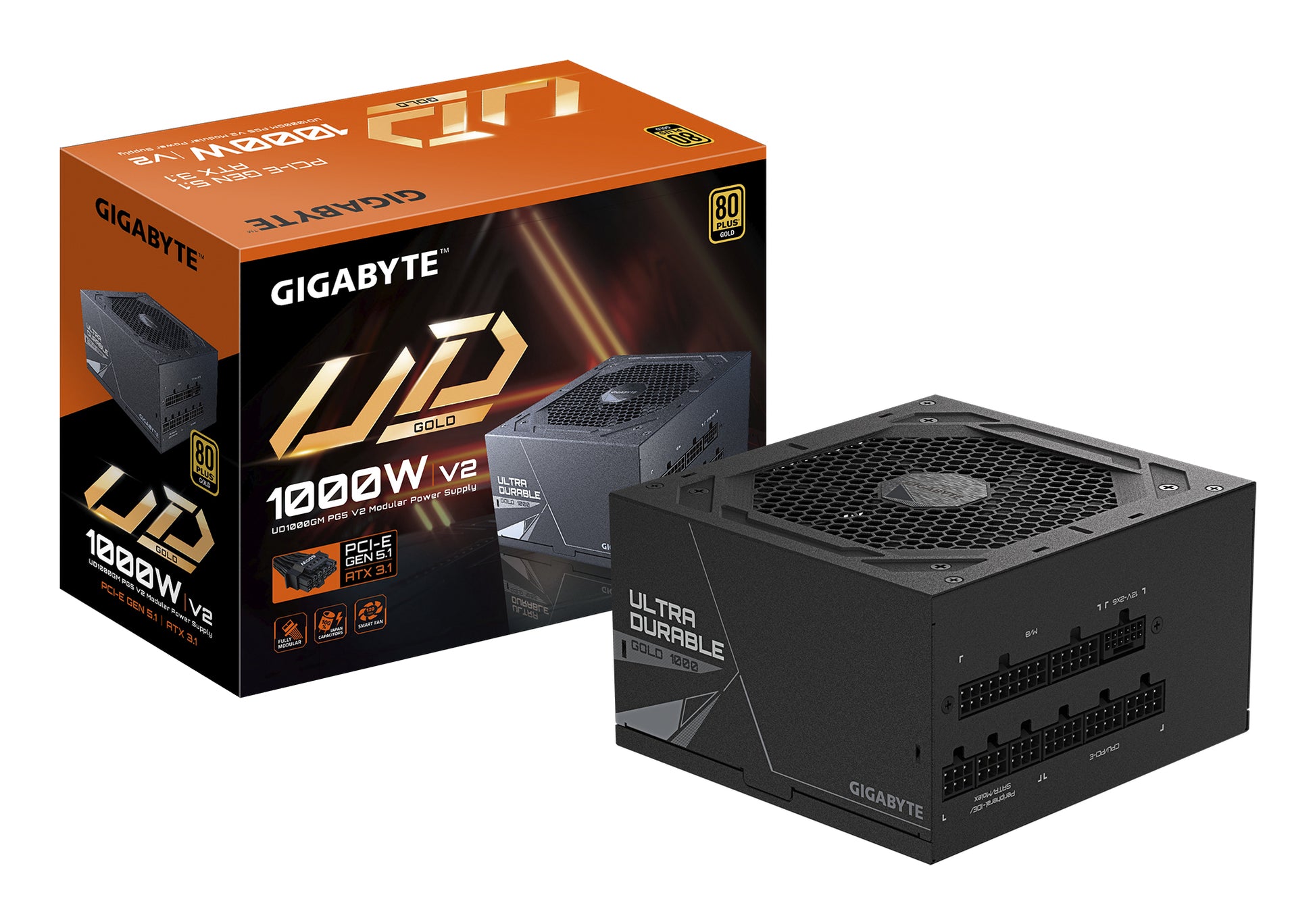

Gigabyte UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully
Gigabyte UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully
Regular price
£119.46 GBP
Regular price
Sale price
£119.46 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Reliable power for your system: the Gigabyte UD1000GM PG5 V2 Power — wattage and connector details are in the spec table.
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Specifications
| Cooling | |
|---|---|

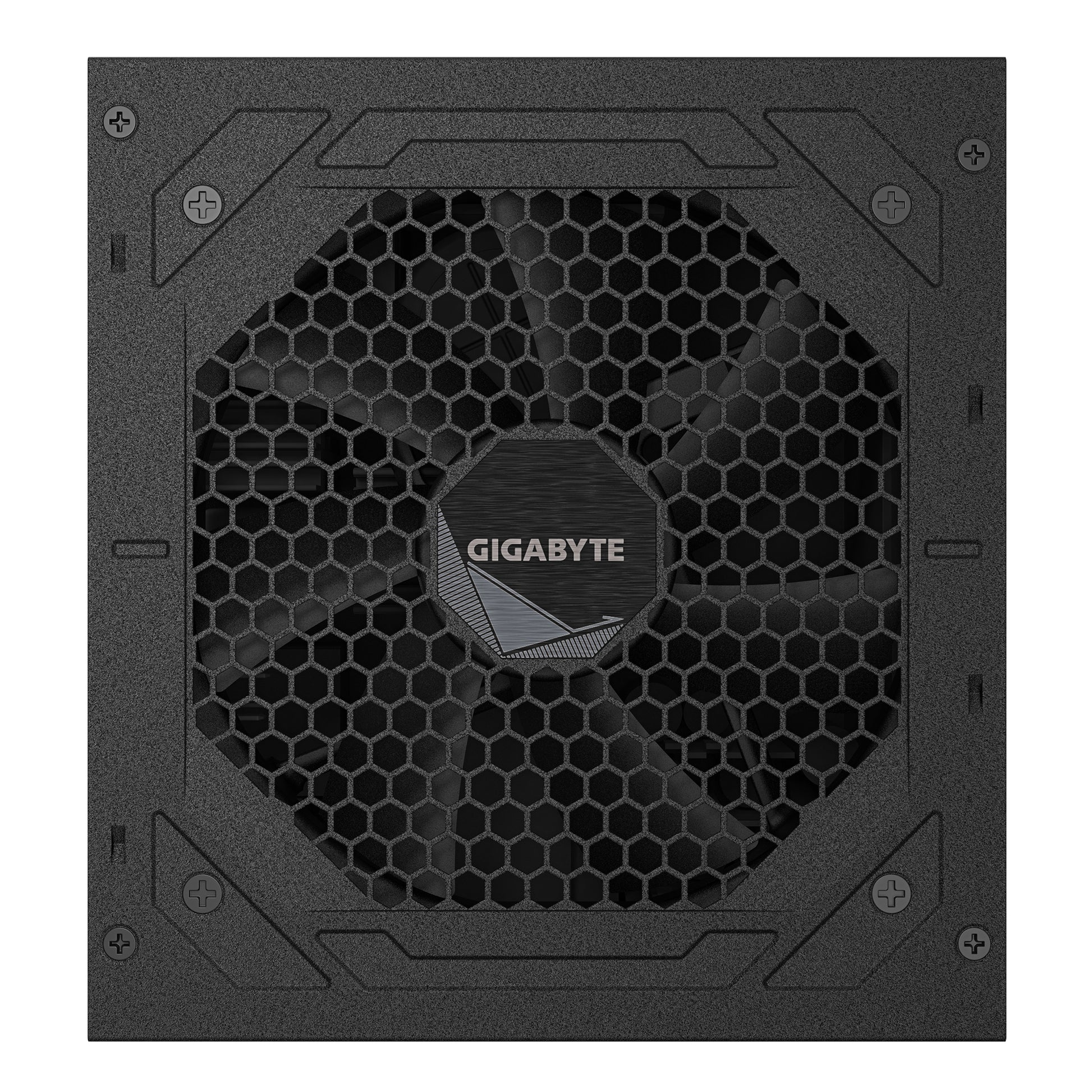

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HYB |
| Design | |
| Product colour | Black |
| Power | |
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 6.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |

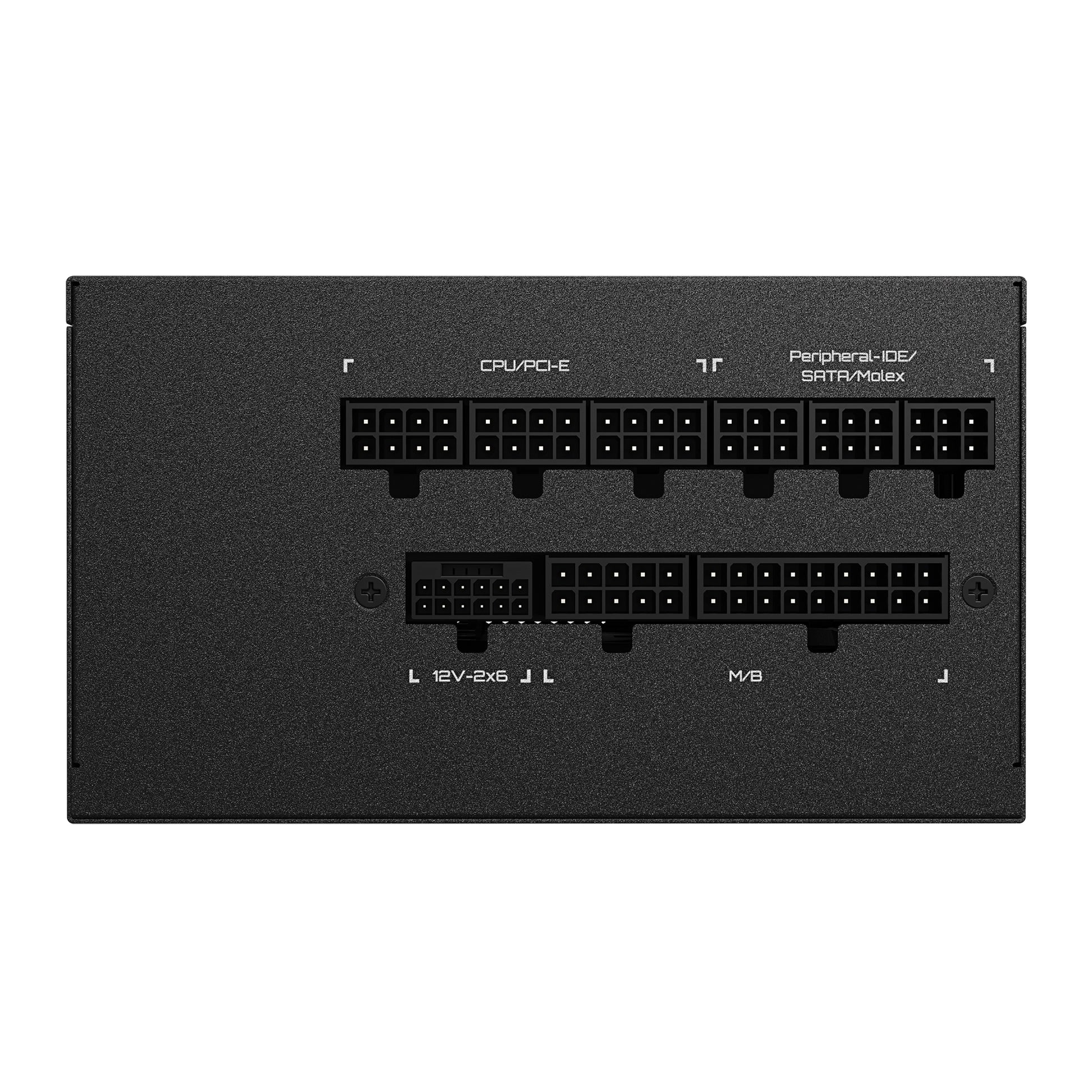

| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power cable length | 120,150,500 mm |
| PCI Express power cable length | 70 cm |
| CPU power cable length | 60 cm |

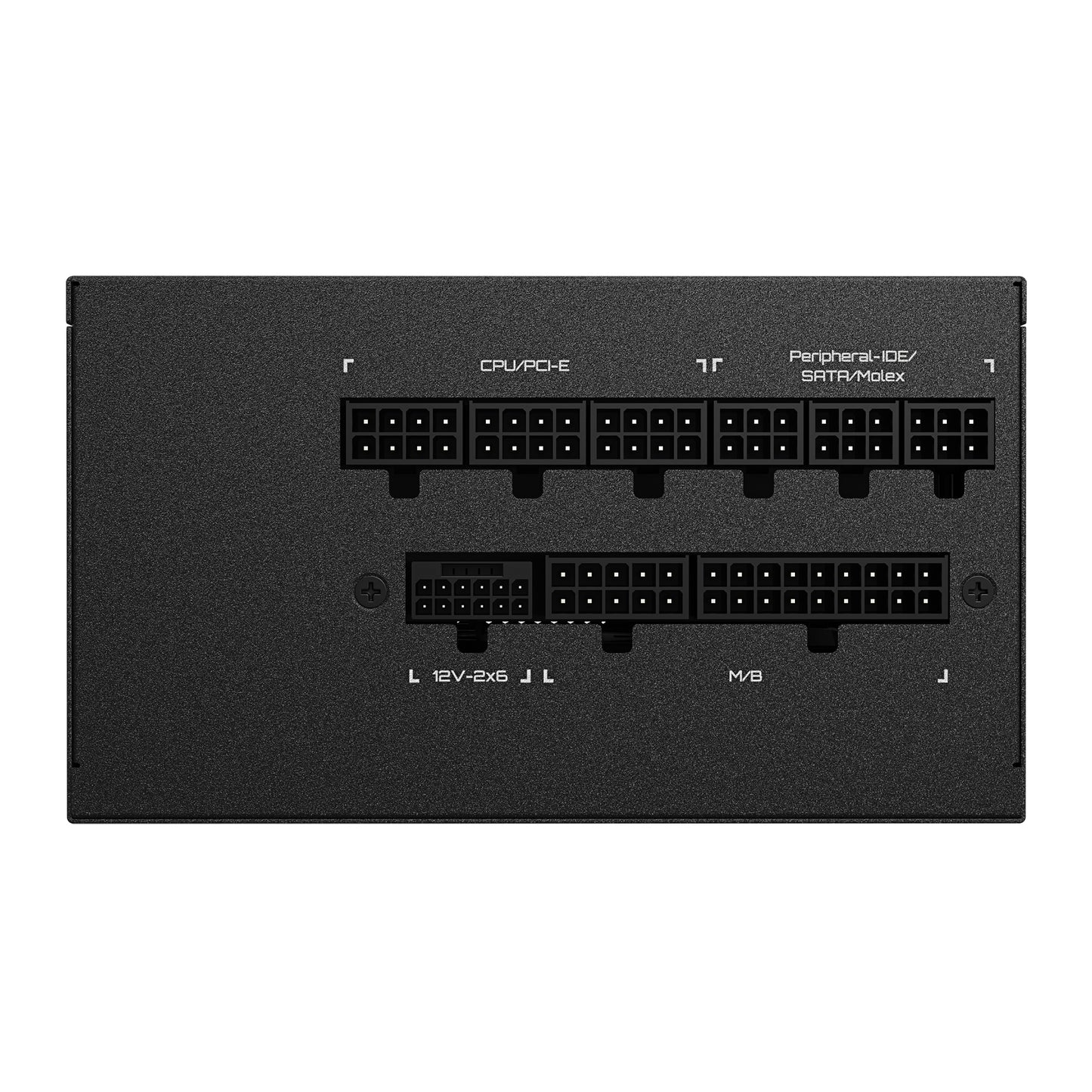

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| PCI Express power connectors (16-pin) | 1 |
| Number of EPS connectors | 2 |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.48 kg |
| Packaging data | |
| Package depth | 269 mm |
| Package width | 618 mm |
| Package height | 211 mm |
| Package type | Box |
| Package weight | 2.64 kg |
