Gigabyte
Gigabyte H810M GAMING WIFI6 Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2
Gigabyte H810M GAMING WIFI6 Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2
Regular price
£102.62 GBP
Regular price
Sale price
£102.62 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Gigabyte H810M GAMING WIFI6 provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| RAID levels | 0, 1, 5, 10 |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 6400 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

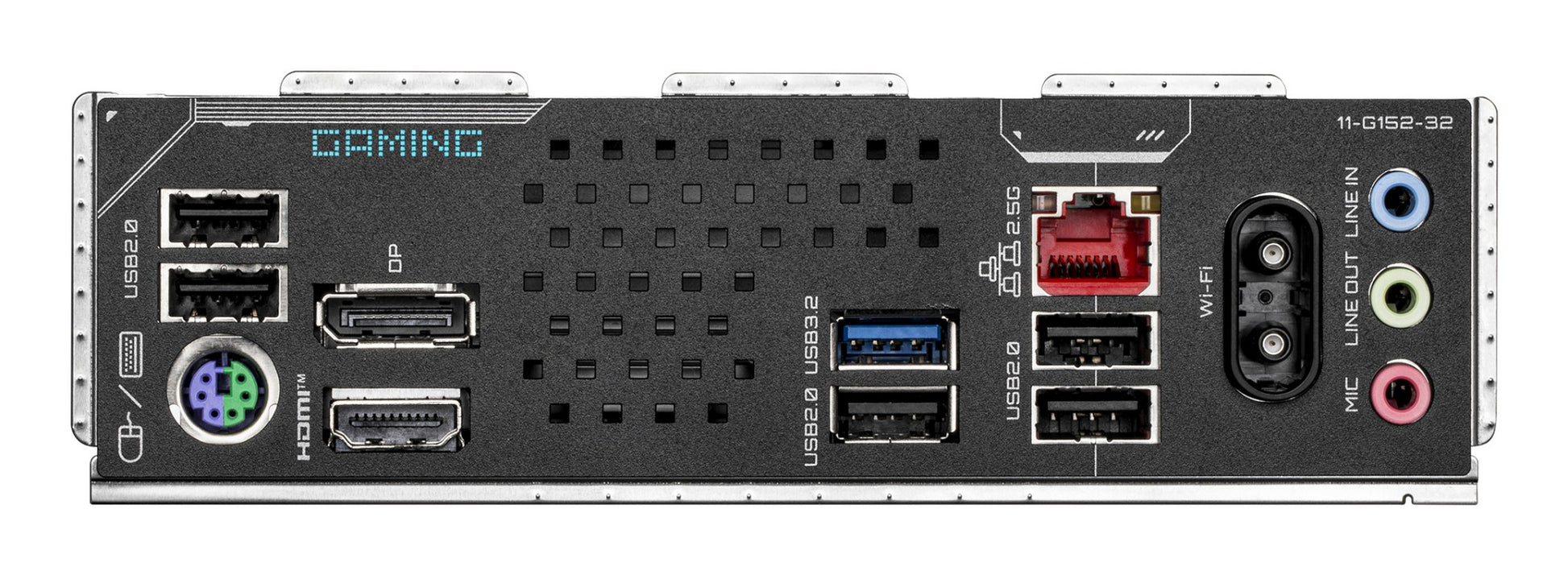

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 2.1 |
| USB 2.0 ports quantity | 5 |
| WiFi-AP antenna jack | 2 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Features | |
| Power source type | ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.19 kg |
| Software | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Weight | 1.1 kg |
| Width | 244 mm |
| Depth | 215 mm |
| Packaging content | |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
