Gigabyte

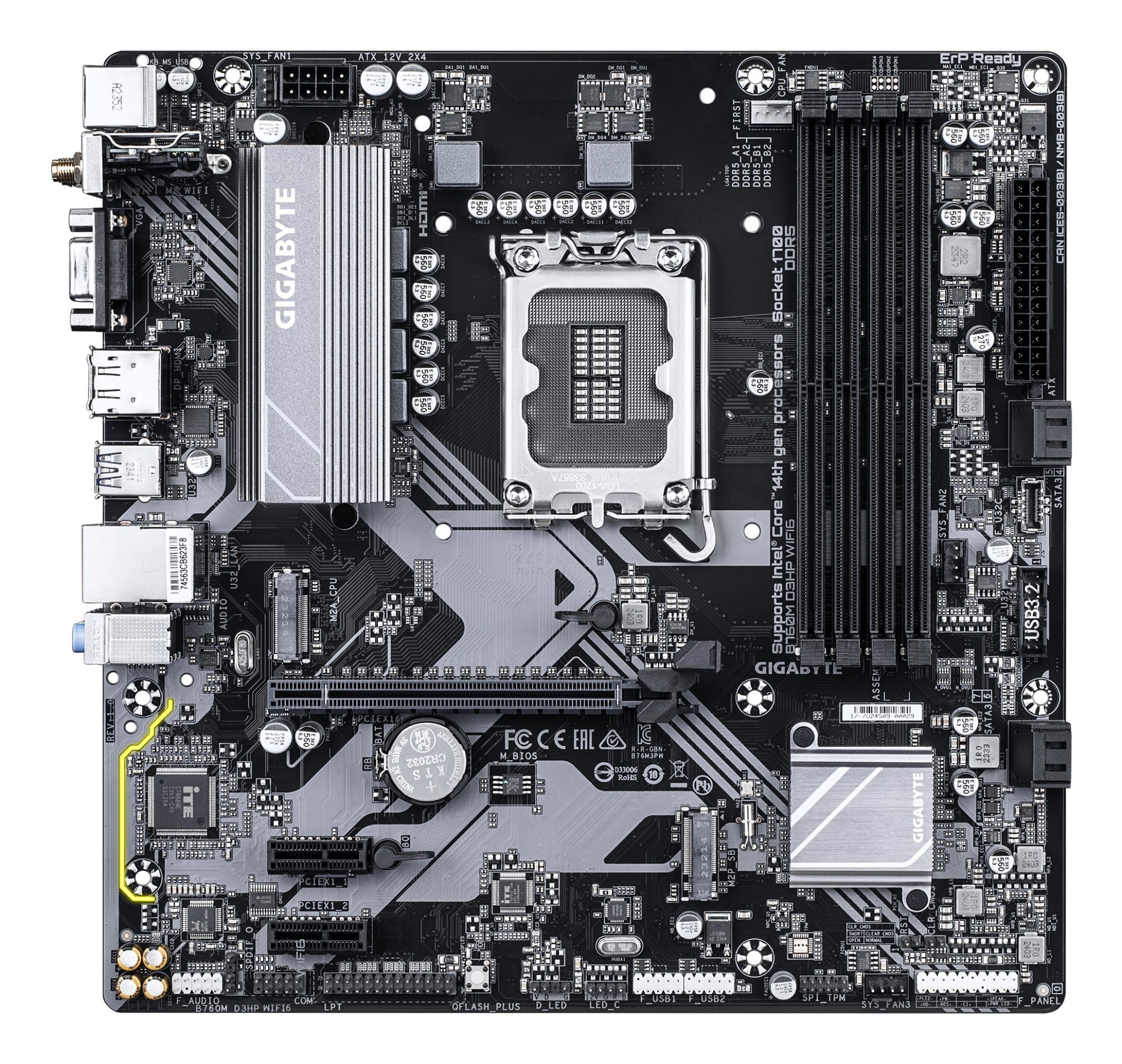

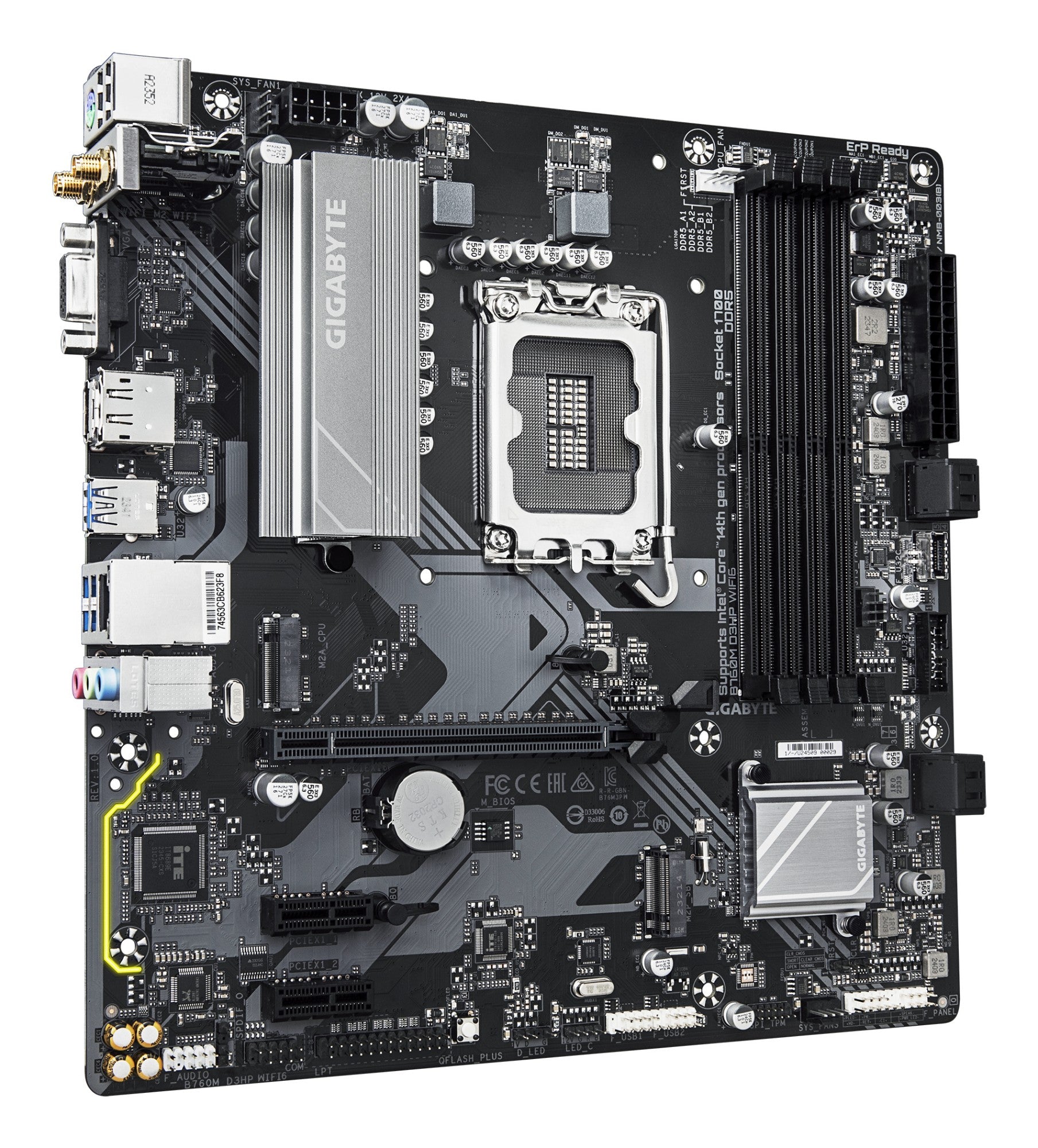

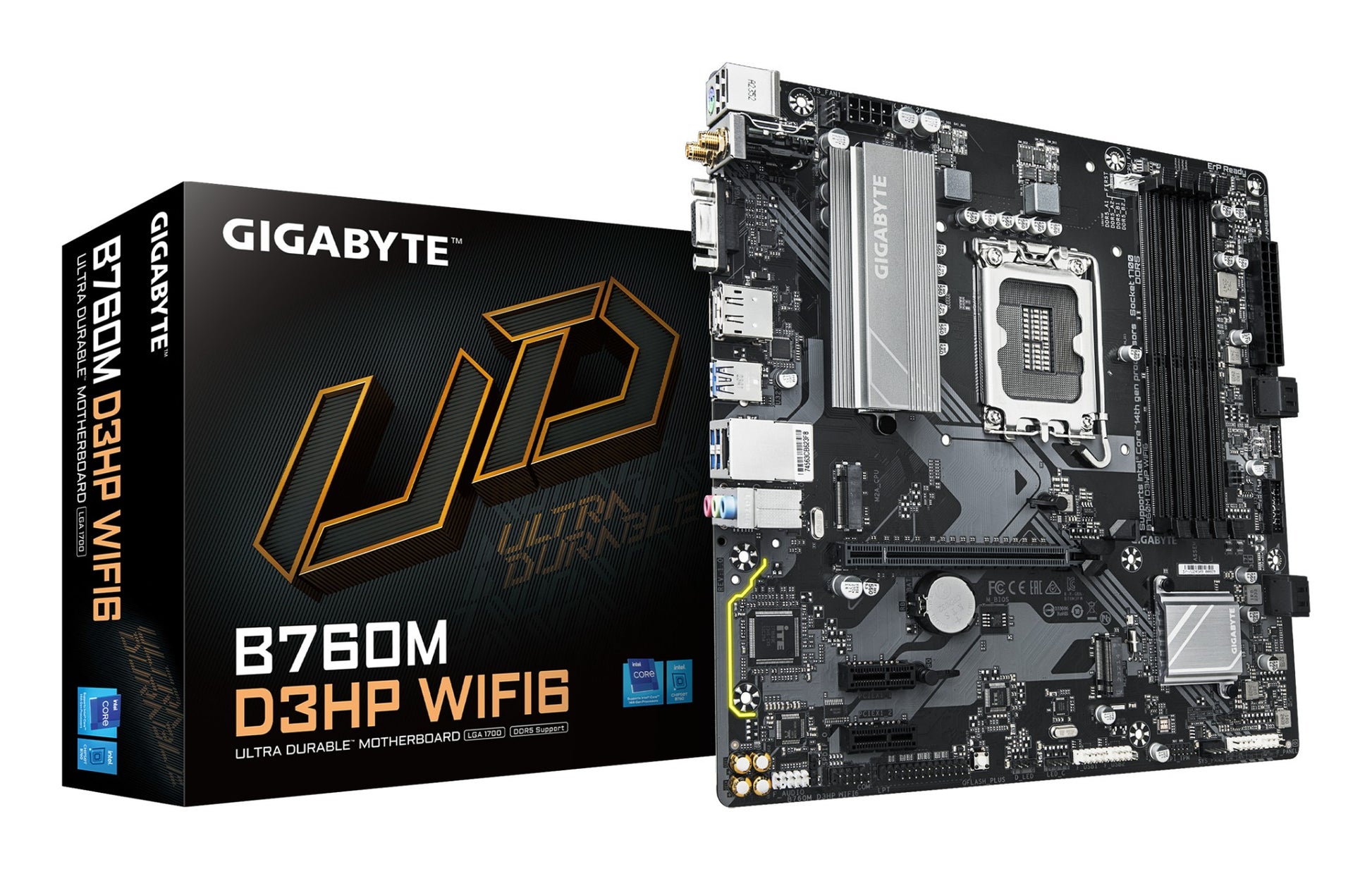

Gigabyte B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1
Gigabyte B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1
Regular price
£102.25 GBP
Regular price
Sale price
£102.25 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Gigabyte B760M D3HP WIFI6 provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| S/PDIF out connector | Yes |
| Parallel connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| RAID levels | 0, 1, 5, 10 |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 48 GB |
| Storage controllers | |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

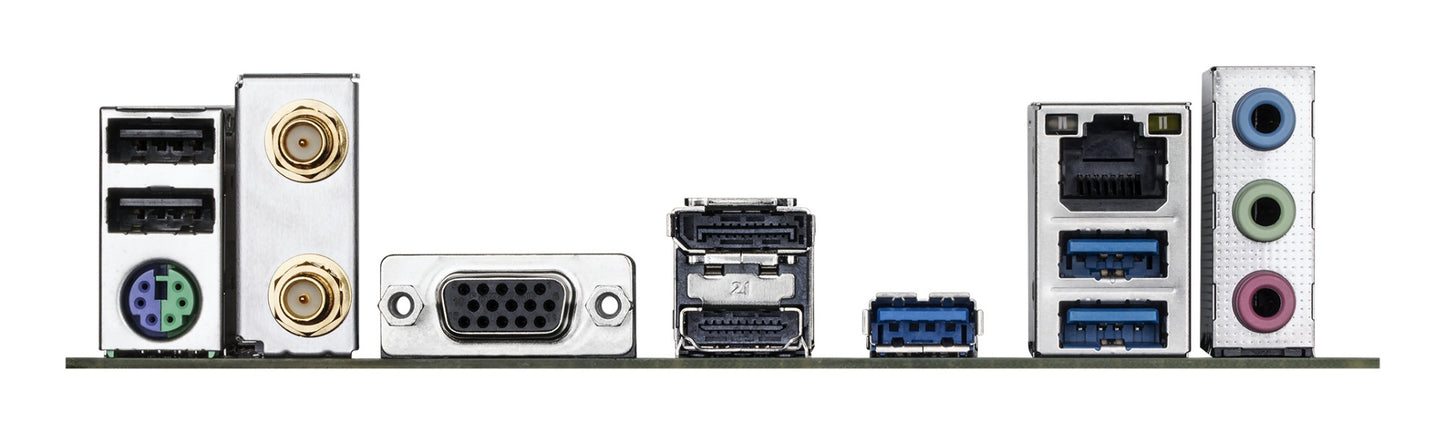

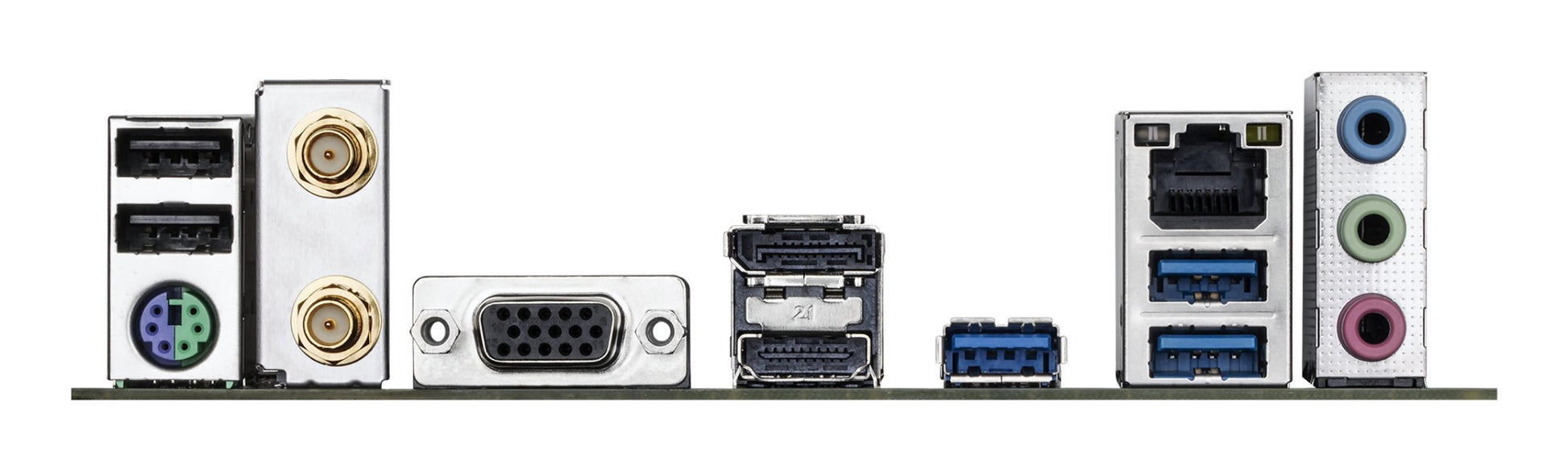

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Features | |
| Power source type | ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1.2 kg |
| Software | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Weight | 1.11 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
