Gigabyte A520M H ARGB Motherboard - Supports AMD Ryzen 5000 Series CPUs, up to
Gigabyte A520M H ARGB Motherboard - Supports AMD Ryzen 5000 Series CPUs, up to
Regular price
£62.24 GBP
Regular price
Sale price
£62.24 GBP
Taxes included.
Quantity
Couldn't load pickup availability

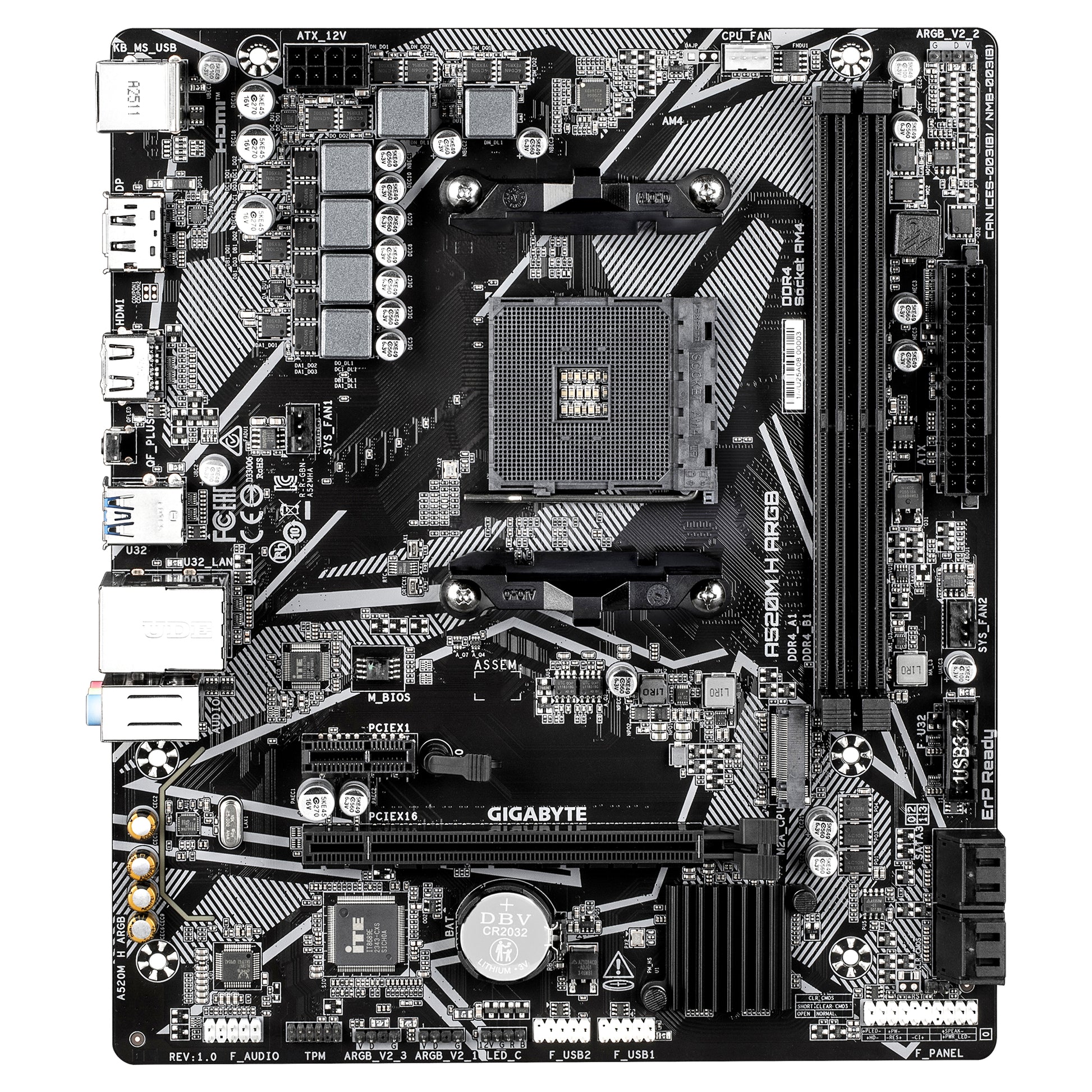

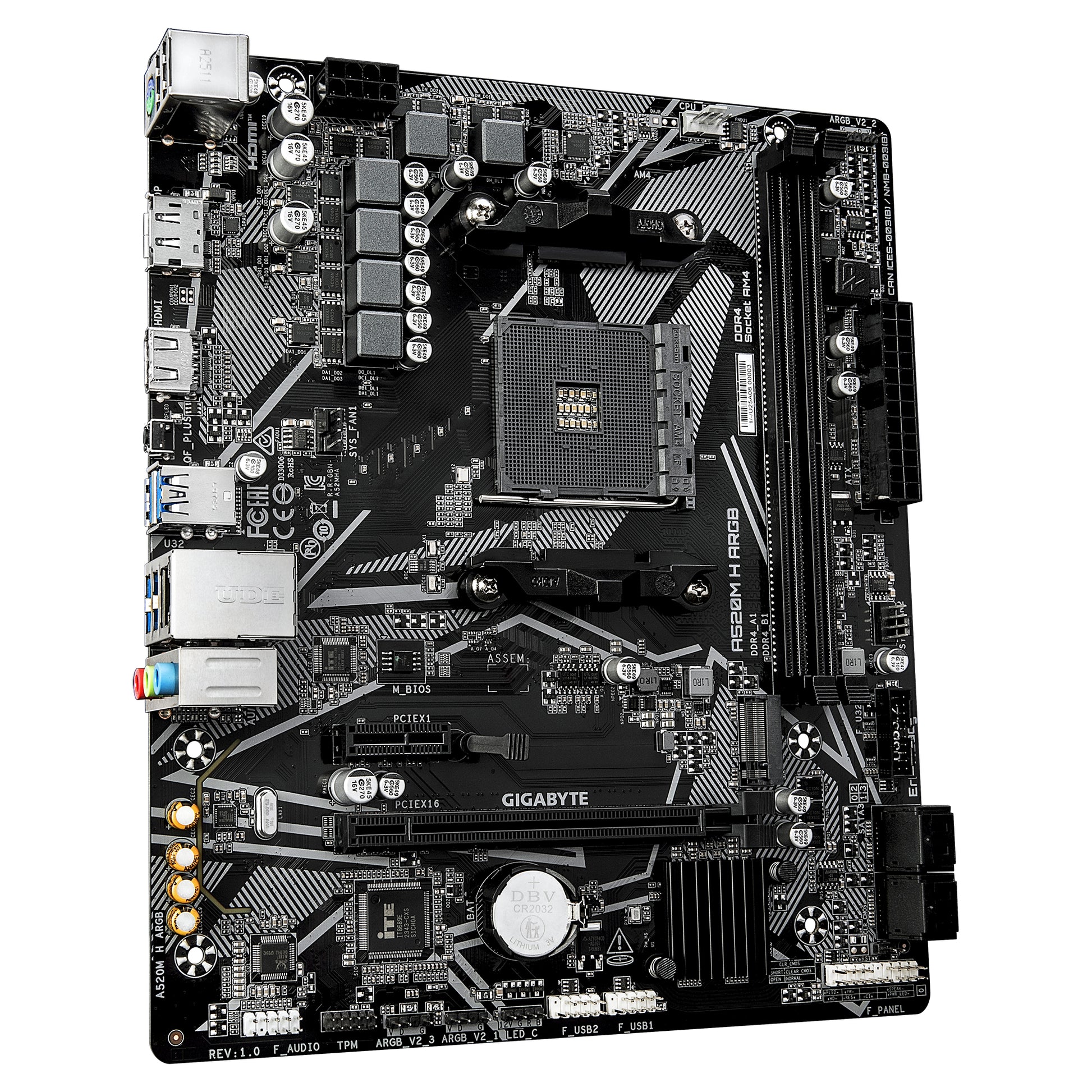

The Gigabyte A520M H ARGB provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| RAID levels | 0, 1, 10 |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series, AMD Ryzen PRO 4000 Series, AMD Ryzen PRO 5000 Series |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5100 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Storage controllers | |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Graphics | |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| HDCP version | 2.3 |

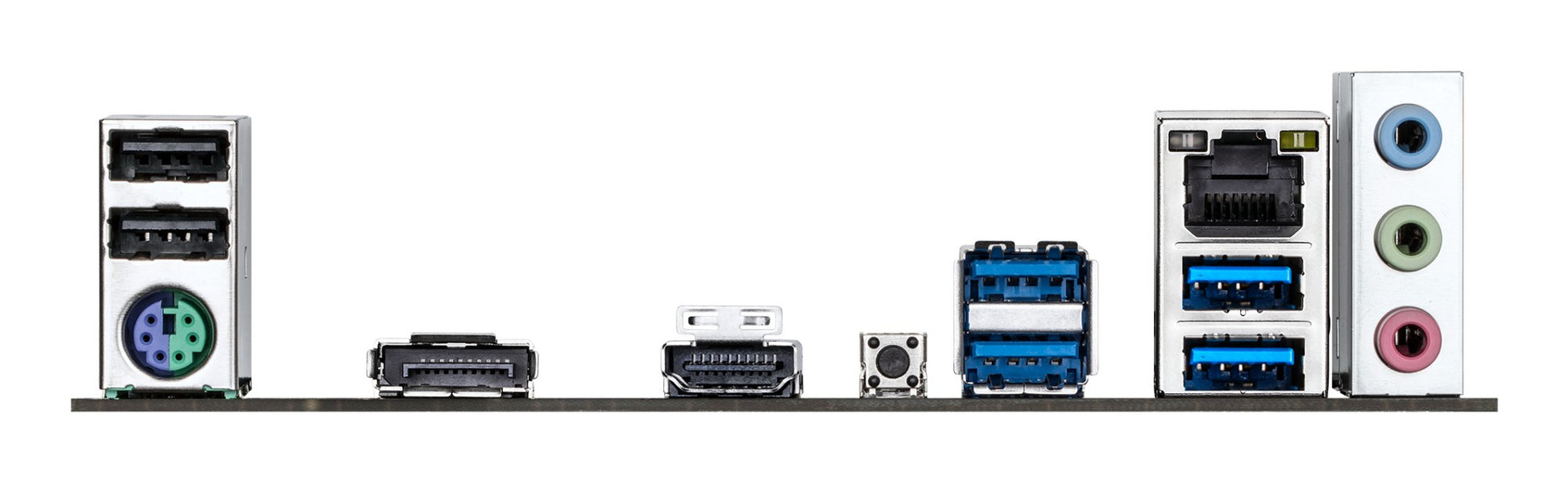

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 772 g |
| Software | |
| Bundled software | Norton® Internet Security (OEM version) |
| Battery | |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Weight | 700 g |
| Width | 233 mm |
| Depth | 198 mm |
| Packaging content | |
| Batteries included | Yes |
| Screws included | Yes |
