Gigabyte

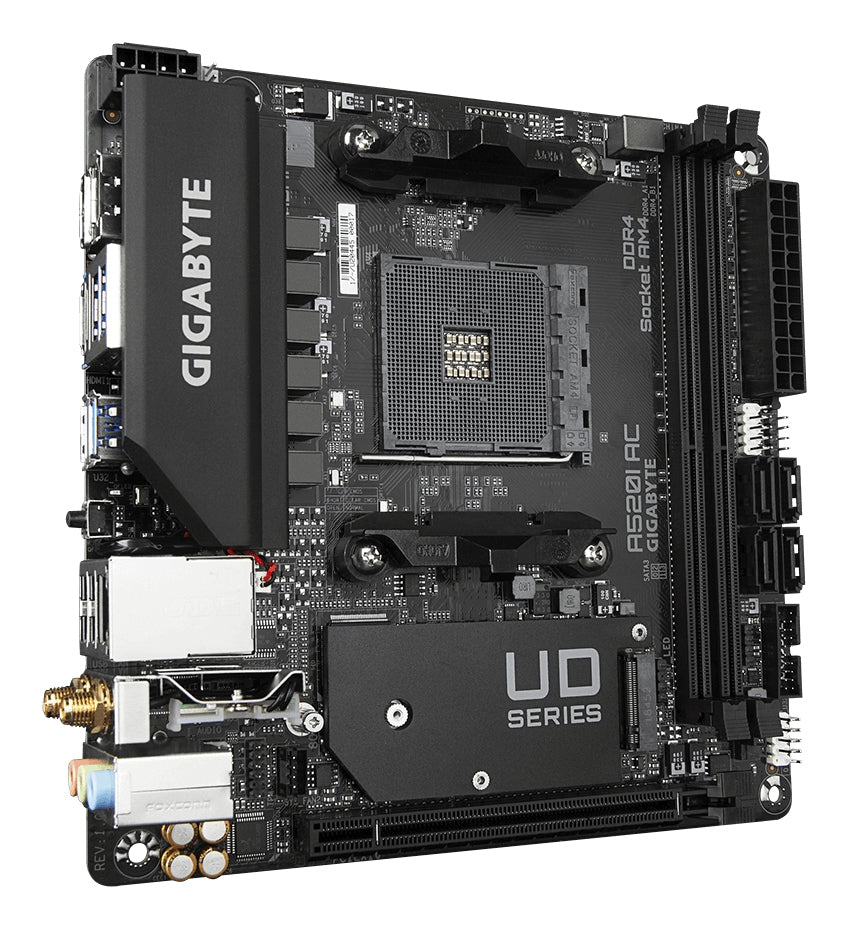

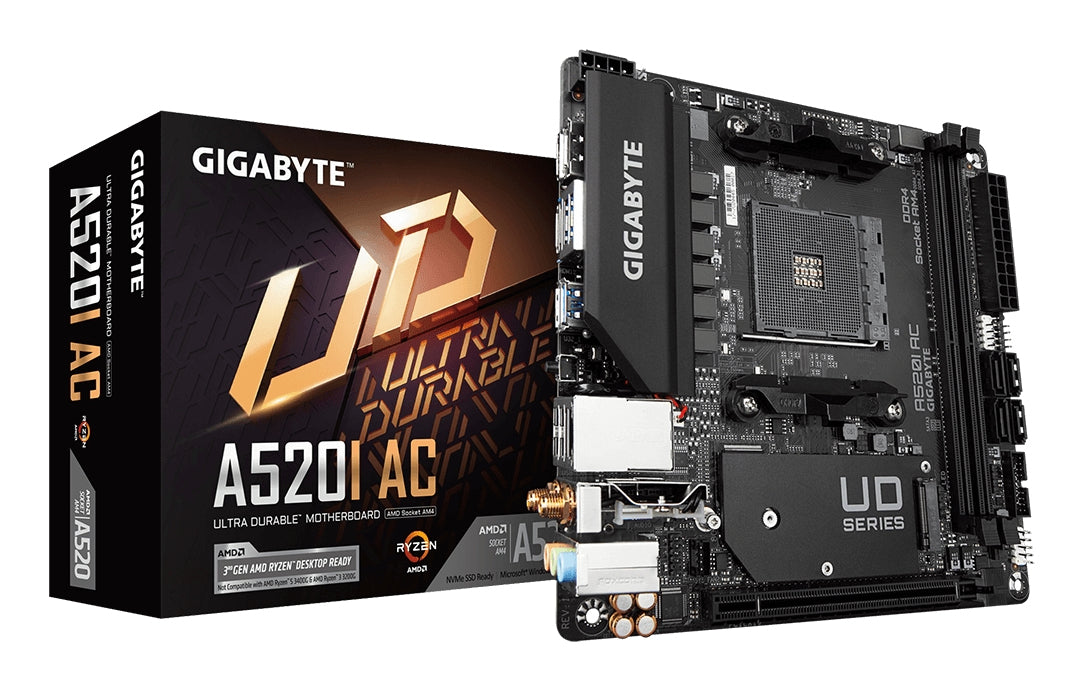

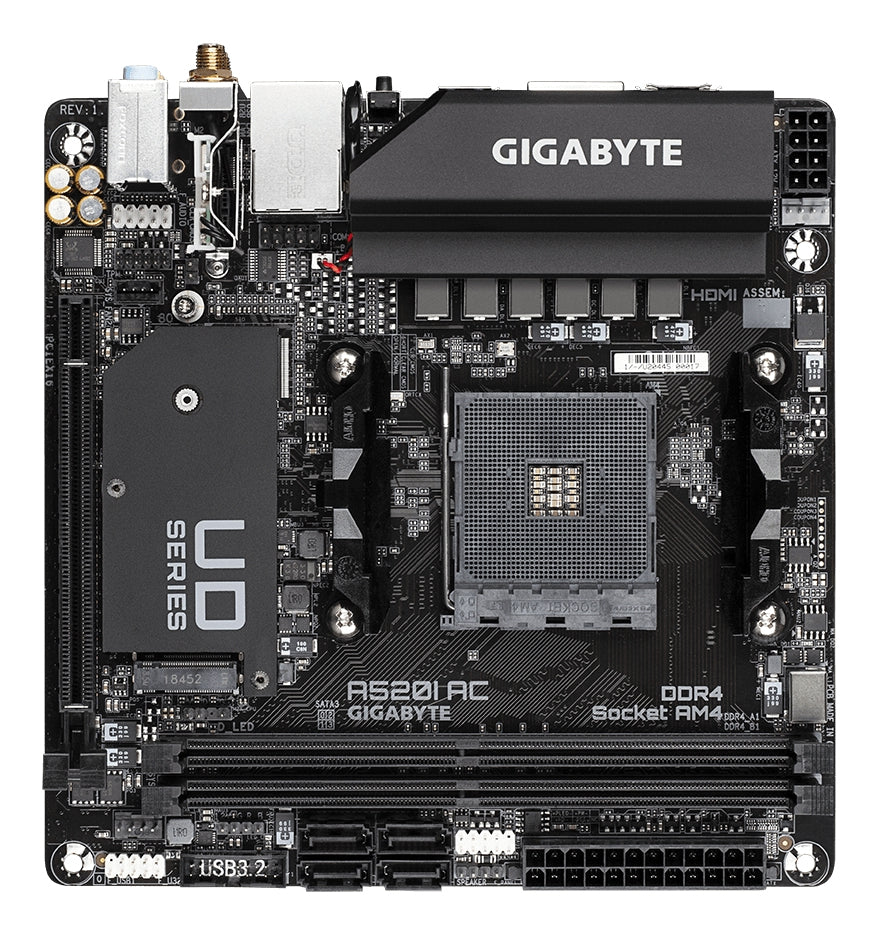

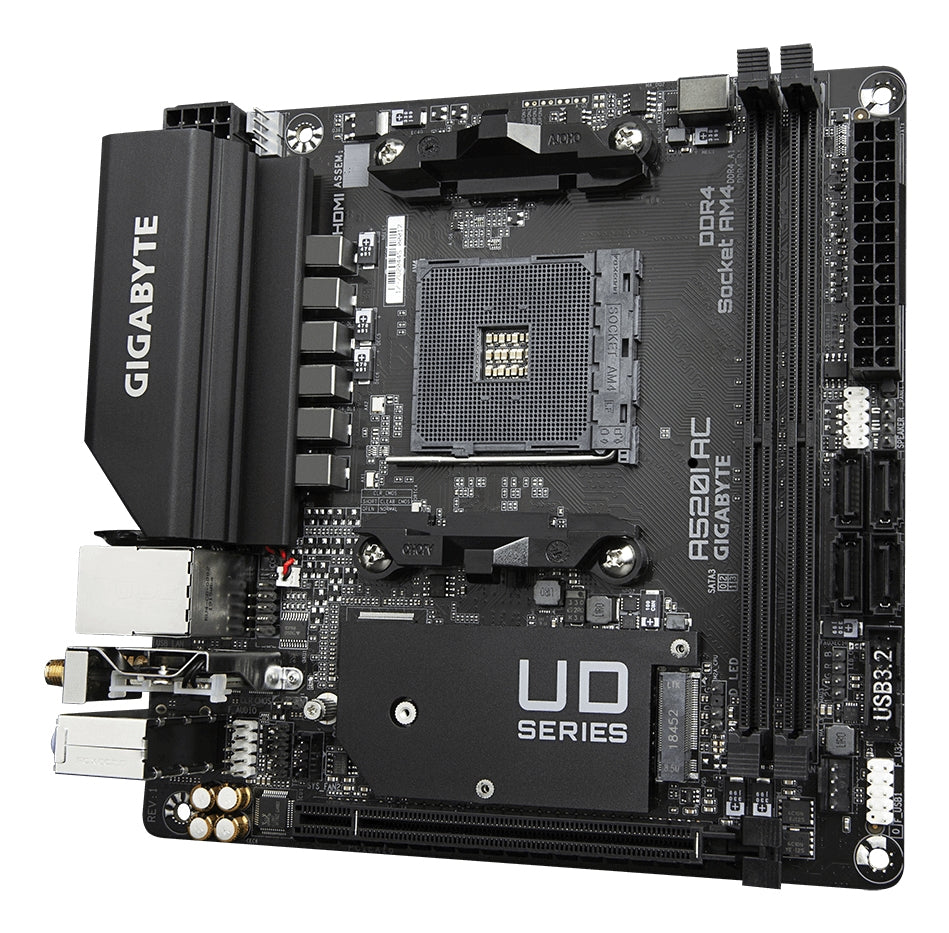

Gigabyte A520I AC Motherboard

£88.85 GBP

Sale Sold out

Taxes included.

Condition New

The Gigabyte A520I AC provides the foundation for your build — socket, chipset and expansion details are in the spec table below.

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	4
Front panel connector	Yes
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Serial port headers	1
Power fan connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Number of displays supported	3
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	Not supported
On-board graphics card	No
HDMI version	2.1
Motherboard form factor	mini ITX
Component for	PC
Maximum internal memory supported by processor	64 GB
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Windows operating systems supported	Windows 10 x64, Windows 11 x64
RAID levels	0, 1, 10
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3000 Series
Processor socket	Socket AM4
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory	64 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	5300 MHz
ECC ?ompatibility	ECC & Non-ECC
Storage controllers
Number of storage drives supported	5
RAID support	Yes
Graphics
Maximum resolution	5120 x 2880 pixels
HDCP	Yes
DirectX version	12.0

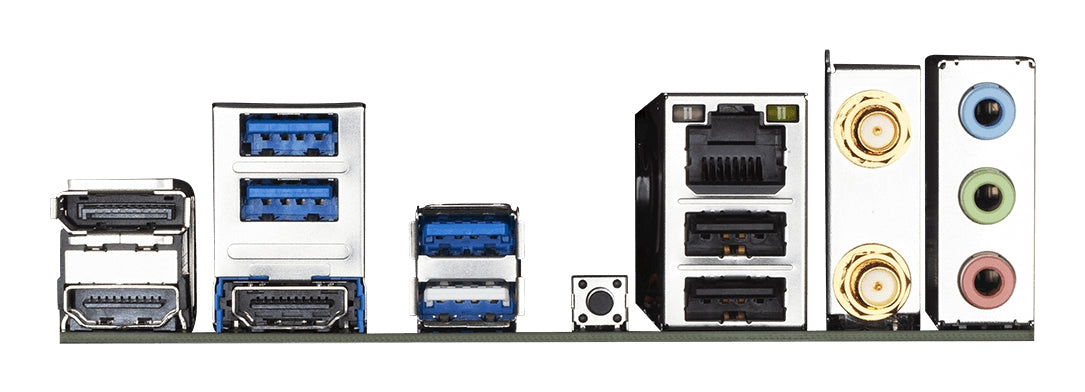

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Headphone outputs	3
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Features
Audio chip	Realtek ALC887
Product colour	Black
Expansion slots
PCI Express x16 slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Packaging data
Package width	222 mm
Package depth	189 mm
Package height	78 mm
Package weight	800 g
Software
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Battery
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Width	170 mm
Depth	170 mm
Packaging content
Batteries included	Yes
