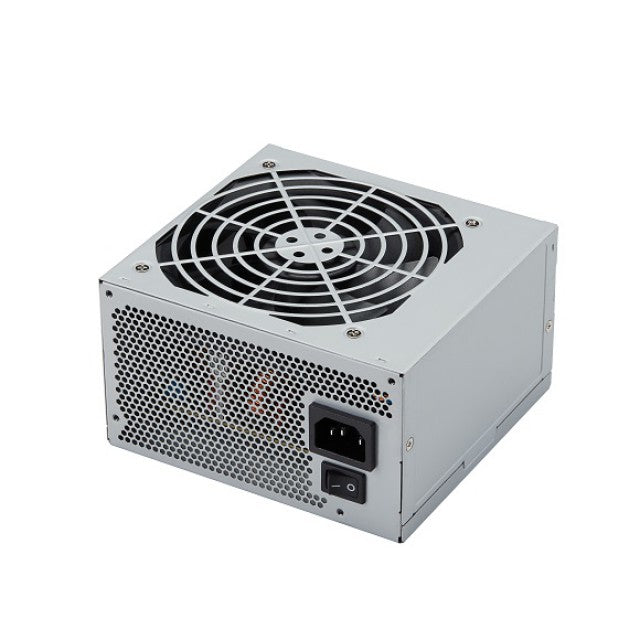

FSP FSP500-50AAC power supply unit 500 W ATX
FSP FSP500-50AAC power supply unit 500 W ATX
Regular price
£69.96 GBP
Regular price
Sale price
£69.96 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Reliable power for your system: the FSP FSP500-50AAC power supply unit — wattage and connector details are in the spec table.
FSP AAC Series features with eco-friendly design, which allows AAC series to reach up to 85% efficiency. AAC series also equipped with complete protection to prevent your system from damage. AAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| Certification | CB 62368, CB 60950, CE, TUV, CUL |
| Power | |
| Total power | 500 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 - 7 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 41.66 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Overheating |
| Hold time | 16 ms |
| Efficiency | 85% |
| Ports & interfaces | |
| Cabling type | Non-Modular |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| ATX version | 2.52 |
| Mean time between failures (MTBF) | 100000 h |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
