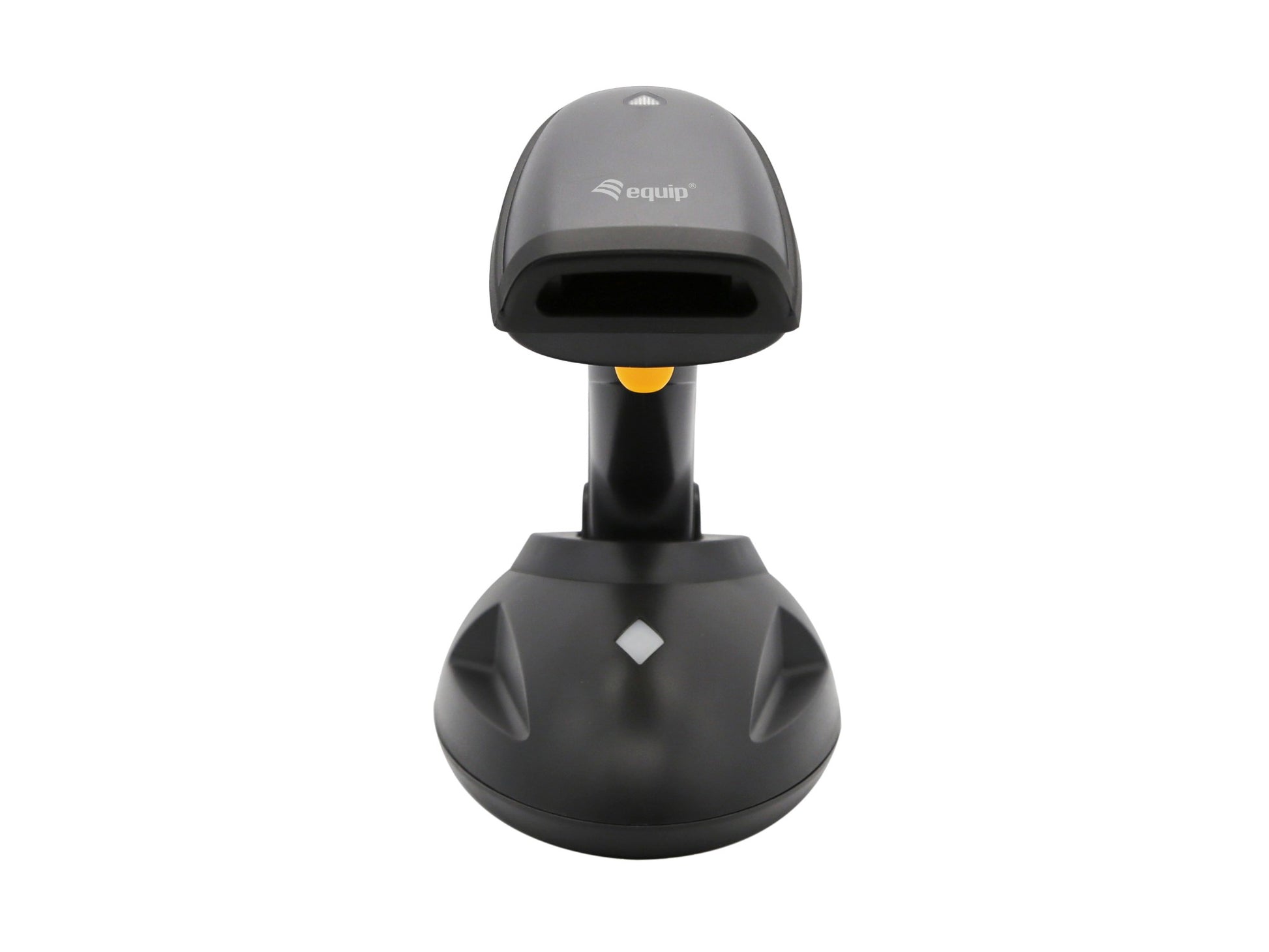

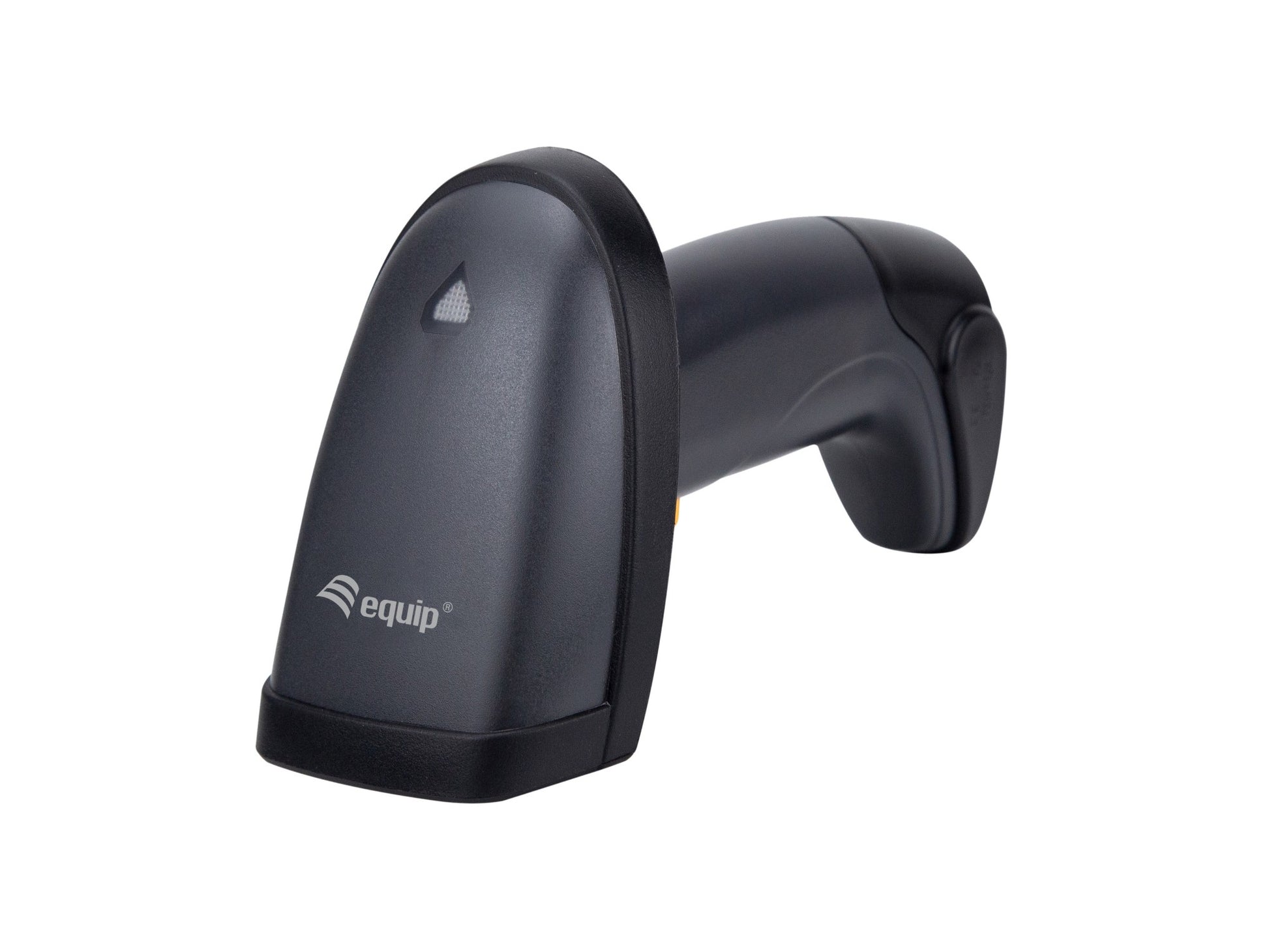

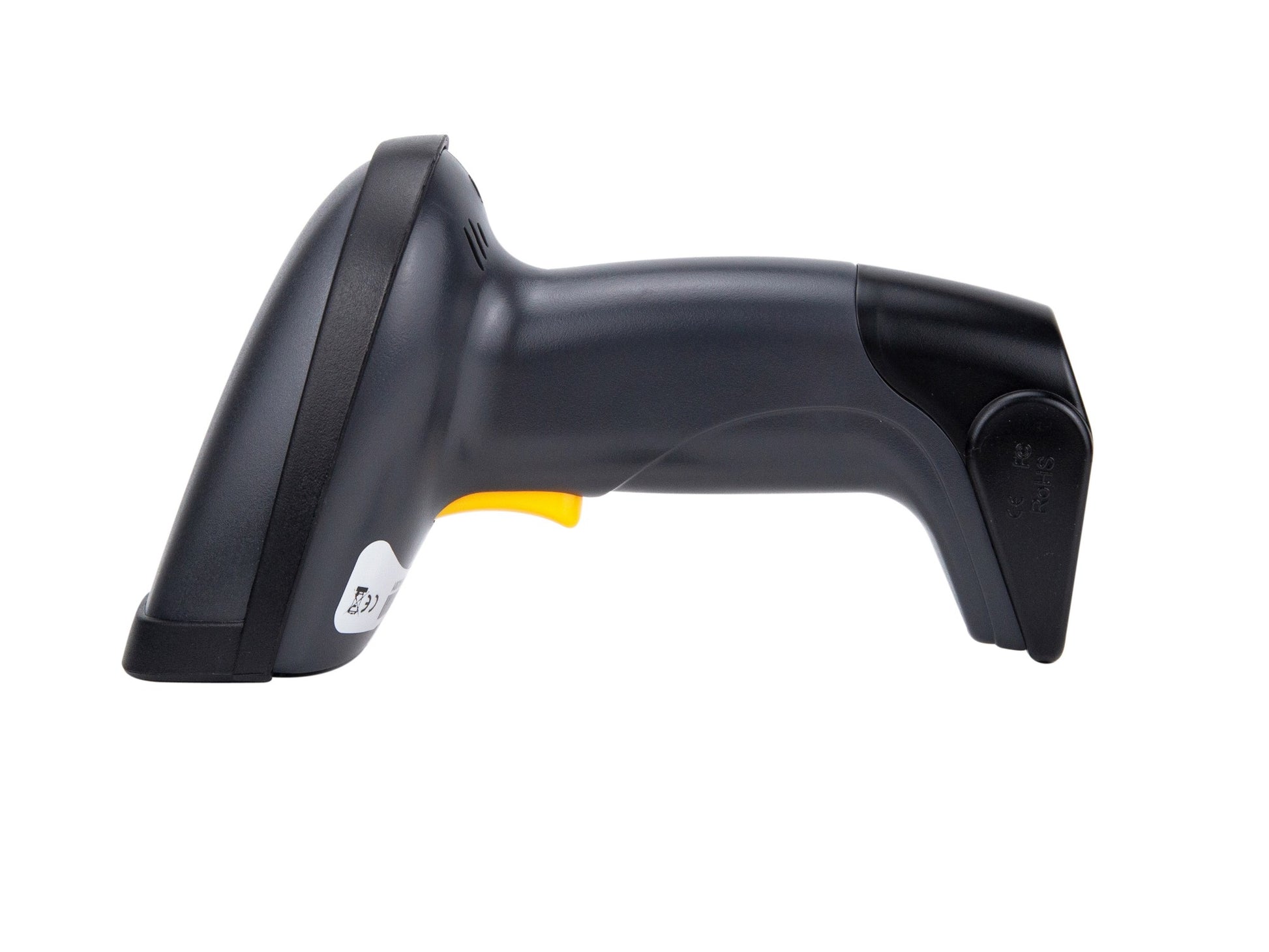

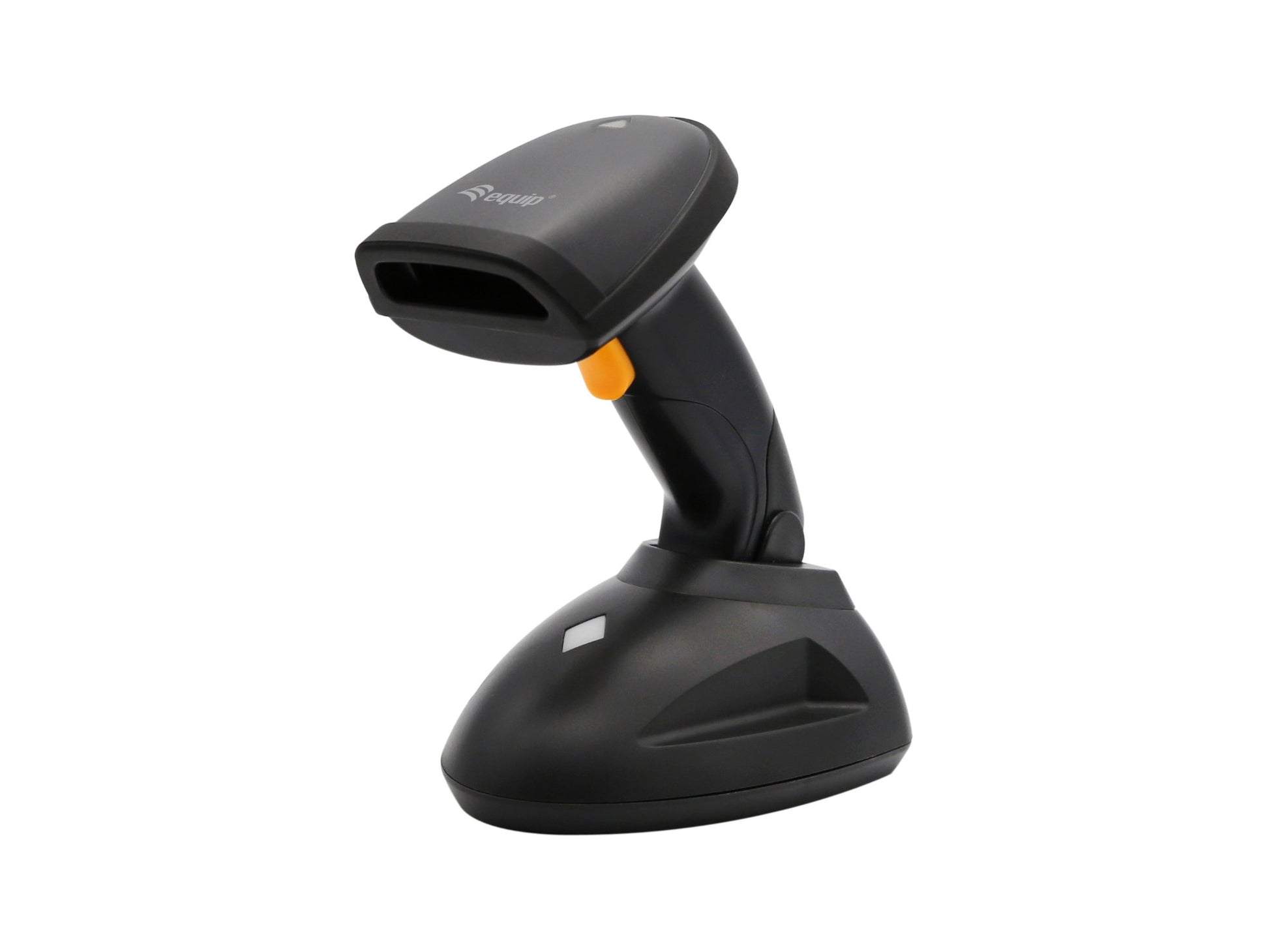

Equip Wireless 2D Barcode Scanner, Long Distance, with Stand
Equip Wireless 2D Barcode Scanner, Long Distance, with Stand
Couldn't load pickup availability
Speed up your checkout and stock-take with the Equip — scan engine and connectivity details are below.
The Equip Wireless 2D Barcode Scanner with Long-Distance Capability and Stand is a versatile and efficient scanning solution for various industries. This device allows you to effortlessly capture 2D barcodes from a distance, making it ideal for retail, warehousing, and inventory management applications. With the included stand, it can be used hands-free, enhancing productivity and reducing user fatigue. This scanner offers exceptional performance and connectivity options, ensuring seamless integration into your existing systems. Its wireless capabilities provide flexibility, while its long-distance scanning capability ensures reliable data capture, even from a distance. Whether you need to scan barcodes on products, shelves, or packages, this scanner simplifies the process, streamlining operations and improving accuracy.
Specifications
| Scanning | |
|---|---|
| Scanner resolution | 5 mm |
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Data Matrix, PDF417, QR Code |
| Yaw reading angle | -35 - 35° |
| Working distance | 150 cm |
| Tilt reading angle | 0 - 360° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Read rate (max) | 220 reads/s |
| Pitch reading angle | -30 - 30° |
| Trigger mode | Auto-induction, Continuous, Manual |
| Ports & interfaces | |
| Wireless range | 200 m |
| Connectivity technology | Wireless |
| Operating frequency | 433 MHz |
| Cable length | 1.8 m |
| Standard interfaces | Wireless LAN |
| Performance | |
| Protection features | Drop proof, Water resistant |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Country of origin | China |
| Power | |
| Power source type | Battery |
| Number of batteries supported | 1 |
| Battery life | 20 h |
| Battery voltage | 3.7 V |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1500 mAh |
| Weight & dimensions | |
| Width | 111 mm |
| Depth | 175 mm |
| Height | 180 mm |
| Weight | 445 g |
| Package width | 231 mm |
| Package depth | 262 mm |
| Package height | 80 mm |
| Package weight | 685 g |
| Technical details | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mobile operating systems supported | Android, iOS |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 8471900090 |
| Compliance certificates | CE, RoHS |
| Packaging data | |
| Charging base | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery | |
| Standby time | 3 month(s) |
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 485 mm |
| Master (outer) case gross weight | 15 kg |
| Master (outer) case length | 550 mm |
| Master (outer) case height | 420 mm |
| Other features | |
| Quick start guide | Yes |
| Linux operating systems supported | Yes |
