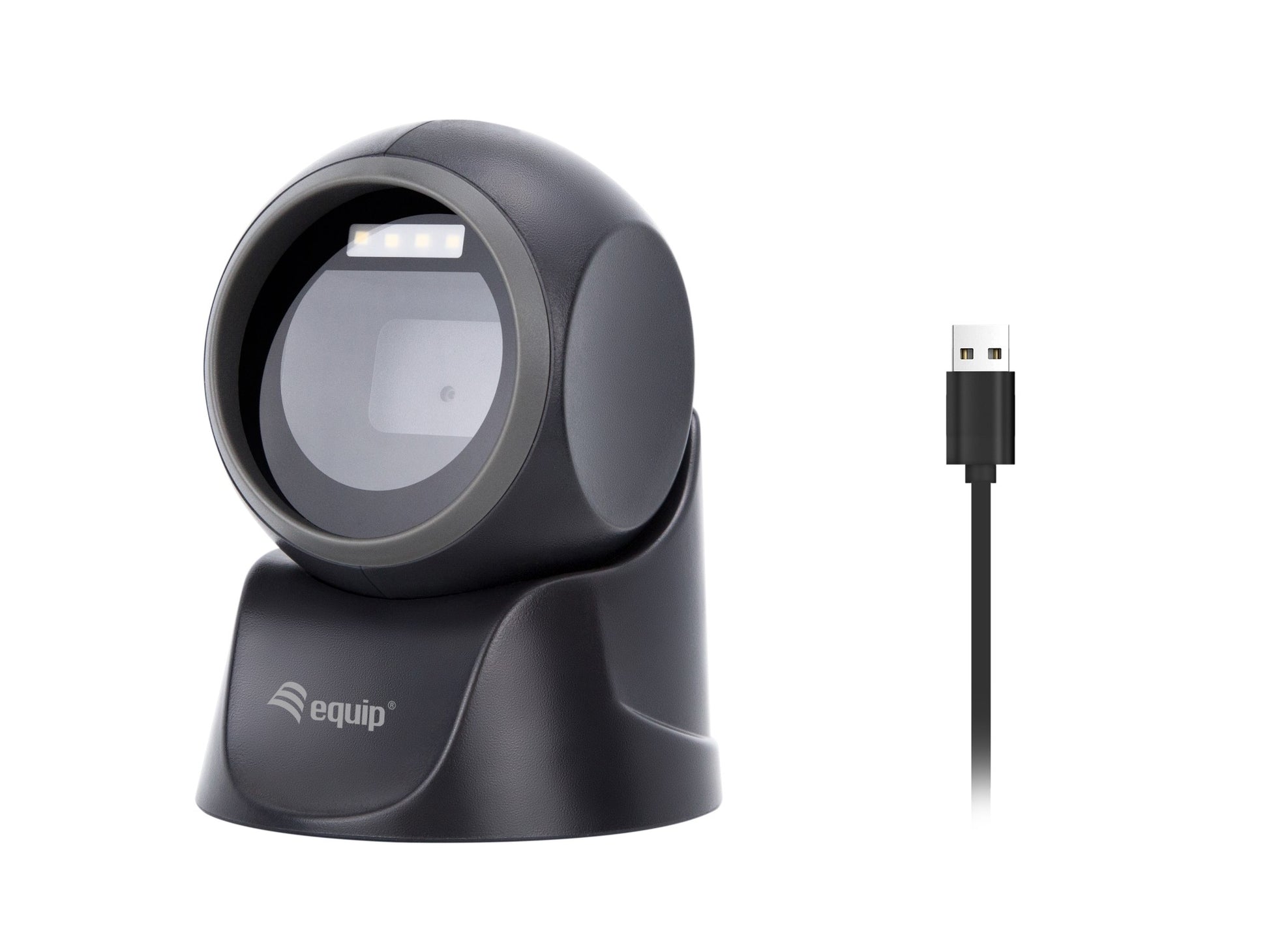

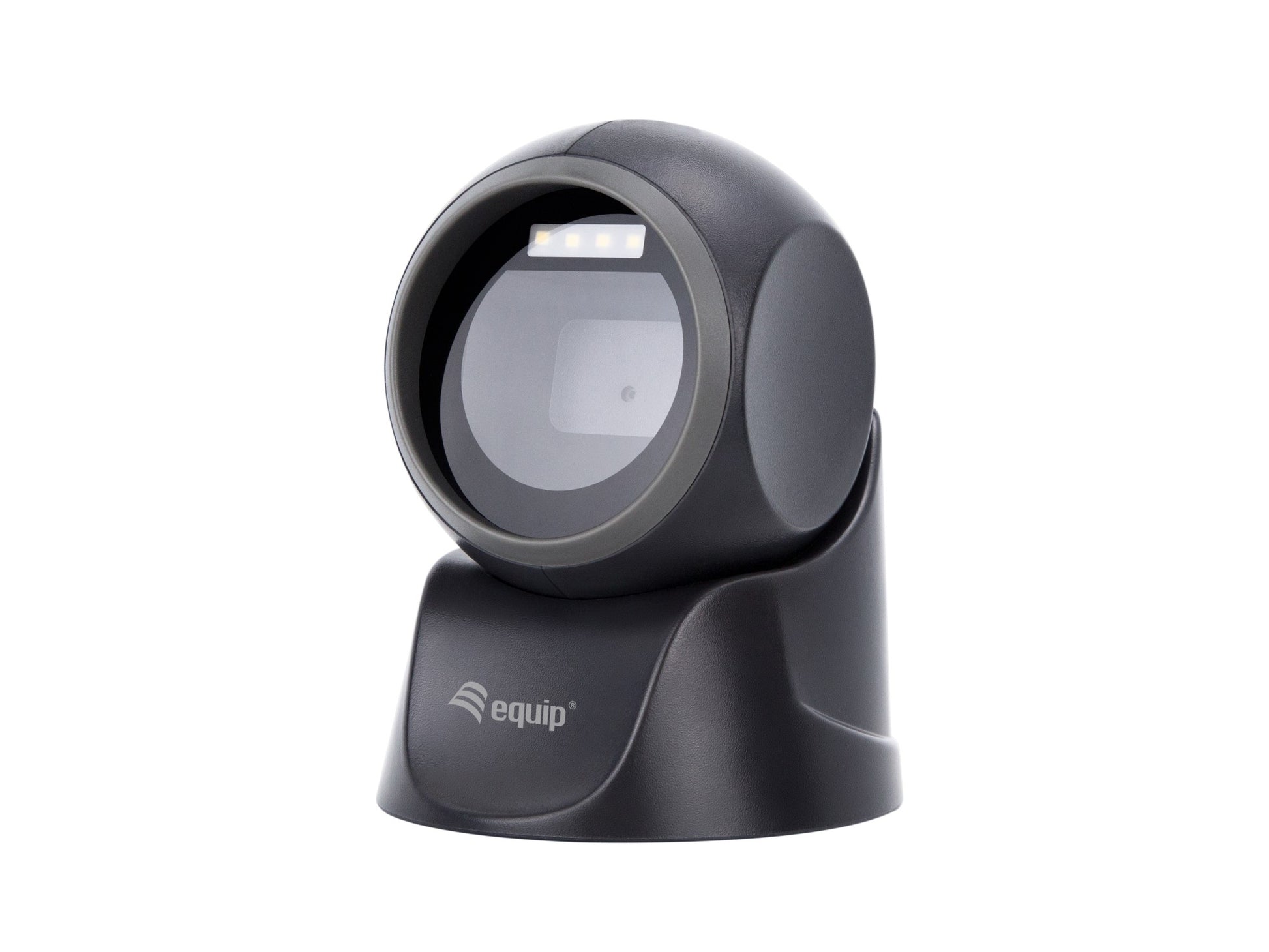

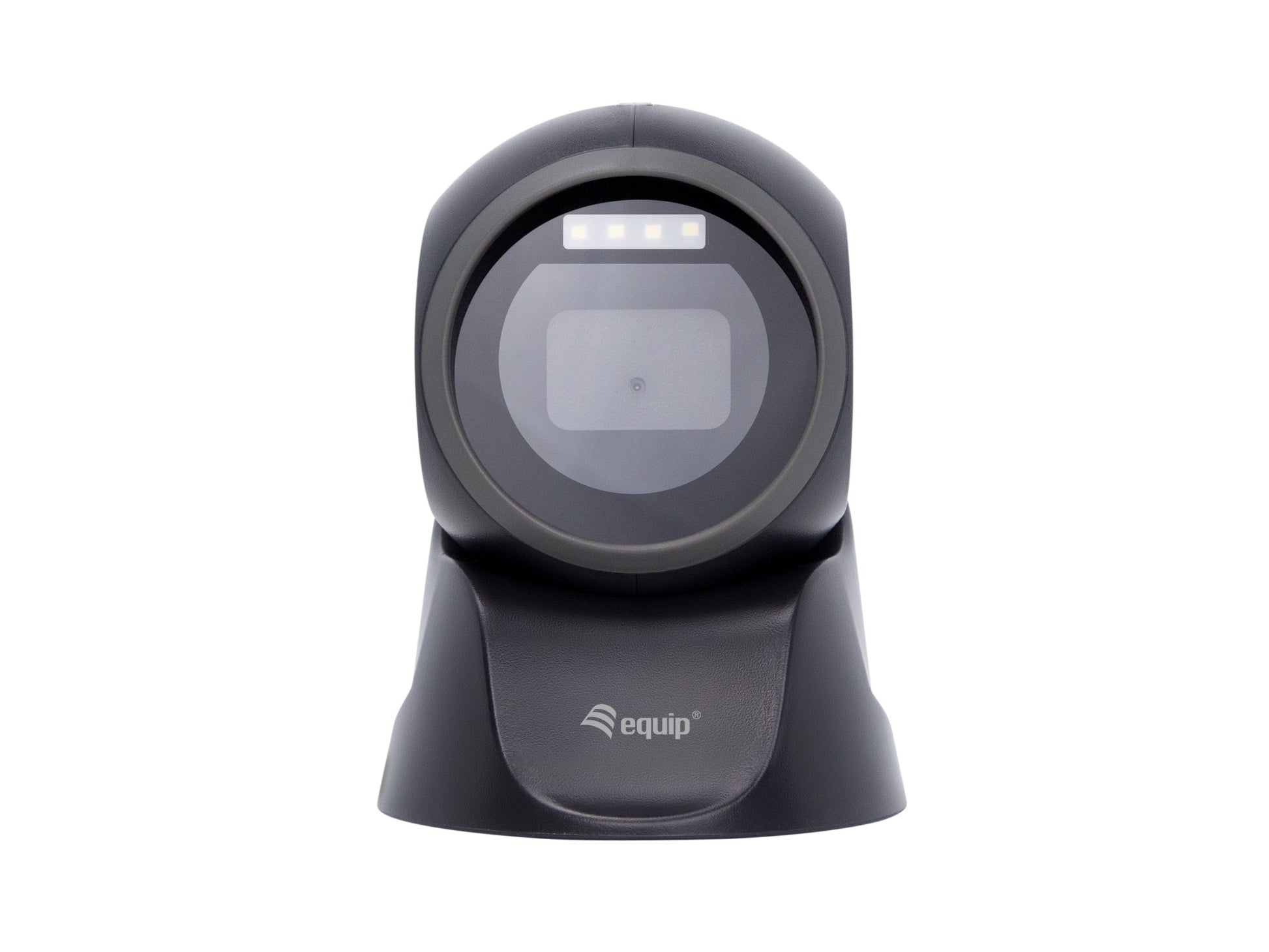

Equip USB 2D Omnidirectional Desktop Barcode Scanner

Speed up your checkout and stock-take with the Equip — scan engine and connectivity details are below.

The Equip USB 2D Omnidirectional Desktop Barcode Scanner is a versatile and high-performance scanning solution for various industries. Designed for desktop use, this device is perfect for retail, point-of-sale, and office applications. With omnidirectional scanning capability, it can quickly and accurately read 2D barcodes from any angle, enhancing efficiency and reducing user effort.

The USB connectivity ensures easy integration with your computer or POS system, simplifying the setup process. This scanner is equipped to handle a wide range of barcode types, including QR codes and Datamatrix, making it suitable for tasks like product tracking, inventory management, and document handling.

The desktop design ensures stability and ease of use, allowing for hands-free scanning on a countertop or desk. This scanner is a valuable addition to businesses looking to streamline operations, improve accuracy, and enhance customer service. It's a reliable tool for organizations seeking an efficient way to manage 2D barcoded information in a desktop environment.

Specifications

Scanning
Scanner resolution	1 cm
Type	Fixed bar code reader
Linear (1D) barcodes supported	AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	PDF417, QR Code
Working distance	70 cm
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	150 reads/s
Optical sensor resolution (W x H)	640 x 480 pixels
Trigger mode	Auto-induction, Continuous, Manual
Ports & interfaces
Connectivity technology	Wired
Cable length	1.8 m
Standard interfaces	USB
Performance
Protection features	Drop proof, Water resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP54
Product colour	Black
Country of origin	China
Power
Power source type	USB
Weight & dimensions
Width	120 mm
Depth	110 mm
Height	146 mm
Weight	295 g
Package width	141 mm
Package depth	210 mm
Package height	132 mm
Package weight	630 g
Technical details
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mobile operating systems supported	Android, iOS
Sustainability compliance	Yes
Harmonized System (HS) code	8471900090
Compliance certificates	CE, RoHS
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	445 mm
Master (outer) case gross weight	15 kg
Master (outer) case length	690 mm
Master (outer) case height	315 mm
Other features
Quick start guide	Yes
Linux operating systems supported	Yes

Downloads

• Datasheet (PDF)
