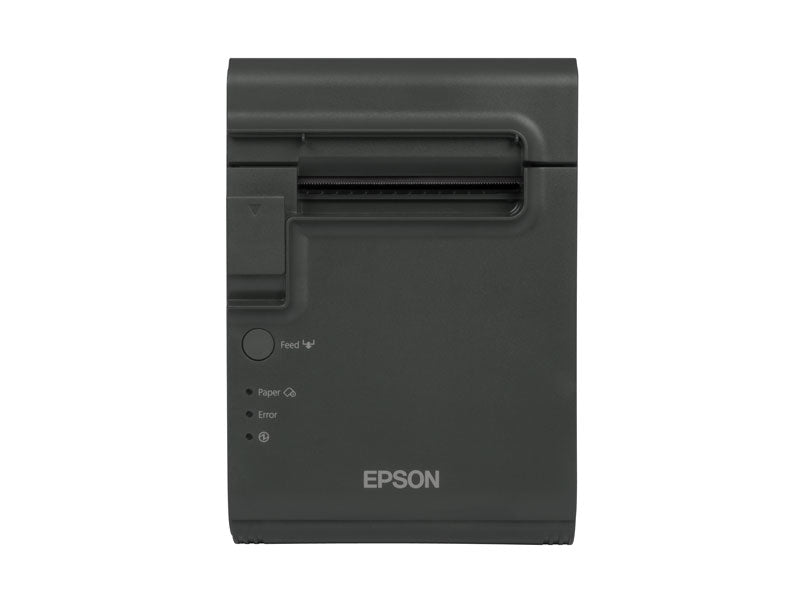

Epson TM-L90 (465): USB, Ethernet, PS, EDG Label Printer

Print crisp labels on demand with the Epson TM-L90 (465): — print width, speed and connectivity are in the spec table.

Label printer
The TM-L90 is Epson's compact thermal label printer that’s also ideal for barcode printing. This model effortlessly increases productivity for post offices, pharmacies, supermarkets and other businesses. You can easily print on different types of label and receipt paper, in a variety of different sizes, thanks to the adjustable cutter.

Label and barcode printing
With fast, thermal printing of up to 150mm/sec, the TM-L90 is a valuable asset to your business. With this model, you'll be able to print out and get on with more important work, rather than waiting around for labels or barcodes.

More connectivity
This printer benefits from high speed serial, Ethernet and parallel connectivity plus a built-in USB interface, which means it can be operated as a network device.

Easy to use
The small footprint and wall bracket mean that you can place it almost anywhere, in any position, for convenient and versatile printing. Practical design features, such as drop-in paper load, selectable auto-cutter and jamproof paper feeding, ensure smooth operation. The easy-to-use operator cover and lifespan of up to 20 million lines enable long-lasting, trouble-free maintenance.

High quality labels
Its greyscale capabilities allow highly customised layouts, and logos and promotional messages can be added with ease.

Larger receipt rolls, wider paper
Altogether, the TM-L90 label printer is one of the most efficient label printers available: it accepts large paper rolls (up to 90mm in diameter) and you can select paper widths between 38 and 80mm to produce labels in different sizes.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Printing
Colour	No
Print speed	150 mm/sec
Print technology	Direct thermal
Printing characters	Barcode
Network
Ethernet LAN	Yes
Memory
Buffer size	4 KB
Paper handling
Supported paper width	80 mm
Media thickness	0.06 - 0.08 mm
Maximum roll diameter	9 cm
Autocutter durability	2 million cuts
Autocutter	Yes
Half-cutter	No
Ports & interfaces
USB 2.0 ports quantity	1
Connectivity technology	Wired
USB port	Yes
Performance
Tape cutting	Automatic
Mean time between failures (MTBF)	260000 h
Mean cycles between failures (MCBF)	70000000
Character sets	ANK
Character pitch	22.6,16.9 cpi
Certification	VCCI-Class A, FCC-Class A, CE, AS / NZS 3548
Cutter	Yes
Design
Product colour	Grey
Power
Power consumption	1800 mA
AC input voltage	24 V
Technical details
Safety	UL, CSA, TÜV
Country of origin	China
Products per pallet	112 pc(s)
Products per pallet layer (UK)	24 pc(s)
Products per pallet layer	16 pc(s)
Products per pallet (UK)	168 pc(s)
Pallet width (UK)	100 cm
Pallet weight (UK)	0 g
Pallet length (UK)	120 cm
Pallet height (UK)	2.5 m
Harmonized System (HS) code	84433210
Operational conditions
Storage temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Package width	193 mm
Package depth	250 mm
Package height	240 mm
Width	140 mm
Depth	148 mm
Height	203 mm
Weight	1.9 kg
Package weight	2.82 kg
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Logistics data
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.5 m
Pallet gross weight	0 g
