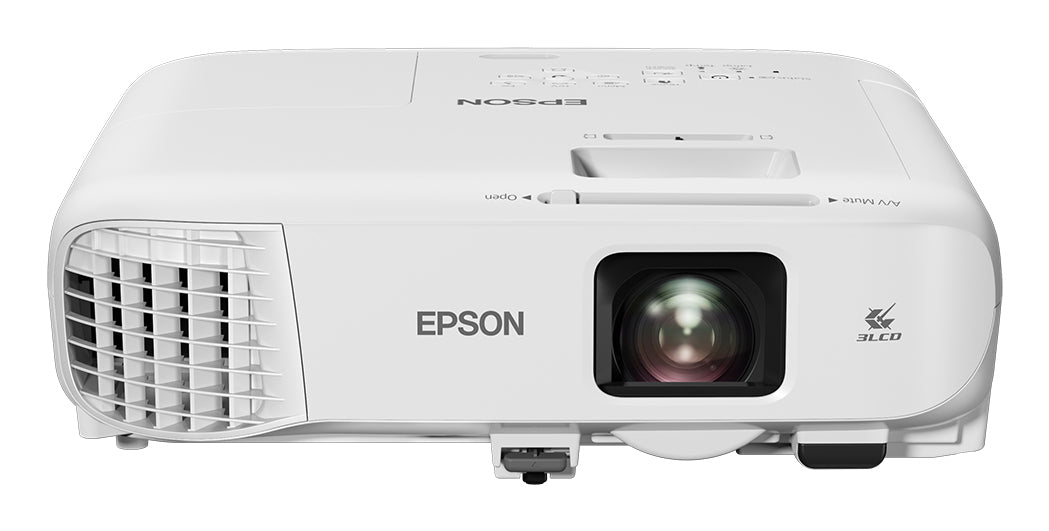

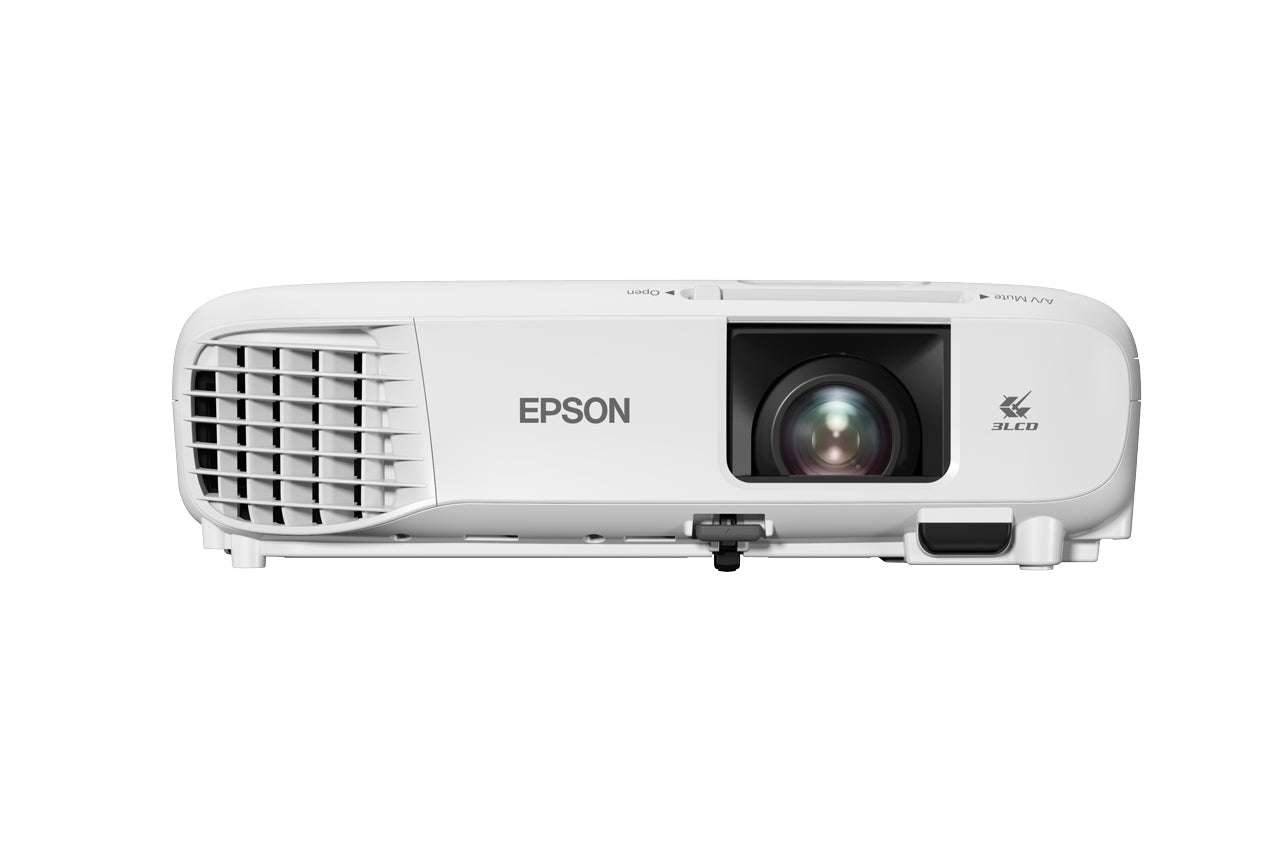

Epson EB-X49 Projector

Fill the wall with the Epson EB-X49 — brightness, resolution and throw details are in the spec table below.

Compact display, optional wireless
Presentations become effortless, with the sharp, stylish EB-X49, which offers great performance in a remarkably versatile package. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.

Bright, vivid content on a large scalable screen
Enjoy large scale presentations with crisp, clear text, as well as compelling imagery and video content, on screen sizes up to 300 inches. 3,600-lumen performance combines with a high contrast ratio of 16,000:1 to offer outstanding visual performance, even in well-lit rooms.

Years of uninterrupted meetings
With a lamp life of up to 12,000 hours in Eco mode.

Installation and placement flexibility
Automatic vertical and manual horizontal keystone correction provide greater flexibility as to where the projector can be placed in the room for distortion-free images and the wide optical zoom adds to the flexibility.

Network and wireless (optional)
Network capability (via RJ45) and optional wireless connectivity mean the EB-X49 can be added to a company network or upgraded for wireless device access at a later stage.

High-quality sound
This projector has a built-in 5W speaker to allow audio content to be heard clearly, without the need for additional external speakers.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	XGA (1024x768)
Native aspect ratio	4:3
Supported aspect ratios	4:3
Screen size compatibility	762 - 7620 mm (30 - 300")
Contrast ratio (typical)	16000:1
Zoom ratio	1.2:1
Zoom capability	Yes
Vertical scan range	100 - 120 Hz
Projector brightness (economic mode)	2400 ANSI lumens
Matrix size	1.4 cm (0.55")
Keystone correction, vertical	-30 - 30°
Keystone correction, horizontal	-30 - 30°
Projection technology	3LCD
Projector brightness	3600 ANSI lumens
Zoom type	Manual
Lamps
Lamp type	UHE
Lamp power	210 W
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Lens system
Focus	Manual
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
Throw ratio	1 - 1.2:1
Video
Video processing	10 bit
Video colour modes	Dynamic, Cinema, Presentation, sRGB, Blackboard
Full HD	No
3D	No
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	5 W
Ports & interfaces
HDMI connector type	Full-size
USB 2.0 Type-B ports quantity	1
PC in (D-Sub)	Yes
VGA (D-Sub) ports quantity	3
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
Composite video in	1
Audio (L/R) in	0
S-Video inputs quantity	0
Serial interface type	RS-232C
PC Audio out	Yes
PC Audio in	Yes
DVI port	No
Component video (YPbPr/YCbCr) in	0
AC (power) in	Yes
Network
Smart TV	No
Ethernet LAN	Yes
Storage
Card reader integrated	No
Sound emission
Noise level	37 dB
Noise level (economic mode)	28 dB
Technical details
Product colour	White
Preset modes	Blackboard, Dynamic, Presentation, Theatre, sRGB
On Screen Display (OSD)	Yes
Products per pallet	78 pc(s)
Quantity per pack	1 pc(s)
Pallet gross weight	0 g
Products per pallet (UK)	78 pc(s)
Pallet weight (UK)	0 g
USB display function	3 in 1: Image / Mouse / Sound
Performance
Market positioning	Portable
Features
Country of origin	Philippines
Design
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement	Ceiling, Desktop
Display
Built-in display	No
Power
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Packaging data
Package width	355 mm
Package depth	380 mm
Package height	160 mm
Package weight	4.12 kg
Software
Bundled software	EasyMP Multi PC Projection, Epson Projektor Management
Software support	via: AMX, Crestron (Network), Control4, Extron
Supplier features
Harmonized System (HS) code	85286200
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Weight & dimensions
Weight	2.7 kg
Width	302 mm
Depth	249 mm
Height	87 mm
Packaging content
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, HDMI
Batteries included	Yes
WLAN adapter included	Yes
Other features
Supported network protocols	PJLink
