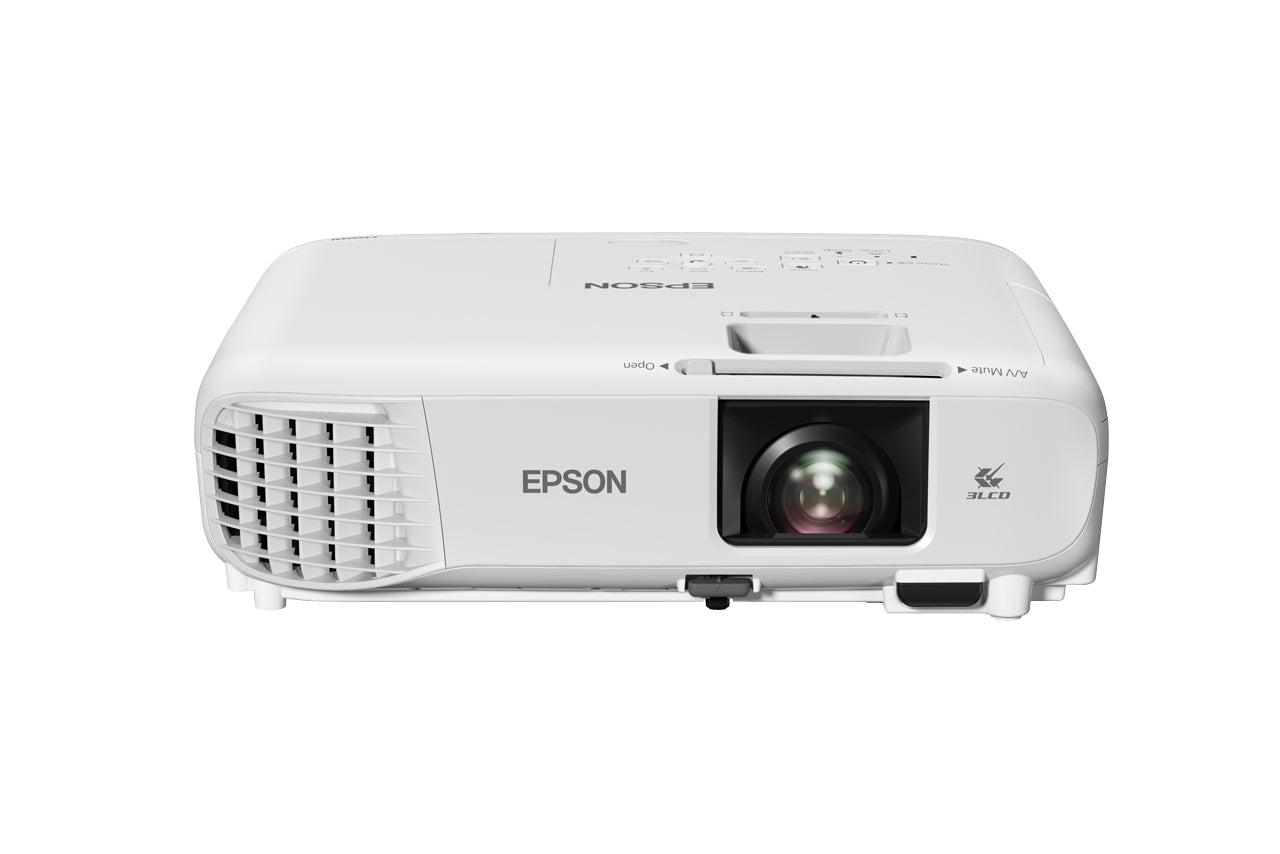

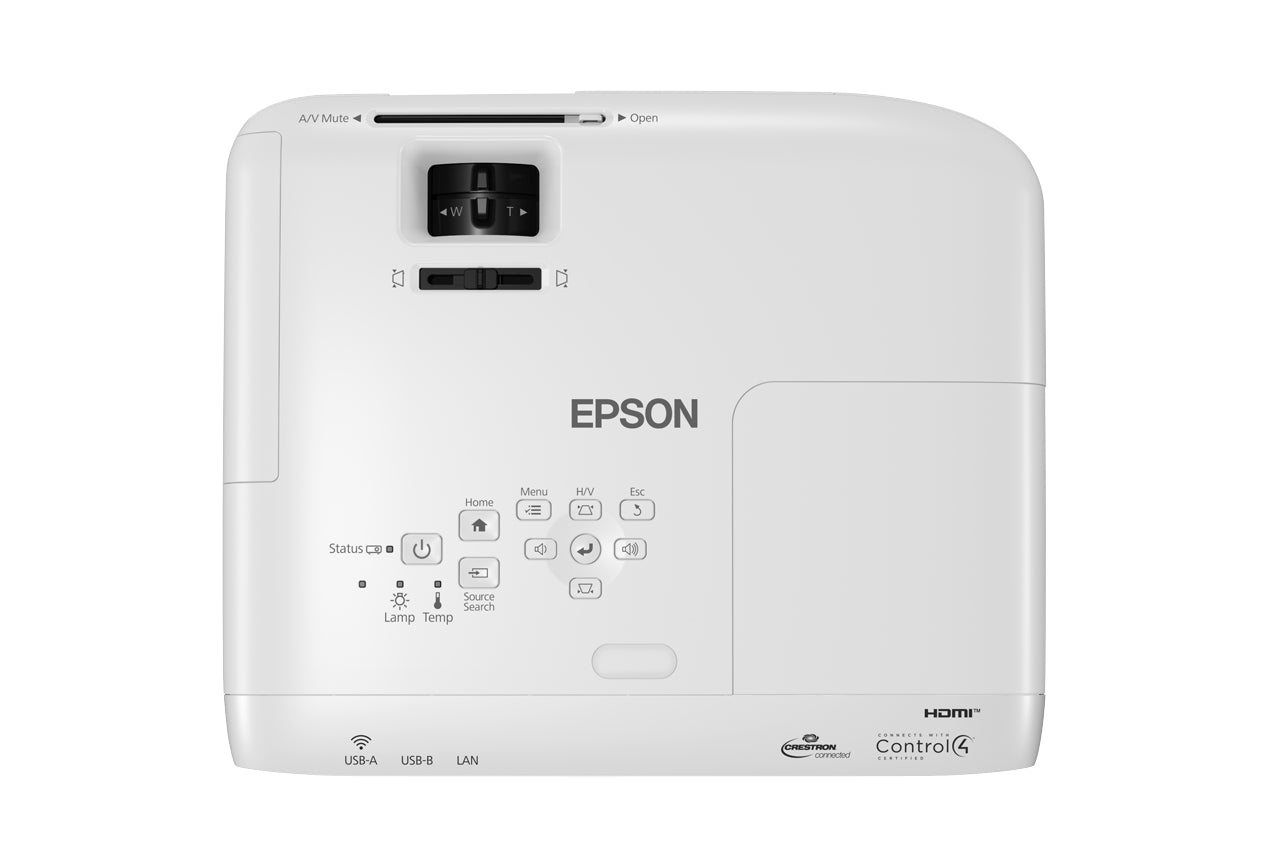

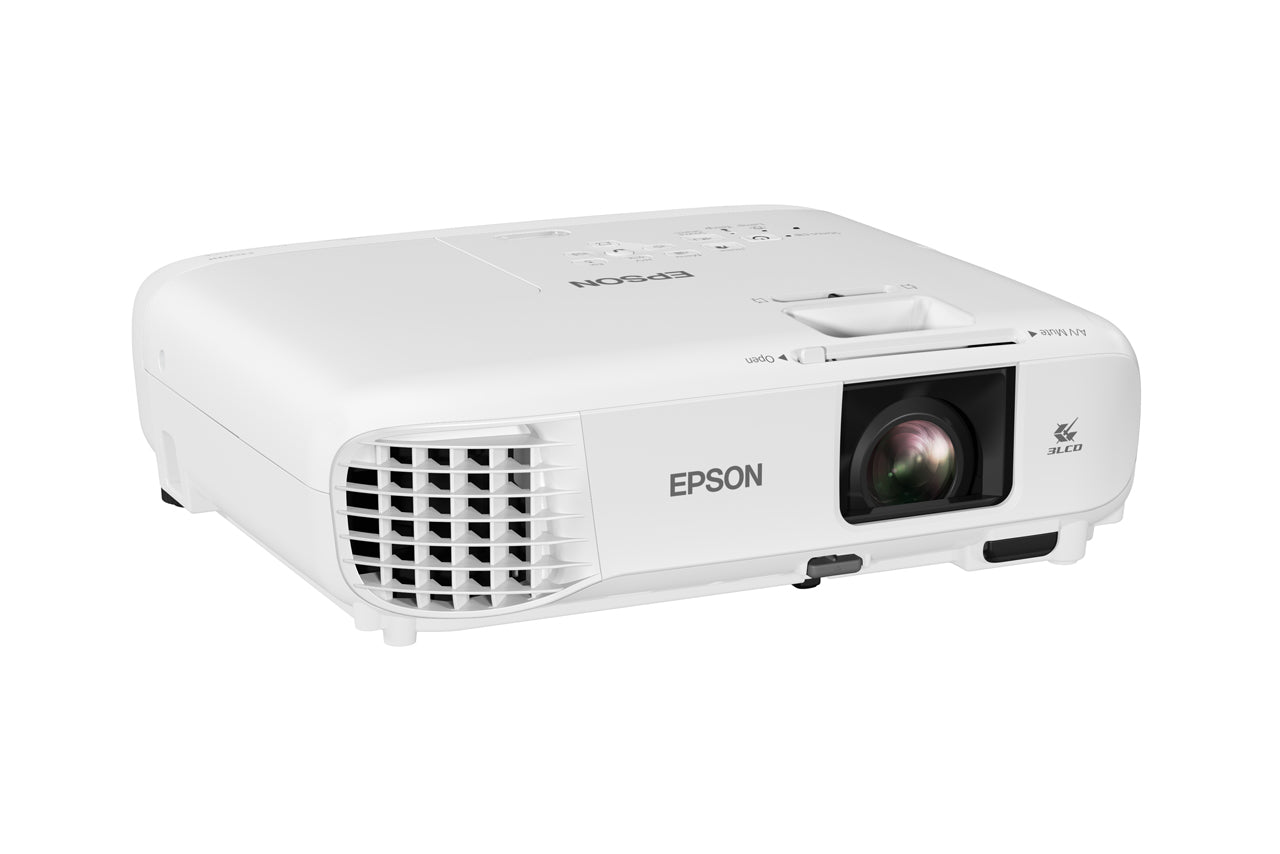

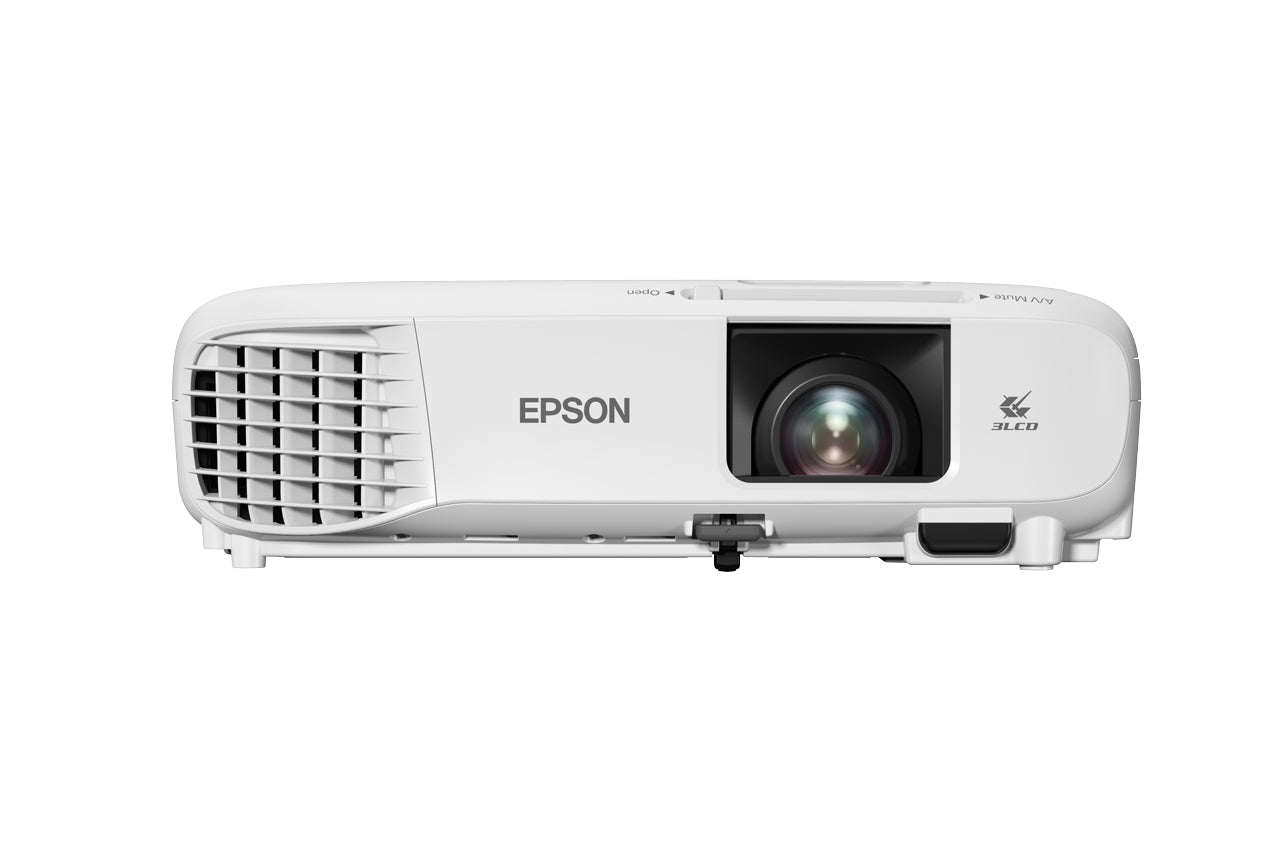

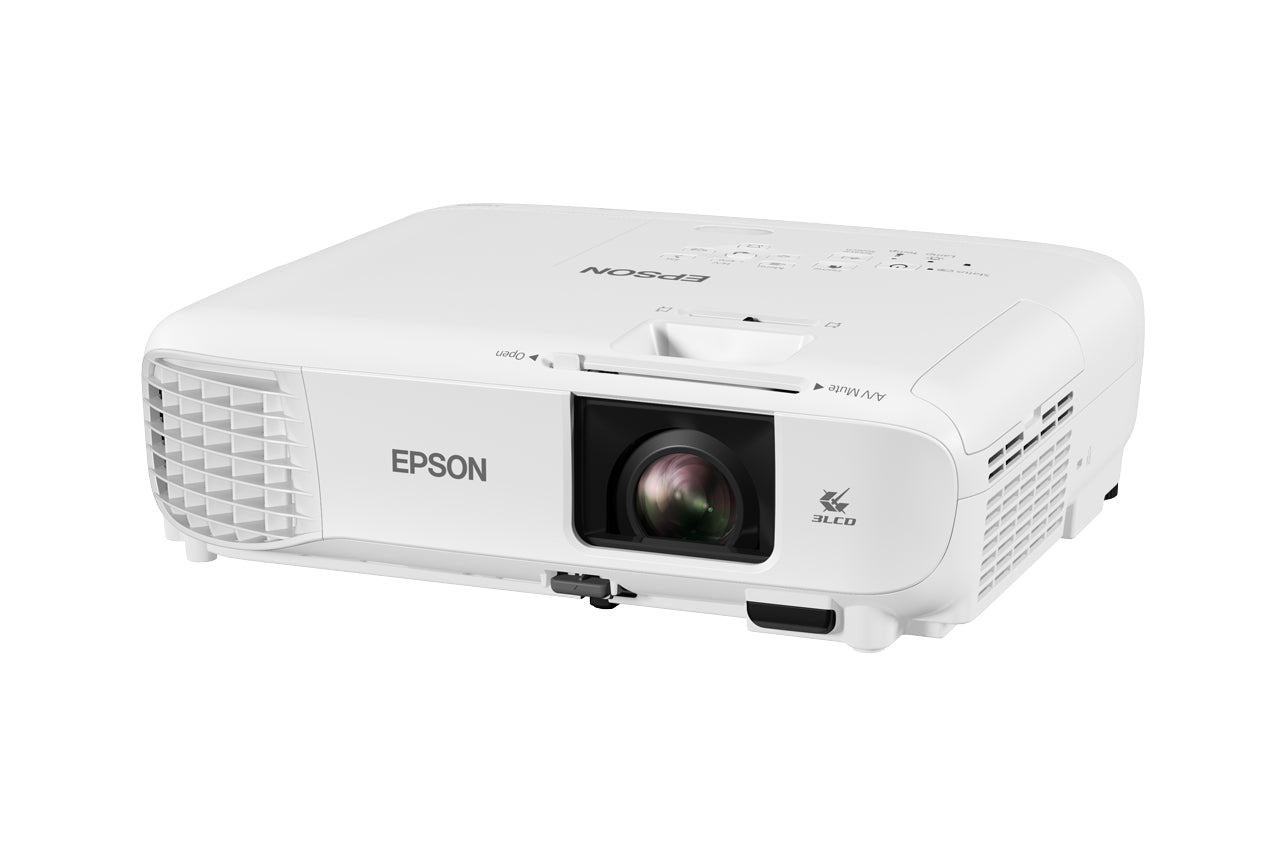

Epson EB-W49 Projector

Fill the wall with the Epson EB-W49 — brightness, resolution and throw details are in the spec table below.

Flexible, HD-Ready WXGA display
The compact, stylish design of the EB-W49 makes it the ideal choice for sharp, legible presentations and vivid video content, especially in roles where portability is key. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WXGA (1280x800)
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	838.2 - 8128 mm (33 - 320")
Contrast ratio (typical)	16000:1
Zoom ratio	1.2:1
Zoom capability	Yes
Vertical scan range	100 - 120 Hz
Projector brightness (economic mode)	2600 ANSI lumens
Matrix size	1.5 cm (0.59")
Keystone correction, vertical	-30 - 30°
Keystone correction, horizontal	-30 - 30°
Projection technology	3LCD
Projector brightness	3800 ANSI lumens
Zoom type	Manual
Lamps
Lamp type	UHE
Lamps quantity	1 lamp(s)
Lamp power	210 W
Light source type	Lamp
Service life of light source	8000 h
Service life of light source (economic mode)	17000 h
Lens system
Focus	Manual
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
Throw ratio	1.30 - 1.56:1
Video
Video processing	10 bit
Video colour modes	Dynamic, Cinema, Presentation, sRGB, Blackboard
Full HD	No
3D	No
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	5 W
Ports & interfaces
HDMI connector type	Full-size
USB 2.0 Type-B ports quantity	1
PC in (D-Sub)	Yes
VGA (D-Sub) ports quantity	3
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
Composite video in	1
Audio (L/R) in	0
S-Video inputs quantity	0
Serial interface type	RS-232C
PC Audio out	Yes
PC Audio in	Yes
DVI port	No
Component video (YPbPr/YCbCr) in	0
AC (power) in	Yes
Network
Smart TV	No
Ethernet LAN	Yes
Storage
Card reader integrated	No
Sound emission
Noise level	37 dB
Noise level (economic mode)	28 dB
Technical details
Product colour	White
Preset modes	Blackboard, Dynamic, Presentation, Theatre, sRGB
On Screen Display (OSD)	Yes
Products per pallet	78 pc(s)
Quantity per pack	1 pc(s)
Pallet gross weight	0 g
Products per pallet (UK)	78 pc(s)
Pallet weight (UK)	0 g
USB display function	3 in 1: Image / Mouse / Sound
Performance
Market positioning	Portable
Features
Country of origin	Philippines
Noise level (standby)	28 dB
Design
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement	Ceiling, Desktop
Display
Built-in display	No
Power
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	327 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	225 W
Packaging data
Package width	350 mm
Package depth	380 mm
Package height	160 mm
Package weight	4.01 kg
Software
Bundled software	EasyMP Network Projection, Epson Projektor Management
Software support	via: AMX, Crestron (Network), Control4, Extron
Supplier features
Harmonized System (HS) code	85286200
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Weight & dimensions
Weight	2.7 kg
Width	302 mm
Depth	249 mm
Height	87 mm
Packaging content
Remote control included	Yes
Cables included	AC, HDMI
Batteries included	Yes
WLAN adapter included	Yes
Other features
Supported network protocols	PJLink
