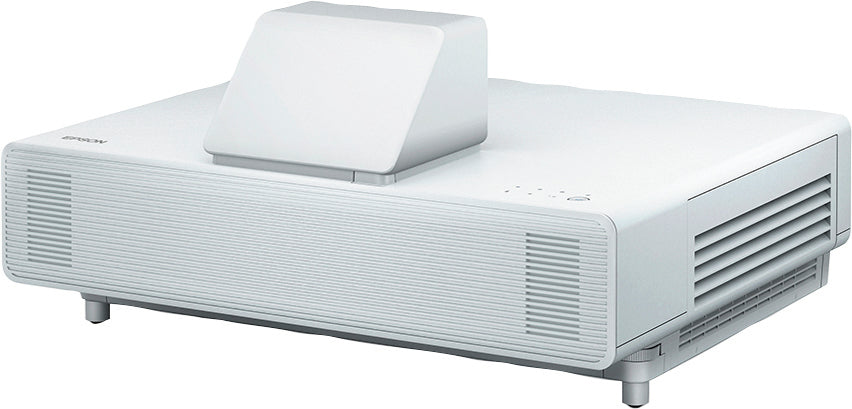

Epson EB-800F Projector

Fill the wall with the Epson EB-800F — brightness, resolution and throw details are in the spec table below.

Digital signage solution
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-800F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.

Large and scalable images
The EB-800F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install

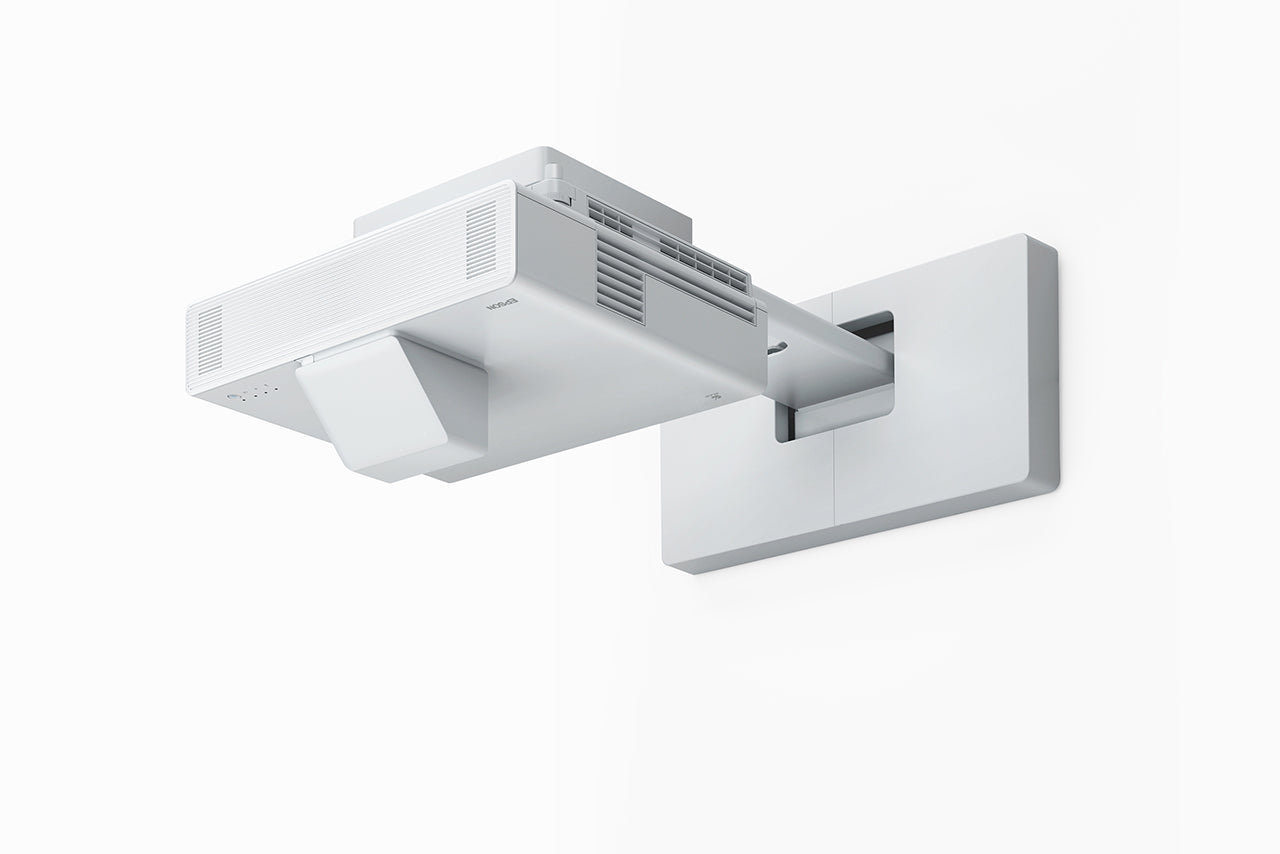

This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A black version is also available.

Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	1080p (1920x1080)
Projection distance (wide)	0 - 0.4 m
Projection distance (tele)	0 - 0.8 m
Native aspect ratio	16:9
Screen size compatibility	1651 - 3302 mm (65 - 130")
Contrast ratio (typical)	2500000:1
Zoom ratio	1.35:1
Zoom capability	Yes
Vertical scan range	192 - 240 Hz
Projector brightness (economic mode)	3500 ANSI lumens
Matrix size	1.57 cm (0.62")
Keystone correction, vertical	-3 - 3°
Keystone correction, horizontal	-3 - 3°
Projection technology	3LCD
Projector brightness	5000 ANSI lumens
Heat dissipation	1244 BTU/h
Zoom type	Auto
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Fixed focal length	3.9 mm
Focus	Manual
Throw ratio	0.27 - 0.37:1
Video
Video processing	10 bit
Video colour modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Full HD	Yes
3D	No
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	8 W
Ports & interfaces
HDBaseT port	Yes
USB 2.0 Type-B ports quantity	1
VGA (D-Sub) ports quantity	3
HDMI ports quantity	4
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
Composite video in	1
Audio (L/R) in	3
Audio (L/R) out	1
S-Video inputs quantity	0
Serial interface type	RS-232C
DVI port	No
Component video (YPbPr/YCbCr) in	0
Network
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	No
Web browser	Yes
Storage
Card reader integrated	No
Sound emission
Noise level	36 dB
Noise level (economic mode)	27 dB
Technical details
Product colour	White
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross weight	0 g
Products per pallet (UK)	12 pc(s)
Pallet weight (UK)	0 g
Packaging content	CD manual, cable cover, lens cap, warranty document
Sustainability certificates	TCO
Performance
Market positioning	Business
Password protection	Yes
Features
Country of origin	China
Design
Product type	Ultra short throw projector
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement	Ceiling, Desktop, Wall
Power
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	366 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	262 W
Packaging data
Package width	530 mm
Package depth	595 mm
Package height	345 mm
Package weight	13.2 kg
Software
Bundled software	Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management
Software support	via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Supplier features
Harmonized System (HS) code	85286200
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	9.4 kg
Width	458 mm
Depth	375 mm
Height	210 mm
Packaging content
Remote control included	Yes
Cables included	AC
Batteries included	Yes
WLAN adapter included	Yes
Other features
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
