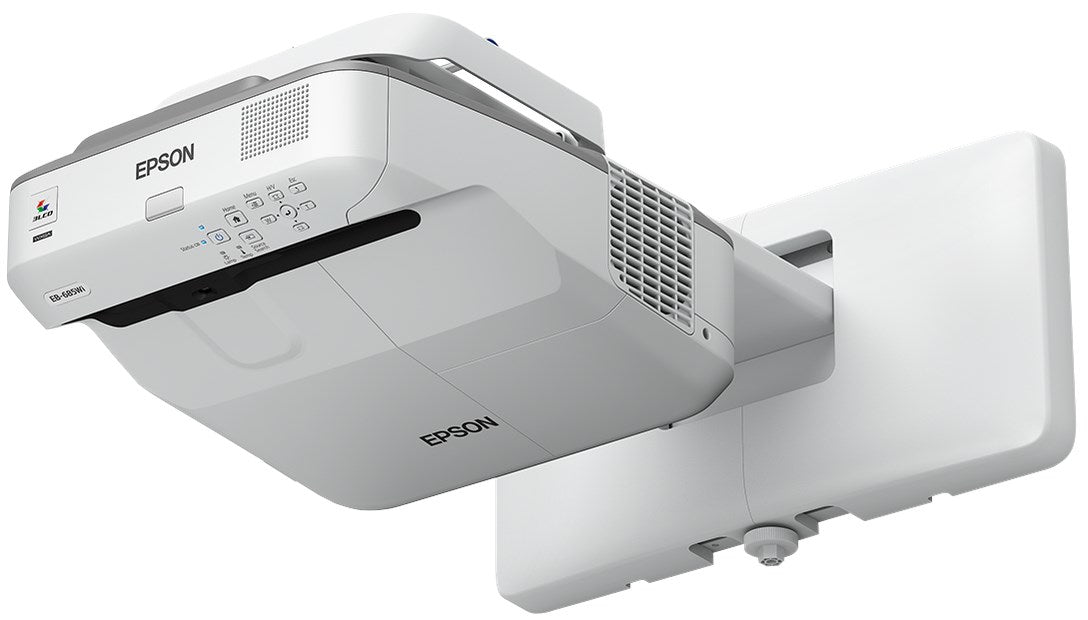

Epson EB-695Wi Projector

Fill the wall with the Epson EB-695Wi — brightness, resolution and throw details are in the spec table below.

Interactive finger-touch projector
With a brightness of 3,500 lumens and HD-readyWXGA resolution, the EB-695Wi's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. This projector offers ultimate interactivity by combining finger-touch with dual pen capability. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.

High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors{s1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.

Finger-touch and dual pen
Use your fingers to annotate directly onto the screen. Epson's interactive pens are now even more responsive and easy to use. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.

Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.

Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App{s2.

Specifications

Projector
Number of colours	1.073 billion colours
White light output	3500 ANSI lumens
Colour light output	3500 ANSI lumens
Projector native resolution	WXGA (1280x800)
Projection distance (wide)	0 - 0.4 m
Projection distance (tele)	0 - 0.6 m
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	1524 - 2540 mm (60 - 100")
Contrast ratio (typical)	300:1
Contrast ratio (dynamic)	14000:1
Zoom ratio	1.35:1
Projector brightness (economic mode)	2900 ANSI lumens
Vertical synchronization (min)	0.1 kHz
Vertical synchronization (max)	0.12 kHz
Matrix size	1.5 cm (0.59")
Keystone correction, vertical	±3°
Projection technology	3LCD
Projector brightness	3500 ANSI lumens
Lamps
Lamp power	250 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Lens system
Focus	Manual
Throw ratio	0.28:1
Digital zoom	1.35x
Video
Video processing	10 bit
Full HD	No
3D	No
Audio
Built-in speaker(s)	Yes
RMS rated power	16 W
Ports & interfaces
RS-232C	Yes
VGA (D-Sub) ports quantity	3
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
Composite video in	1
Audio (L/R) in	1
Headphone outputs	1
Microphone in	Yes
S-Video inputs quantity	1
Serial interface type	RS-232C
RS-232 ports	1
DVI port	No
Component video (YPbPr/YCbCr) in	0
AC (power) in	Yes
Network
Ethernet LAN	Yes
Storage
Card reader integrated	No
Technical details
Product colour	Grey, White
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	15 cm
Products per pallet layer (UK)	2 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	12 pc(s)
Pallet width (UK)	100 cm
Pallet length (UK)	120 cm
Pallet height (UK)	15 cm
Performance
Mac compatibility	Yes
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Features
Country of origin	Philippines
Design
Product type	Ultra short throw projector
Cable lock slot type	Kensington
LED indicators	Yes
Cable lock slot	Yes
Placement	Wall
Display
Built-in display	No
Power
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	356 W
Power consumption (standby)	0.39 W
Power consumption (economy mode)	312 W
Packaging data
Package width	490 mm
Package depth	740 mm
Package height	335 mm
Package weight	21.6 kg
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Weight & dimensions
Weight	5.8 kg
Width	367 mm
Depth	400 mm
Height	187 mm
Packaging content
Remote control included	No
Manual	Yes
