Epson EB-685W Projector
Epson EB-685W Projector
Regular price
£1,248.14 GBP
Regular price
Sale price
£1,248.14 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Fill the wall with the Epson EB-685W — brightness, resolution and throw details are in the spec table below.
HD-ready classroom projectorThe EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors{s1.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App{s2.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.073 billion colours |
| Projector native resolution | WXGA (1280x800) |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.6 m |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Projection distance | 0.4 - 0.6 m |
| Contrast ratio (typical) | 300:1 |
| Contrast ratio (dynamic) | 14000:1 |
| Zoom ratio | 1.35:1 |
| Zoom capability | Yes |
| Projector brightness (economic mode) | 2900 ANSI lumens |
| Matrix size | 1.5 cm (0.59") |
| Keystone correction, vertical | ±3° |
| Keystone correction, horizontal | ±3° |
| Projection technology | 3LCD |
| Projector brightness | 3500 ANSI lumens |
| Lamps | |
| Lamp power | 250 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lens system | |
| Focus | Manual |
| Focal length range | 0 - 3.76 mm |
| Digital zoom | 1.35x |
| Video | |
| Video processing | 10 bit |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Colour modes (2D) | Cinema, Dynamic |
| Full HD | No |
| HD-Ready | Yes |
| 3D | No |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |

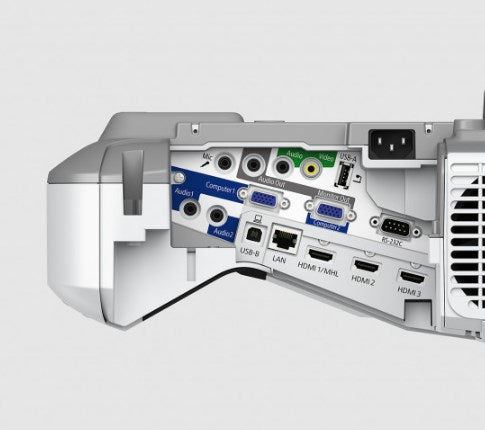

| Ports & interfaces | |
| Mobile High-Definition Link (MHL) | Yes |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S-Video inputs quantity | 0 |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 0 |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level | 35 dB |
| Noise level (economic mode) | 28 dB |
| Technical details | |
| Product colour | Grey, White |
| On Screen Display (OSD) | Yes |
| Air filter | Yes |
| Products per pallet | 12 pc(s) |
| Quantity per pack | 1 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 141 cm |
| Products per pallet layer (UK) | 2 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 141 cm |
| Performance | |
| Password protection | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Features | |
| Country of origin | Philippines |
| Design | |
| Product type | Ultra short throw projector |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Placement | Wall |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 354 W |
| Power consumption (standby) | 0.39 W |
| Power consumption (PowerSave) | 310 W |
| Packaging data | |
| Package width | 490 mm |
| Package depth | 730 mm |
| Package height | 335 mm |
| Package weight | 18.5 kg |
| Software | |
| Bundled software | EasyMP Monitor, EasyMP Multi PC Projection |
| Other features | |
| Remote control type | IR |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions | |
| Weight | 5.7 kg |
| Width | 367 mm |
| Depth | 400 mm |
| Height | 149 mm |
| Packaging content | |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | USB |
| Batteries included | Yes |
