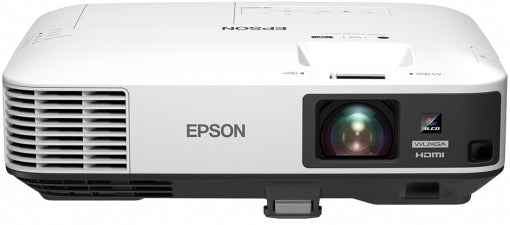

Epson EB-2250U Projector

Fill the wall with the Epson EB-2250U — brightness, resolution and throw details are in the spec table below.

Full HD business projector
Our super-bright new business projector offers an outstanding brightness 5,000 lumens and full HD resolution. The EB-2250U is designed to project a scalable image size of up to a 300 inches, and offers connectivity options such as dual HDMI and optional Wi-Fi.

Outstanding quality display of up to 300 inches
Full HD resolution combined with Epson’s 3LCD technology ensures high-quality content has more vivid colours and brighter images. HDMI connectivity guarantees sharper and clearer presentations delivered on a scalable image size of up to 300 inches.

Simple setup and connectivity
The EB-2250U offers a wide range of connectivity options, including screen mirroring, wireless LAN (optional) and two HDMI inputs. Setup is easy too, thanks to features including auto-power-on, focus help, keystone correction and screen fit - delivering presentations quickly and efficiently.

Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Home screen
The home screen offers quick and easy access to a variety of useful functions, such as connection sources. Wireless connections can also be made easily using the information on screen.

Gesture Presenter
Change slides by simply moving your hand, making even smarter presentations a reality by liberating the user from their remote control or mouse.

Value-added flexibility
The Multi-PC projection software bundled with the EB-2250U makes it possible to connect up to 50 computers and partition the screen for split screen projection capability - offering far better cost-effectiveness and flexibility than a flat-panel display.

Specifications

Projector
Number of colours	1.073 billion colours
Projector native resolution	WUXGA (1920x1200)
Native aspect ratio	16:10
Supported aspect ratios	16:10
Screen size compatibility	1270 - 7620 mm (50 - 300")
Projection distance	1.5 - 9 m
Contrast ratio (typical)	400:1
Contrast ratio (dynamic)	15000:1
Projector brightness (economic mode)	3800 ANSI lumens
Matrix size	1.93 cm (0.76")
Keystone correction, vertical	± 30°
Keystone correction, horizontal	± 30°
Projection technology	3LCD
Projector brightness	5000 ANSI lumens
Lamps
Lamps quantity	1 lamp(s)
Lamp power	300 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Lens system
Focus	Manual
Focal length range	23 - 38.4 mm
Aperture range (F-F)	1.5 - 2
Throw ratio	1.38 - 2.28:1
Digital zoom	1.6x
Video
Video processing	10 bit
Video colour modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Colour modes (2D)	Cinema, Dynamic
Full HD	Yes
3D	No
Audio
Built-in speaker(s)	Yes
RMS rated power	16 W
Ports & interfaces
RS-232C	Yes
Mobile High-Definition Link (MHL)	Yes
VGA (D-Sub) ports quantity	3
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
Composite video in	1
Audio (L/R) in	0
DisplayPorts quantity	1
S-Video inputs quantity	0
Serial interface type	RS-232C
RS-232 ports	1
PC Audio out	Yes
PC Audio in	Yes
DVI port	No
Component video (YPbPr/YCbCr) in	3
AC (power) in	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Storage
Card reader integrated	No
Sound emission
Noise level	39 dB
Noise level (economic mode)	29 dB
Technical details
Product colour	White
Products per pallet	40 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	3.5 m
Products per pallet layer (UK)	5 pc(s)
Products per pallet layer	4 pc(s)
Products per pallet (UK)	50 pc(s)
Pallet width (UK)	100 cm
Pallet length (UK)	120 cm
Pallet height (UK)	3.5 m
Performance
Password protection	Yes
Features
Country of origin	China
Design
Product type	Standard throw projector
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement	Desktop
Display
Built-in display	No
Power
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	420 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	350 W
Packaging data
Package width	383 mm
Package depth	530 mm
Package height	210 mm
Package weight	6.4 kg
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 40 °C
Weight & dimensions
Weight	4.8 kg
Width	377 mm
Depth	291 mm
Height	110 mm
Packaging content
Remote control included	Yes
Manual	Yes
Cables included	AC, VGA
Batteries included	Yes
