DELL

DELL Universal UD22 USB-C Docking Station

£291.72 GBP

Sale Sold out

Taxes included.

Condition New

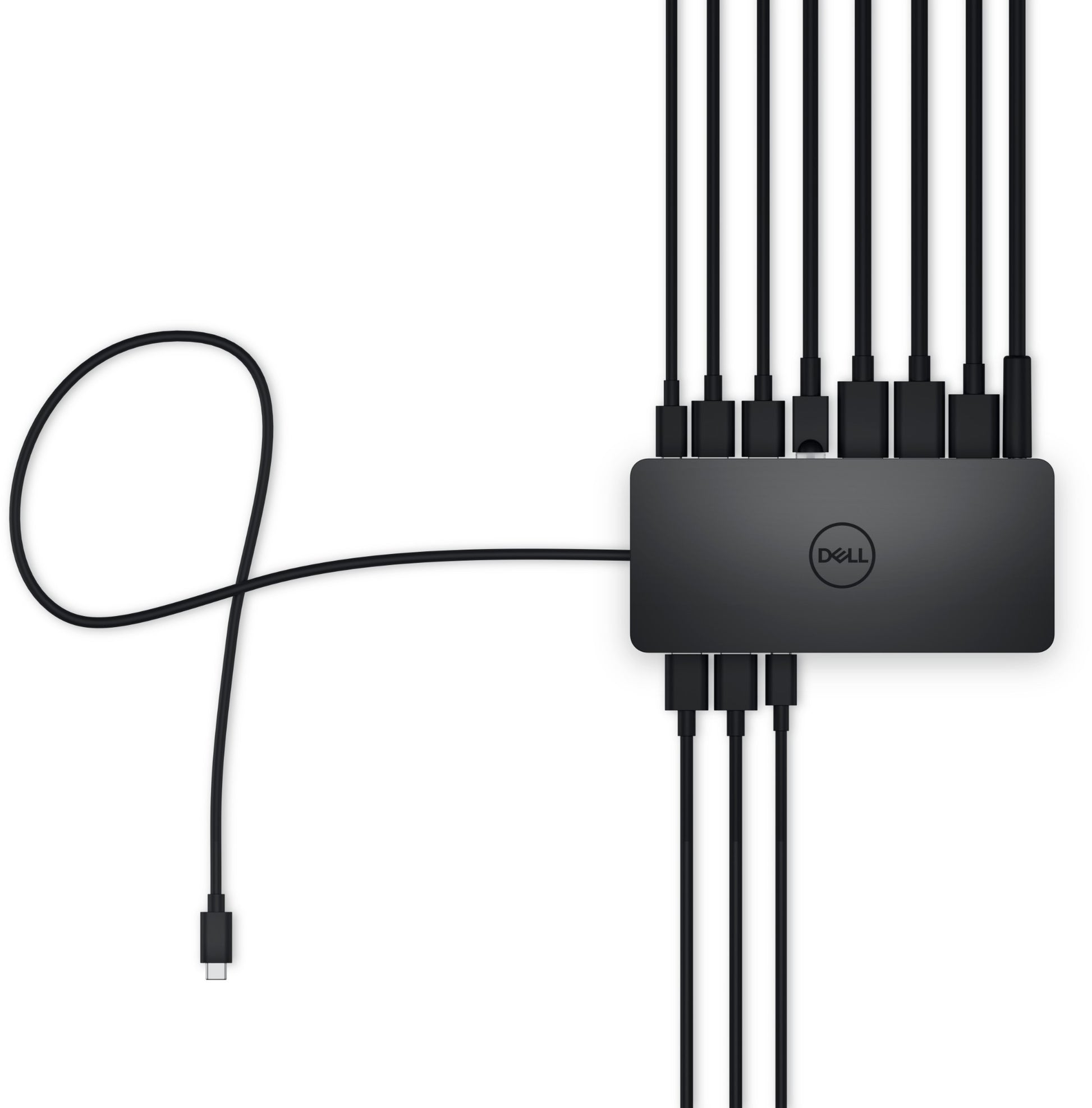

One cable, full desk: the DELL Universal UD22 turns your laptop into a workstation with external displays, wired networking over a single USB-C connection.

Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.

Specifications

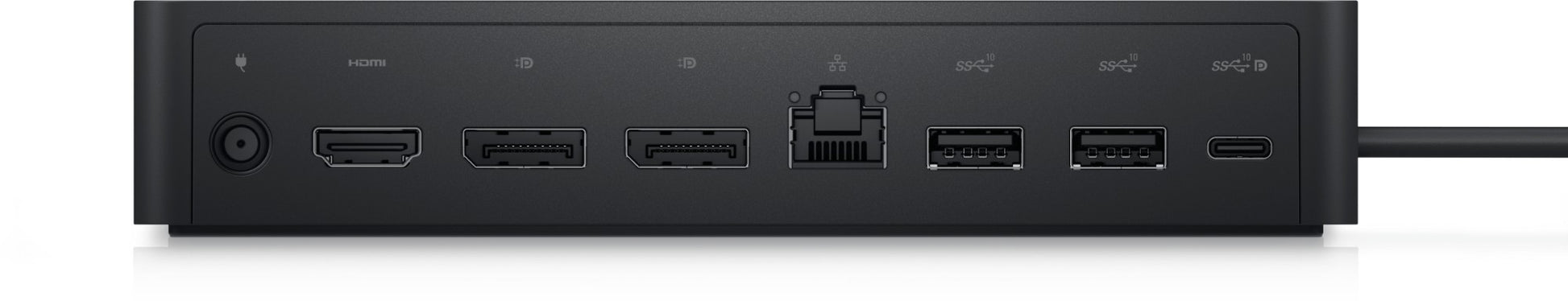

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Microphone in	No
DC-in jack	Yes
Connectivity technology	Docking
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
PowerShare	Yes
Number of USB ports with PowerShare support	2
USB Power Delivery up to	96 W
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	5120 x 2880 pixels
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Maximum VESA mount	100 x 100 mm
Technical details
Harmonized System (HS) code	84733020
Power
Power source type	DC
Input current	2.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19.5 V
Output current	6.67 A
Power supply	130 W
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	MacOS
Linux operating systems supported	Ubuntu 20.04 LTS
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	416 g
Width	76 mm
Depth	166 mm
Height	32 mm
Packaging content
Quick start guide	Yes
Cables included	USB Type-C
AC adapter included	Yes
