DELL TB16 Thunderbolt 3 Docking Station 180W

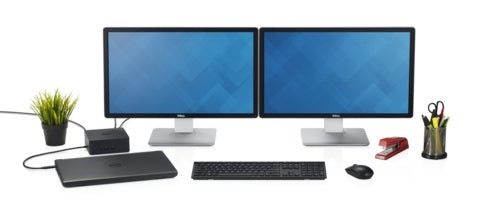

One cable, full desk: the DELL TB16 turns your laptop into a workstation with wired networking, 180W charging over a single Thunderbolt 3 connection.

One dock. One cable. Ultimate Performance.
The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.

Small footprint and big flexibility

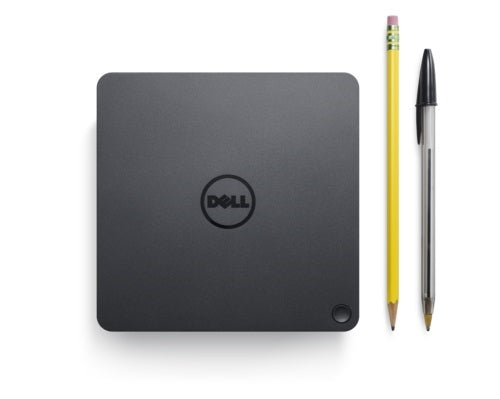

The Dell Thunderbolt™ Dock TB16 -180W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.

One source for power
The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.

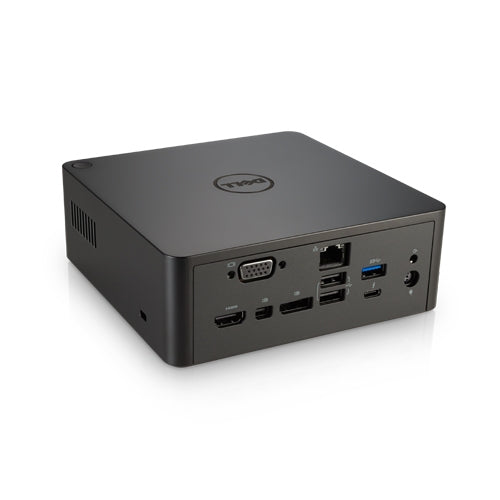

Connections and Features:
- Supports 3 displays
- Two USB 2.0 ports;
- Three USB 3.0 ports;
- Thunderbolt 3 (USB-C) port;
- Speaker output (rear);
- Combo audio (front);
- Gigabit Ethernet;
- Kensington Lock Slot;
- 7.4 mm DC-IN Power Input.

Overview
The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Thunderbolt 3 ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 3
USB 2.0 ports quantity	2
USB connector type	USB Type-A, USB Type-C
Line-out	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Mini DisplayPorts quantity	1
Headphone outputs	1
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Product colour	Black
Card reader integrated	No
Brand compatibility	Dell
Compatibility	XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520
LED indicators	Yes
Technical details
Harmonized System (HS) code	84733020
Power
Power source type	AC
Power consumption (max)	180 W
Software
Windows operating systems supported	Yes
Weight & dimensions
Weight	720 g
Width	145 mm
Depth	145 mm
Height	51 mm
Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
