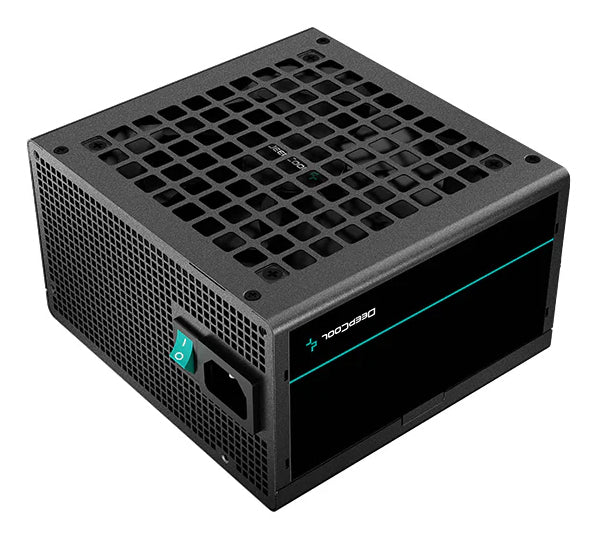

DeepCool PF700 power supply unit 700 W 20+4 pin ATX ATX Black

Reliable power for your system: the DeepCool PF700 power supply unit — wattage and connector details are in the spec table.

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

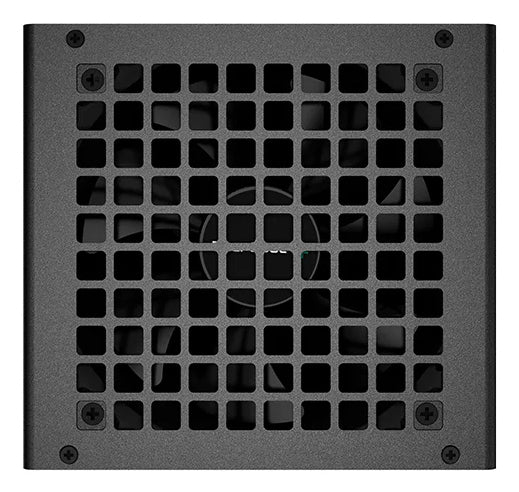

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
Purpose	PC/Server
ATX version	2.4
Mean time between failures (MTBF)	100000 h
Design
Product colour	Black

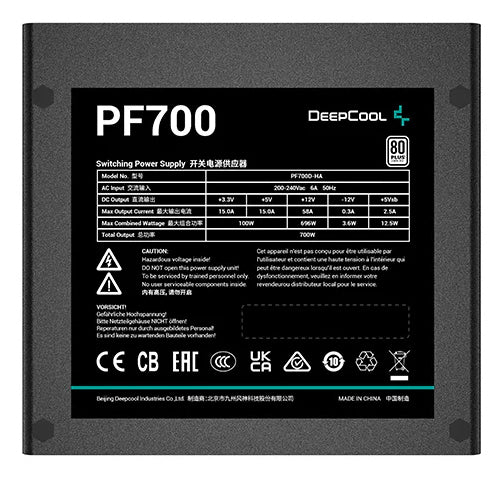

Power
Total power	700 W
AC input voltage	230 V
AC input frequency	50 Hz
Combined power (+3.3V)	100 W
Combined power (+12V)	696 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	15 A
Max output current (+12V)	58 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Hold time	12 ms
Efficiency	85%
Ports & interfaces
Motherboard power cable length	55 cm
SATA power cable length	450,600,750,900 mm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
Peripheral (Molex) power connectors (4-pin)	0
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Certificates
Compliance certificates	CCC, CE, EAC, UKCA
Packaging content
Cables included	AC
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Packaging data
Package type	Box
Technical details
Sustainability compliance	Yes
