DeepCool LT720 WH Processor All-in-one liquid cooler 12 cm White 1 pc(s) Cooling

Keep temperatures in check with the DeepCool LT720 WH Processor All-in-one — fitment and noise details are in the spec table.

LT720 WH

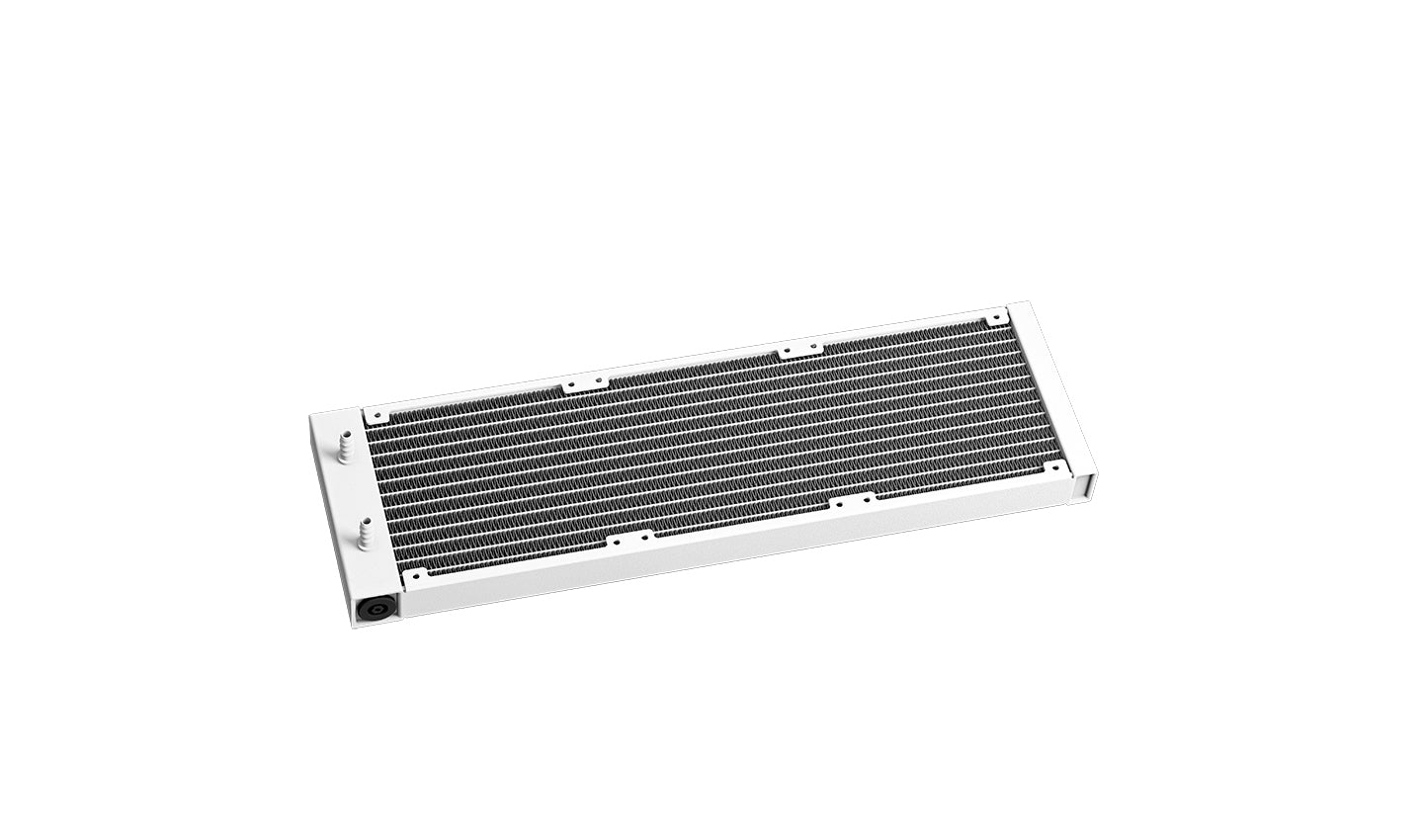

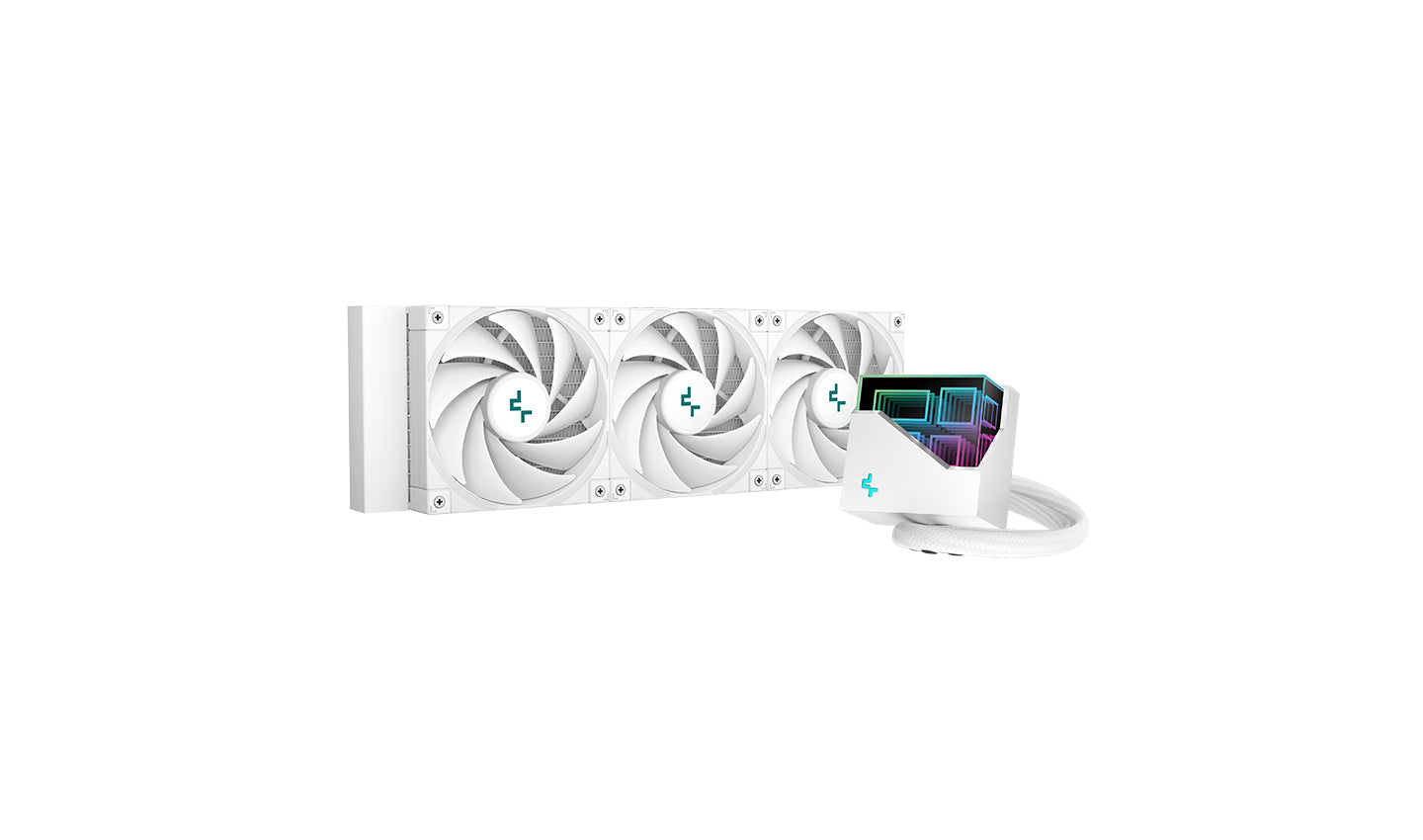

The DeepCool LT720 WH high-performance liquid CPU cooler provides strong heat dissipation power with a 360mm radiator, three precision-tuned FK120 fans, and a multidimensional infinity mirror top cap, presented in a clean all-white design.

LT720 WH
360mm High-Performance Liquid CPU Cooler

BREAK OPEN ANOTHER DIMENSION
A three-dimensional infinity mirror surface is revealed underneath the top cover and offers a new visual experience through a multi-faceted geometric reflection.

A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:

1 Improved microchannel design ensures optimal coolant flow.
2 Powerful three-phase drive motor up to 3100 RPM.

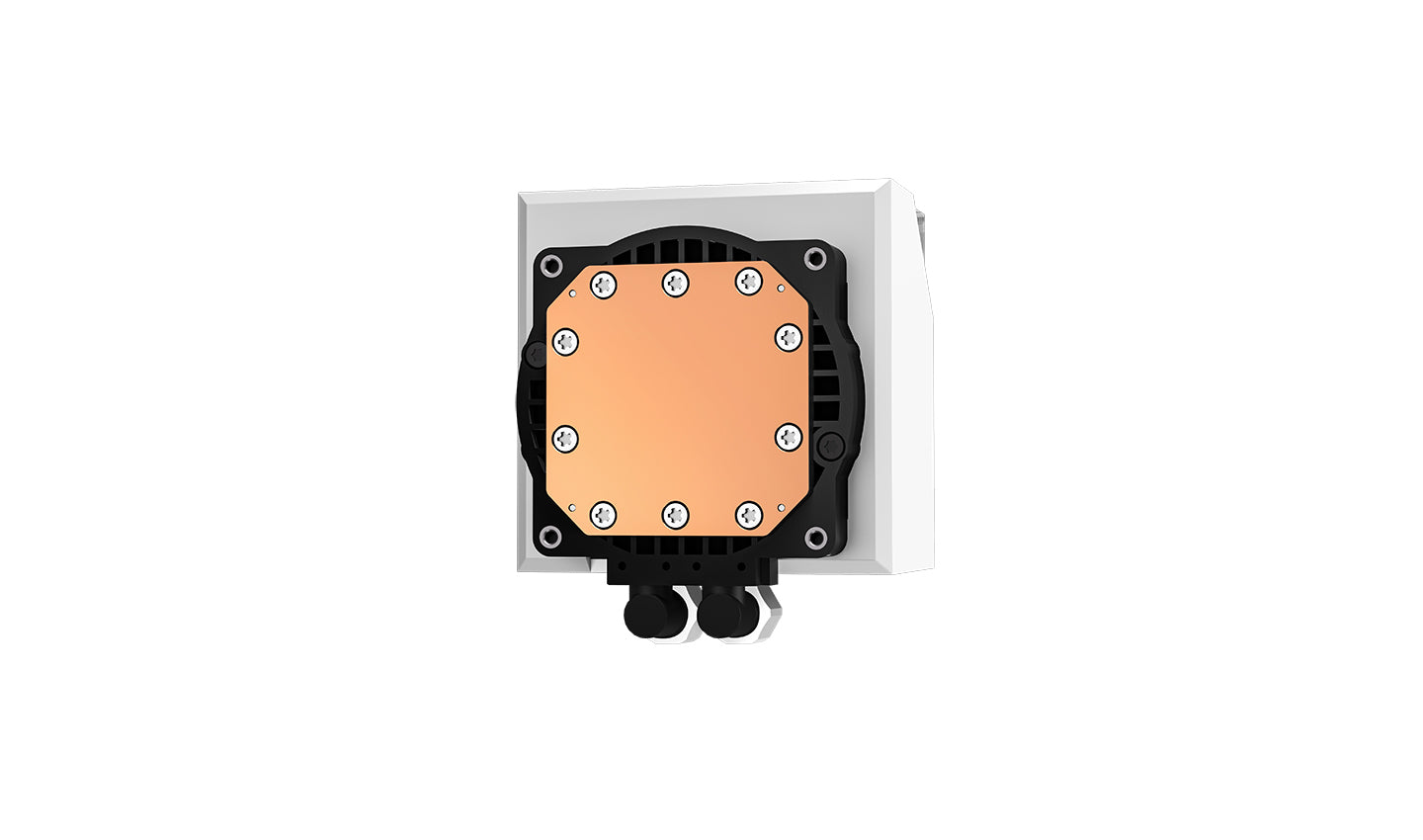

3 Thick solid copper base with a seamless match.

EXTREMELY POWERFUL

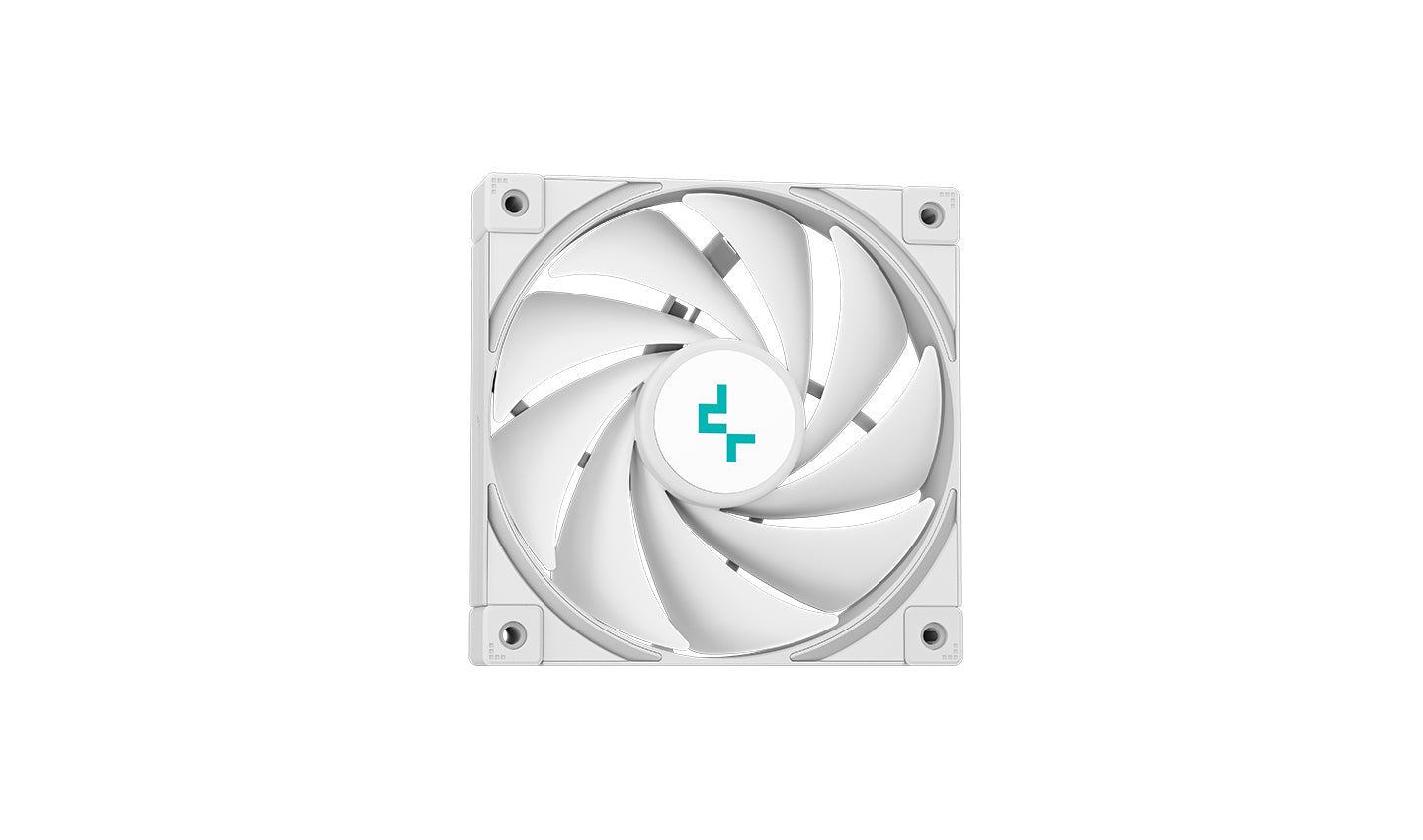

Maximize cooling potential with white DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.

SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.

SIMPLE AND SECURE
The installation process is intuitive and simple to use ensuring a proper fit and pressure match on any platform.

Application For

Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD
sTRX4/sTR4/AM5/AM4

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4
Maximum airflow	85.85 cfm
Maximum air pressure	3.27 mmH2O
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Pump connector	3-pin
Fan noise level (max)	32.9 dB
Pump noise level	19 dB
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Pump motor speed	3100 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2250 RPM
Design
Product colour	White
Illumination LED	Yes
Radiator material	Aluminum
LED connector type	3-pin
Power
Voltage	12 V
LED voltage	5 V
Fan power consumption	2.64 W
Pump power consumption	4.56 W
Pump voltage	12 V
Pump current	0.38 mA
Fan voltage	12 V
Fan current	0.22 A
LED power consumption (pump)	3.15 W
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Weight	1.86 kg
Radiator width	40.2 cm
Radiator depth	12 cm
Radiator height	2.7 cm
Tube length	41 cm
Pump width	9.4 cm
Pump depth	6.8 cm
Pump height	8 cm
Packaging data
Package type	Box

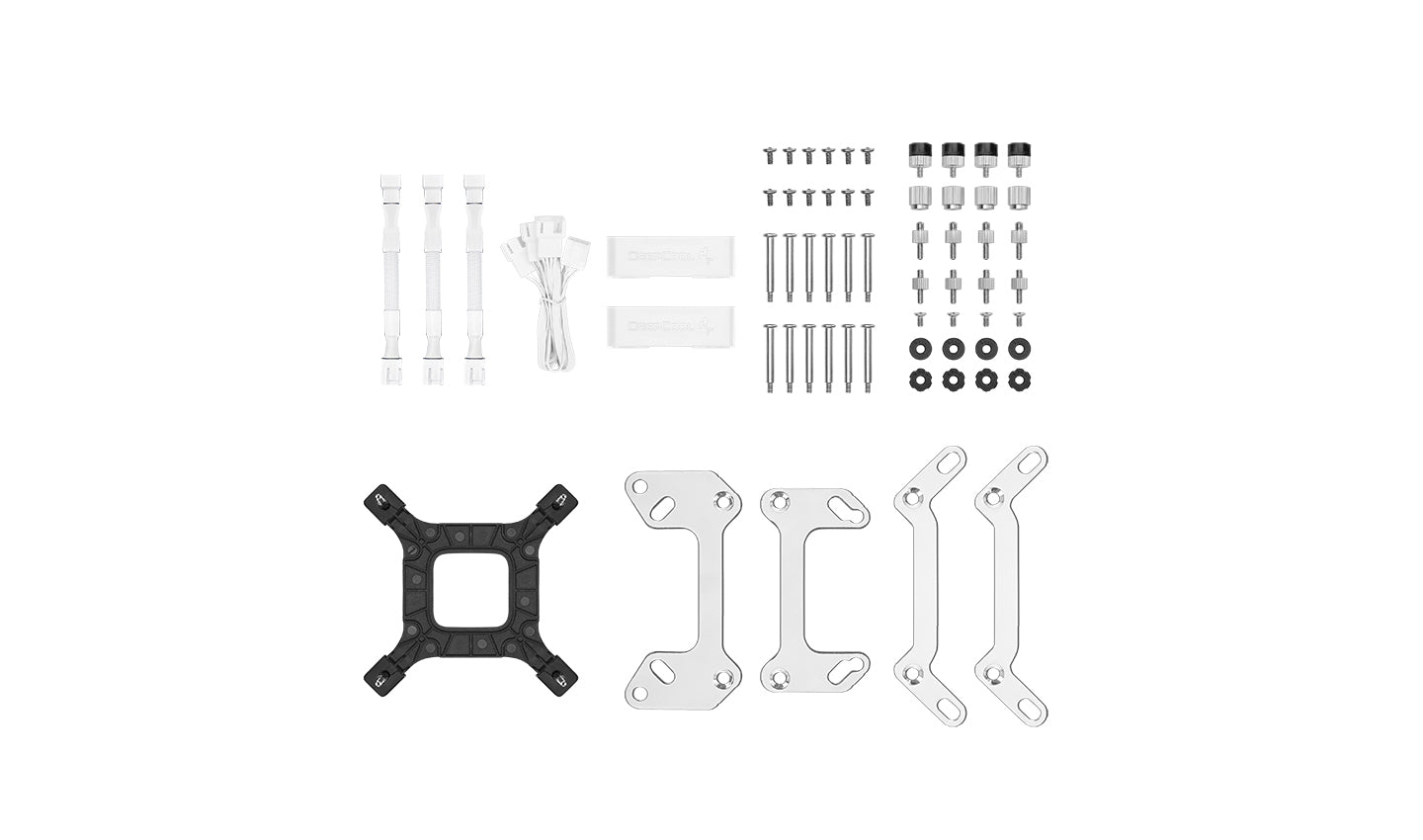

Packaging content
Screws included	Yes
Mounting kit	Yes
CPU bracket(s)	Yes

Downloads

• Datasheet (PDF)
