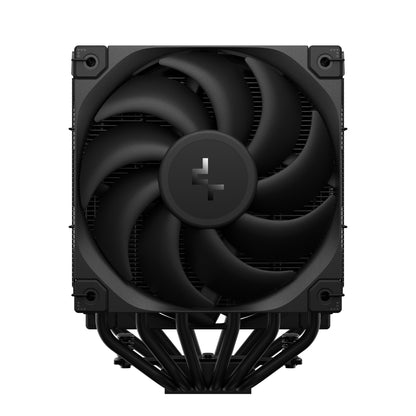

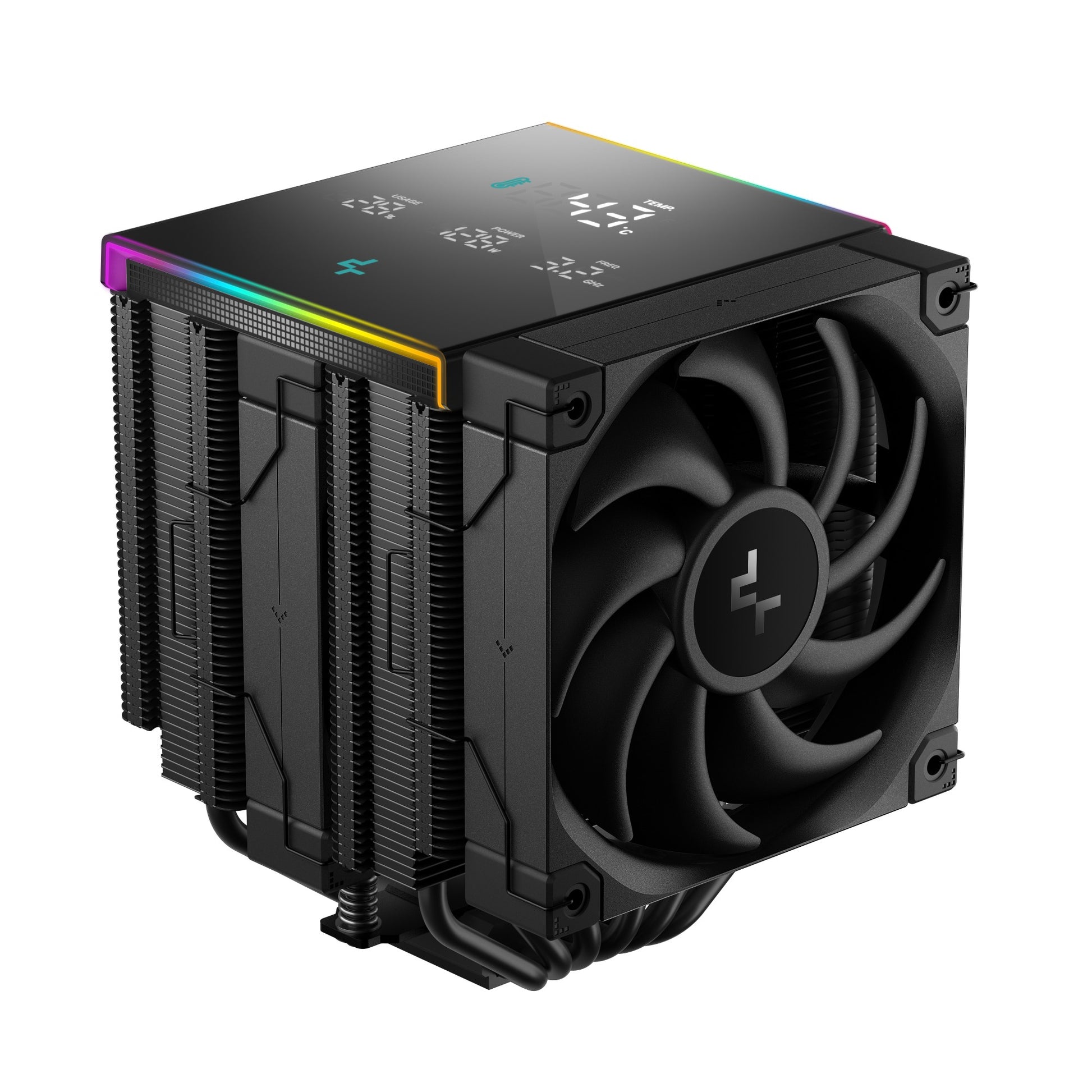

DeepCool AK620 Digital PRO Processor Air cooler 12 cm Black 1 pc(s) Cooling

Keep temperatures in check with the DeepCool AK620 Digital PRO Processor — fitment and noise details are in the spec table.

AK620 DIGITAL PRO
The AK DIGITAL air coolers have gone pro with their newest iteration. The AK620 DIGITAL PRO has been upgraded in many aspects, including a multi-data point screen, visual color temperature warnings, and CTT 2.0 heatpipe technology. A very worthy step up in not just aesthetics but cooling performance.

AK620 DIGITAL PRO
DIGITAL COOLERS GO PRO

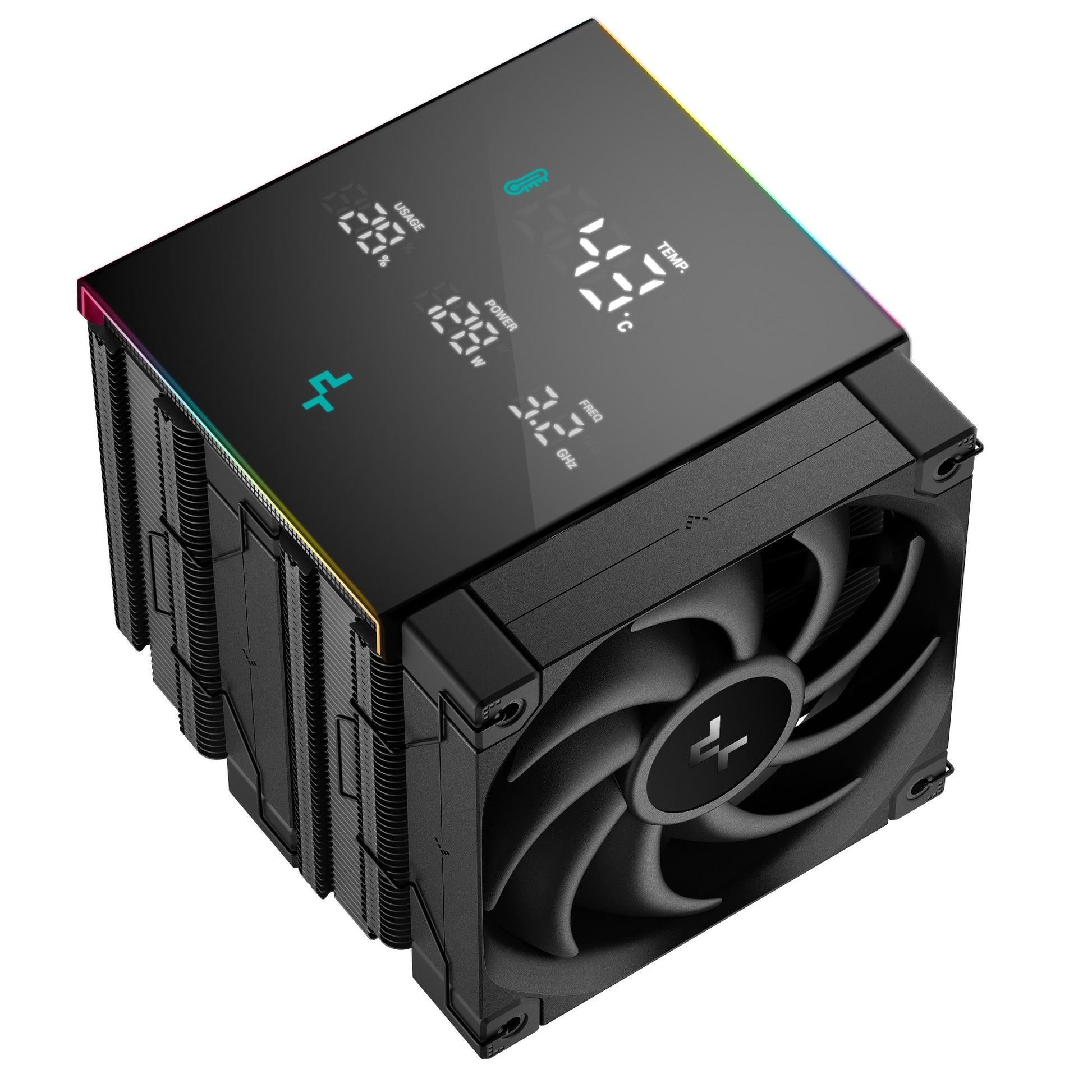

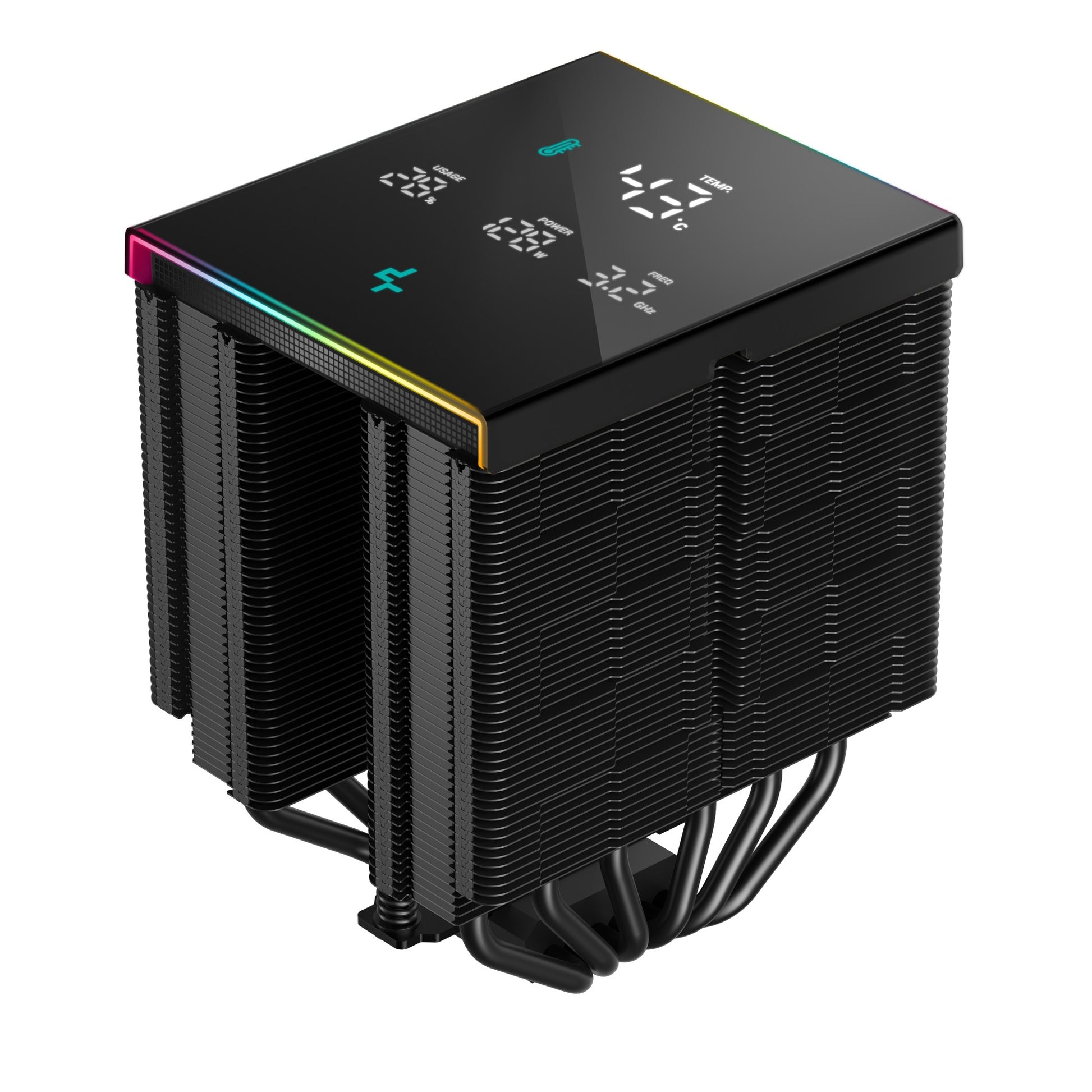

ENHANCED CPU STATUS SCREEN
The sleek and shiny screen of the AK620 DIGITAL PRO has been enhanced to show more than just the temperature; usage, wattage, and frequency have been added and are displayed at the same time. The display is controlled via DeepCool software and only requires an open USB 2.0 header.

VISUAL TEMPERATURE ALERTS
The temperature warning alert system has also been upgraded to have a color-coded visual indicator: under 80 °C, the indicator will stay green; between 80 and 90°C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.

OPTIMIZED COOLING

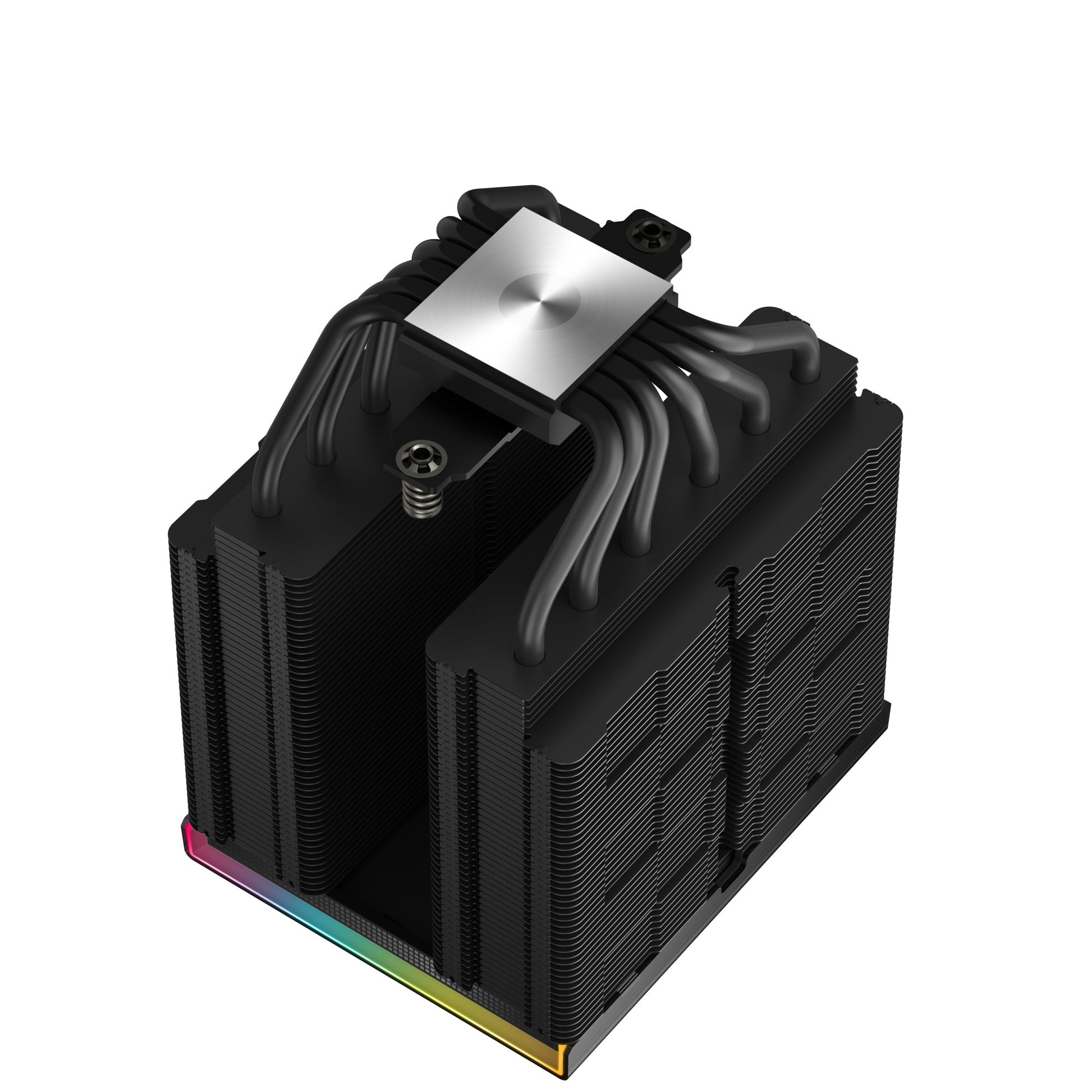

An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.

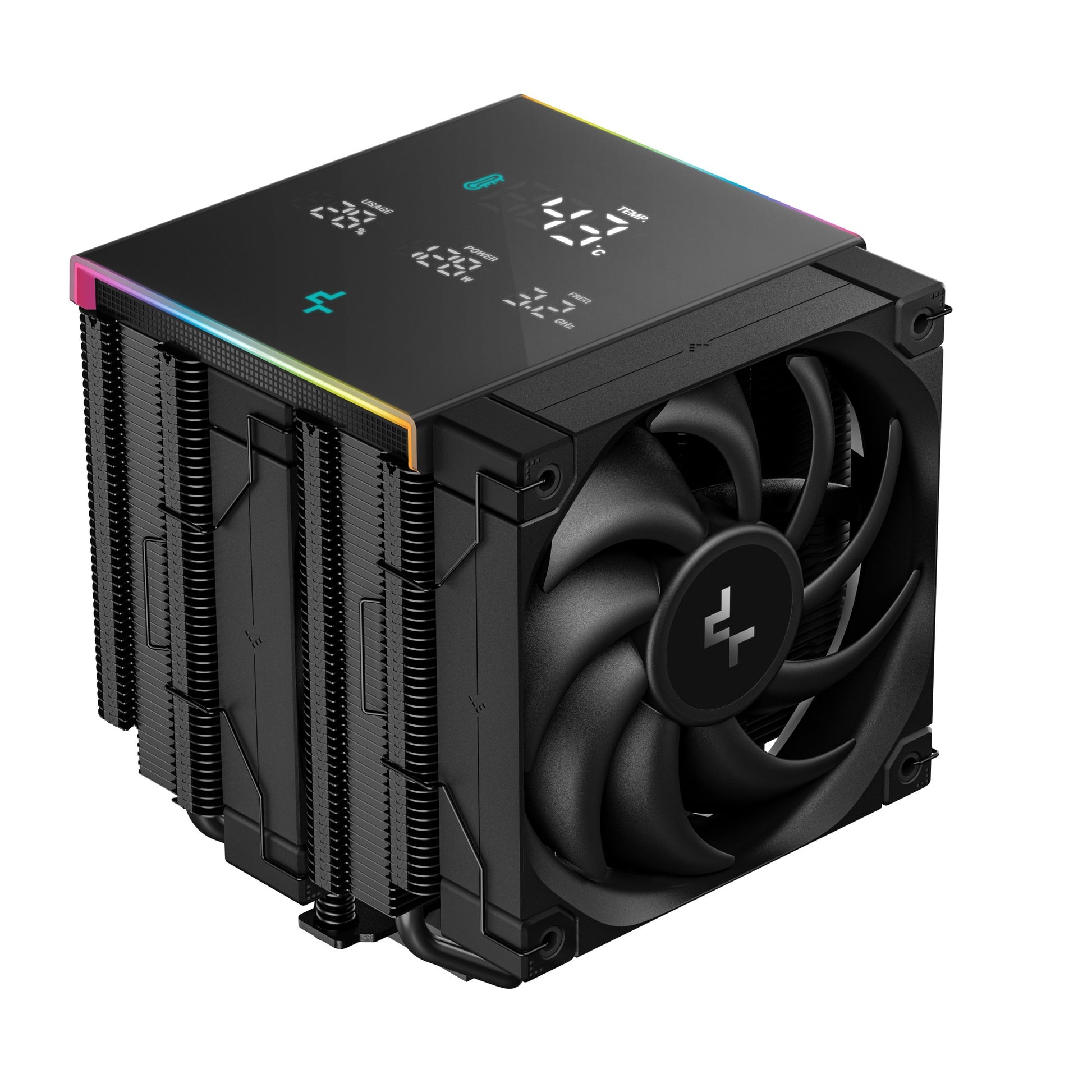

PROVEN AK ZERO DARK DESIGN

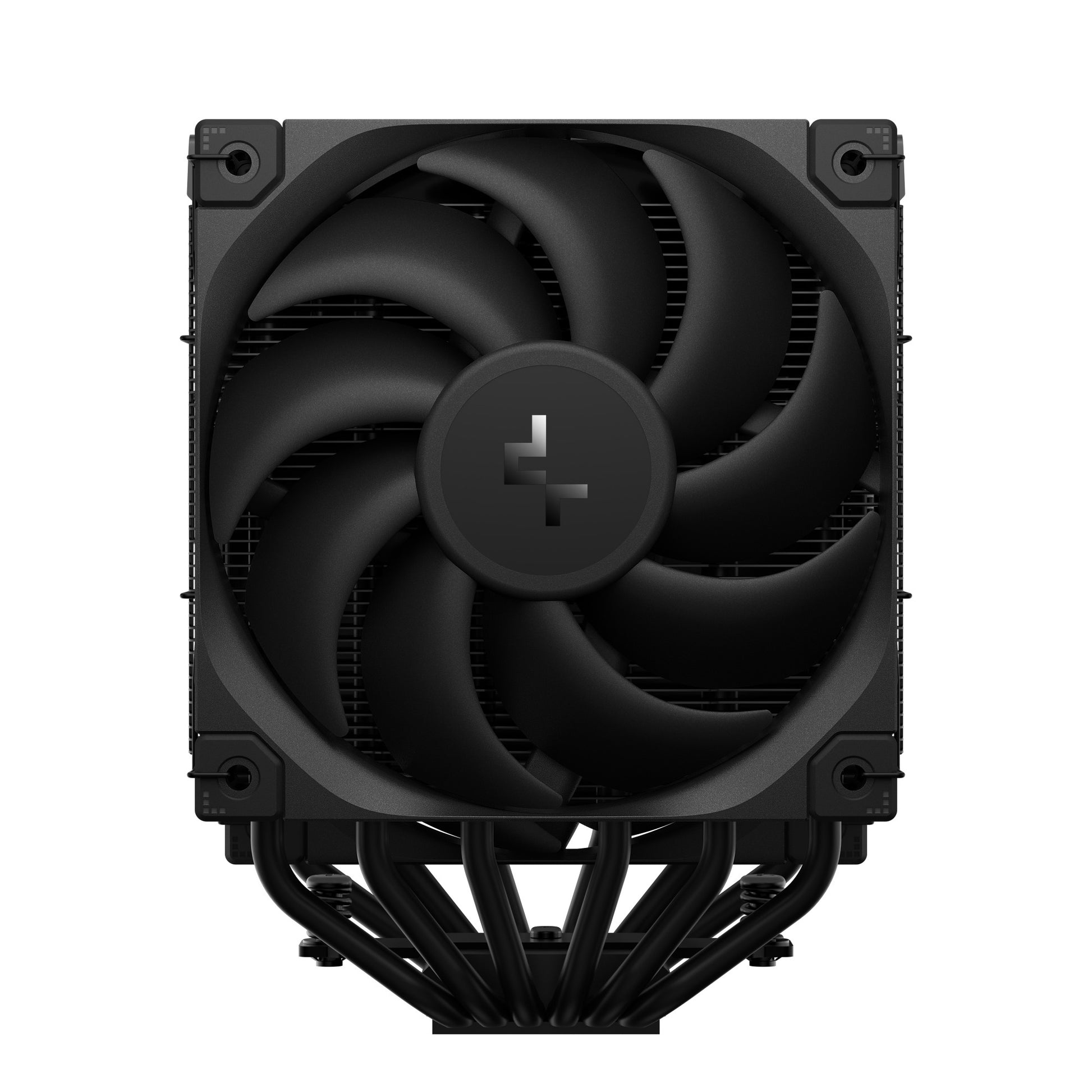

An all-black variation of the dominant AK620 high-performance CPU cooler. The same premium-quality materials, featuring six advanced copper heat pipes, a dense matrix pattern dual-tower heat sink, and two silent FDB fans, produce a powerful winning formula for high performance cooling in a ZERO DARK raven design.

KEEP YOUR COOL

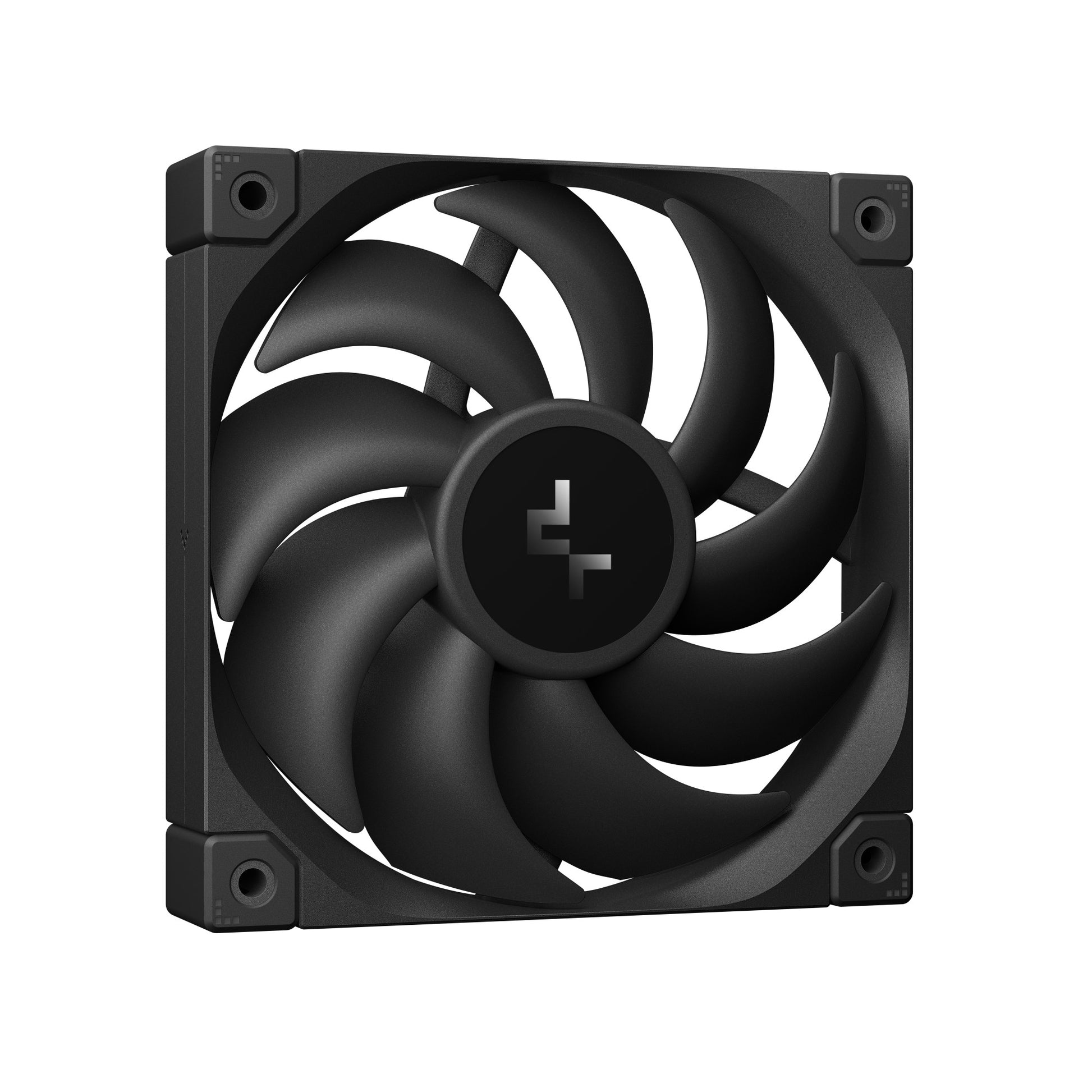

Upgraded to the newly designed FT12 SE fans with a true fluid dynamic bearing, the AK PRO models will get a PWM fan with a blade profile that has been optimized for the perfect balance of airflow and static pressure while minimizing the fan acoustics.

SIMPLIFIED MOUNTING
The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Number of heat pipes	6
Heat pipes diameter	6 mm
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Maximum airflow	60.89 cfm
Maximum air pressure	2.91 mmH2O
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	9
Fan noise level (max)	25 dB
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Fan speed (min)	500 RPM
Fan speed (max)	1750 RPM
Design
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
LED connector type	3-pin
Power
LED voltage	5 V
Fan power consumption	3 W
Fan voltage	12 V
Fan current	0.25 A
LED power consumption (fan)	5.55 W
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Width	138 mm
Depth	129 mm
Height	163 mm
Weight	1.49 kg
Radiator width	11 cm
Radiator depth	12.7 cm
Radiator height	15.4 cm
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Mounting kit	Yes
CPU bracket(s)	Yes
