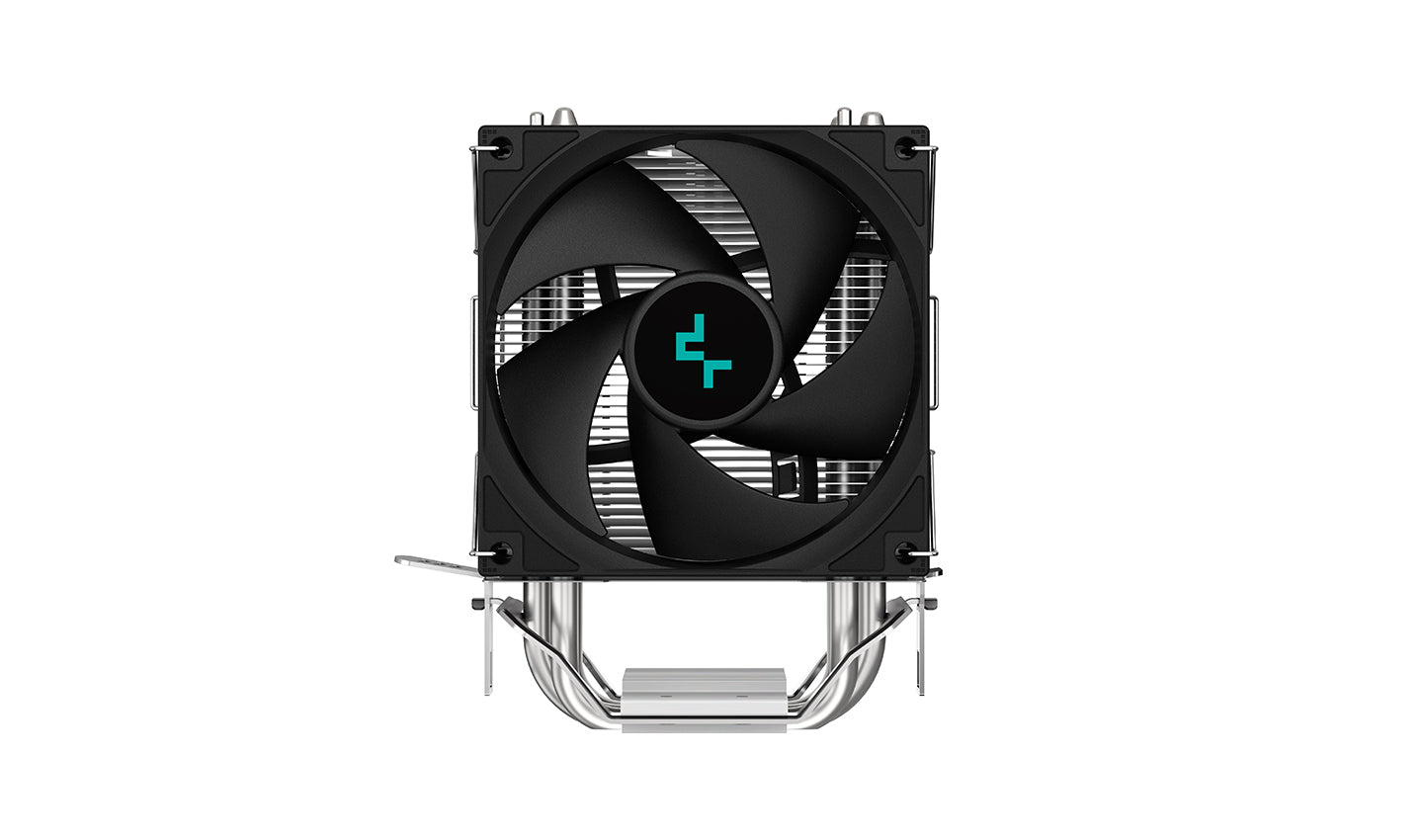

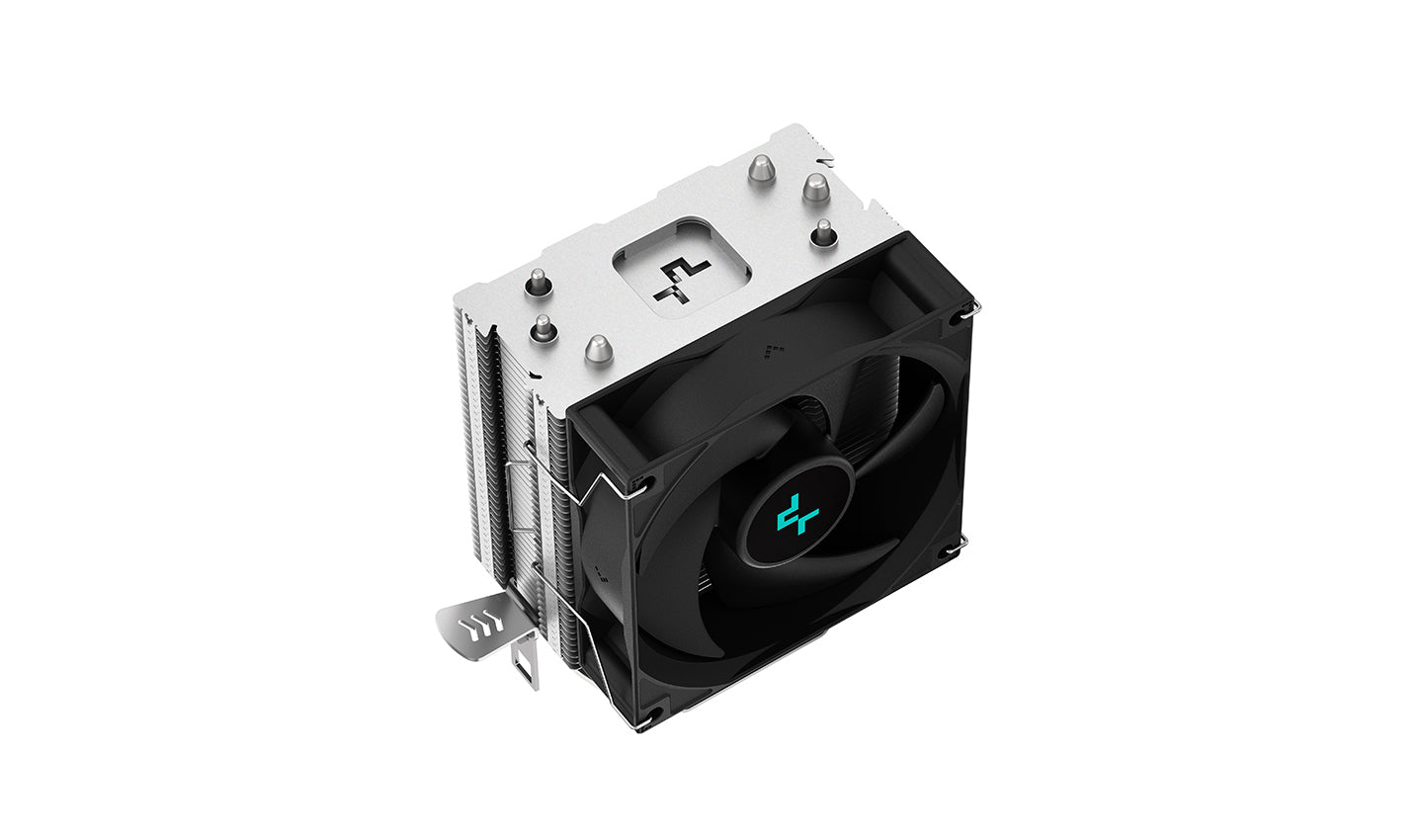

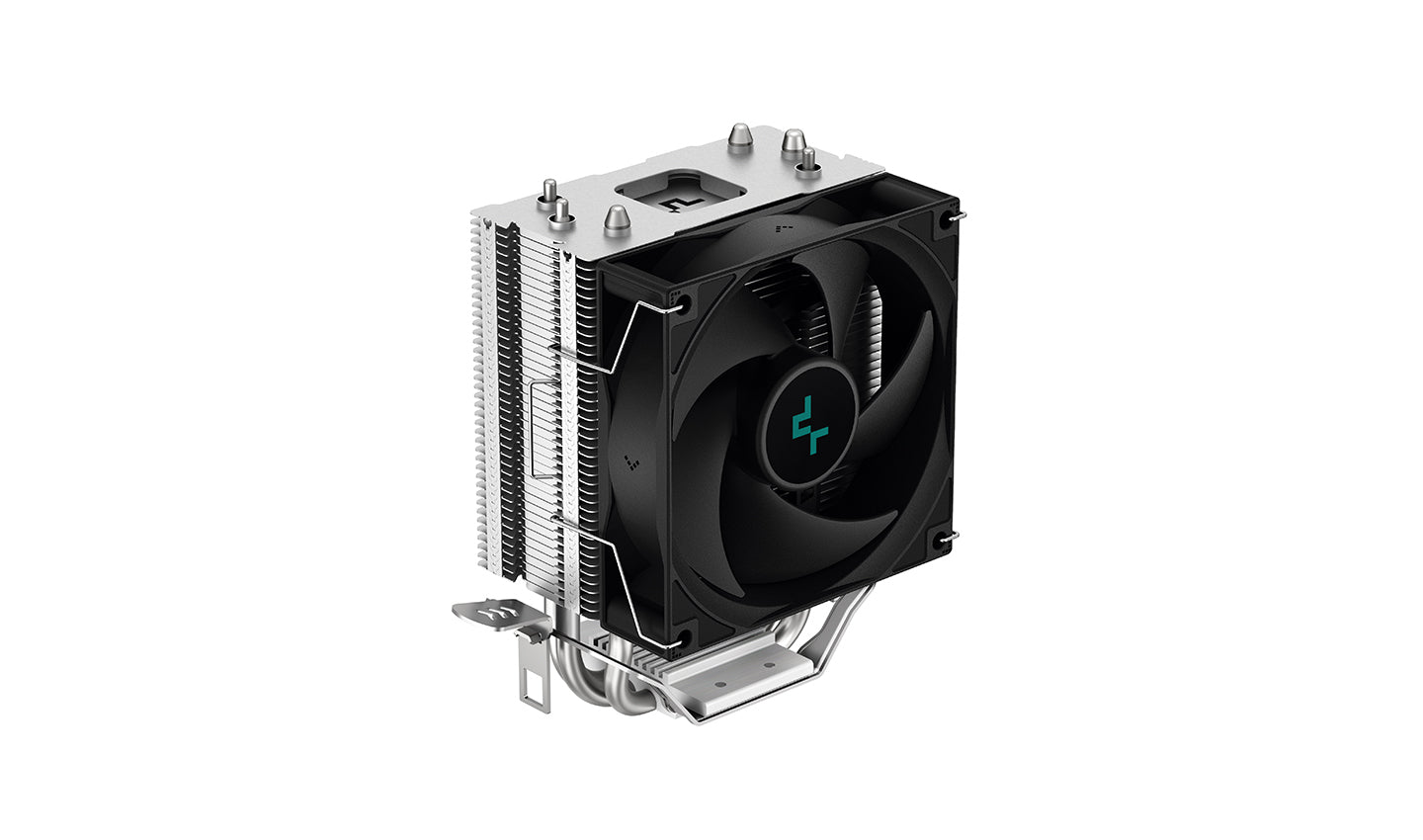

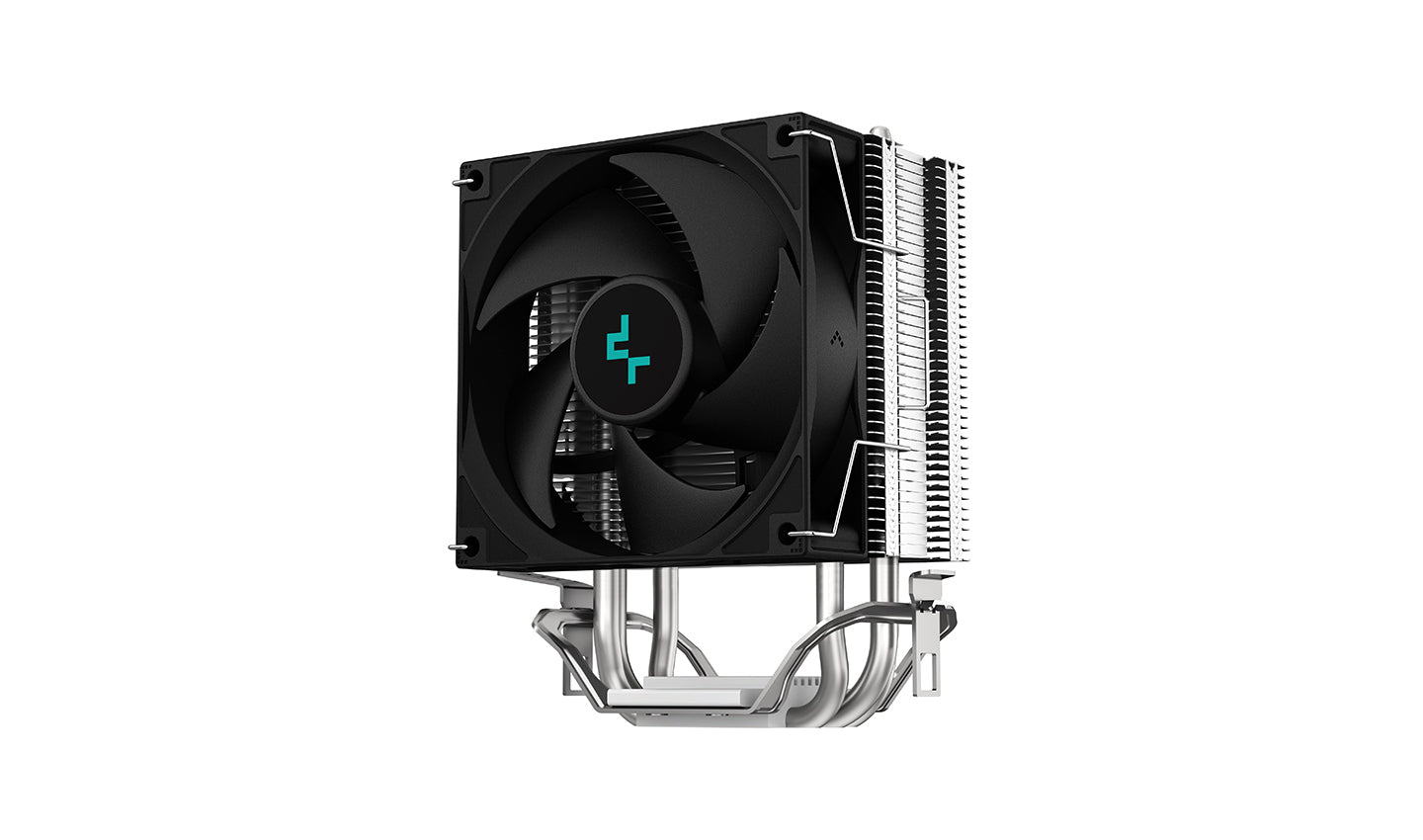

DeepCool AG300 Chipset Air cooler 9.2 cm Black, Metallic Cooling

Keep temperatures in check with the DeepCool AG300 Chipset Air cooler — fitment and noise details are in the spec table.

The AG300 is a compact single-tower CPU cooler representing a new generation update from the classic GAMMAXX basic coolers with upgraded appearance and efficiency at 150W heat dissipation power.

EFFICIENT COOLING POWER

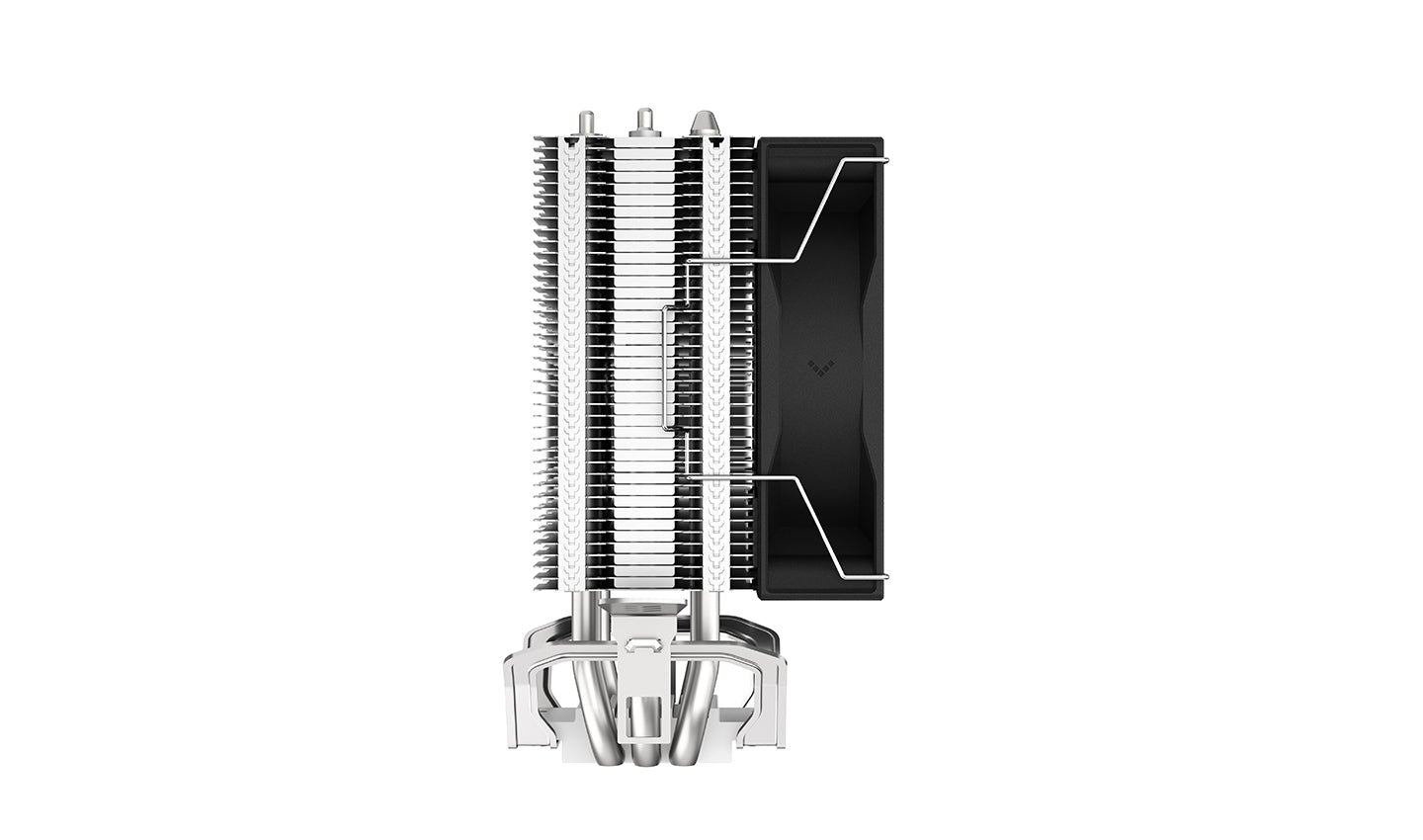

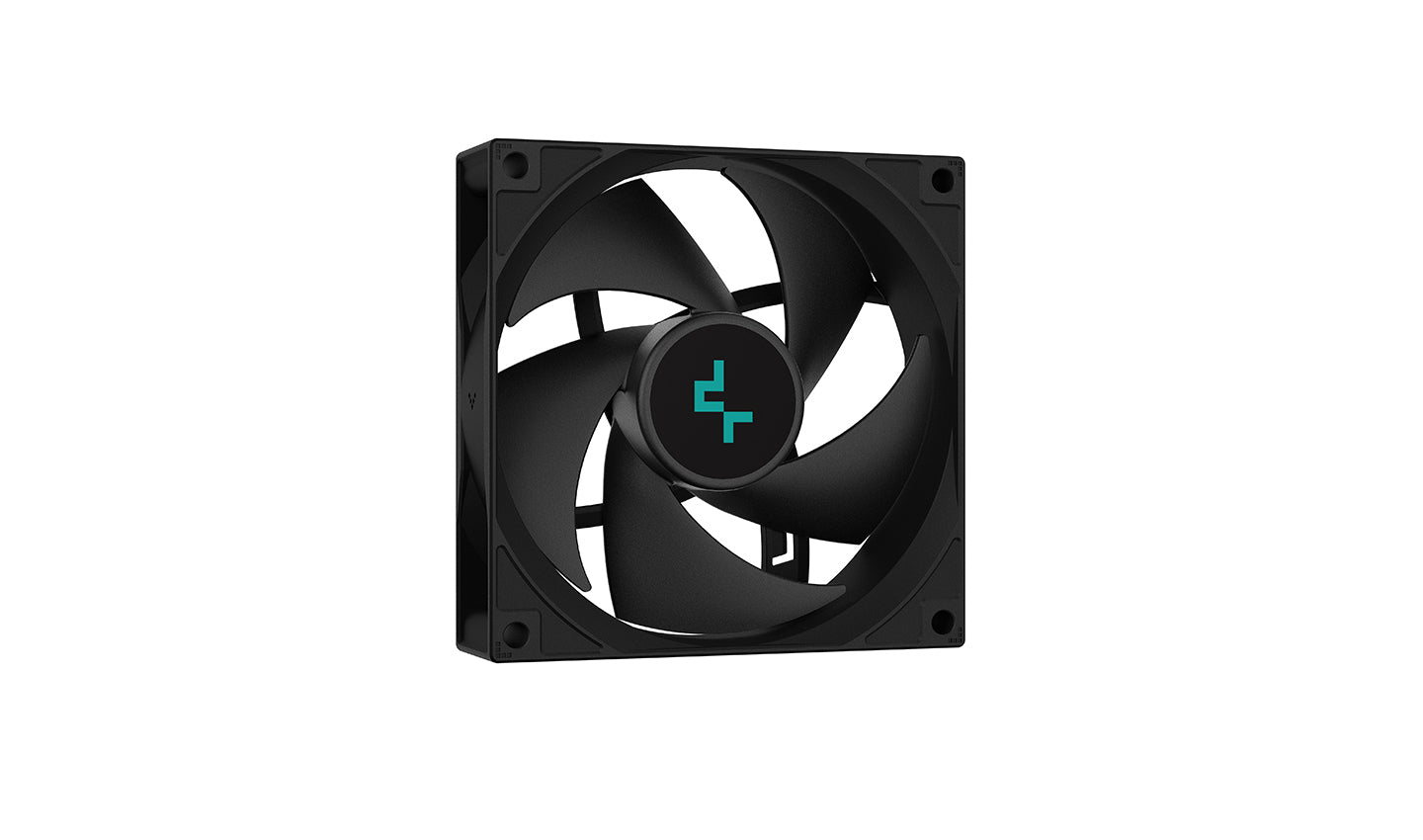

Three direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.

NEW FAMILY APPEARANCE
The AG300 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction. The nickel plated heat pipes provide extra protection against copper corrosion.

EASY INSTALLATION

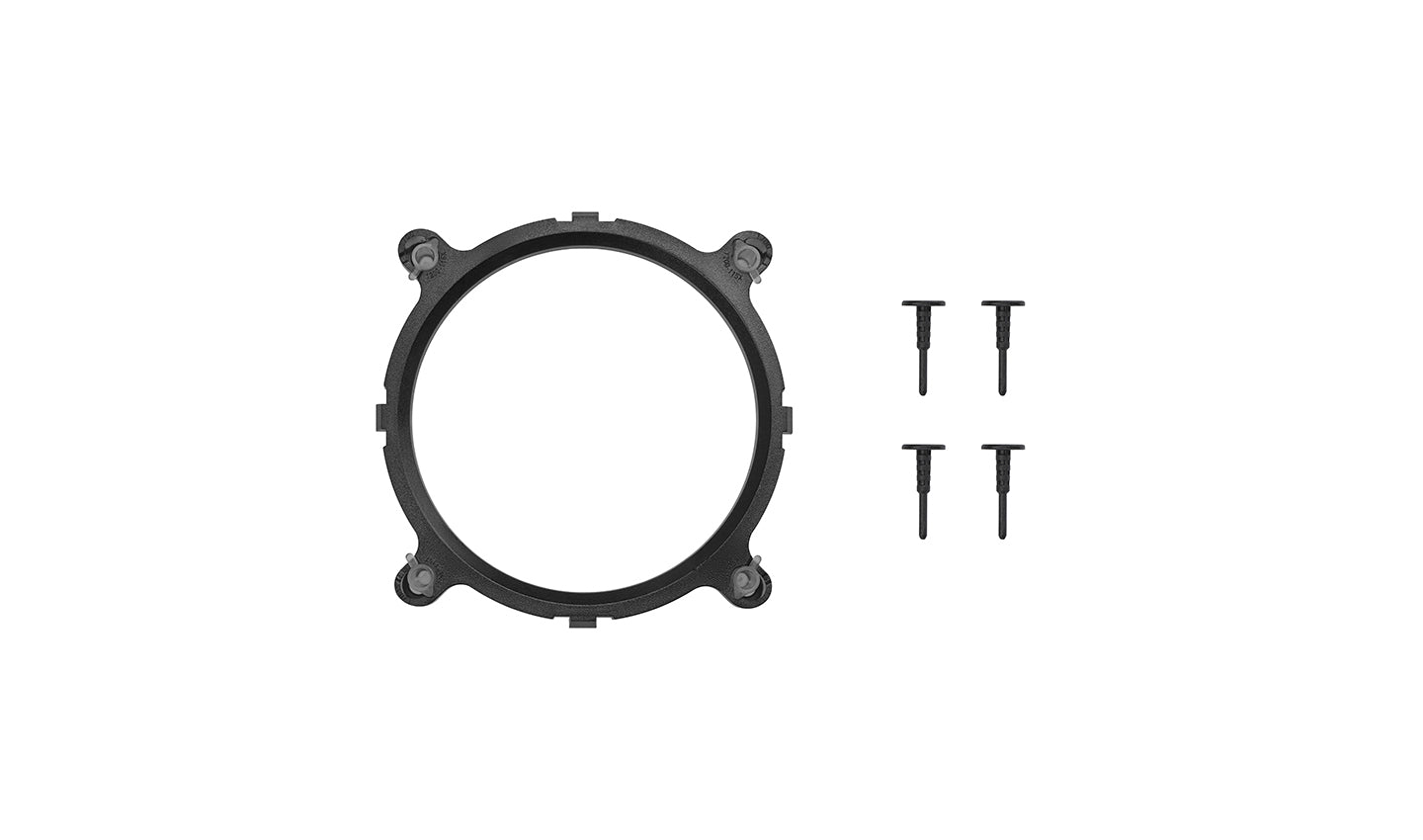

Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.

Specifications

Performance
Suitable location	Chipset
Bearing type	Hydraulic
Number of heat pipes	3
Type	Air cooler
Fan diameter	9.2 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow	36.75 cfm
Maximum air pressure	2.89 mmH2O
Number of fans	1 fan(s)
Pump connector	4-pin
Fan noise level (max)	30.5 dB
Design
Product colour	Black, Metallic
Power
Voltage	12 V
Power consumption (typical)	1.56 W
Maximum current	0.13 A
Weight & dimensions
Fan dimensions (W x D x H)	92 x 92 x 25 mm
Width	119 mm
Depth	77 mm
Height	129 mm
Weight	350 g
Packaging data
Package type	Box
Packaging content
Number of clips	4

Downloads

• Datasheet (PDF)
