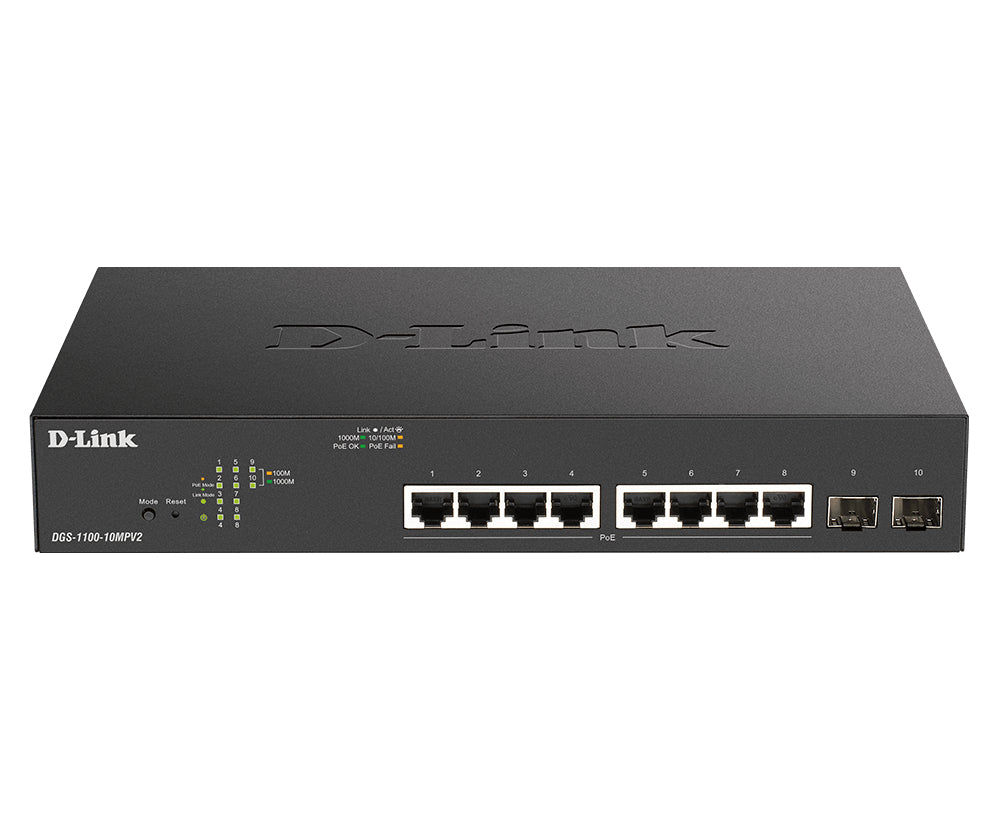

D-Link DGS-1100-10MPV2 Networking

The D-Link DGS-1100-10MPV2 is a dependable addition to any modern network installation.

The DGS-1100 Series is built for the needs of a diverse range of businesses. Support for PoE, advanced management & troubleshooting tools, and energy efficient technology offer a highly flexible solution.

Smart Switching for your Business
The DGS-1100 Series is a range of smart managed switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Expedited Deployment and Effortless Ongoing Management
The D-Link Network Assistant (DNA) can quickly discover and execute initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Features That Help the Environment and Your Budget
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, ensuring a longer product life, as well offering silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night.

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Rate limiting	Yes
Number of VLANs	4094
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Jumbo frames	9216
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Forwarding rate	14.88 Mpps
Performance
Noise level	37 dB
Mean time between failures (MTBF)	406887 h
Flash memory	16 MB
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Security
Security algorithms	SSL/TLS
Queue scheduling algorithms	Weighted Round Robin (WRR)
Certificates
Certification	FCC A, CE A, VCCI A, C-Tick, BSMI cUL, UL, LVD, CB, BSMI
Power
Power consumption (max)	164.6 W
AC input voltage	100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Heat dissipation	118.1 BTU/h
Weight & dimensions
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1.5 kg

Downloads

• Datasheet (PDF)
