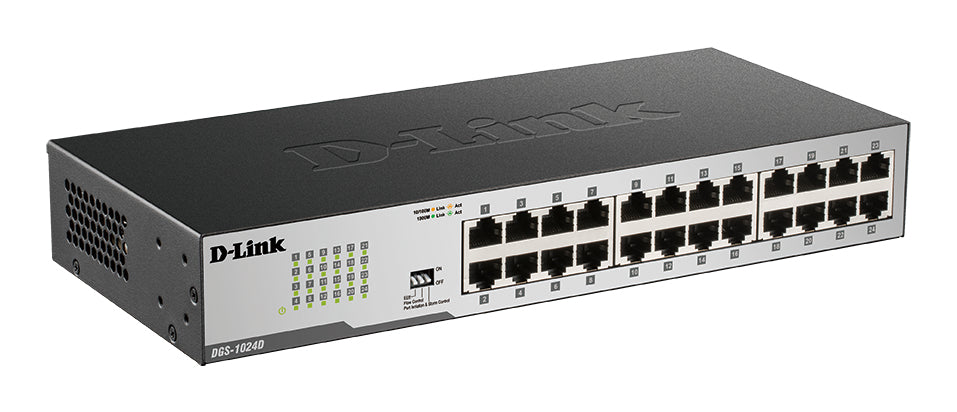

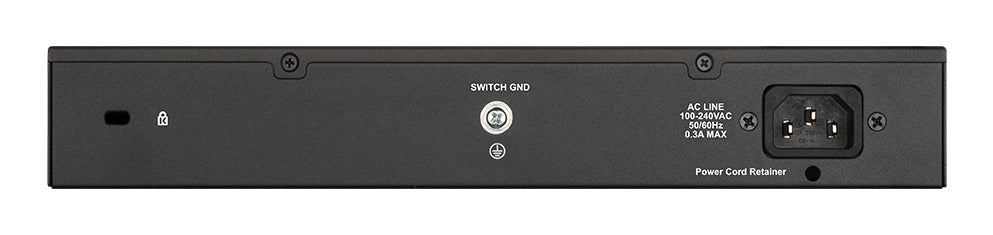

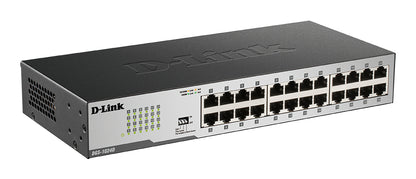

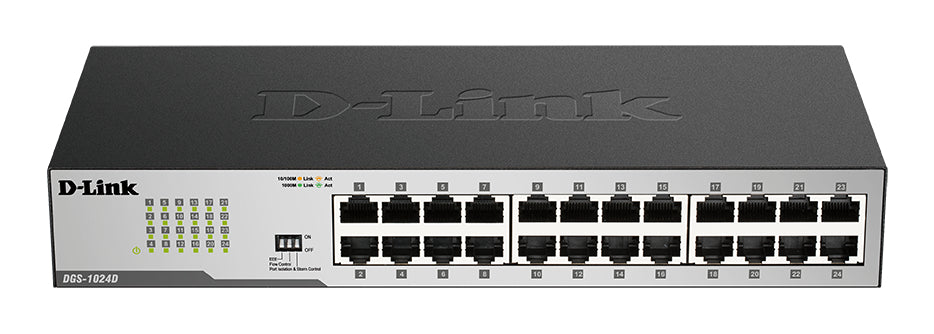

D-Link 24-Port Gigabit Switch

The D-Link 24-Port Gigabit keeps your wired network organised.

• 48Gbps switching capacity
• 8K MAC Address Table
• Rack mountable or Desktop

Get the blazing speed of Gigabit Ethernet with the D-Link DGS-1024D, a 24-port 10/100/1000Mbps Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile and compact 1RU height design of the DGS-1024D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space.
Power-Packed
It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. It protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.

Easy to Install and Maintain
The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminate the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, 1000Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
I/O ports	10BASE-T, 100BASE-TX & 1000BASE-T
Data transmission
Packet buffer memory	0.5 MB
MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Design
Stackable	No
Rack mounting	Yes
Power
Power consumption (typical)	27.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Dimensions (WxDxH)	280 x 180 x 44 mm
Operational conditions
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 40%
Weight & dimensions
Weight	1.81 kg
Packaging data
Package width	262 mm
Package depth	391 mm
Package height	102 mm
Package weight	2.5 kg
Performance
Harmonized System (HS) code	85176990
Technical details
Shipping (inner) case width	28.4 cm
Shipping (inner) case net weight	8.84 kg
Shipping (inner) case length	54.3 cm
Shipping (inner) case height	43.1 cm
Products per shipping (inner) case	5 pc(s)
Products per pallet (sea)	160 pc(s)
Products per pallet (air)	160 pc(s)
Pallet gross width	120 cm
Pallet gross length	110 cm
Pallet height (sea)	185.9 cm
Pallet height (air)	185.9 cm
Pallet gross weight (sea)	447.3 kg
Pallet gross weight (air)	447.3 kg
Master (outer) cases per pallet (sea)	32 pc(s)
Master (outer) cases per pallet (air)	32 pc(s)
Shipping (inner) case gross weight	13.4 kg
