CyberPower UPS (8VP2U02)

When the power cuts out, the CyberPower keeps your desktop, NAS or router running — long enough to save work and shut down safely.

BP48VP2U02

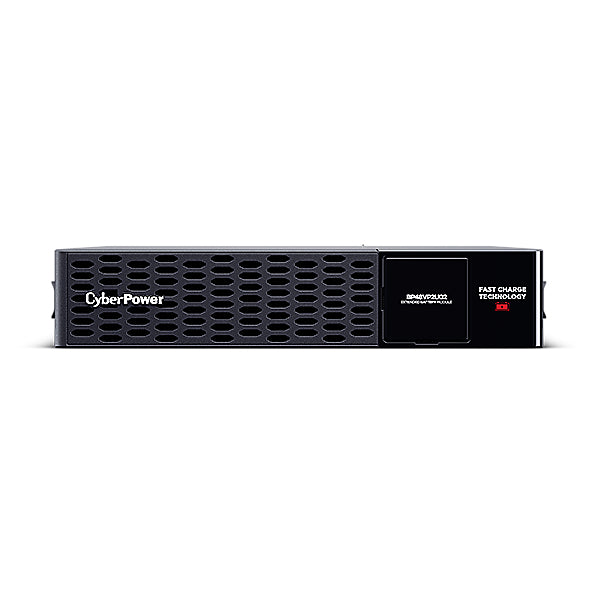

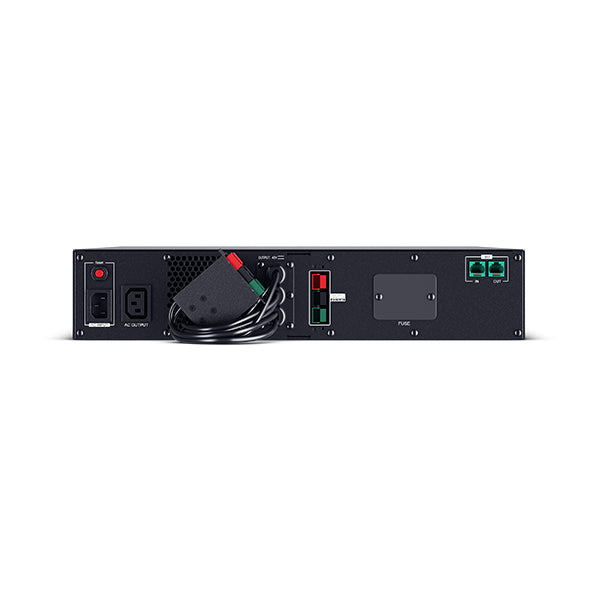

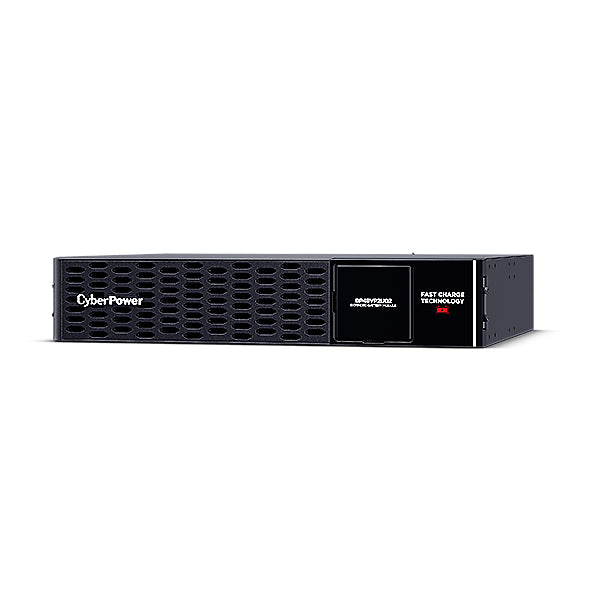

CyberPower BP48VP2U02 external battery module significantly extends runtime when used with a compatible CyberPower UPS. With rugged, industrial-grade metal construction, it can be installed even in demanding environments.

Battery Hot-swap

With battery hot-swap solution, the batteries modules can provide service continuity in all situations while keeping connected mission-critical equipment powered and fully operational. Achieving ultimate peace of mind that high availability and maintenance flexibility will never be compromised during battery replacement or other upgrades

Specifications

Features
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Battery voltage	12 V
Hot-swap battery	Yes
Number of batteries included	8 pc(s)
Product colour	Black
Compatibility	PR1500ERTXL2U PR2200ERTXL2U PR3000ERTXL2U
Battery recharge time	6 h
Country of origin	China
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	8504909000
Compliance certificates	RoHS
Weight & dimensions
Weight	30 kg
Width	433 mm
Height	86.5 mm
Depth	500 mm
Packaging data
Package width	560 mm
Package height	275 mm
Package depth	620 mm
Package weight	36.6 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
