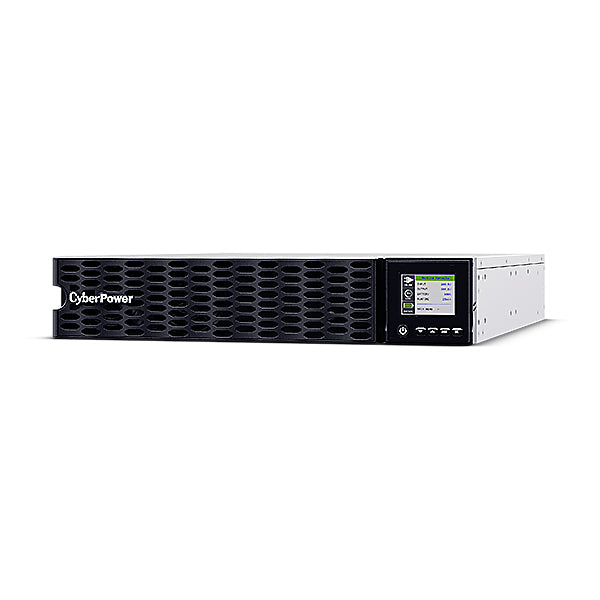

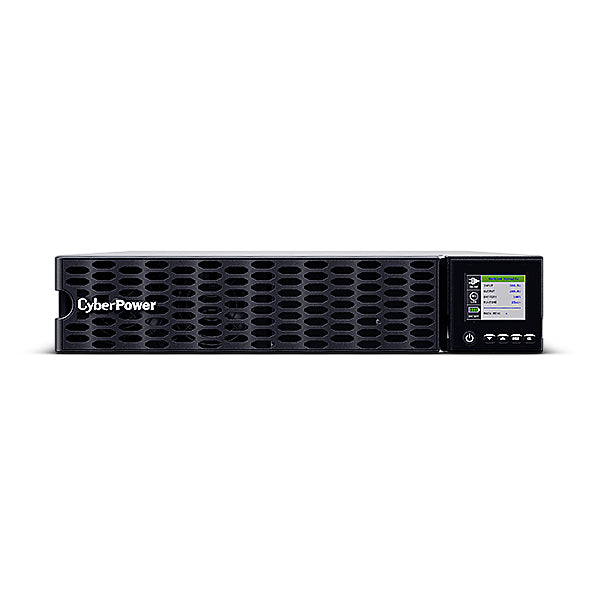

CyberPower 6kVA 6000W Online UPS

When the power cuts out, the CyberPower 6kVA keeps your desktop, NAS or router running at up to 6000W — long enough to save work and shut down safely.

OL6KERTHD

CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs. The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

Specifications

Power
Output power factor	1
Input power factor	0.99
Output power	6000 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	32 A
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	6 kVA
Total Harmonic Distortion (THD) (linear load)	3%
Total Harmonic Distortion (THD) (non-linear load)	5%
Efficiency (ECO mode)	97%
ECO mode	Yes
Battery
Battery type	RBP0144
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Typical backup time at half load	6.2 min
Typical backup time at full load	2.4 min
Hot-swap battery	Yes
Performance
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Response time	0 ms
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Input frequency	50/60 Hz
Heat dissipation	1613 BTU/h

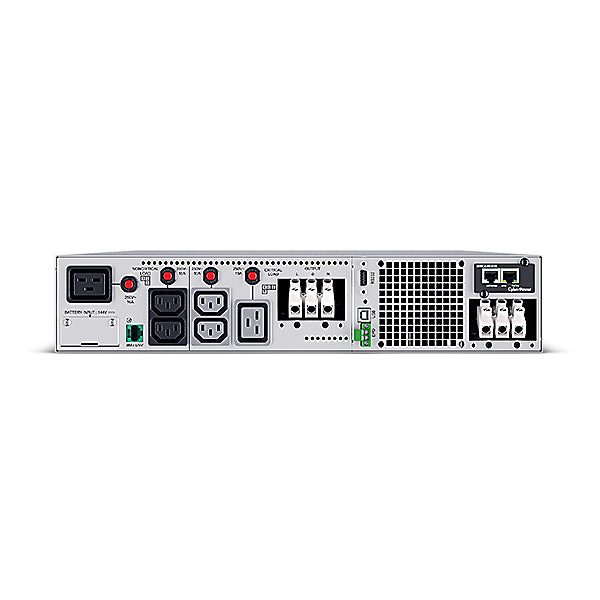

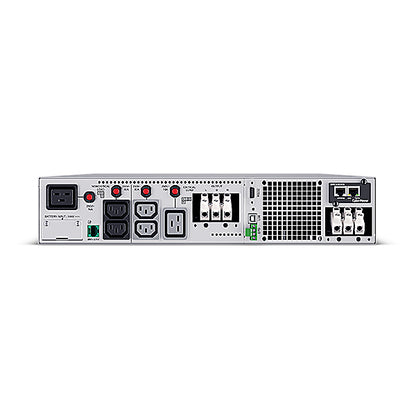

Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	7 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, Terminal
Power plug	Terminal
USB 2.0 ports quantity	1
Serial ports quantity	1
RS-232 ports	1
Design
Rack capacity	2U

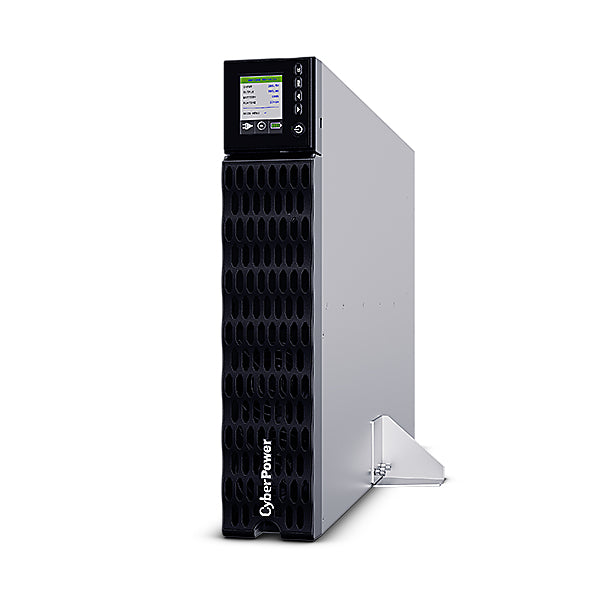

Form factor	Rackmount/Tower
Product colour	Black, Grey
Certification	CE, EAC, RCM
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4500 m
Technical details
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	8504408690
Compliance certificates	CE, EAC, RCM, RoHS
Packaging content
Cables included	Serial, USB cable
Manual	Yes
Weight & dimensions
Package width	600 mm
Package depth	1100 mm
Package height	335 mm
Weight	42 kg
Width	433 mm
Package weight	53 kg
Height	86.5 mm
Depth	720 mm
