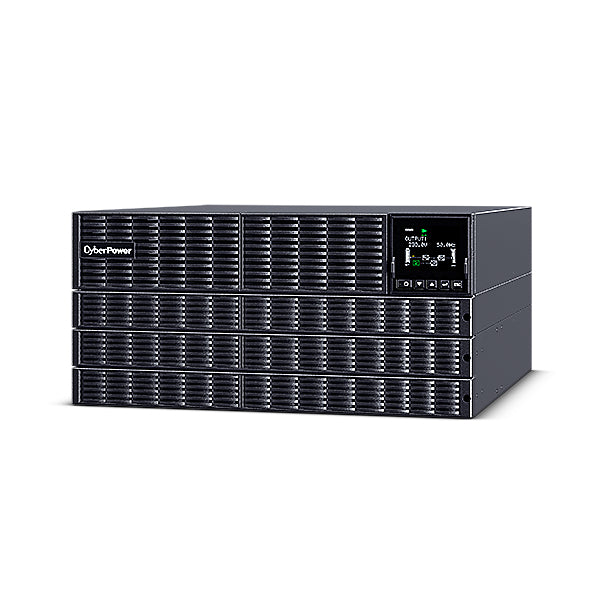

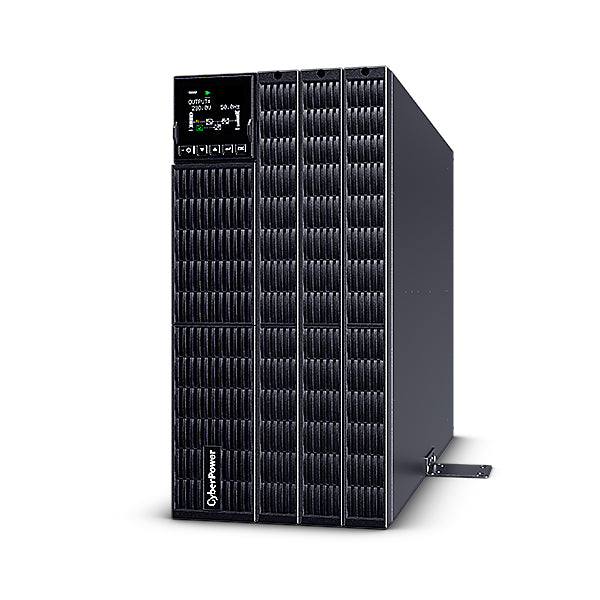

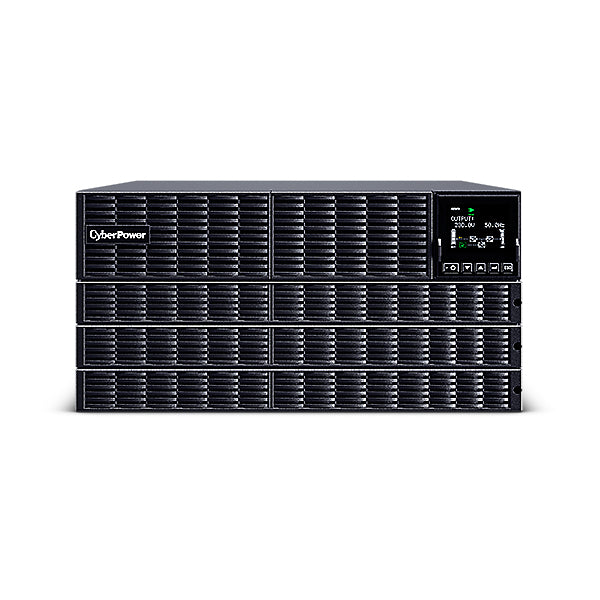

CyberPower 6kVA 6000W Online UPS

When the power cuts out, the CyberPower 6kVA keeps your desktop, NAS or router running at up to 6000W — long enough to save work and shut down safely.

CyberPower OLS6KERT5UM is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.

With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.

Specifications

Power
Input power factor	0.99
Output power	6000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	1335 J
Maximum current	27.3 A
Emergency Power Off (EPO)	Yes
Power factor	1
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Output power capacity	6 kVA
Charging current	4 A
ECO mode	Yes
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Response time	0 ms
LED indicators	Operation
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
Input frequency	50/60 Hz

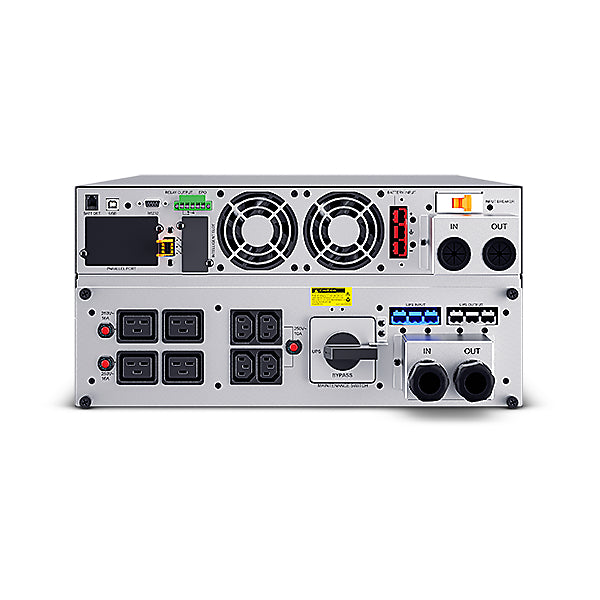

Ports & interfaces
USB port	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Battery
Number of batteries supported	10
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Typical backup time at half load	23 min
Typical backup time at full load	7.6 min
Design
Rack capacity	5U
Form factor	Rackmount/Tower
Product colour	Black
Certification	CE, RoHS
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 1000 m
Non-operating altitude	0 - 15000 m
Technical details
Harmonized System (HS) code	8504408690
Packaging content
Cables included	USB cable
Weight & dimensions
Package width	600 mm
Package depth	800 mm
Package height	650 mm
Weight	68 kg
Width	433 mm
Package weight	79 kg
Height	213.5 mm
Depth	661 mm

Downloads

• Datasheet (PDF)
