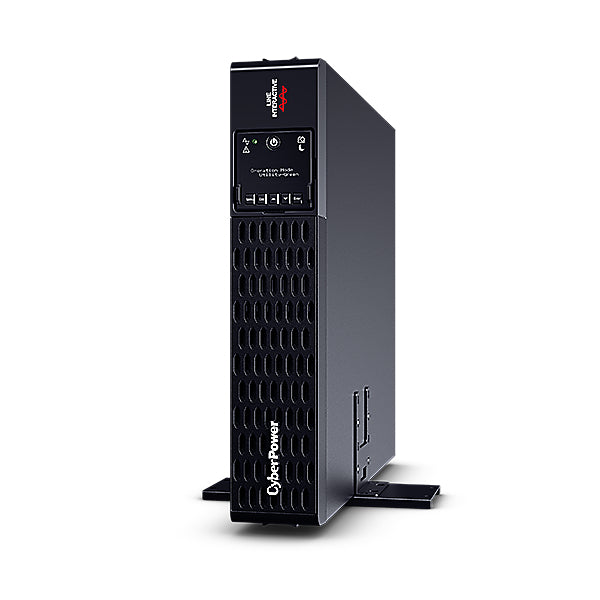

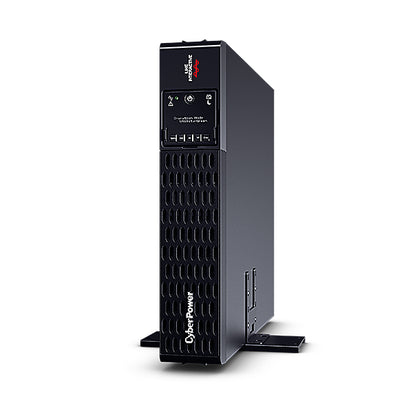

CyberPower 3kVA 3000W Line-Interactive UPS

When the power cuts out, the CyberPower 3kVA keeps your desktop, NAS or router running at up to 3000W — long enough to save work and shut down safely.

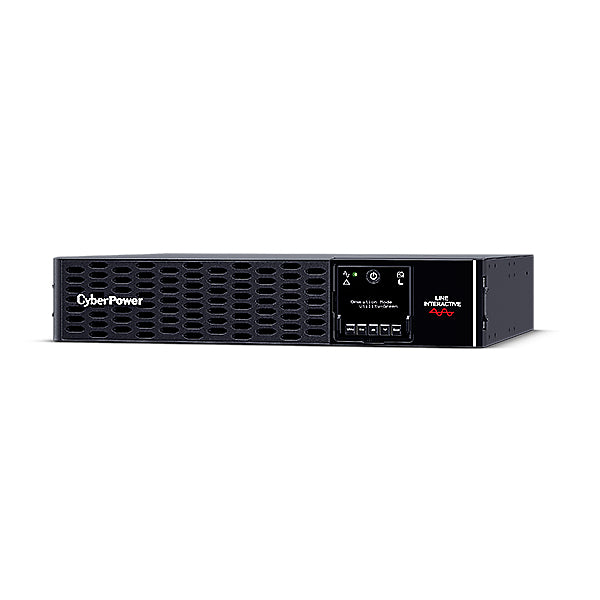

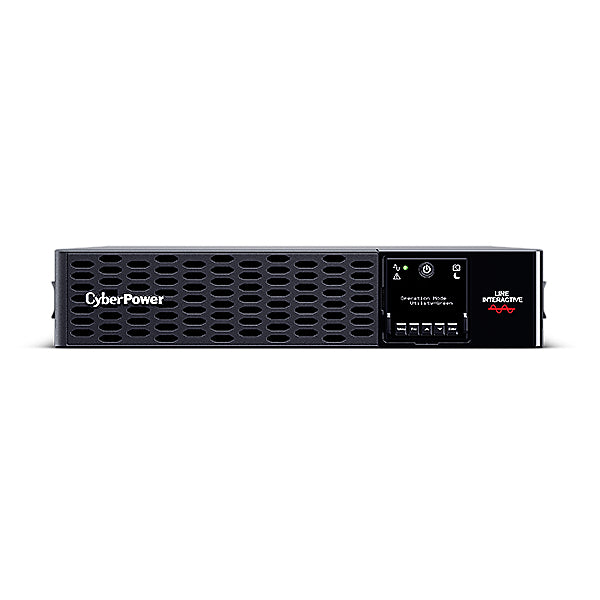

CyberPower PR3000ERT2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Specifications

Power
Output power	3000 W
Input operation voltage (min)	159 V
Input operation voltage (max)	288 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	10 A
Emergency Power Off (EPO)	Yes
Power factor	1
Output power capacity	3 kVA
Power Factor Correction (PFC) type	Active

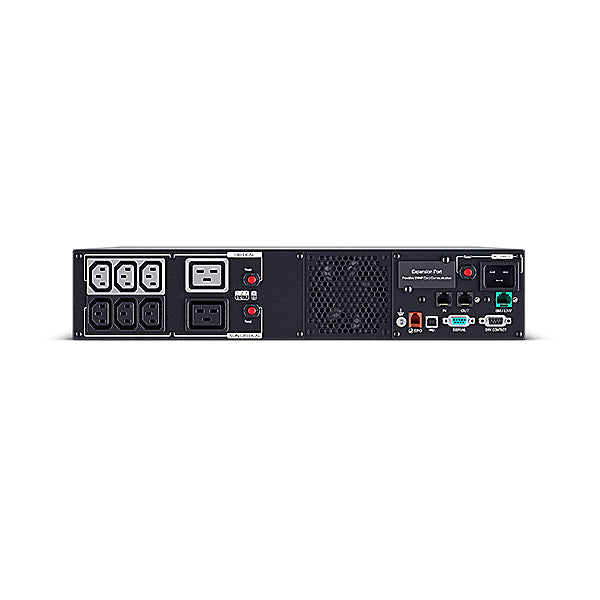

Ports & interfaces
Cable length	2.4 m
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Serial ports quantity	1
RS-232 ports	1
Ethernet LAN (RJ-45) ports	2
Battery
Battery type	RBP0129
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	6.4 min
Typical backup time at full load	1.3 min
Hot-swap battery	Yes
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Response time	4 ms
LED indicators	Fault, Power, Status
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Network
Power protection features	Overload
Noise level	57.5 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Management protocols	SNMP/HTTP
Country of origin	China
Input frequency	50/60 Hz
Heat dissipation	120.8 BTU/h
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Cooling type	Active
Built-in fan	Yes
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	8504408590
Compliance certificates	RoHS
Packaging content
Cables included	Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Weight & dimensions
Package width	560 mm
Package depth	620 mm
Package height	275 mm
Weight	32.3 kg
Width	433 mm
Package weight	40.3 kg
Height	86.5 mm
Depth	500 mm
