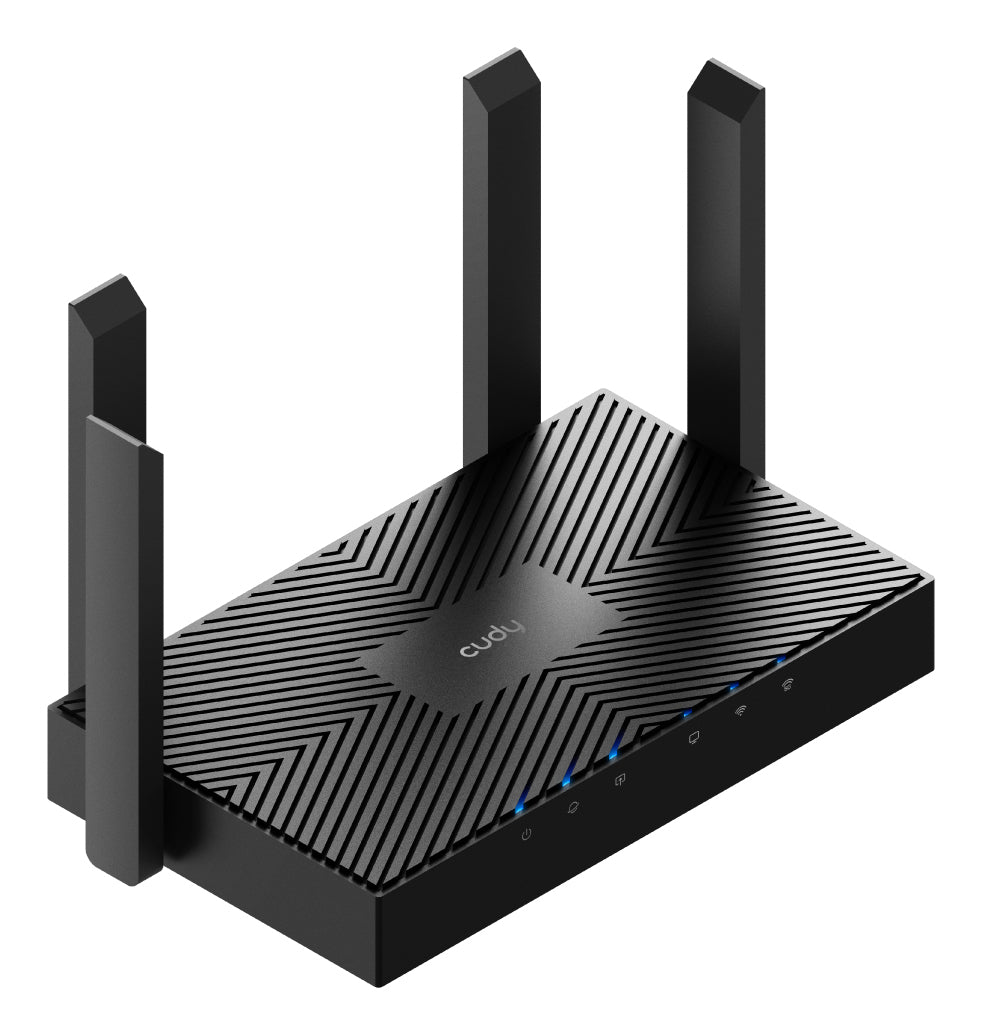

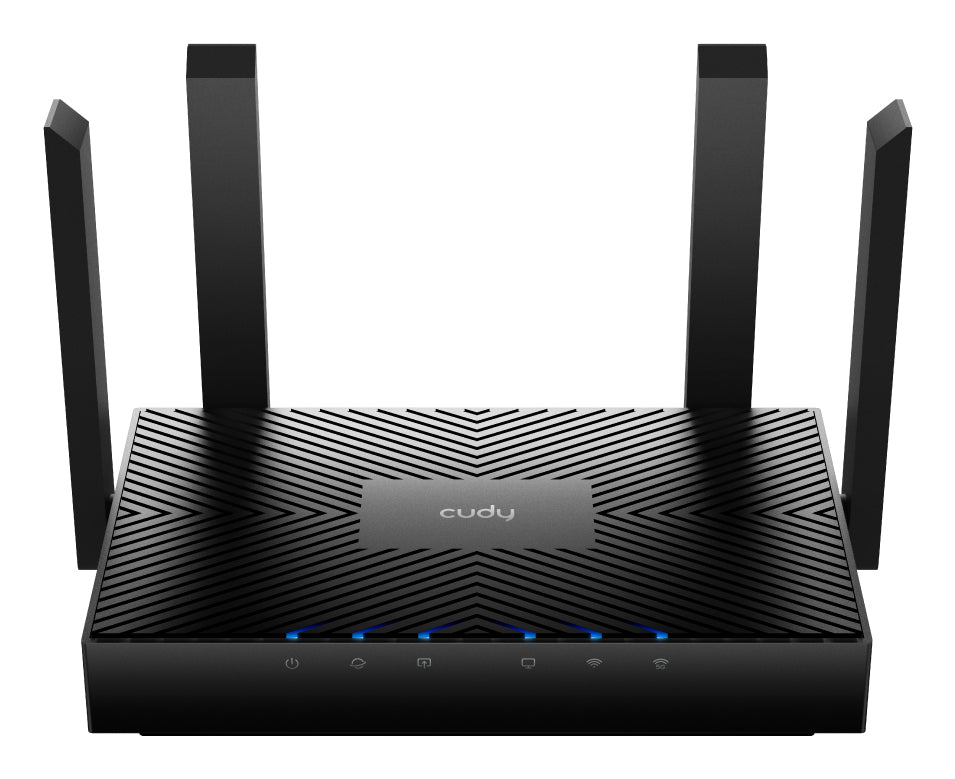

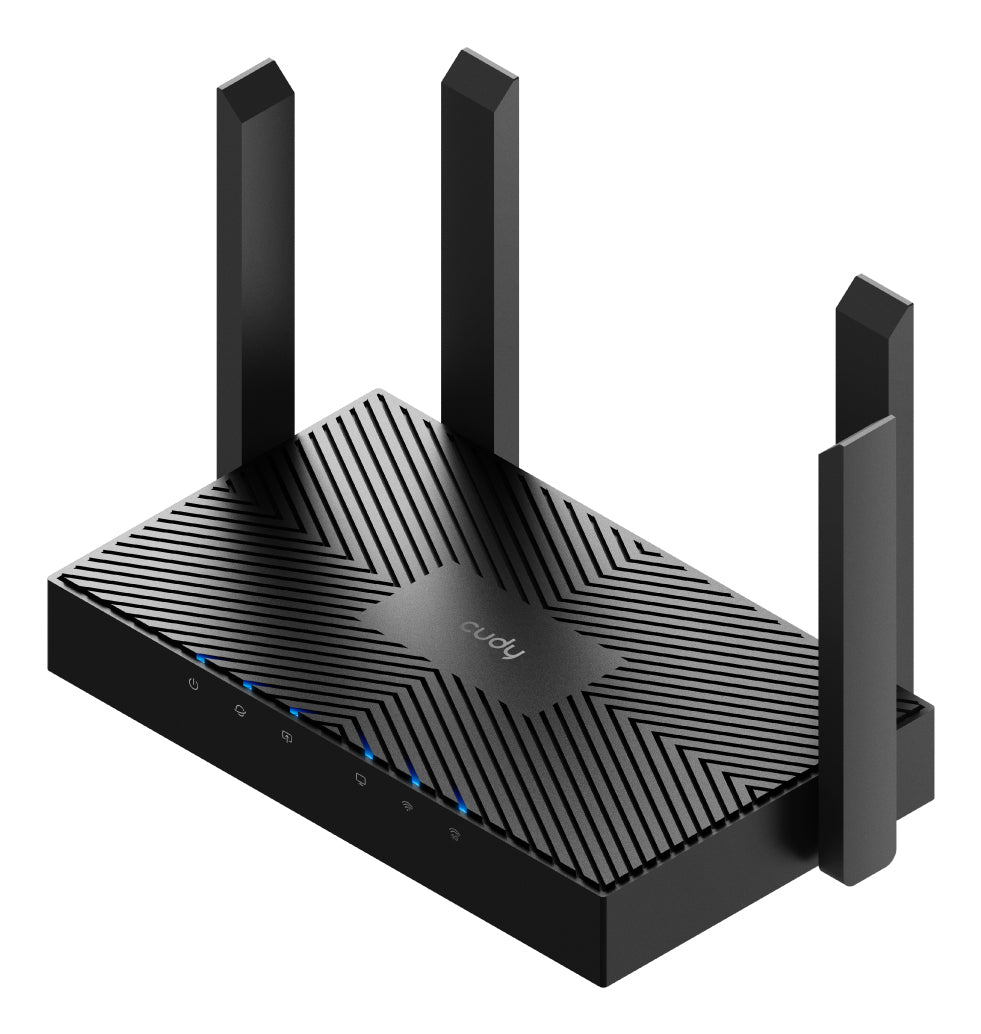

Cudy WR3000 Router

The Cudy WR3000 sits at the heart of your network: routing, security and central management in one compact unit.

Boosted Coverage, Lower Latency

Direction Detected, Signal Boosted
Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

Easier Combos in Games
The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, providing up to 8X (2.4 GHz) to 16X (5 GHz) greater network capacity to be more responsive under heavy use.

Versatile Functionalities

VPN Server and Client
Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16.1)


DNS Encryption
Protects your browsing record from leaking with DNS over TLS service with Cloudflare, Google, and Quad9.

Cudy Mesh Ready
Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.

IPTV
Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
DSL features
DSL WAN	No
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Guest access	Yes
Port forwarding	Yes
Port triggering	Yes
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Dynamic DNS (DDNS)	Yes
PPPoE/PPTP/L2TP pass-through	Yes
Protocols
DMZ support	Yes
DHCP client	Yes
Performance
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	MacOS
Weight & dimensions
Package width	240 mm
Package weight	614 g
Package height	60 mm
Package depth	230 mm
Width	183.3 mm
Weight	295 g
Height	35 mm
Depth	109 mm

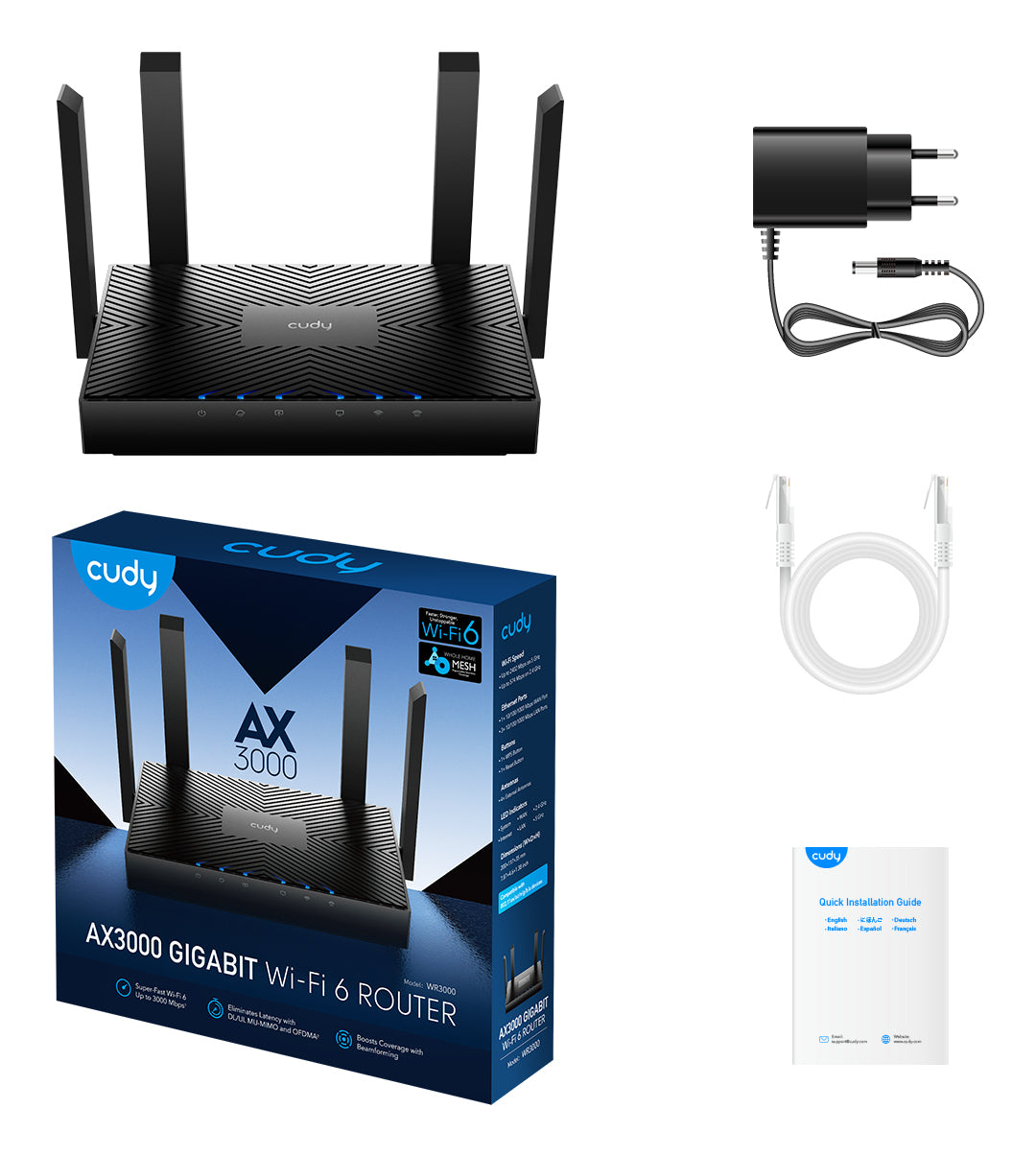

Packaging content
Package type	Box
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna included	Yes
WAN connection
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

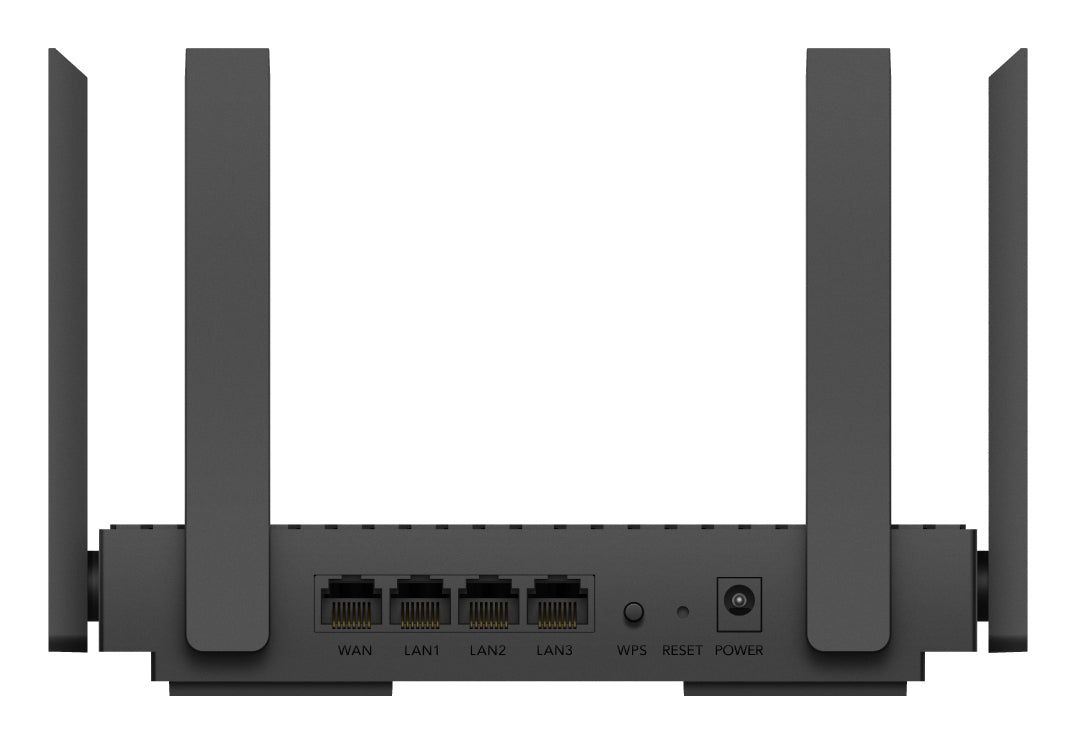

Ports & interfaces
RJ-11 ports quantity	0
Ethernet LAN (RJ-45) ports	3
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Management features
WPS push button	Yes
Web-based management	Yes
Reset button	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Bandwidth control	Yes
MU-MIMO technology	Yes
MIMO	Yes
Security
URL filtering	Yes
System event log	Yes
Security algorithms	WPA, WPA2, WPA3
MAC address filtering	Yes
IP address filtering	Yes
Firewall	Yes
Parental control	Yes
IGMP snooping	Yes
Design
Product type	Tabletop router
LED indicators	LAN, Power, Status, WPS
Country of origin	China
Product colour	Black
Software
Mac compatibility	Yes
Antenna
Antenna design	External
Antennas quantity	4
Antenna direction type	Omni-directional
Features
Bluetooth	No
Power
Power source type	DC
Power consumption (typical)	4.2 W
Output voltage	12 V
Output current	1 A
External power adapter	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
