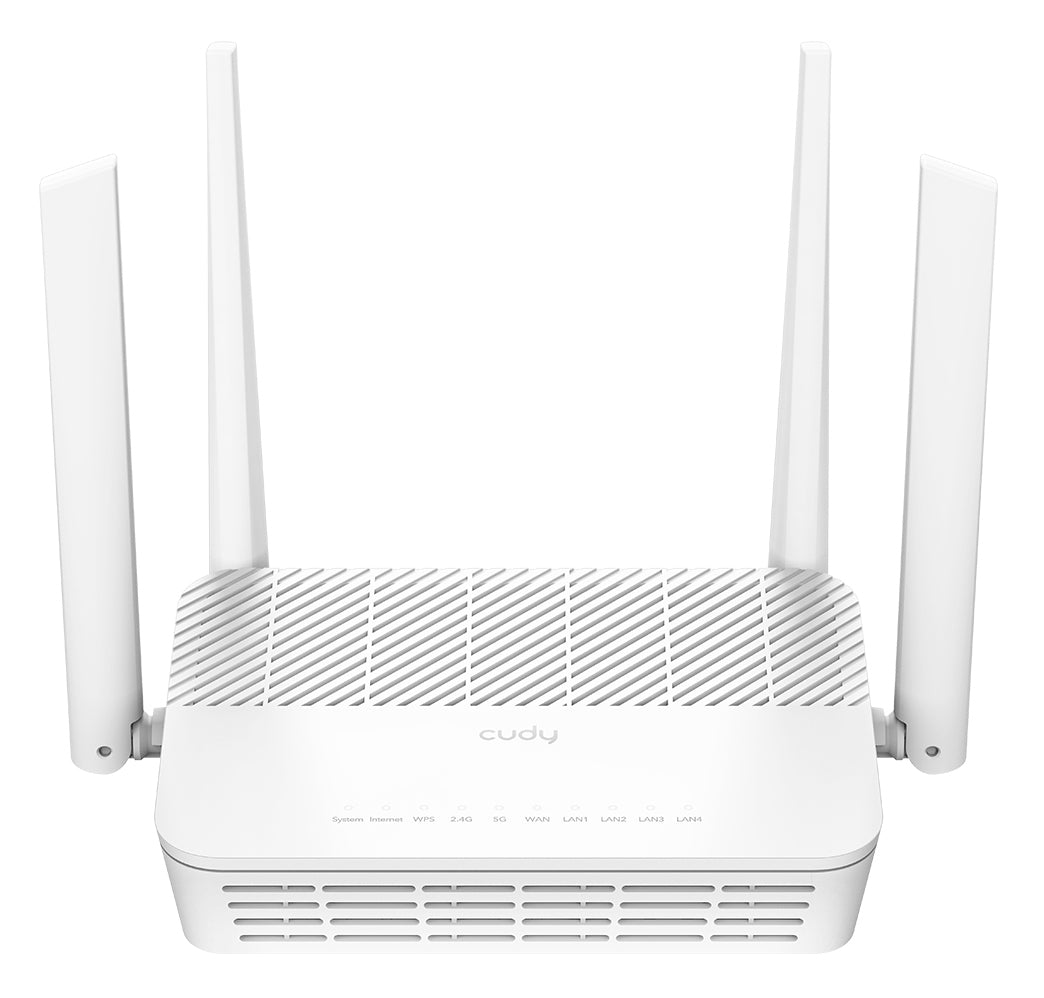

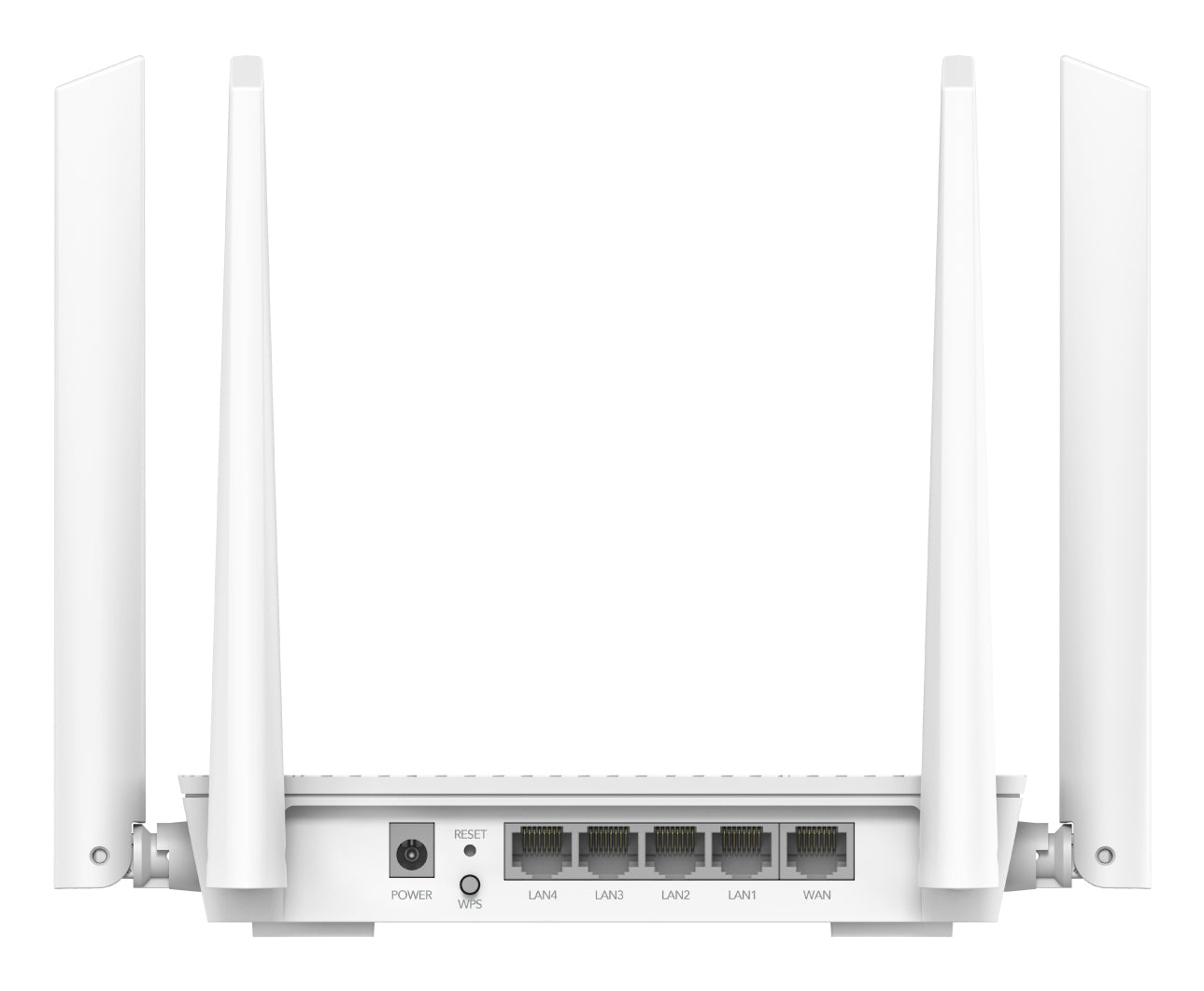

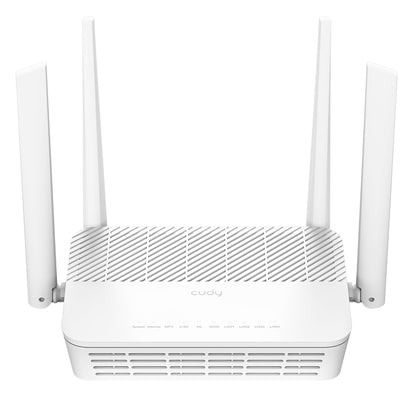

Cudy AX3000 Router (White)
Cudy AX3000 Router (White)
Regular price
£62.25 GBP
Regular price
Sale price
£62.25 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Cudy AX3000 sits at the heart of your network: routing, security and central management in one compact unit.
Super-Fast Wi-Fi in Every CornerSuper-Fast. Super Responsive.
Equipped with the highest 160 MHz bandwidth in Wi-Fi 6 and 1024-QAM, this router go up to 3 Gbps wirelessly, more than 2.5X faster than the last-gen AC 2x2 WiFi router.
Broader Coverage with More Streams
Five streams—3 in 5 GHz and 2 in 2.4 GHz—enhance the agility to navigate signals through obstacles. In addition, the high-gain antennas and Beamforming boost the signal to every corner of your home.
More Devices, Lower Latency
Easier Combos in Games
In addition to the 2T2R structure, one aditional 5 GHz stream enhance the agility to navigate signals through obstacles. The high-gain antennas and Beamforming boost the signal to every corner of your home.
Connect More. Stay Fast.
Designed to connect 200 devices, with a maximum capacity of 512 devices, this router provides a more efficient network that loads faster for more without slowing down performance.
Versatile Functionalities
VPN Server and Client
Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16.1)
DNS Encryption
Protects your browsing record from leaking with DNS over TLS service with Cloudflare, Google, and Quad9.
Cudy Mesh Ready
Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.
IPTV
Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.
Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.
Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Wake-on-LAN ready | Yes |
| Guest access | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| VPN server | WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| WPS push button | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Number of data streams | 2x2 |
| Performance | |
| Processor frequency | 1300 MHz |
| Processor cores | 2 |
| Built-in processor | Yes |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Processor architecture | ARM Cortex-A53 |
| Weight & dimensions | |
| Package width | 304 mm |
| Package weight | 725 g |
| Package height | 268 mm |
| Package depth | 54 mm |
| Width | 173 mm |
| Weight | 329.4 g |
| Height | 33 mm |
| Depth | 123.8 mm |

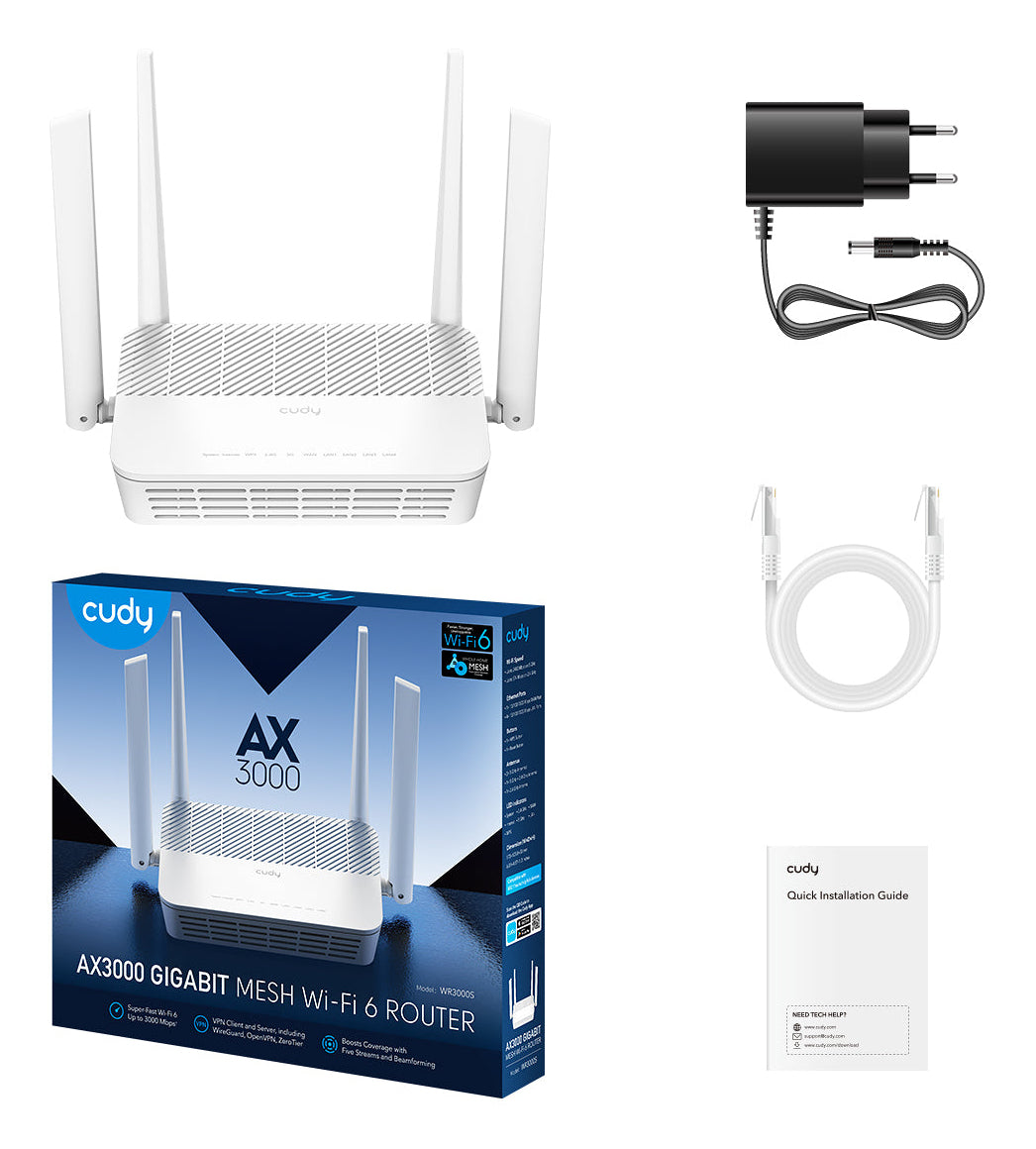

| Packaging content | |
| Package type | Box |
| Number of products included | 1 pc(s) |
| Manual | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| WAN connection | |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Modulation | 1024-QAM, OFDMA |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Security | |
| URL filtering | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Firewall | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| Schedule access | Yes |
| Parental control | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| IGMP snooping | Yes |
| Design | |
| Product type | Desktop/pole router |
| Wall mountable | Yes |
| LED indicators | LAN, System, WAN, WLAN, WPS |
| Product colour | White |
| Indication light | Yes |
| Certificates | |
| Certification | FCC, CE |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.3 dBi |
| Features | |
| Internal memory type | DDR3 |
| Number of simultaneously connected devices (max) | 200 |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
