Cudy
Cudy AP1300 Outdoor Networking
Cudy AP1300 Outdoor Networking
Regular price
£73.44 GBP
Regular price
Sale price
£73.44 GBP
Taxes included.
Quantity
Couldn't load pickup availability

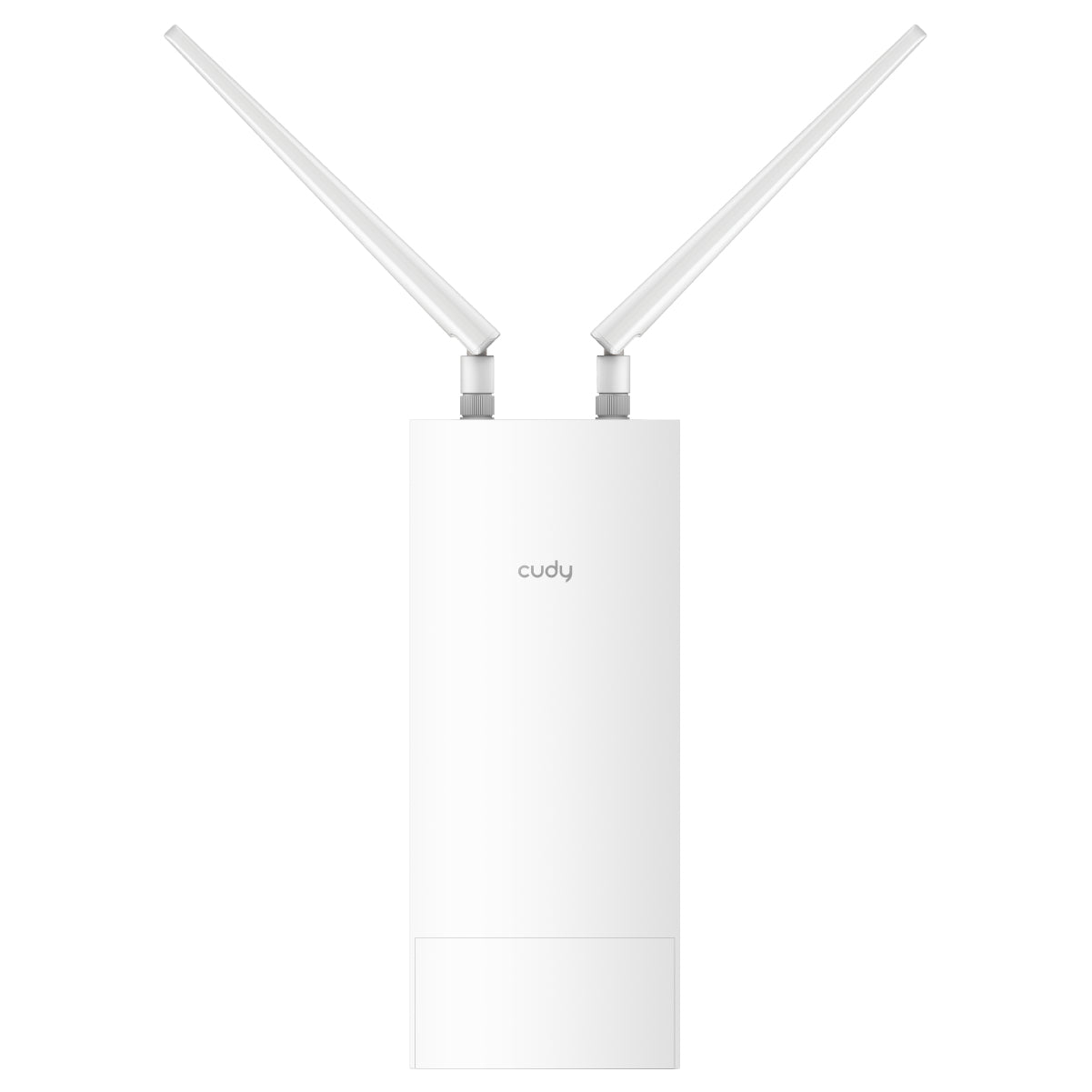

The Cudy AP1300 Outdoor is a dependable addition to any modern network installation.
Speedy Dual-Band AC1200 Wi-FiWith MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Works in Rain, Thunder, Dust, Heat, Cold
The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 149 °F (-40 ℃ to 65 ℃).
Mesh Networks
Seamless Roaming for Smooth Wi-Fi Experience
Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.
Plug-and-Play Mesh Installation
Simply Plug and Unplug for Mesh Setup
Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or keep using Ethernet backhaul after pairing. (Requires firmware newer than 1.15.28, the other Cudy Mesh device needs to be purchased separately)
Leave the Rest to Adaptive Routing
Adaptive Routing improves the system's awareness of the capacity used by each node. Once the backhaul path is jammed by clients or interfered with by environmental factors, it will automatically switch to a better path for improved stability.
Guide to Wiring and Physical Installation

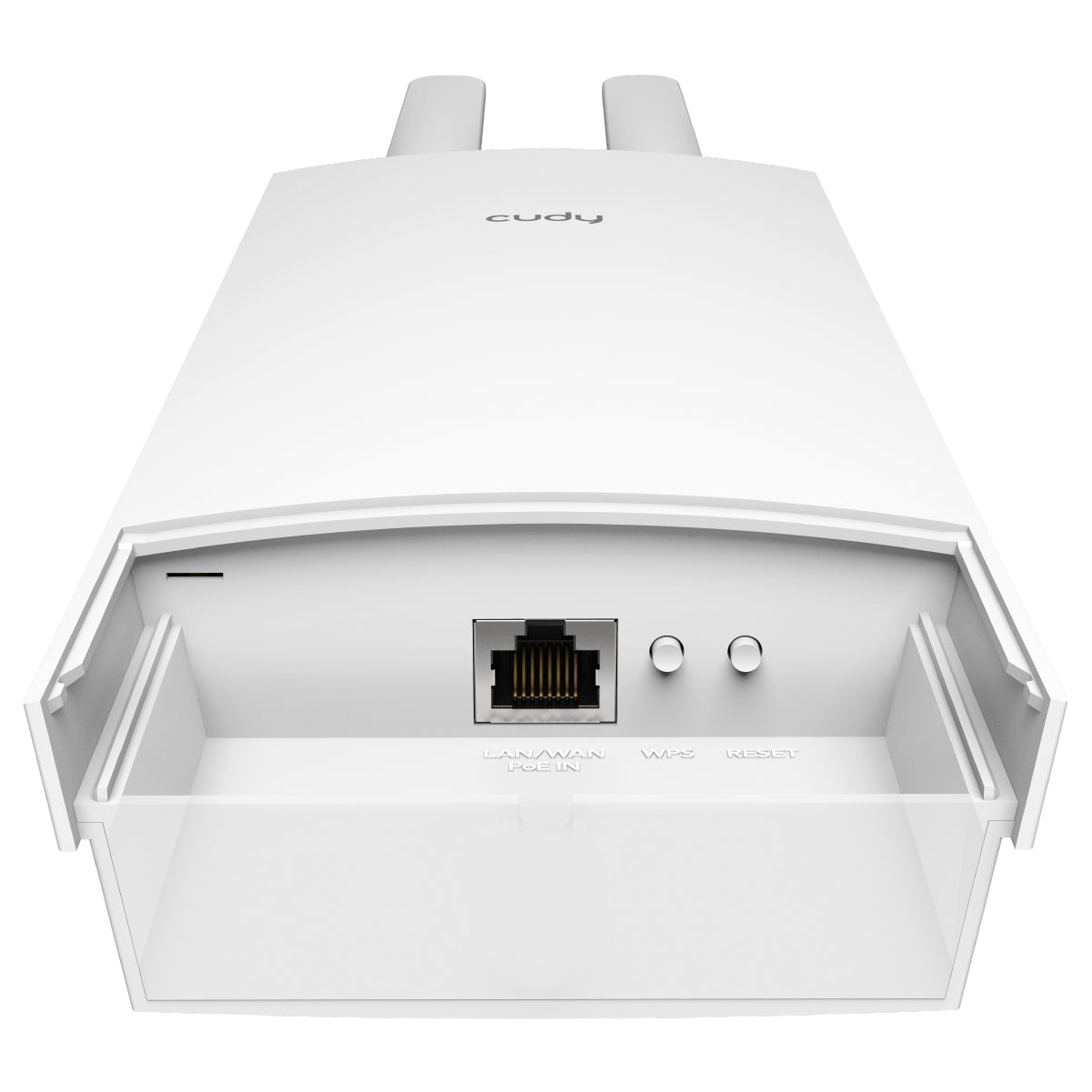

Gigabit Port with Two PoE Options
Supports two powering methods—
802.3at PoE (Max power: 18 W, Idle: 5 W)
48-57 V Passive PoE (Adapter included, not waterproof)
If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously. See Cudy PoE Switches for more information.
Mounting Kit Included
A mounting kit is included in the box, supporting—
Wall-Mounting

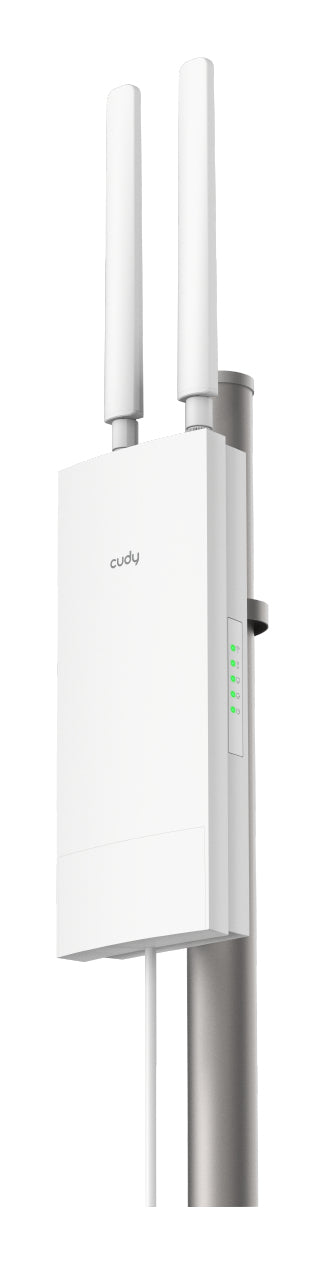

Pole-Mounting
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Performance | |
| Operating modes | Wireless Access Point, Wireless Router, Wireless Extender, WISP |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Syslog | Yes |
| IGMP snooping | Yes |
| Country of origin | China |
| Reset button | Yes |
| Number of users | 128 user(s) |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Maximum outdoor range | 170 m |
| Channel bandwidth | 80 MHz |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Chipset | MT7621DA+MT7613B+MT7603E |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Compatible operating systems | Microso? Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Software | |
| Bundled software | Cudy Software |
| Fast roaming | Yes |
| Features | |
| 6 GHz | No |
| Bluetooth | No |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Fit AP mode features | Mesh networking |
| Virtual LAN features | Tagged VLAN |
| BeamForming | Yes |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Security | |
| Number of SSID supported | 8 |
| IP address filtering | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Parental control | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| Ports & interfaces | |
| WAN connection | Wi-Fi, Ethernet (RJ-45) |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Output voltage | 24 - 57 V |
| Power consumption (typical) | 11 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| Design | |
| International Protection (IP) code | IP65 |
| Placement | Pole, Wall |
| Product colour | White |
| WPS push button | Yes |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna connector type | RP-SMA |
| Antenna features | Detachable antenna |
| Technical details | |
| Wireless range | 170 m |
| Products per shipping (inner) case | 20 pc(s) |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 53.7 mm |
| Weight | 865 g |
| Height | 240 mm |
| Antenna width | 2.16 cm |
| Antenna height | 19.8 cm |
| Antenna depth | 1.55 cm |
| Package width | 324 mm |
| Package depth | 107 mm |
| Package height | 86 mm |
| Package weight | 865 g |
| Packaging data | |

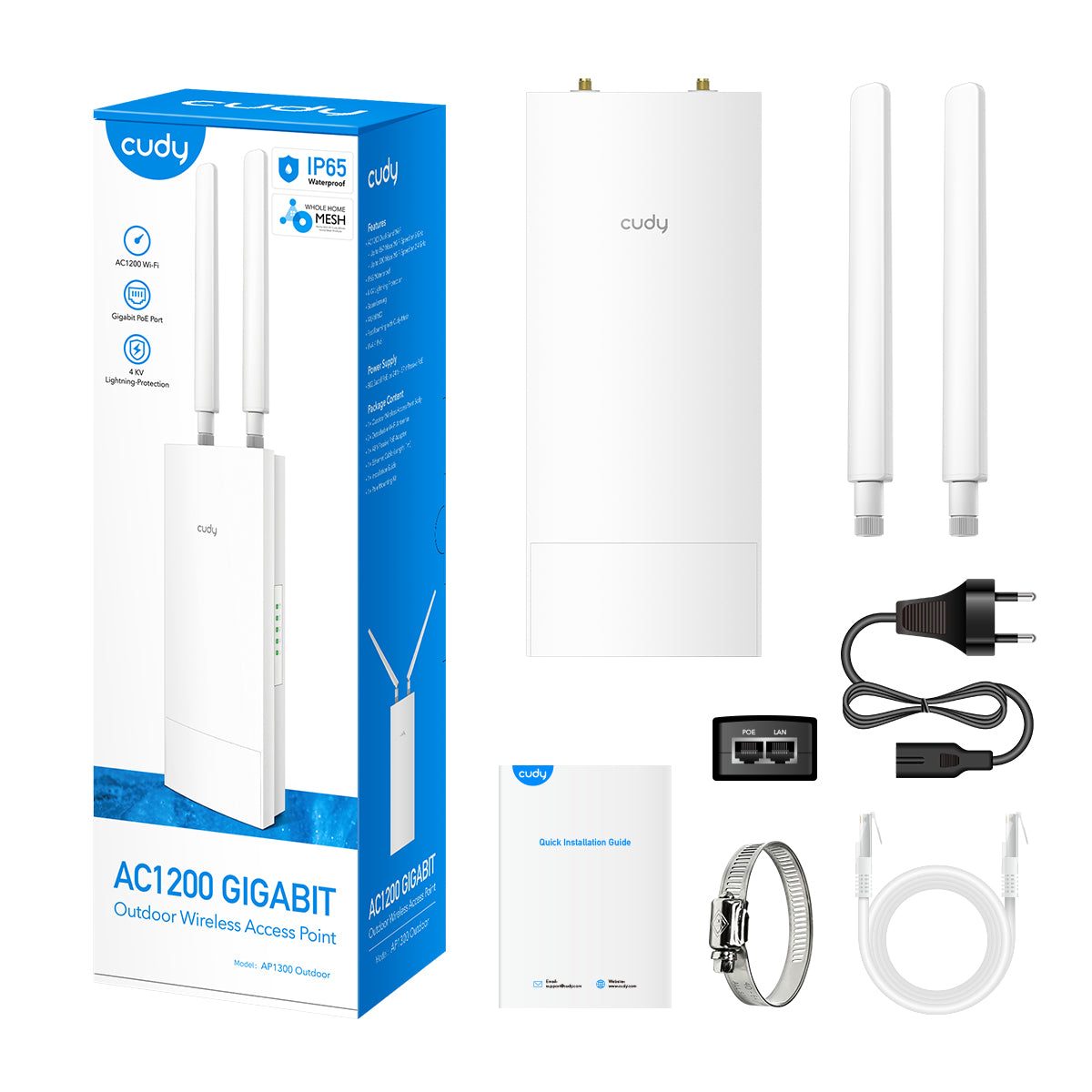

| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Cables included | UTP |
| AC adapter included | No |
| Packaging content | |
| Manual languages | Multi |
| Antenna included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
