Cudy AP1300 Networking

Cudy AP1300 Networking

£59.47 GBP
£59.47 GBP
Sale Sold out
Taxes included.
Condition

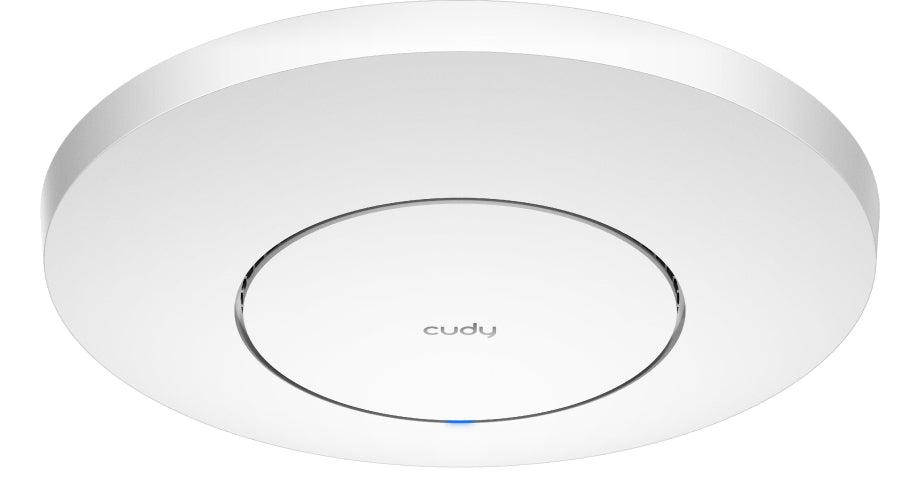

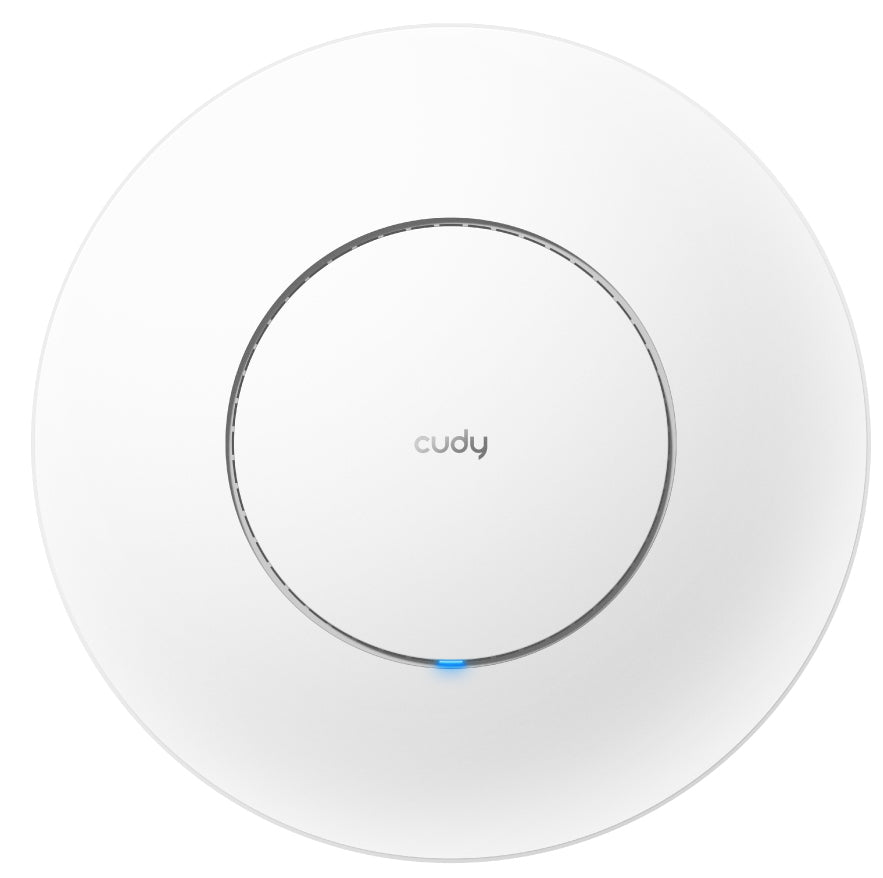

The Cudy AP1300 is a dependable addition to any modern network installation.

A wall/ceiling-mounted WiFi AP designed for offices and classrooms.

Specifications

Data transmission
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1167 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Reset button Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
MIMO type Multi User MIMO
MIMO Yes
Internal memory 128 MB
Flash memory 16 MB
Built-in processor Yes
Processor frequency 880 MHz
Features
6 GHz No
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
Security
Security algorithms WPA, WPA2, WPA3
Ports & interfaces
USB 2.0 ports quantity 0

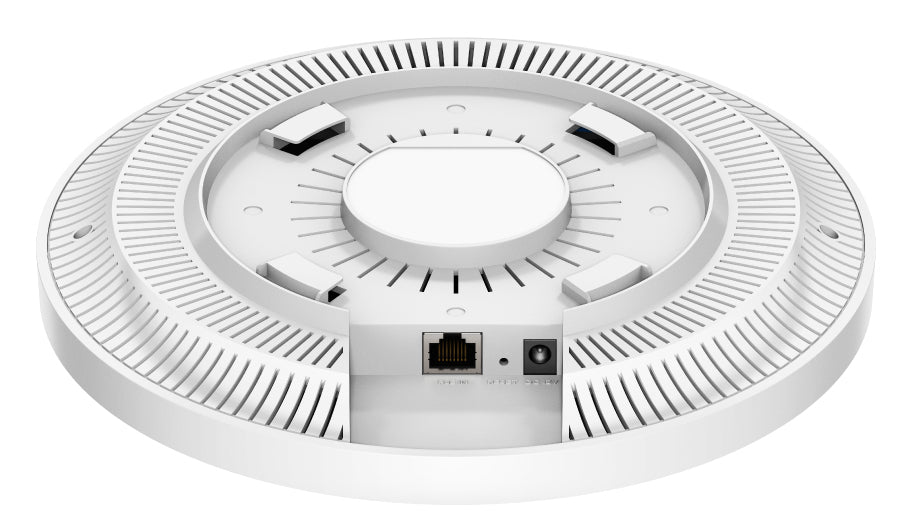

Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Power
Output voltage 12 V
Output current 1 A
Power over Ethernet (PoE) Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power over Ethernet (PoE) type supported Passive PoE
Design
Placement Ceiling, Wall
Product colour White
LED indicators System
Antenna
Antenna type Internal
Antennas quantity 4
Antenna gain level (max) 5.31 dBi
Antenna direction type Omni-directional
Technical details
Compliance certificates CE, Federal Communications Commission (FCC)
Weight & dimensions
Width 231.9 mm
Weight 400 g
Height 57.1 mm

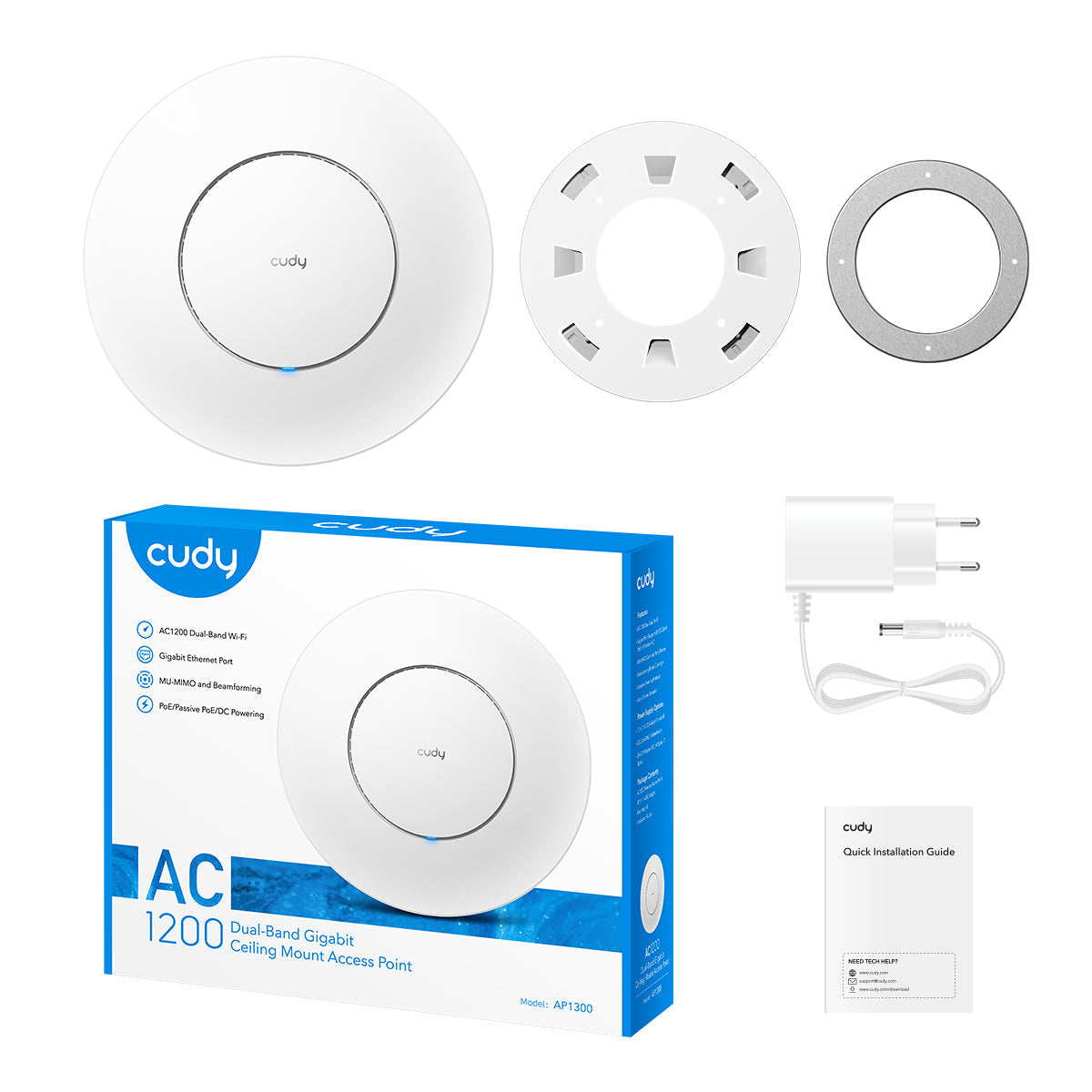

Packaging data
Quick start guide Yes

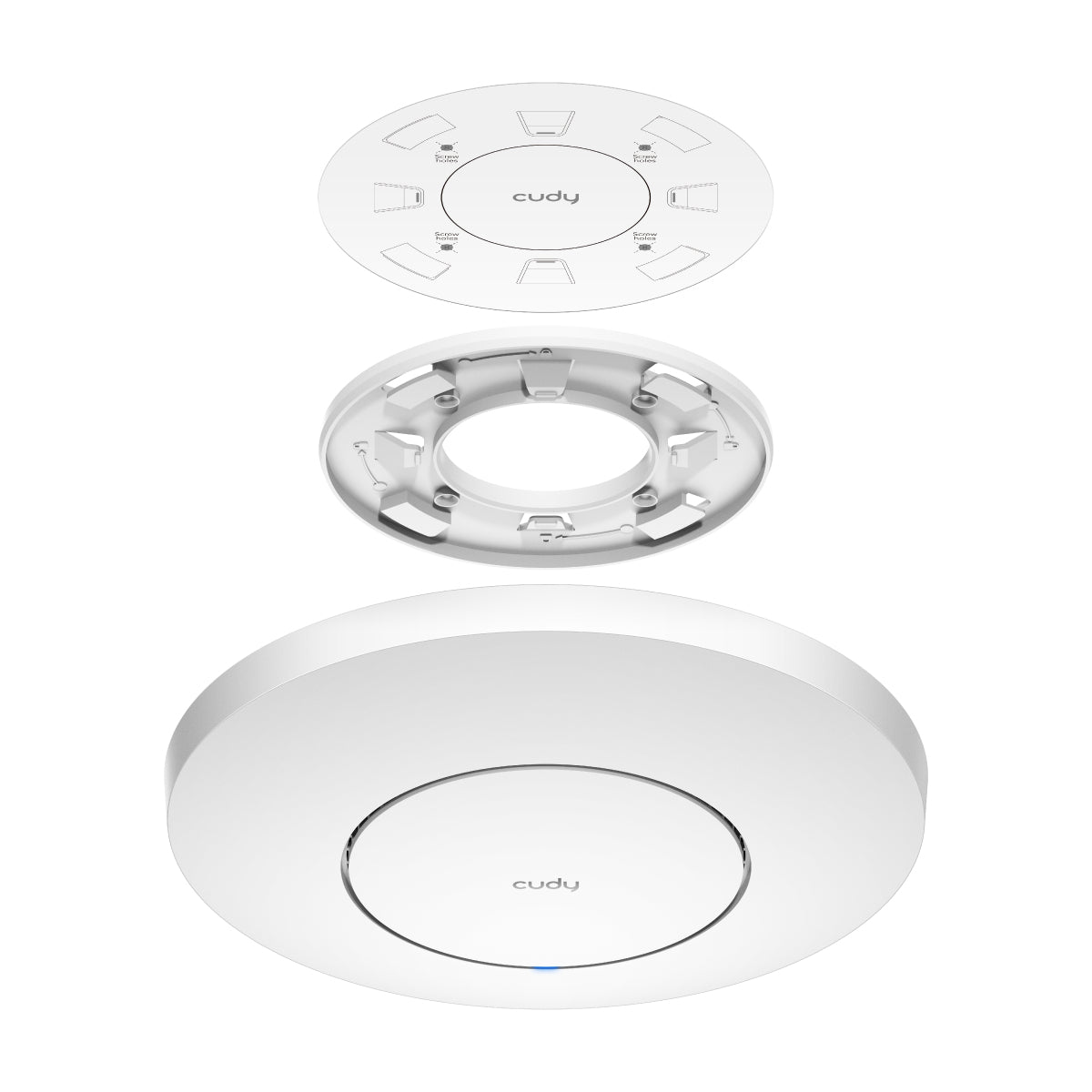

Mounting kit Yes
Cables included LAN (RJ-45)
AC adapter included Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -10 - 65 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
