Cudy

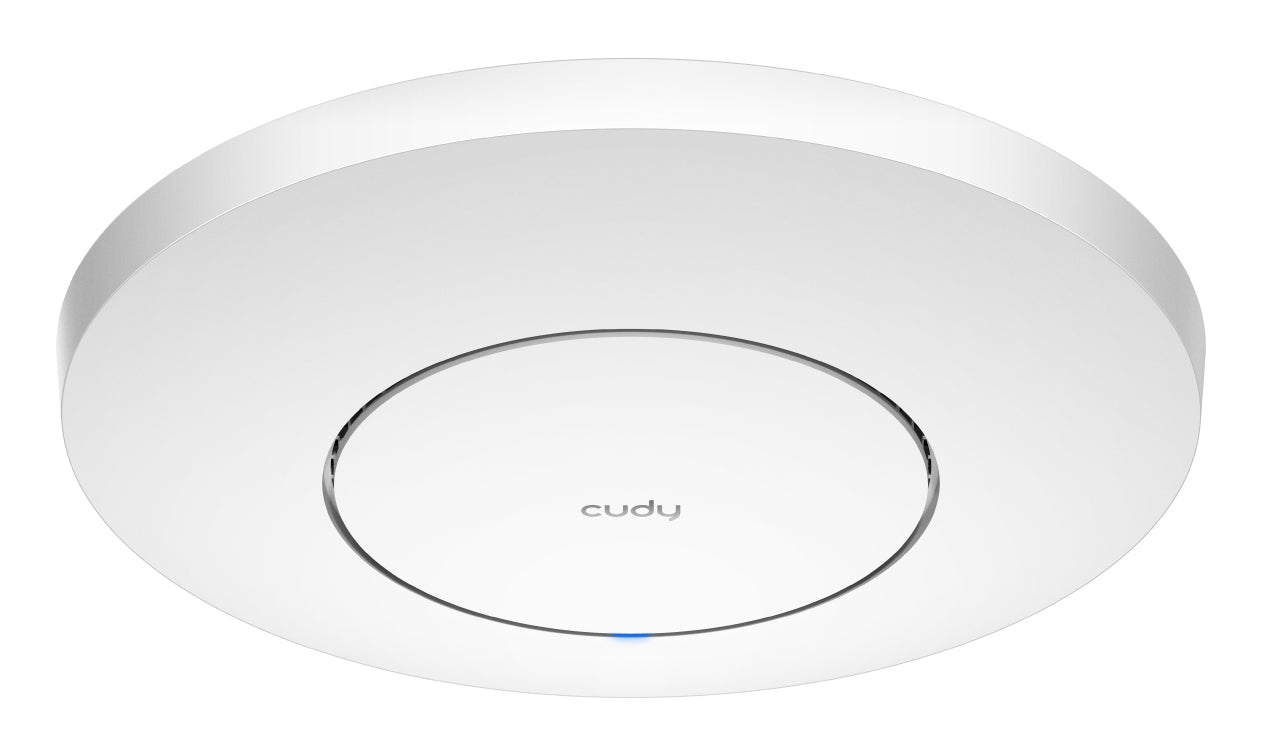

Cudy AC1300 Networking
Cudy AC1300 Networking
Regular price
£41.83 GBP
Regular price
Sale price
£41.83 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Cudy AC1300 is a dependable addition to any modern network installation.
Connects More DevicesMU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices, improving efficiency and throughput under heavy use.
Boosted Coverage
Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.
Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.
Advanced Business Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).
Band Steering
Assign devices to less congested bands.
Auto Channel Selection
Avoid signal interruptions with nearby access points.
Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.
Flexible Wired-and-Wireless Hybrid Backhaul
Simple Wireless Mesh Backhaul
Hybrid Backhaul for Higher Performance
Multi-Mode for Multiple Scenarios
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.
Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.
Versatile Powering and Installation
Flexible PoE & DC Power Options
Supports 802.3at/af PoE, 48V Passive PoE, and DC Power input. Please note: DC adapter is not included in the package.

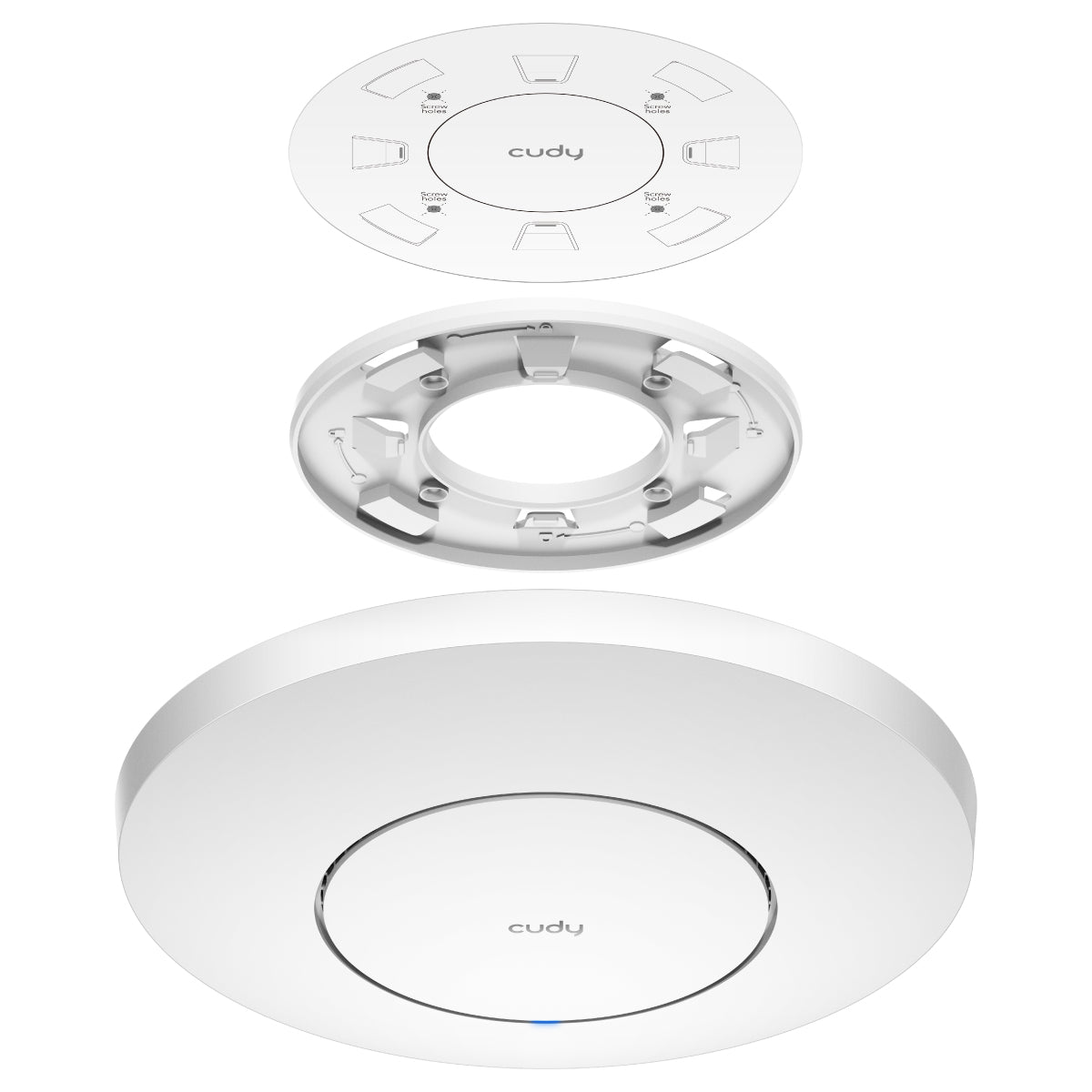

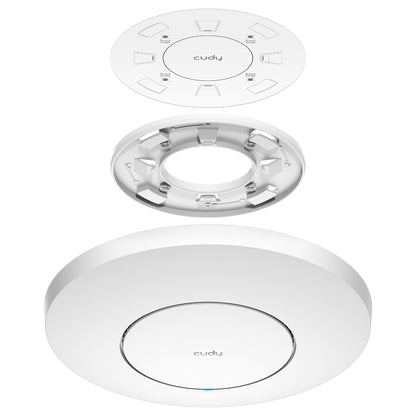

Versatile Mounting
Mounting kits are included in the box.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Performance | |
| Full duplex | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Flow control support | Yes |
| Syslog | Yes |
| IGMP snooping | Yes |
| Country of origin | China |
| Reset button | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Compatible operating systems | Windows, MAC OS, NetWare, UNIX, Linux |
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Network | |
| Internal | No |
| Software | |
| Bundled software | Cudy Software |
| Features | |
| 6 GHz | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | No |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Fit AP mode features | Mesh networking |
| Virtual LAN features | Tagged VLAN |
| Security | |
| IP address filtering | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Parental control | Yes |
| Protocols | |
| DHCP client | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 11 W |
| Output voltage | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 24 - 57 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna direction type | Omni-directional |
| Technical details | |
| Products per shipping (inner) case | 20 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Weight & dimensions | |
| Width | 232 mm |
| Depth | 57.1 mm |
| Weight | 395.6 g |
| Height | 232 mm |
| Package width | 283 mm |
| Package depth | 238 mm |
| Package height | 68 mm |
| Package weight | 1.51 kg |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | No |
| AC adapter included | Yes |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Manual languages | Multi |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
