Cudy AC1200 86mm Wall-Plate Wi-Fi Access Point Networking

The Cudy AC1200 86mm Wall-Plate Wi-Fi Access Point is a dependable addition to any modern network installation.

AC1200 Dual-Band

Fast, Reliable Wi-Fi in Every Room
Dual-band WiFi allows newer devices to stream on the less congested 5 GHz band, ensuring smooth video calls, 4K playback and gaming, while IoT and legacy devices stay reliably connected on 2.4 GHz band.

Built for Modern Spaces

Effortlessly integrates into any Interior
With its sleek, minimalist design, the device fits naturally into any room without disrupting your décor, delivering high-performance Wi-Fi while staying visually unobtrusive.

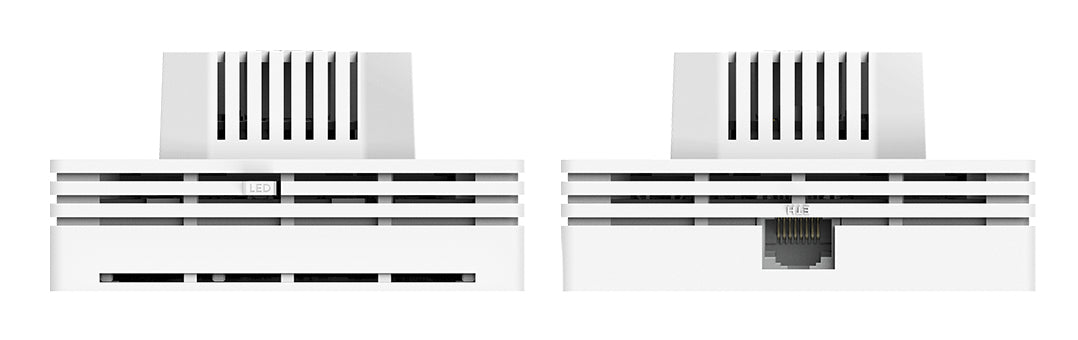

Efficient Heat Dissipation
Equipped with multiple cooling vents, the AP1300E Wall prevents overheating to maintain proper temperature and stable performance, even under heavy workloads.

Seamless Experiences in Multiple Scenarios

Apartment
Enjoy dedicated, high-speed Wi-Fi in every unit with zero signal overlap. Its sleek, low-profile design blends seamlessly into modern interiors.

Dormitory
Provide secure, high-speed access for each user without cross-room interference or weak zones. Designed to handle multiple users across closely packed rooms.

Hotel
Covers up to 50 m² (540 ft²), delivering fast, secure Wi-Fi in every guest room. Sleek design and easy integration with VoIP, IPTV, and other devices.

Office
Ensure reliable connectivity for each workspace or meeting room. Perfect for flexible, room-based deployments in modern offices.

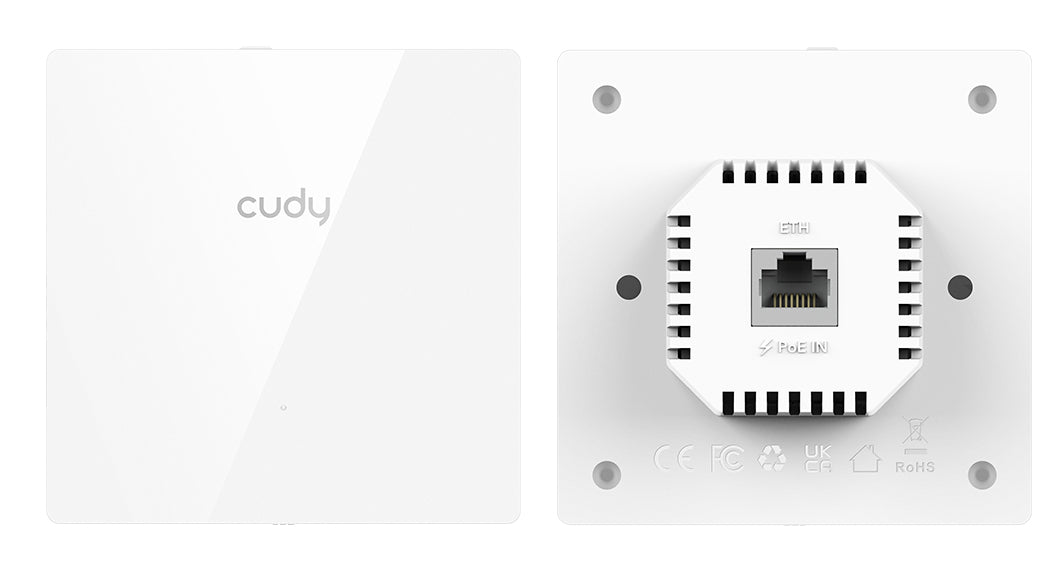

Gigabit Wired Connection
Equipped with two Gigabit Ethernet ports——including one that supports PoE IN, AP1300 Wall allows your VoIP phones, IPTV, or other wired devices to stay reliably connected to the network for smooth calls and streaming.

Effortless Wall-Mount Installation
Fits perfectly in a standard electrical box. It simplifies setup by eliminating the need for complex wiring or additional equipment.

Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Syslog	Yes
IGMP snooping	Yes
Country of origin	China
Reset button	Yes
Spread spectrum method	OFDMA
Number of users	40 user(s)
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11v, IEEE 802.11k
Maximum outdoor range	80 m
MIMO type	Multi User MIMO
MIMO	Yes
Flash memory	16 MB
Network
Internal	No
Software
Bundled software	Cudy Software
Features
6 GHz	No
Bluetooth	No
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Number of simultaneously connected devices (max)	128
Security
Security algorithms	WPA, WPA2, WPA3
Parental control	Yes
Protocols
DHCP server	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	4 W
Power consumption (typical)	10 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Design
Placement	Wall
Product colour	White
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna direction type	Omni-directional
Technical details
Products per shipping (inner) case	50 pc(s)
Weight & dimensions
Width	86 mm
Depth	86 mm
Weight	145 g
Height	43 mm
Package width	91 mm
Package depth	57 mm
Package height	89 mm
Package weight	220.1 g
Packaging data

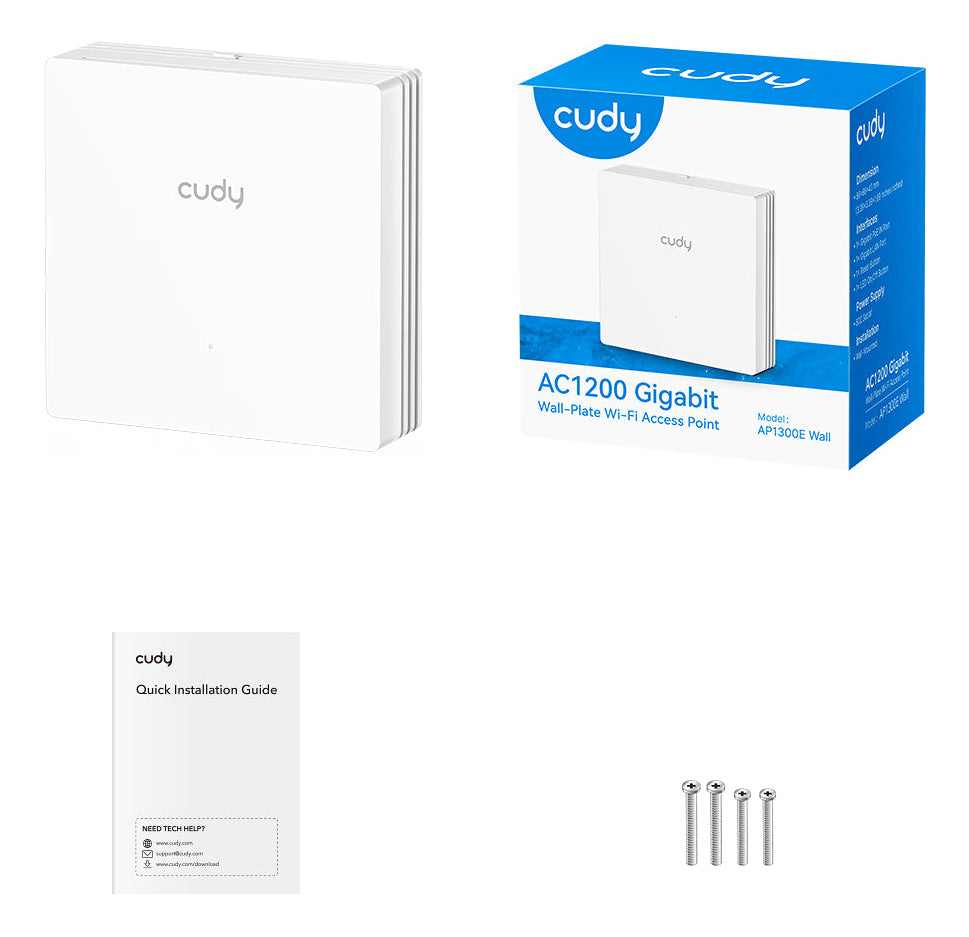

Quick start guide	Yes
Mounting kit	Yes
PoE adapter included	No
AC adapter included	No
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
