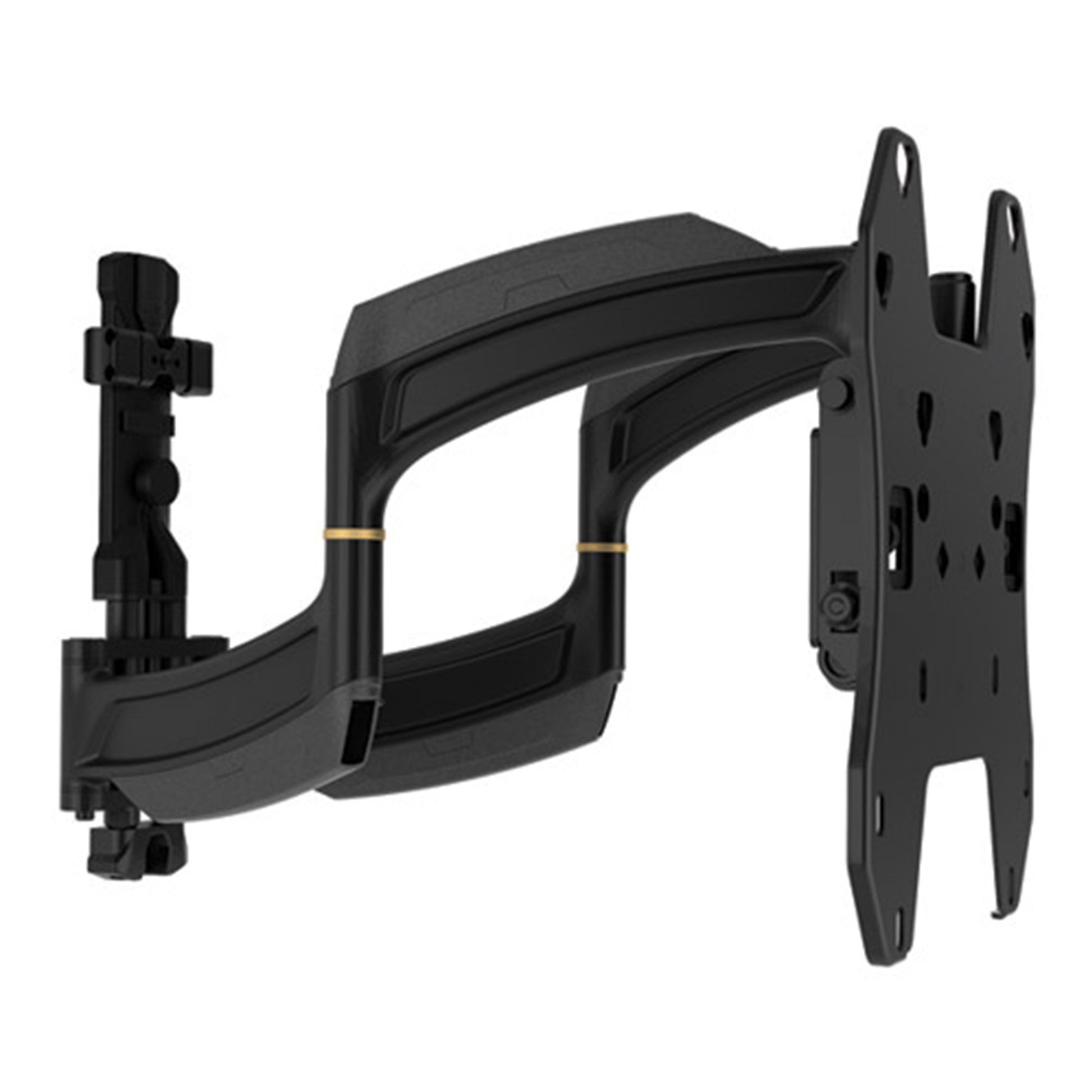

Chief Medium ThinstallTM Single Swing Arm Wall Display Mount - 18 Inch Extension

Position your screen exactly where you need it with the Chief Medium ThinstallTM Single Swing — VESA fit and load ratings are below.

Medium THINSTALL Dual Swing Arm Wall Mount - 18" Extension

Features

- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall fora seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Specifications

Mounting
Mounting type	Wall
Minimum screen size	66 cm (26")
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	132.1 cm (52")
Maximum weight capacity	34 kg
Ergonomics
Tilt angle range	-15 - 15°
Distance to the wall (max)	46 cm
Technical details
Product colour	Black
Weight & dimensions
Width	574 mm
Depth	33 mm
Height	343 mm
Logistics data
Harmonized System (HS) code	85299097
Other features
Pivot	-90° - 90°
Control type	Not available

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
