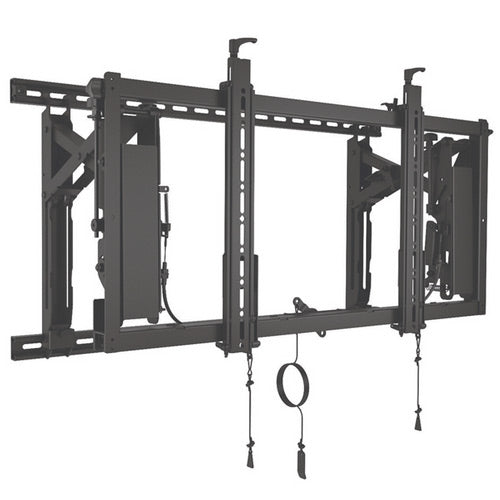

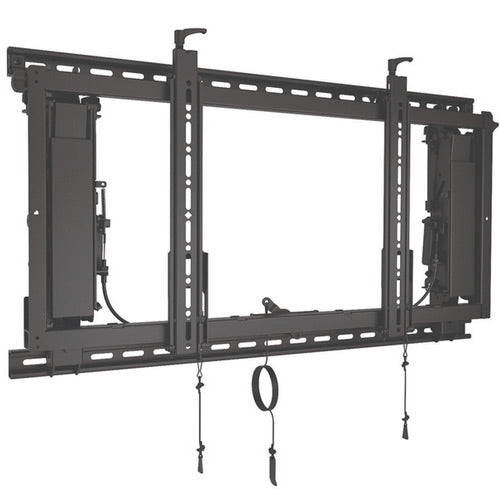

Chief LVS1U, ConnexSysTM Video Wall Landscape Mounting System with Rails

Position your screen exactly where you need it with the Chief LVS1U ConnexSysTM Video Wall — VESA fit and load ratings are below.

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements

The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount.

SPEED

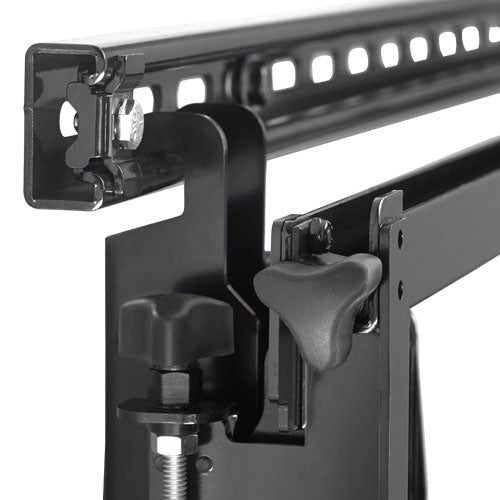

- Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect™ latching secures displays
- PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount

MISCELLANEOUS
- Security - pad lock 1/4" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position

RIGIDITY
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Specifications

Mounting
Minimum screen size	106.7 cm (42")
Maximum weight capacity	68 kg
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	700 x 400 mm
Maximum screen size	2.03 m (80")
Ergonomics
Height adjustment	Yes
Tilt angle range	-2.5 - 4°
Design
Housing material	Steel
Product colour	Black
Weight & dimensions
Width	902 mm
Depth	102 mm
Height	554 mm
Package weight	20 kg
Packaging content
Mounting kit	Yes
Other features
Compatibility	MIS-F (200x200mm) MIS-F (300x300mm) MIS-F (400x200mm) MIS-F (400x400mm) MIS-F (600x400mm)
Logistics data
Harmonized System (HS) code	85299097
