Position your screen exactly where you need it with the Chief Fusion® Display Mount Accessory — VESA fit and load ratings are below.

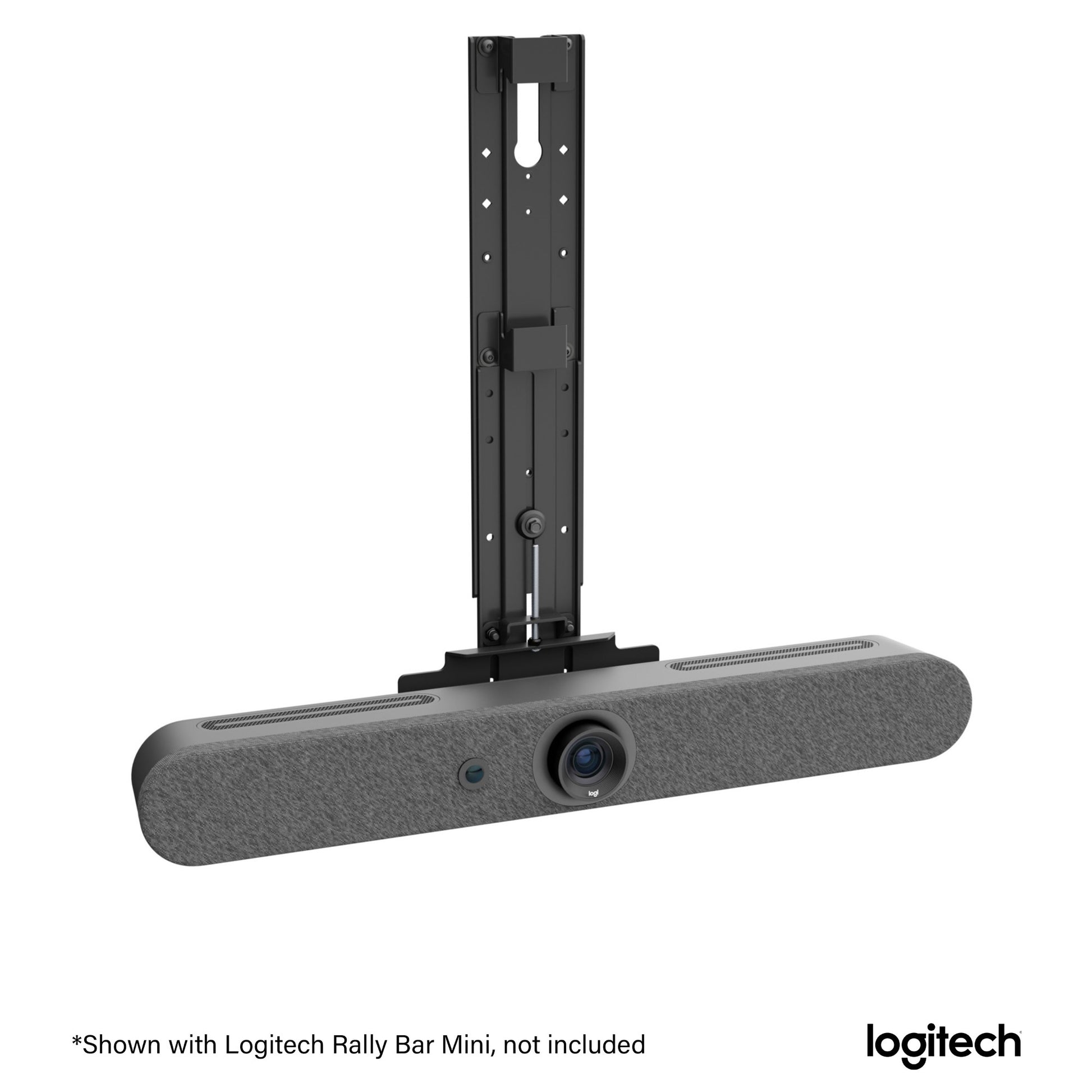

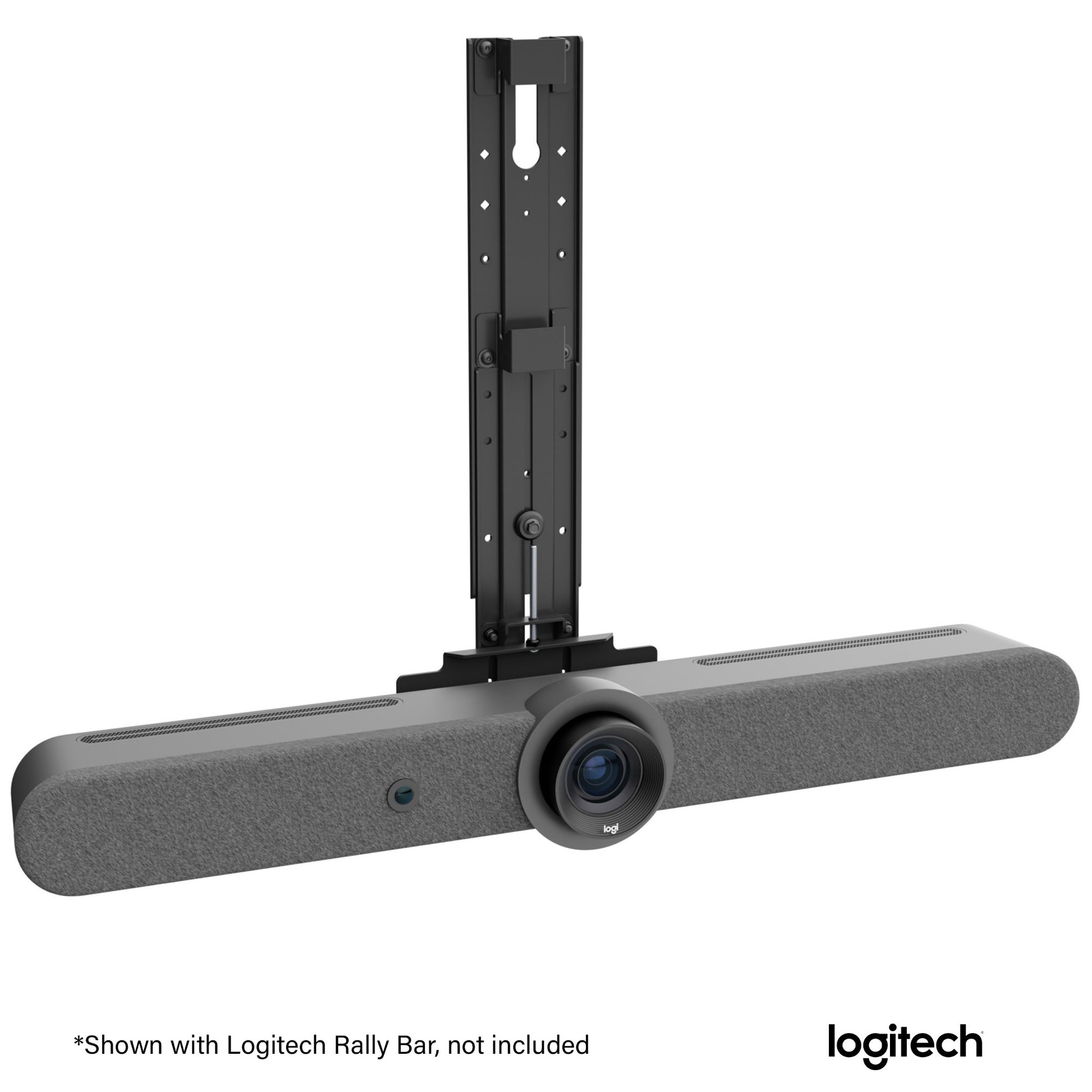

Fusion Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar HuddleThe FCALRB1 is a Fusion® mount accessory for the Logitech Rally Bar, Rally Bar Mini and Rally Bar Huddle all-in-one video bars. The FCALRB1 can be mounted above or below typical 55” to 94” displays to best suit meeting and/or application needs.
The FCALRB1 is compatible with various display mounts, such as2:

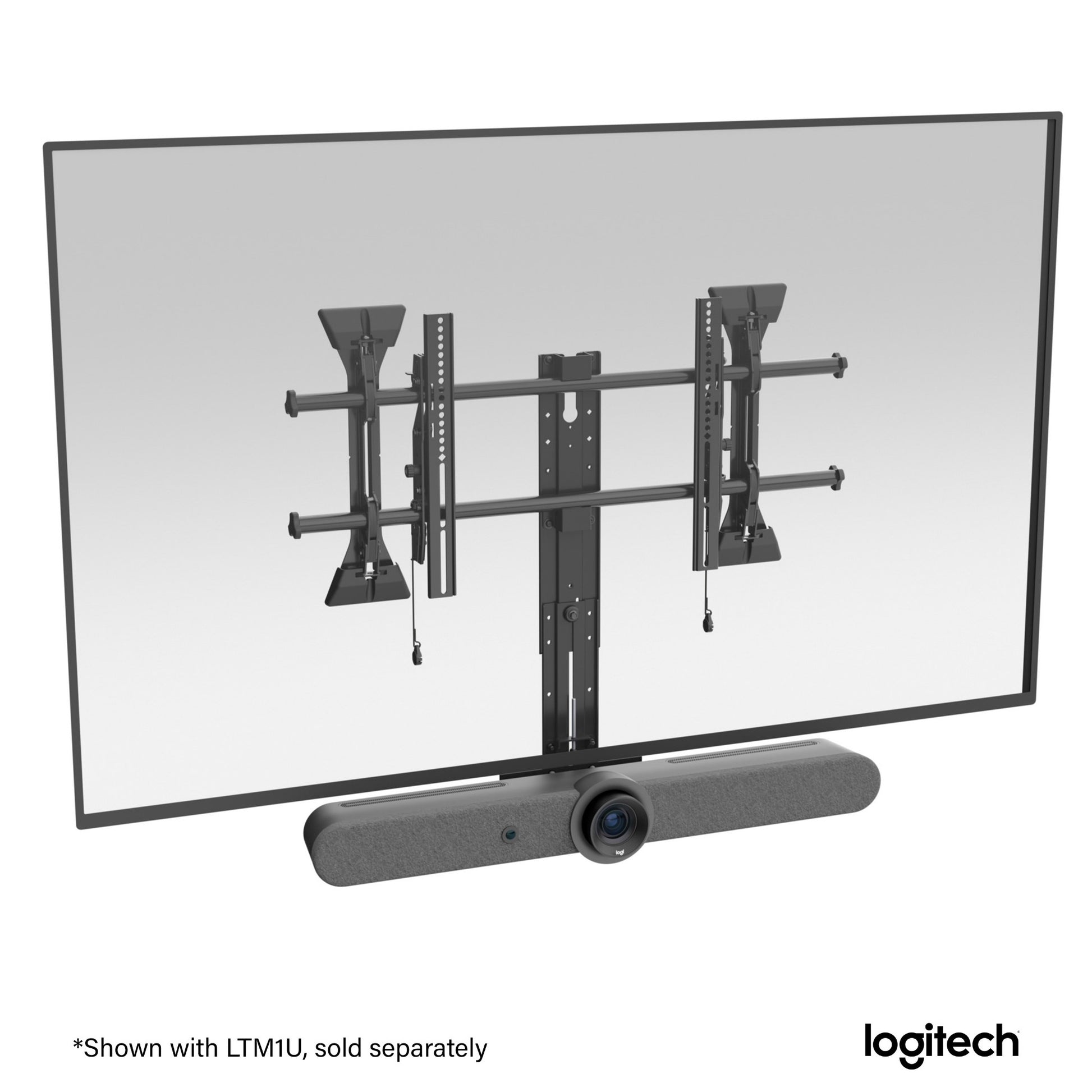

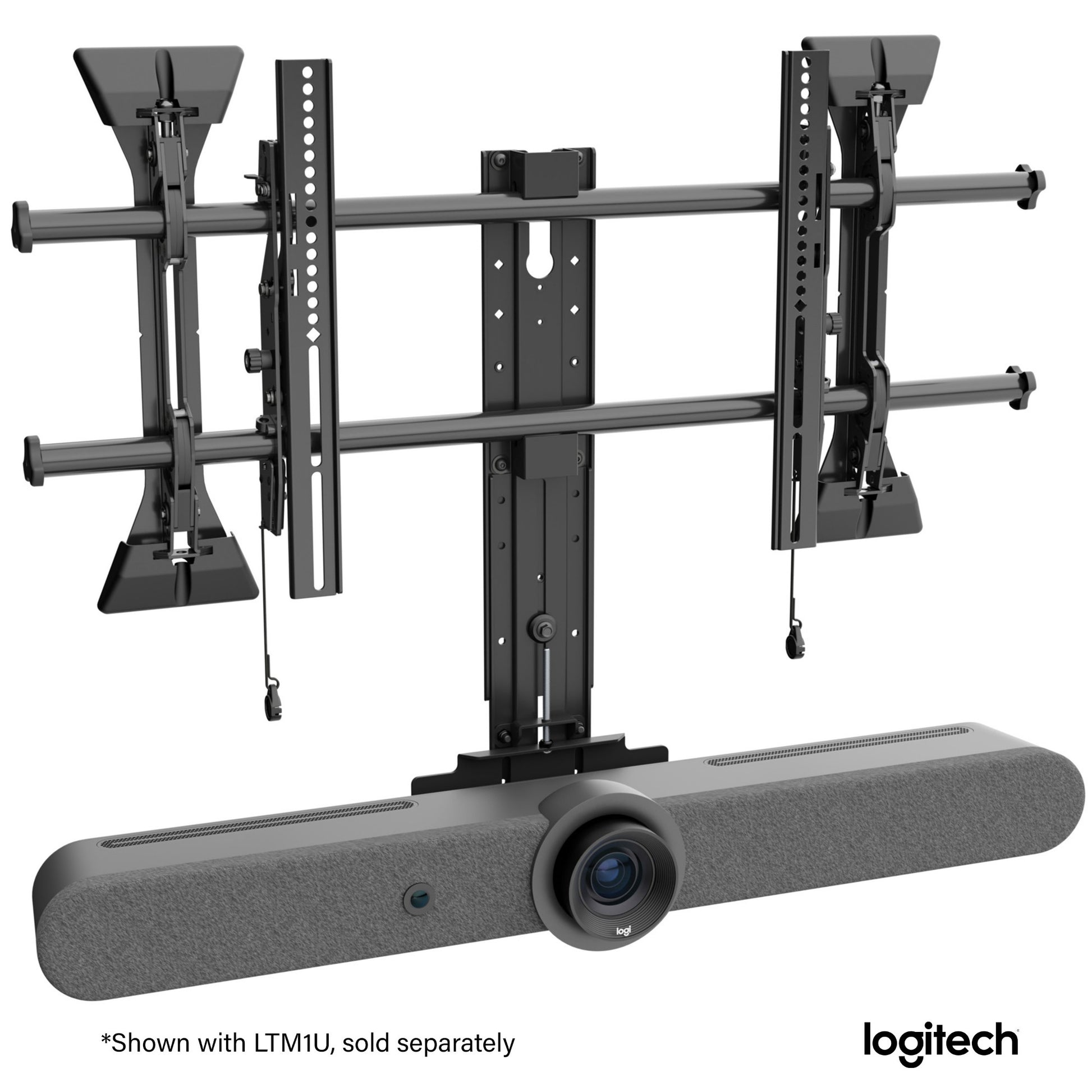

- Fusion Series Wall Fixed
- Fusion Series Wall Tilt Mounts
- Fusion Series Ceiling Mounts

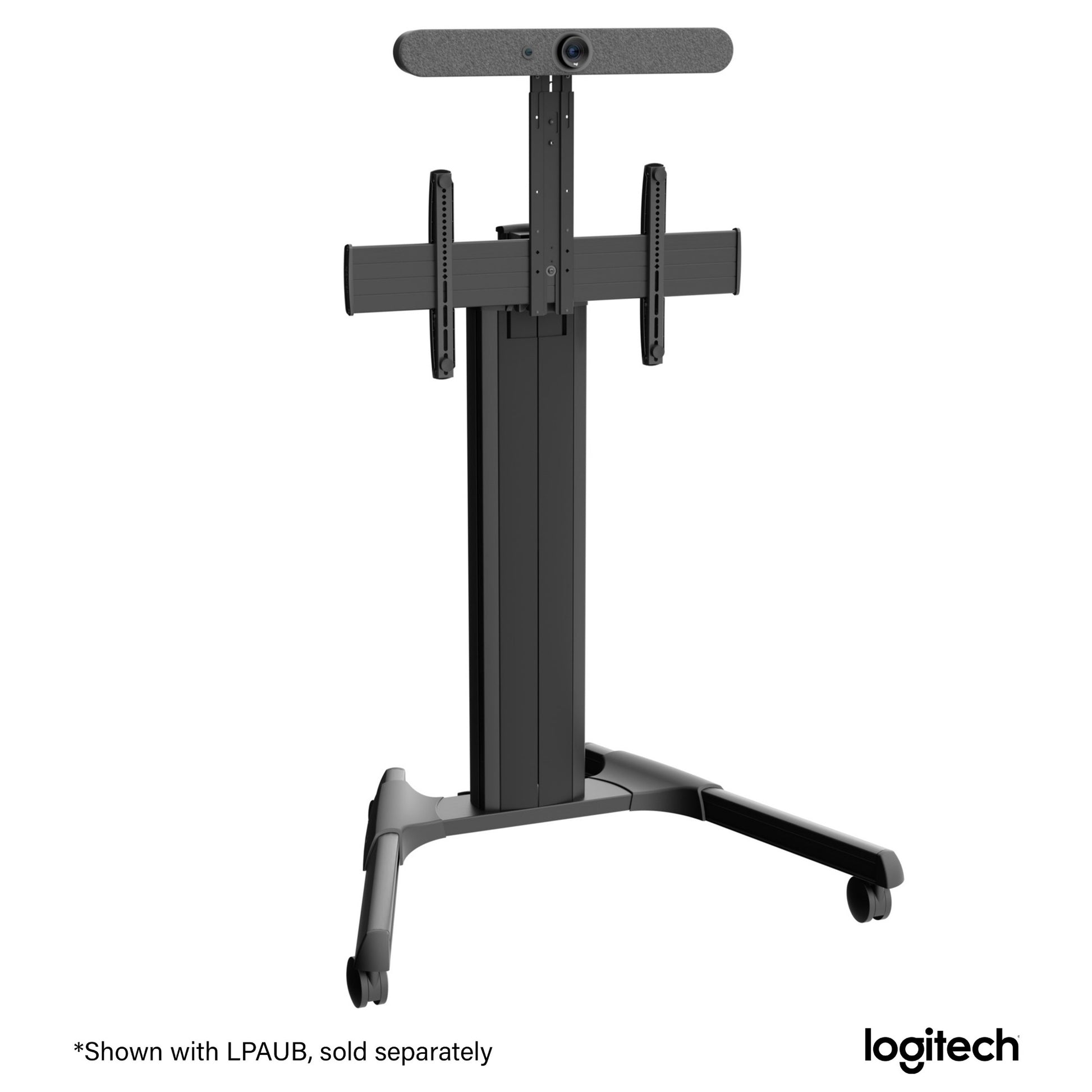

- Fusion Series Carts
- Fusion Series Floor Support Mounts
- Tempo Floor to Wall Dual Display Accessory
- Forum Collaboration Suite Free-Standing Display Stand
- Forum Collaboration Suite Floor-to-Wall Display Stand

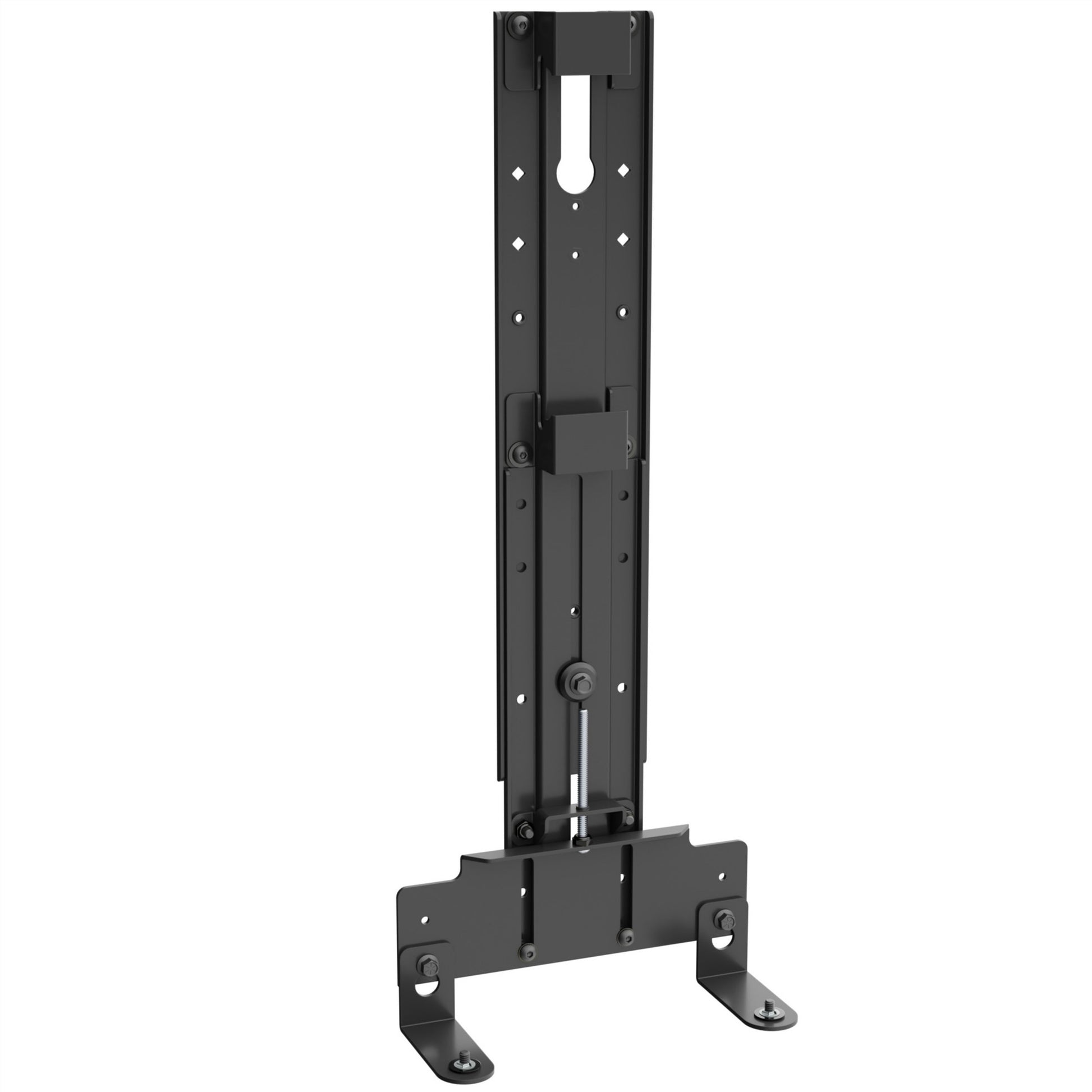

The FCALRB1 has 7.15” (182 mm) total height adjustment range, with 4.92” (125 mm) of macro-height adjustment and 2.23” (57 mm) of micro-height adjustment. The micro-adjust on the FCALRB1 allows a clean alignment of the Logitech Rally Bar, Rally Bar Mini, and Rally Bar Huddle to the bottom or top of the display after it’s been installed. Keyhole slots and captive screws are featured on the “L” brackets to facilitate quick and easy job site assembly.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
139.7 cm (55") |
| Maximum screen size |
2.39 m (94") |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Technical details |
|---|
| Product colour |
Black |
| Packaging data |
|---|
| Quantity per pack |
1 pair(s) |
