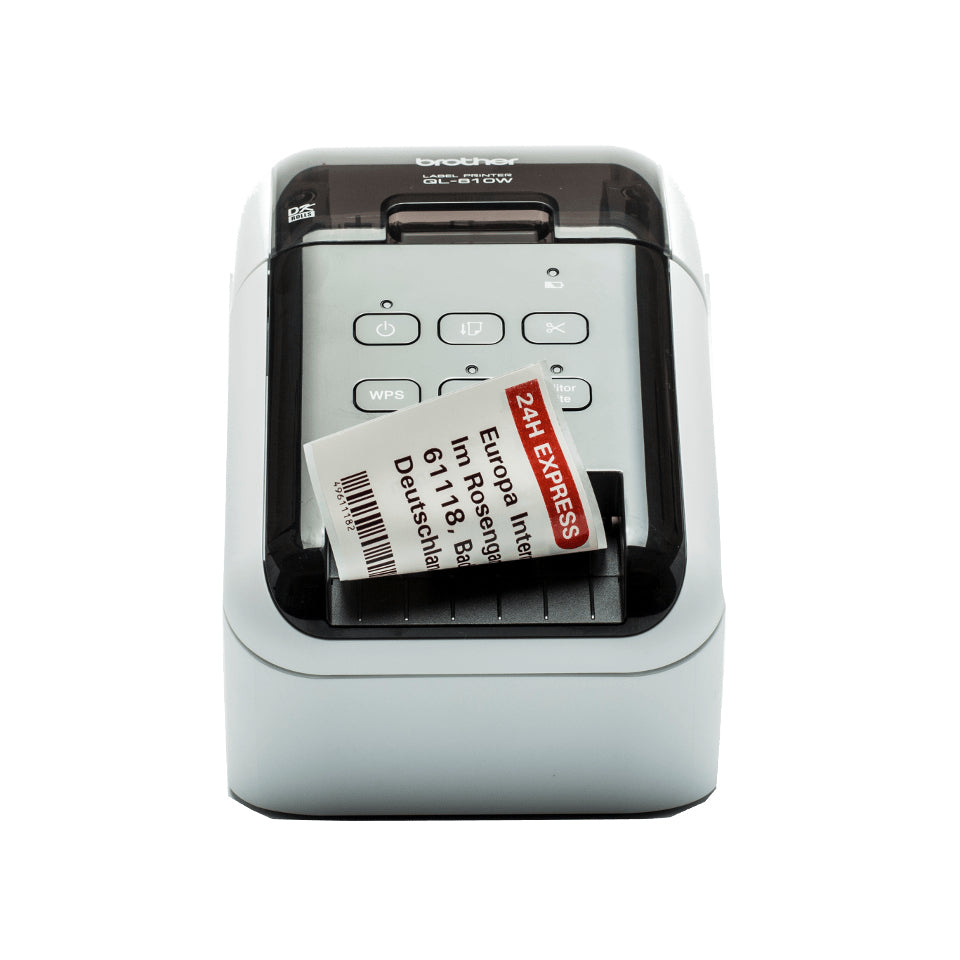

Brother QL-810WC label printer Direct thermal Colour 300 x 600 DPI 176 mm/sec Wired

Print crisp labels on demand with the Brother QL-810WC label printer Direct — print width, speed and connectivity are in the spec table.

Large range of labels for any application
The QL series label printers use Brother DK rolls - that easily slot-in for fast label changes. Several types are available:

- Pre-sized die-cut adhesive labels in paper and plastic film material.
- Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 1 metre).
- Non-adhesive card ideal for receipts and name badges.
- Removeable adhesive for repositionable labels.

Optional Li-ion battery base
There are situations where you may need to print labels away from a power source, such as use on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function, and lasts for thousands of labels on a full charge.

Print any size labels, in black and red
Rolls are available in a range of traditional die-cut (pre-sized) labels, or continuous that lets the built-in cutter cut your label to the precise length (up to one metre). And now you can draw attention to important information by including red* on your labels too - ideal for highlighting use-by dates, allergens and other critical information.

Print from PC, Mac, iOS and Android devices
Choose from several options for designing and printing labels. Download for free the P-touch Editor label design software for PC and Mac to design labels with text, barcodes, images and frames. Alternatively, head on over to your app store to download the free iPrint & Label app for iOS and Android, then quickly create and print labels from your mobile devices, wirelessly.

Print labels the way you want
This advanced label printer is designed for the demands of a busy workplace, yet easy to set-up and use. Using the same technology as USB pen drives, simply connect to your PC or Mac, and run the built- in software. No need to install printer drivers. Alternatively download the free P-touch Editor label design software and printer drivers to design and print fully customised labels containing text, frames, barcodes and images. And easily share the printer with colleagues over your wireless network using P-touch Editor Lite LAN software.

Works with Microsoft Word/Excel/Outlook
Highlight, click and print your text data directly from Word, Excel and Outlook with just a click! The P-touch Editor add-in for Microsoft Office (Windows only) allows you to print labels with the information you use every day. Alternatively, if you have text saved in an Excel or .csv file, import this into P-touch Editor and simply place each field on your label layout to print many labels with the same format (design). Ideal for printing address, product and pricing labels.

Specifications

Print quality
Vertical printing	Yes
Maximum resolution	300 x 600 DPI
Maximum print height	5.8 cm
Printing
Rotated printing	Yes
Minimum print length	100 cm
Text alignment	Center, Left
Colour	Yes
Print speed	110 lpm
Print technology	Direct thermal
Network
Wi-Fi	Yes
Ethernet LAN	No
Memory
Flash memory	6 MB
Paper handling
Maximum label width	6.2 cm
Maximum label length	4 m
Autocutter	Yes
Ports & interfaces
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
USB port	Yes
Performance
Tape size detection	Yes
Tape type	DK
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	5
Security algorithms	AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA-PSK, WPA2-AES, WPA2-PSK, WPA2-TKIP
Page description languages	ESC P, Raster_P
Design
Product colour	Black, White
Power
Battery technology	Lithium-Ion (Li-Ion)
Auto power off	Yes
Technical details
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Sustainability certificates	ENERGY STAR
Software
Bundled software	P-touch Editor Lite P-touch Editor 5 P-touch Editor Lite LAN P-touch Address Book BR Admin Light
System requirements
Linux operating systems supported	Yes
Weight & dimensions
Package width	298 mm
Package depth	184 mm
Package height	232 mm
Width	125 mm
Depth	234 mm
Height	145 mm
Weight	1.12 kg
Package weight	2.66 kg
Packaging content
Cables included	AC, USB

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
