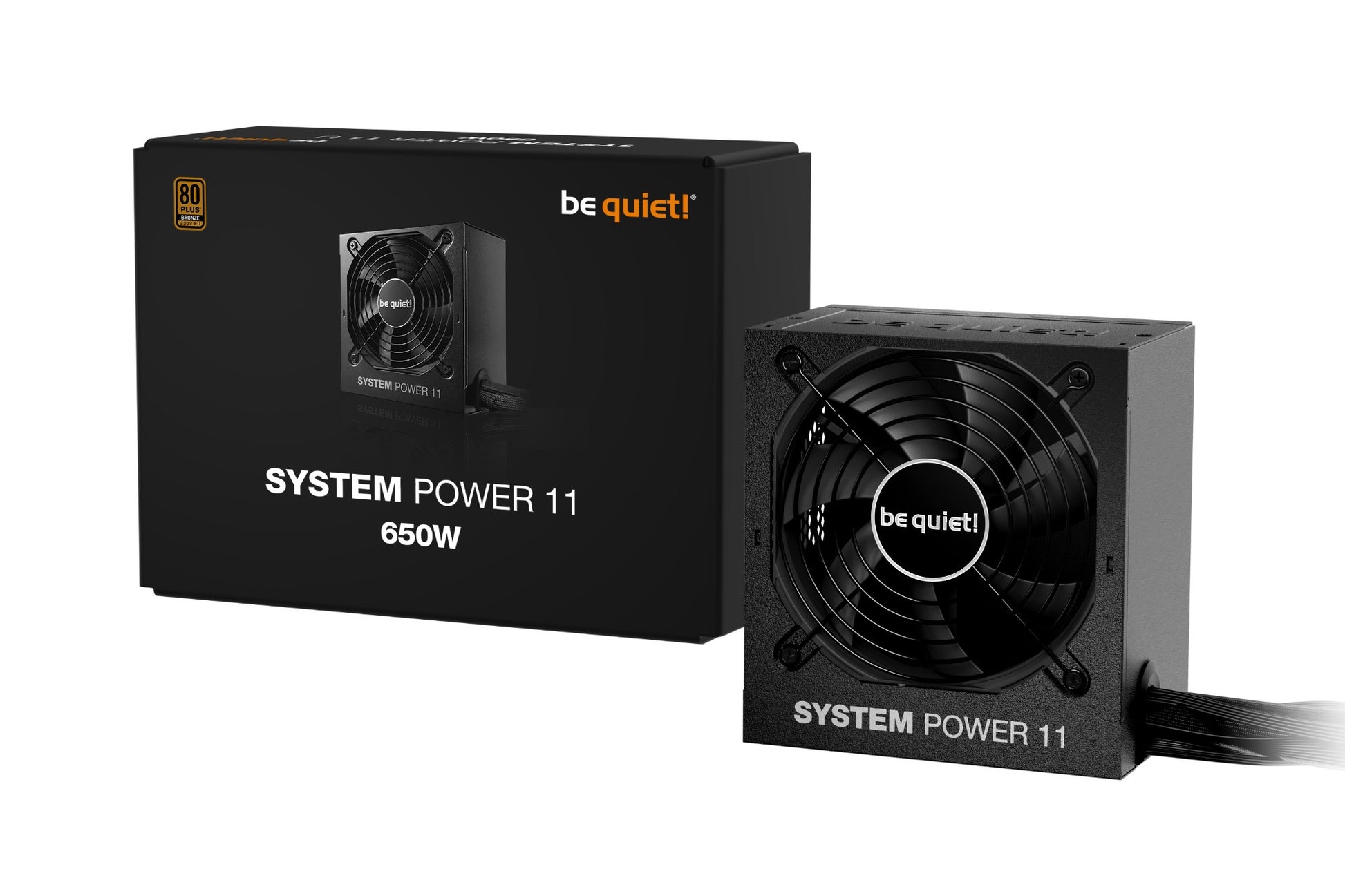

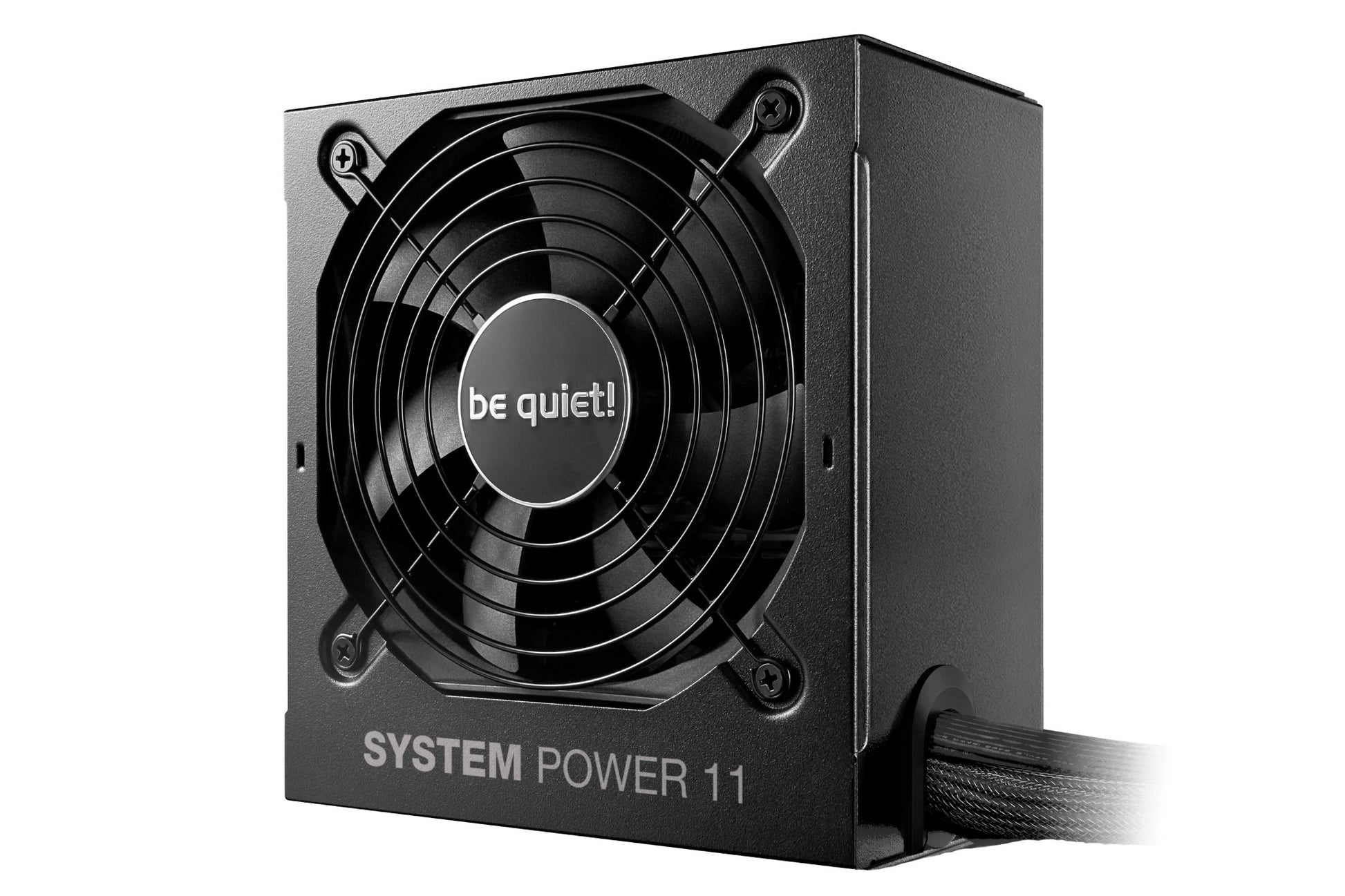

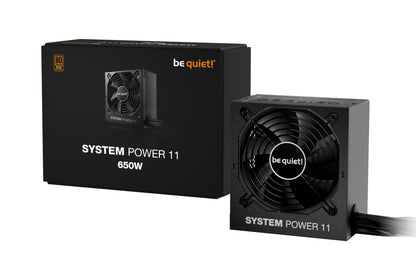

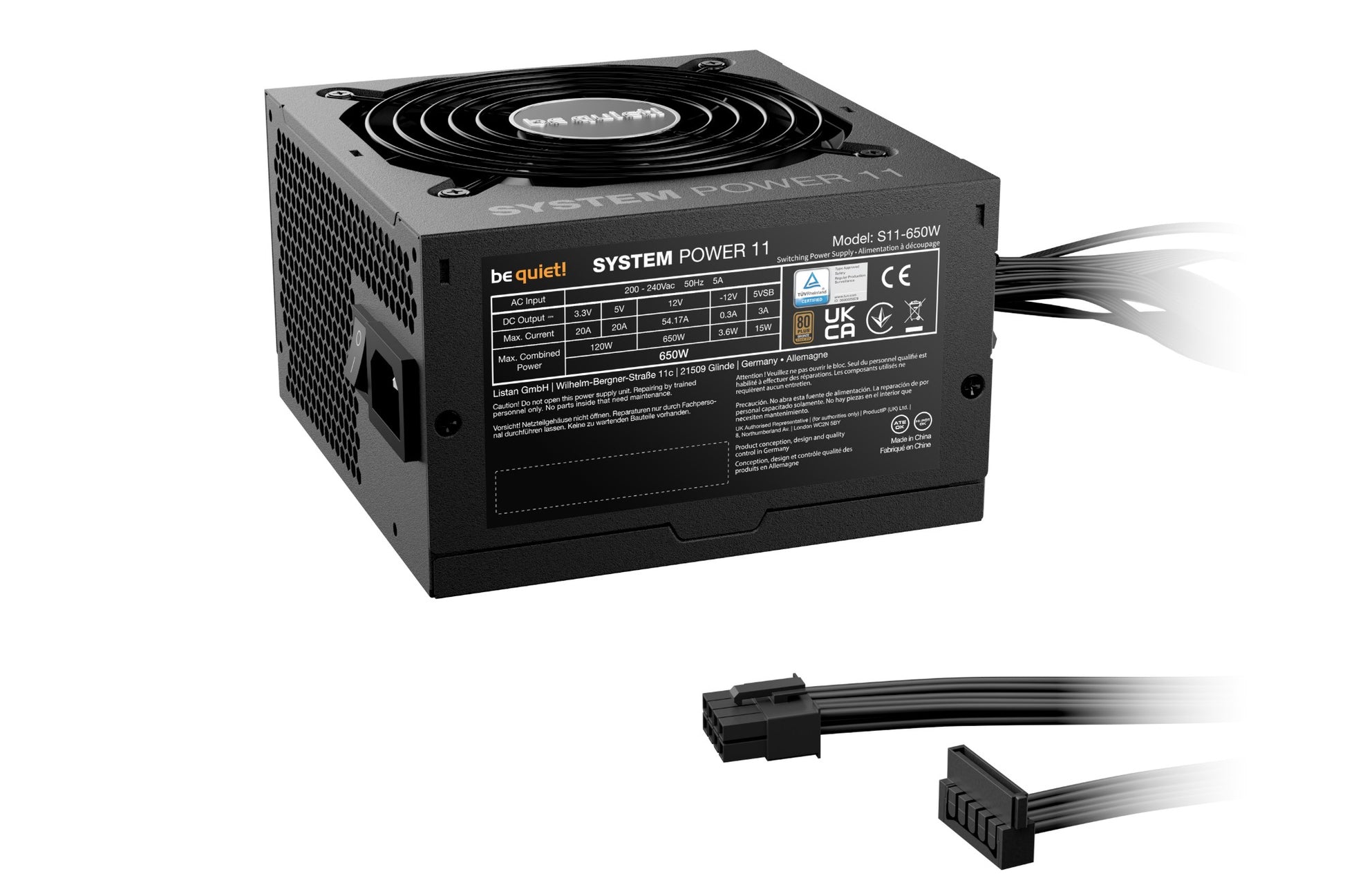

be quiet! System Power 11 650W power supply unit 20+4 pin ATX ATX Black
be quiet! System Power 11 650W power supply unit 20+4 pin ATX ATX Black
Regular price
£43.82 GBP
Regular price
Sale price
£43.82 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Reliable power for your system: the be quiet! System Power 11 — wattage and connector details are in the spec table.
Proven Reliability, Quiet OperationSystem Power 11 650W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 650W offers even at entry-level.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2100 RPM |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 30.9 dB |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Rifle |
| Design | |
| Product colour | Black |
| Illumination | No |
| Power | |
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 4 A |
| Power factor | 0.98 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 54.17 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage |
| Hold time | 17.04 ms |
| Efficiency | 89.7% |
| Number of +12V rail(s) | 1 |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| PCI Express power connectors (12-pin) | 1 |
| Technical details | |
| Shipping (inner) case width | 31.1 cm |
| Shipping (inner) case length | 55.6 cm |
| Shipping (inner) case height | 21.8 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Sustainability certificates | ENERGY STAR, ErP |
| Compliance certificates | CB, CE, RoHS, TÜV mark, UKCA, WEEE |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 86 mm |
| Height | 140 mm |
| Weight | 1.97 kg |
| Packaging data | |
| Screws included | Yes |
| Cable ties included | Yes |
| Package depth | 268 mm |
| Package width | 195 mm |
| Package height | 97 mm |
| Package type | Box |
| Package weight | 2.4 kg |
| Logistics data | |
| Shipping (inner) case gross weight | 15.2 kg |
