be quiet! SILENT WINGS PRO 4 | 120mm PWM Computer case Fan 12 cm Black 1 pc(s) Cooling

Keep temperatures in check with the be quiet! SILENT WINGS PRO 4 — fitment and noise details are in the spec table.

Legendary silence, epic performance and features
For the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 120mm PWM is the most progressive, performant, and versatile fan by be quiet!

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	3000 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Noise level (high speed)	36.9 dB
Type	Fan
Fan diameter	12 cm
Maximum airflow	83.9 cfm
Maximum air pressure	5.31 mmH2O
Airflow	142.5 m³/h
Number of fans	1 fan(s)
Mean time between failures (MTBF)	300000 h
Quantity per pack	1 pc(s)
Design
Product colour	Black
Certification	CE / ROHS / RU / UKCA / TÜV / WEEE
Cable length	0.5 m
Illumination LED	No
Display type	Not applicable
Power
Rated voltage	12 V
Voltage	7 - 13.2 V
Rated current	0.3 A
Power consumption (typical)	3.6 W
Maximum current	0.33 A

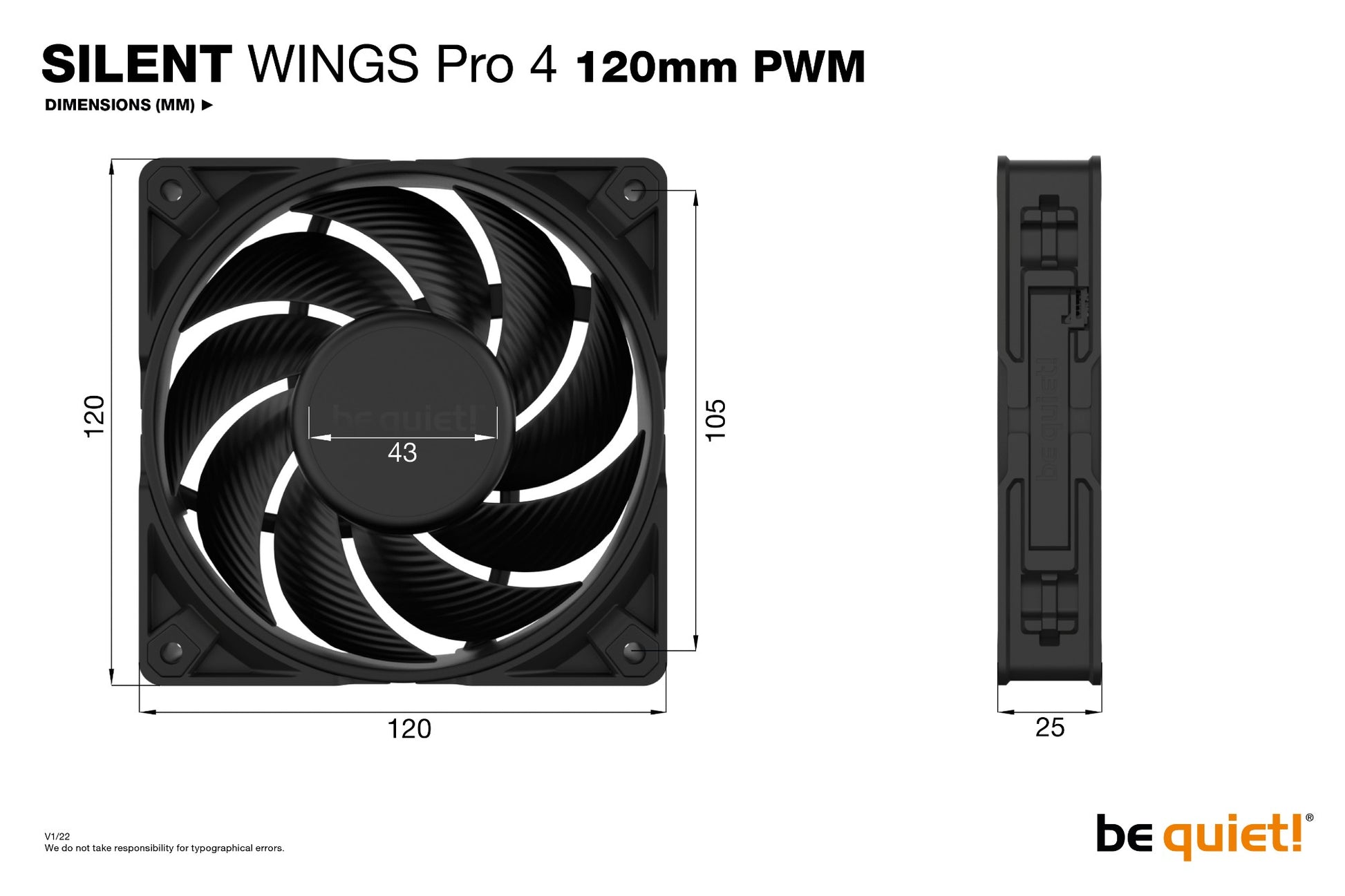

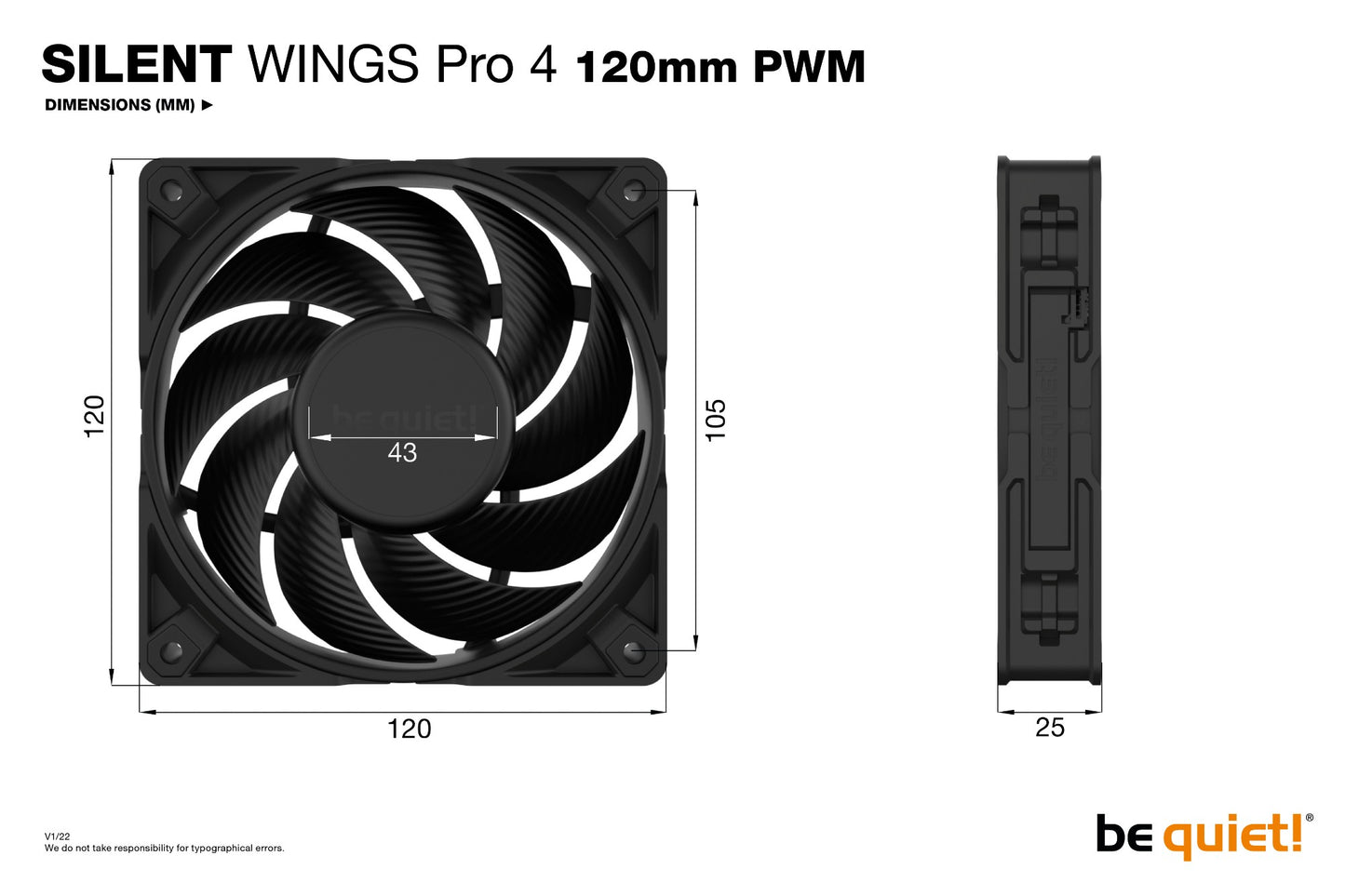

Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	192 mm
Package width	141 mm
Package height	31 mm
Width	120 mm
Package weight	400 g
Depth	120 mm
Height	25 mm
Weight	227 g

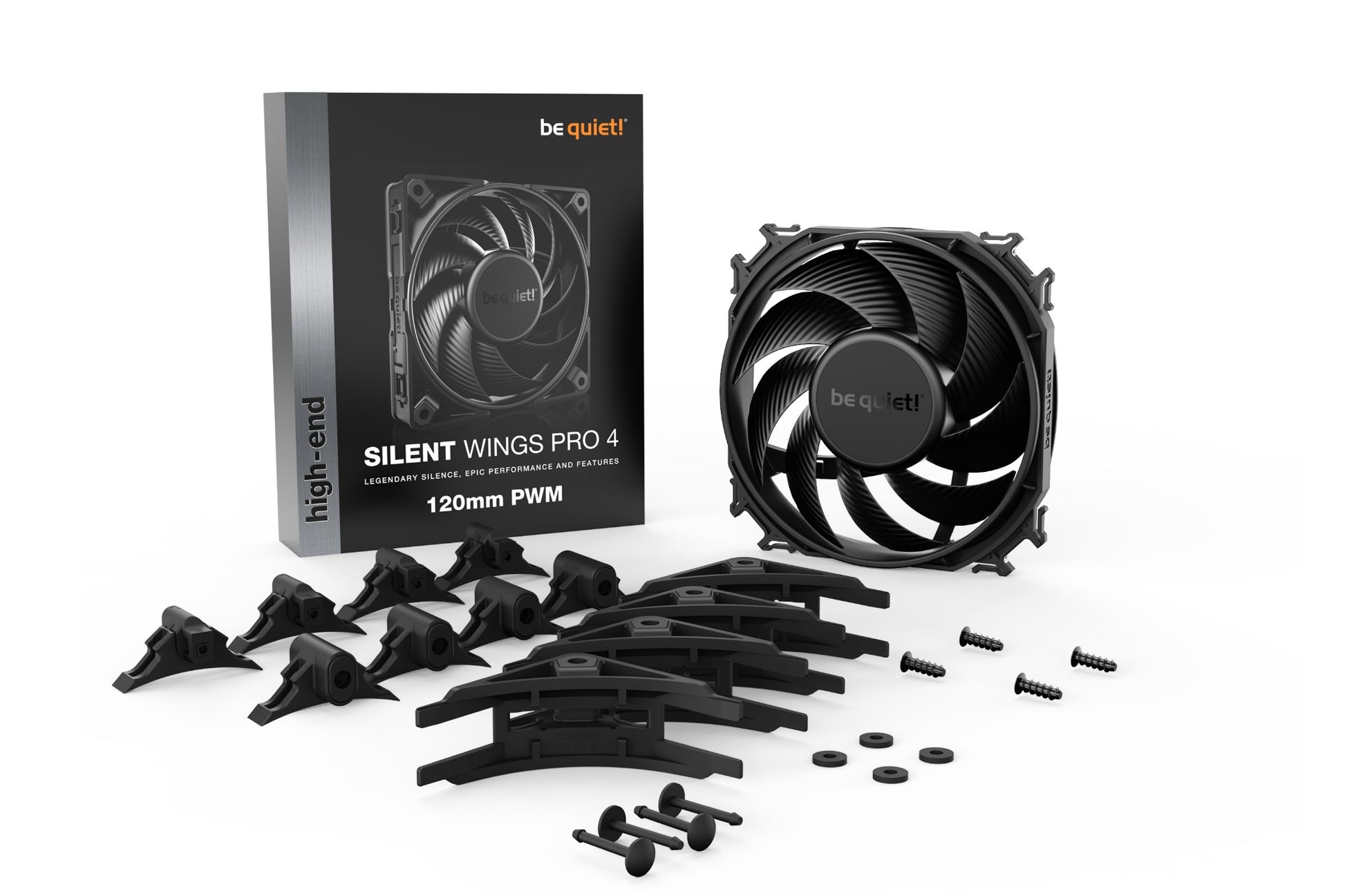

Packaging content
Screws included	Yes
Number of clips	4
Other features
Country of origin	Germany
Harmonized System (HS) code	84733080
Logistics data
Shipping (inner) case width	38.7 cm
Shipping (inner) case length	43.2 cm
Shipping (inner) case height	37.5 cm
Shipping (inner) case gross weight	17.2 kg
Products per shipping (inner) case	40 pc(s)

Downloads

• Datasheet (PDF)
